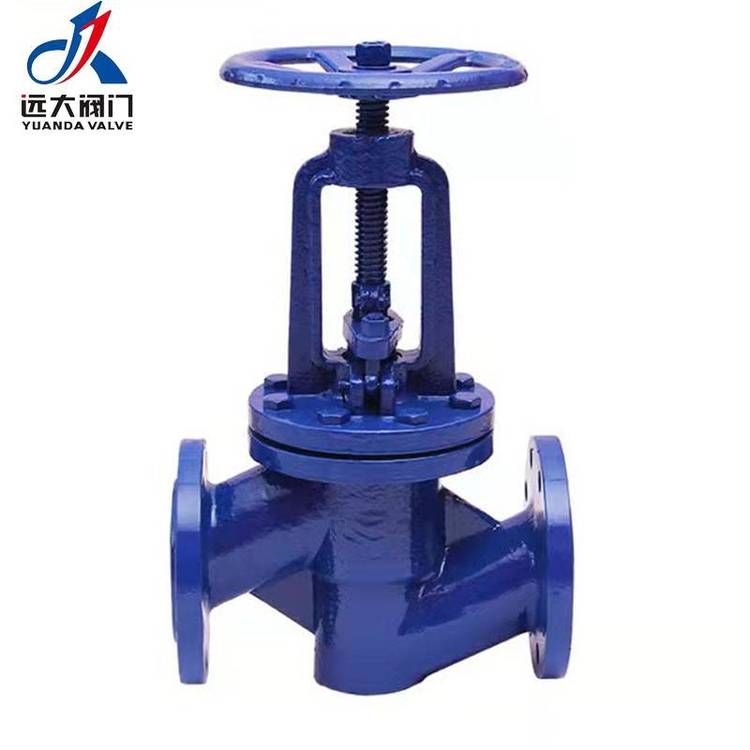

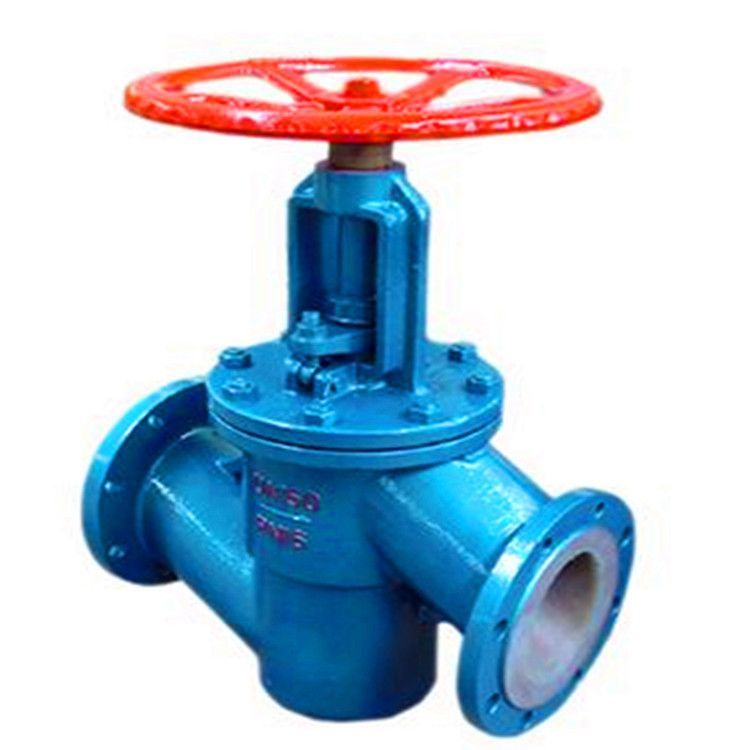

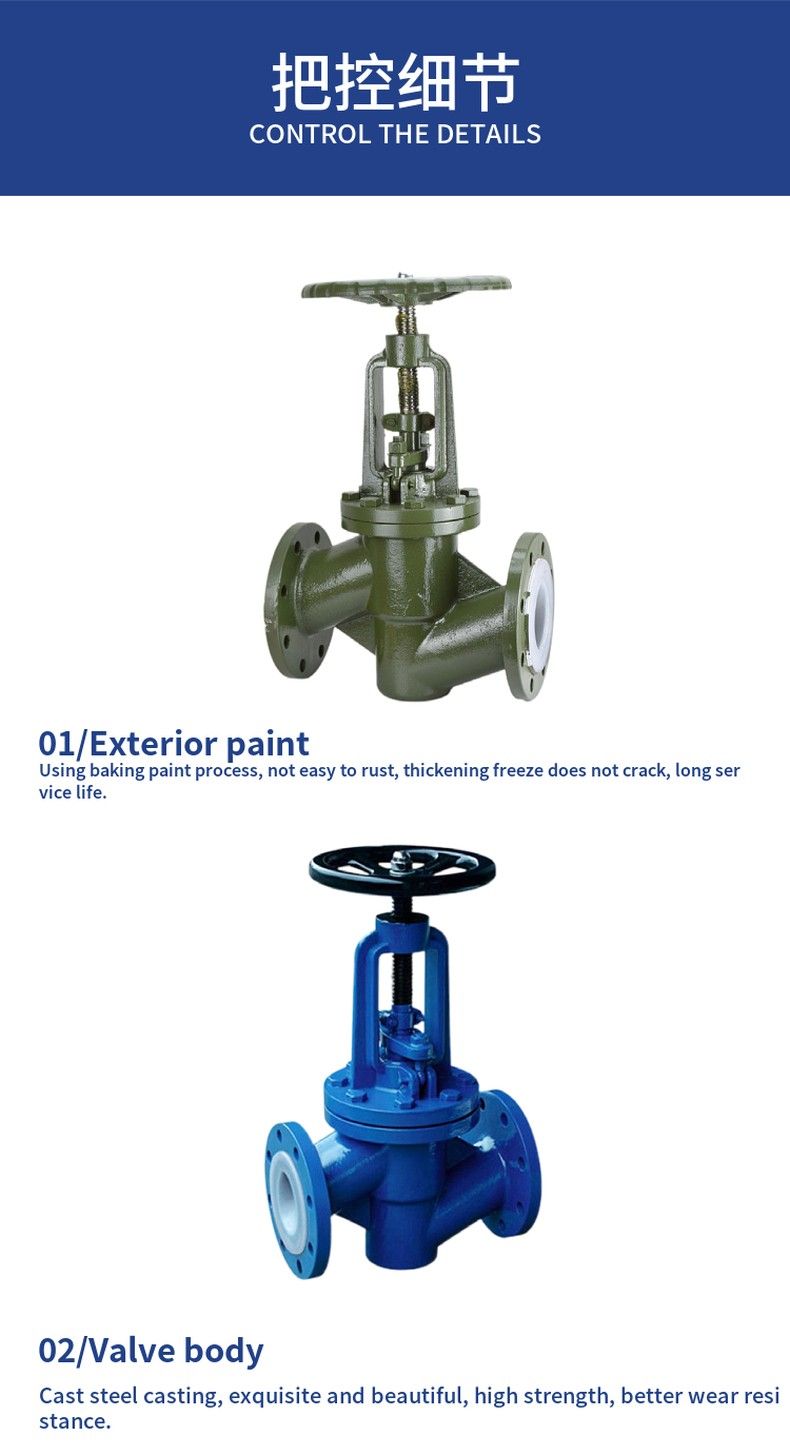

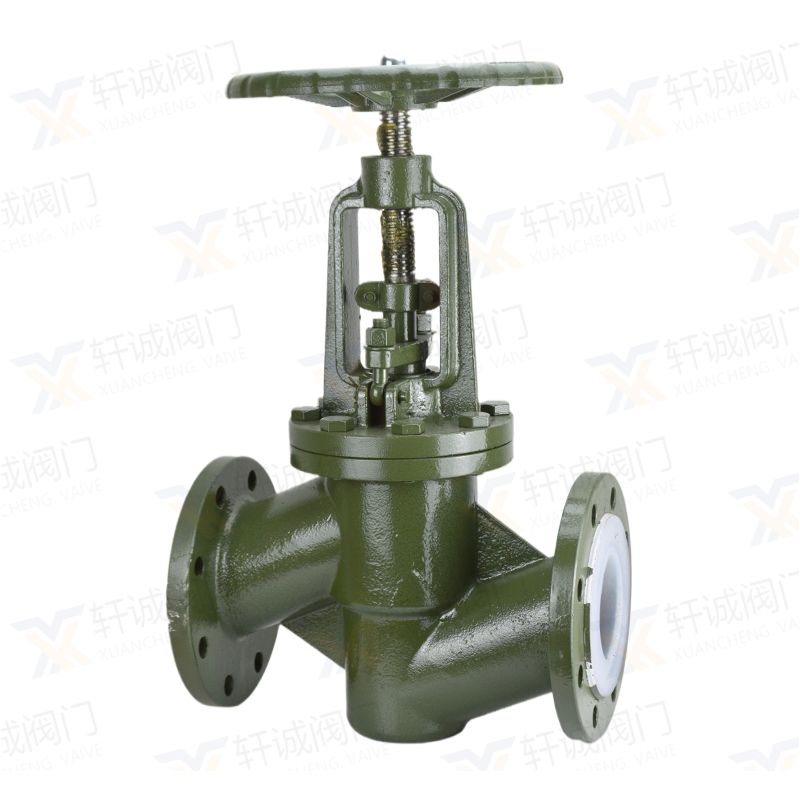

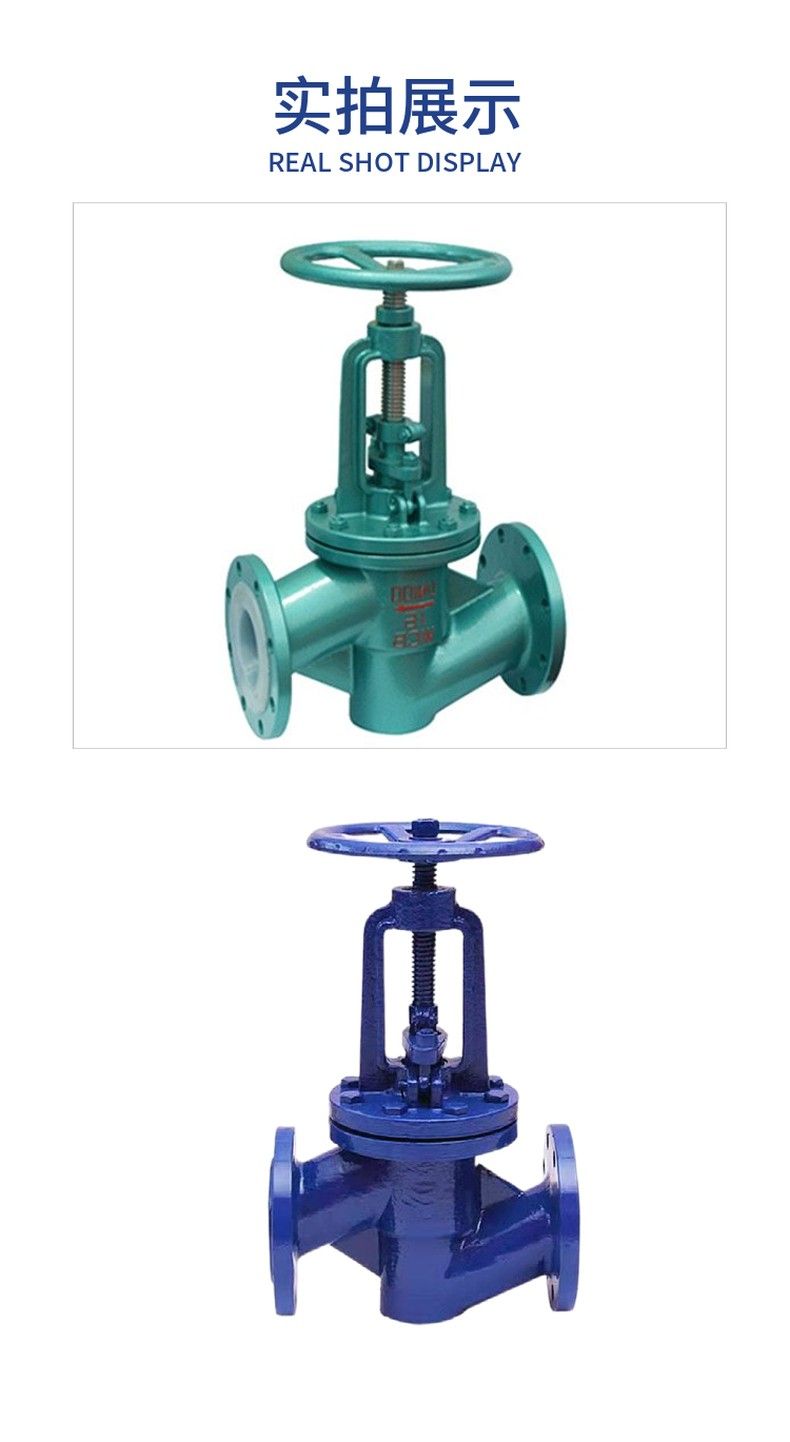

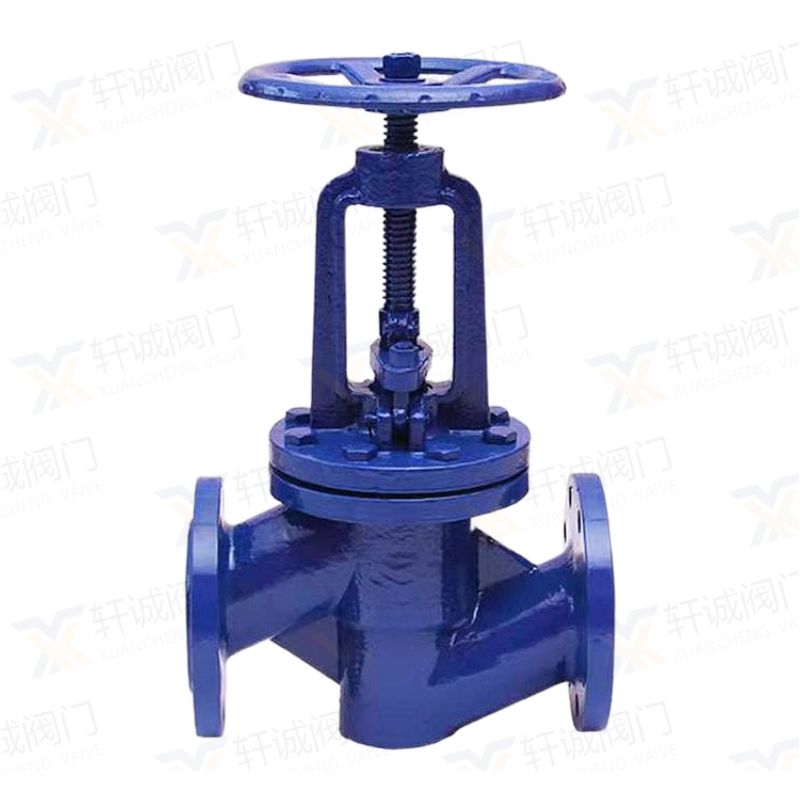

J41F46 lined with fluorine globe valve

Basic structure of the globe valve

1, fluorine plastic lining J41F46 straight through type, with compact structure, flexible opening and closing, strong corrosion resistance, short stroke (generally nominal diameter 1/4) and other advantages, is widely used in petroleum, chemical and other pipeline systems to cut the medium, but it needs to be emphasized that fluorine plastic lining of the stop valve is strictly prohibited for flow regulation, So as not to produce high speed medium flow erosion damage sealing surface at the throttle. 2, valve disc and stem design as an integrated structure, to prevent the possibility of internal parts out of the valve body caused by pipeline pressure fluctuations, compact structure, safe use.

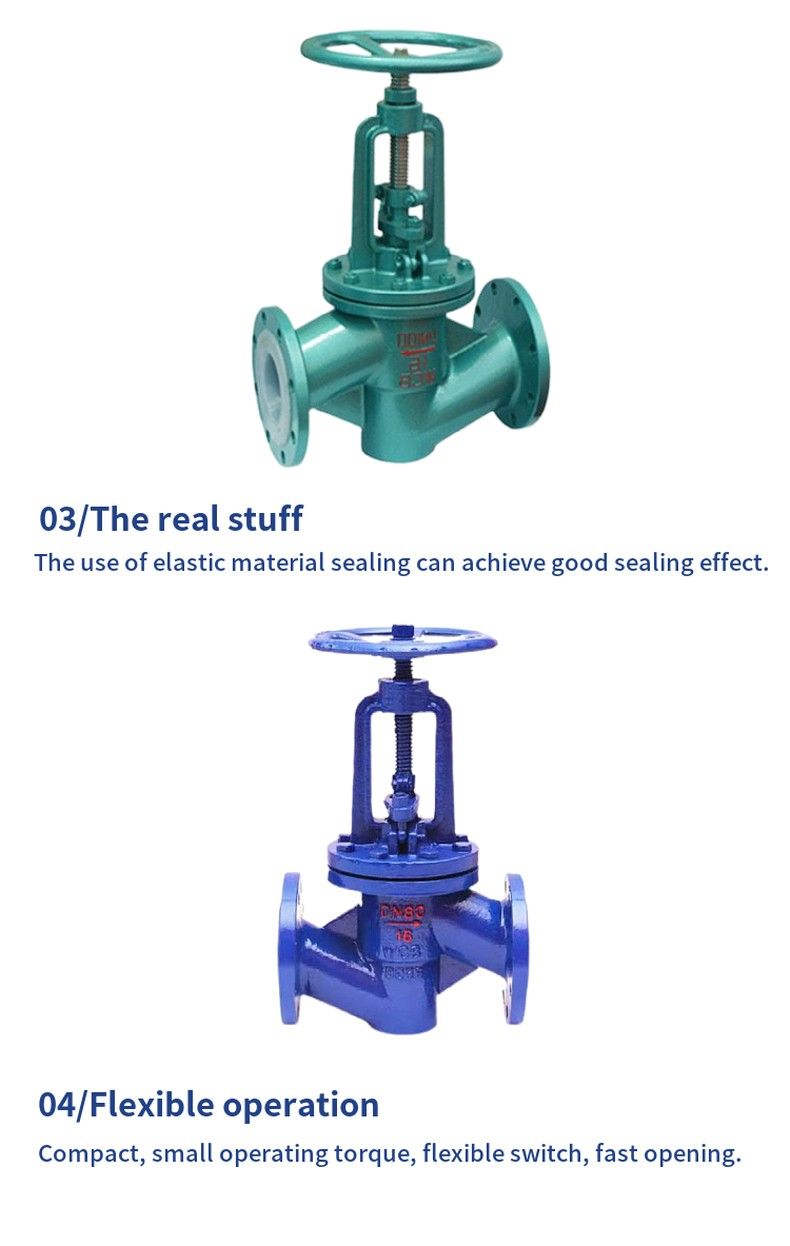

Design features

In order to ensure that the pipeline medium is absolutely not in direct contact with the valve shell material, the valve body, valve cover, valve disc and other internal parts of this product are designed into fluorine plastic lining parts; The valve seat is made of integral polymer as sealing material, which has excellent sealing performance in a wide temperature and pressure range; This series of valves has complete specifications and excellent corrosion resistance, and is the ideal valve for chemical, pharmaceutical, electronic, environmental protection, petrochemical, crude oil and natural gas transmission pipelines.

Performance parameters

Driving device: manual, worm gear drive, electric, pneumatic applicable medium: sulfuric acid, hydrofluoric- acid, phosphoric acid, chlorine gas, strong alkali, aqua royal and other any strong corrosive medium. Design specification: comply with GB12233, GB12235, ANSI 16.34 standard

Model and significance

J41F46-16-DN200 J: globe valve class code 4: Connection type is flange connection 1: Structure type is straight through F46: through part material is F46 (polyperfluoro ethylene propylene) 16:16 kg pressure DN200: diameter is 200MM
