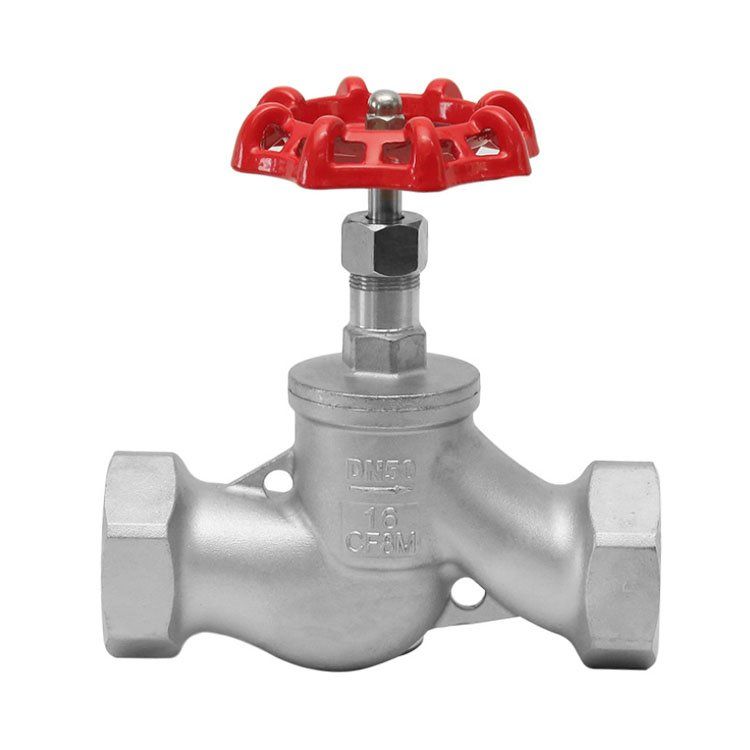

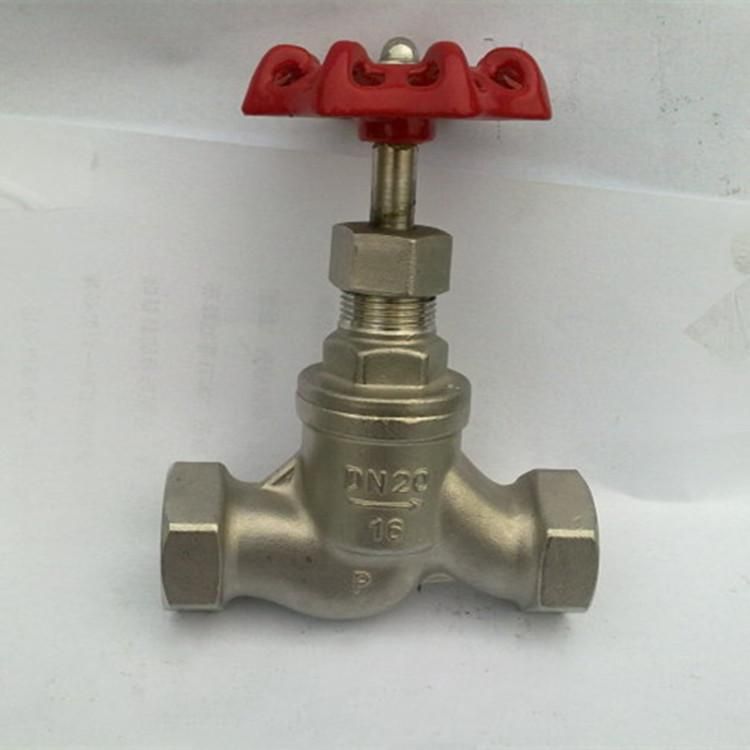

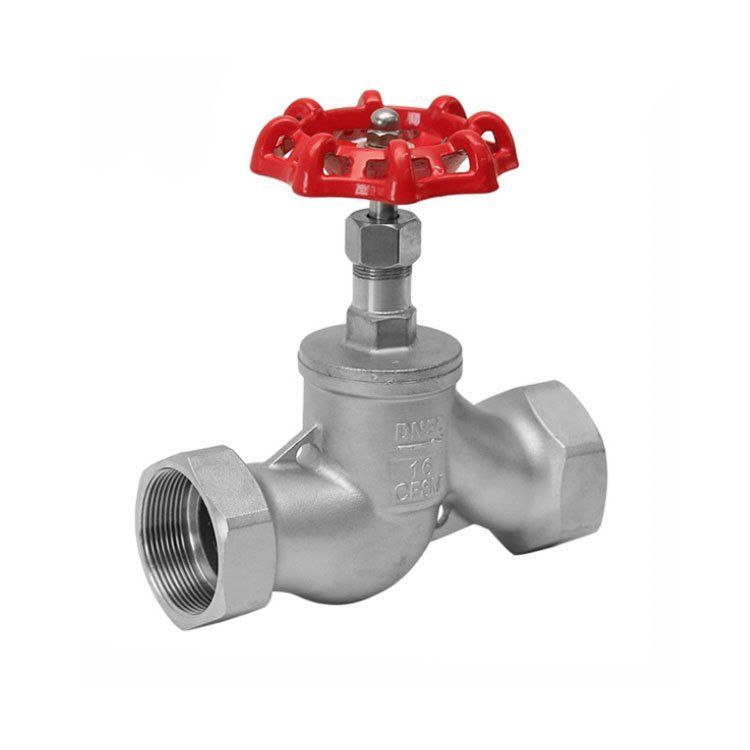

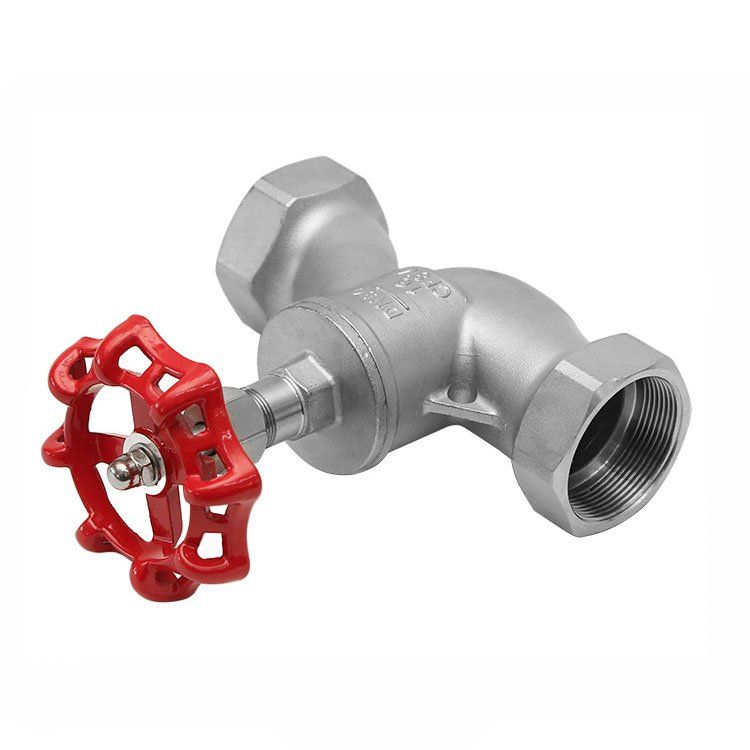

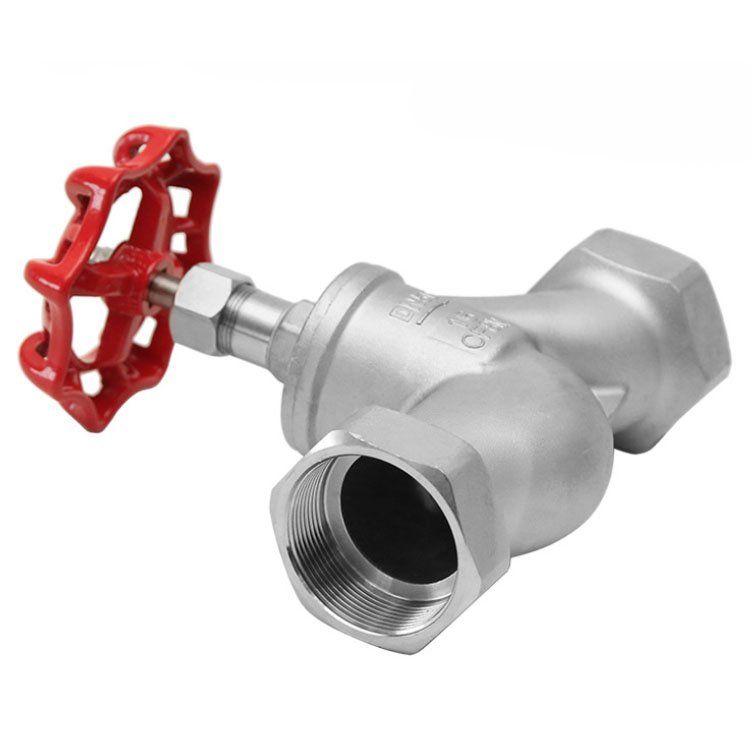

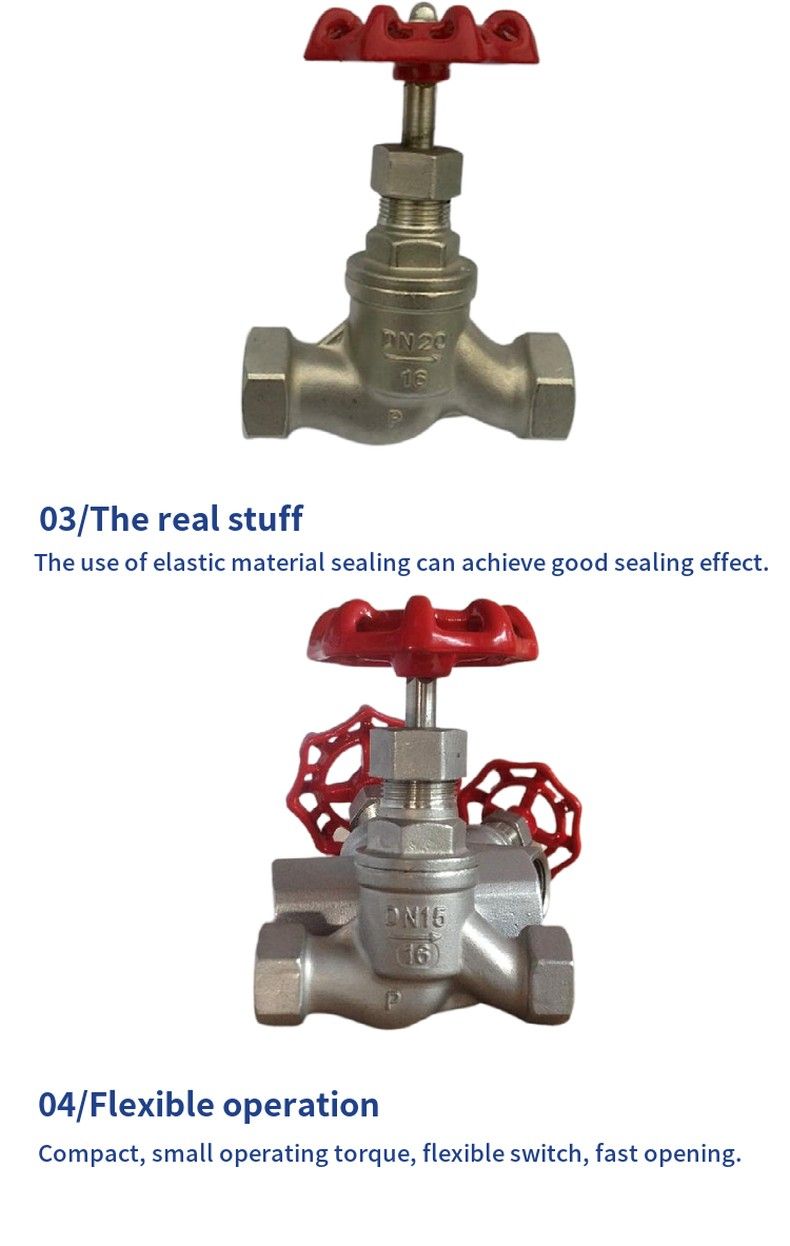

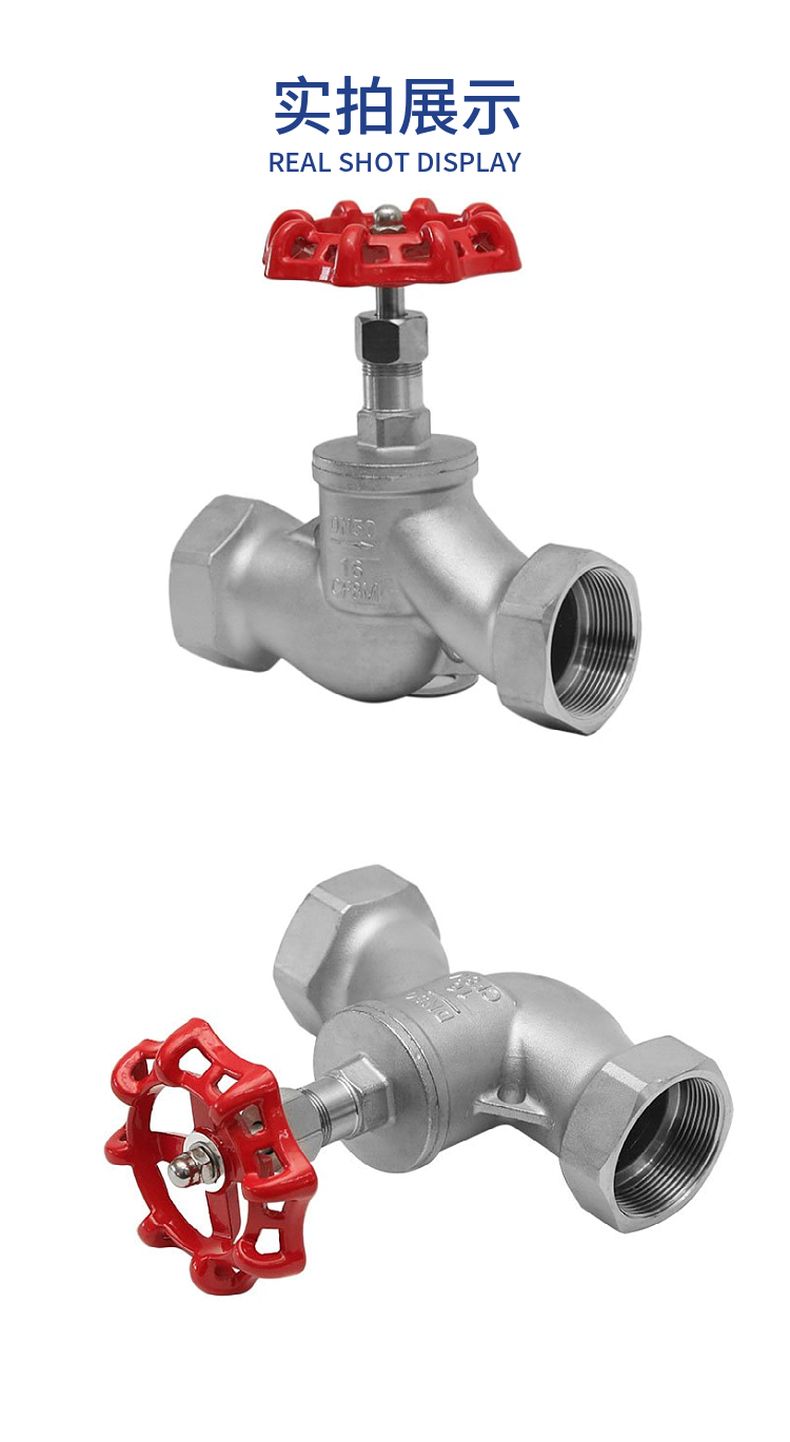

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

Share:

Design and manufacturing standards

Design and Manufacture: GB12233
Structure length: GB12221
Thread connection size: GB/T15918.1-93
Inspection and experiment: GB/T13927

Connection size

Nominal diameter DN(mm)	Pipe thread	Foot inch (mm)
Nominal diameter DN(mm)	Pipe thread	L	D1	S	H	H1	D0
15	1/2	90	14	32	109	117	65
20	Three quarters of	100	16	36	109	117	65
25	1	120	18	46	132	142	80
32	A quarter	140	20	55	156	168	100
40	1/2	170	22	65	167	168	100
50	2	200	24	80	182	200	120
65	2/2	260	26	95	200	223	120

Main performance specifications

Model number	Nominal pressure	Test pressure PS (Mpa)		Working pressure PN(Mpa)	Operating temperature (ºC)	Applicable medium
		shell	Seal
J11W-16 J11W-16K	1.6	2.5	1.76	1.6	100 or less	Oils Oil
J11W-16P						Corrosive medium of nitric acid [1]
J11W-16R					350 or less	Acetic acid corrosive media
J11W-16Ni						Lye, salt water, sea water, etc

Inquire Now Next Product

Product Description

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve

J11W stainless steel internal thread globe valve
