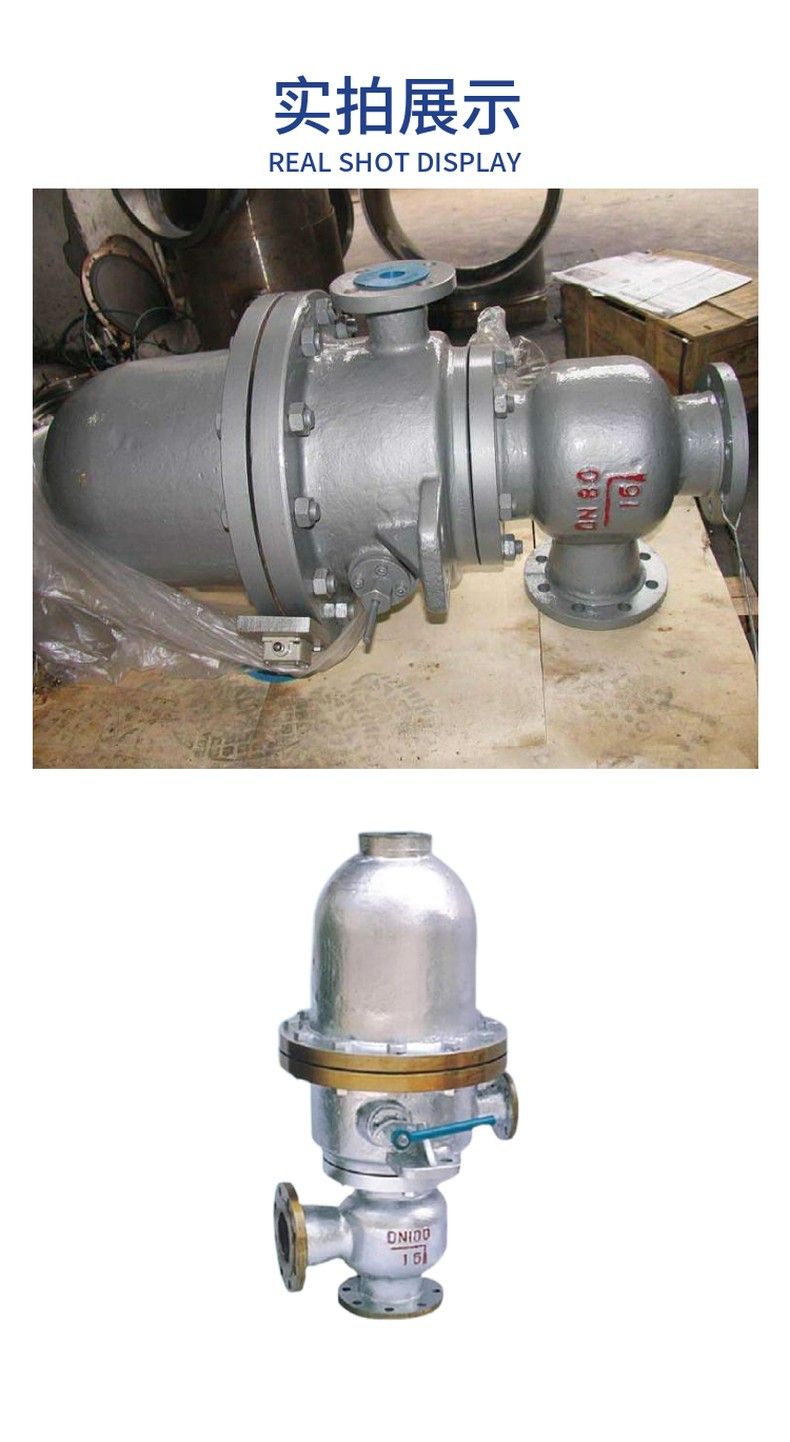

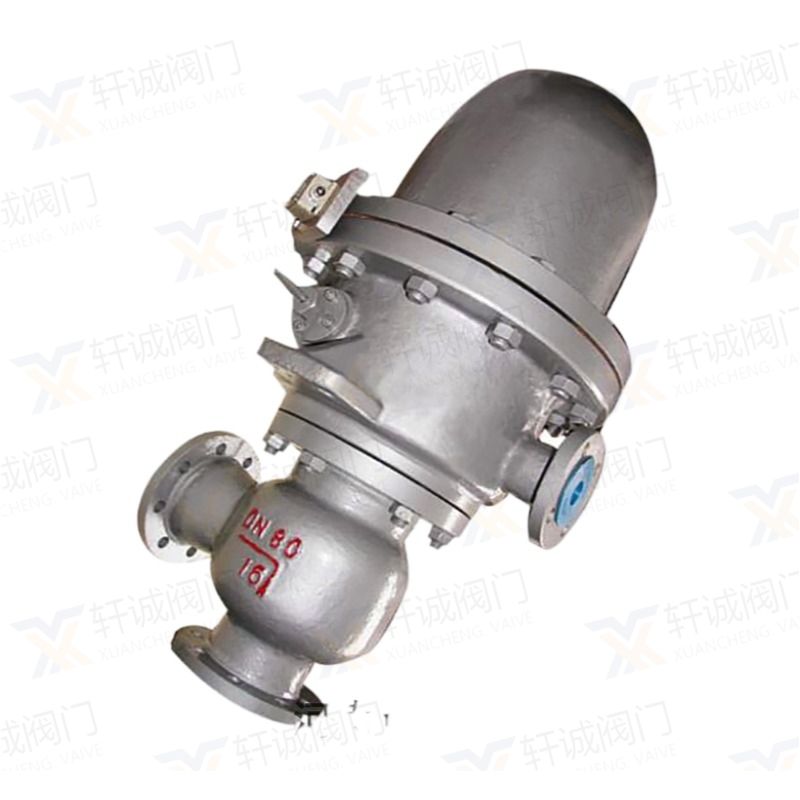

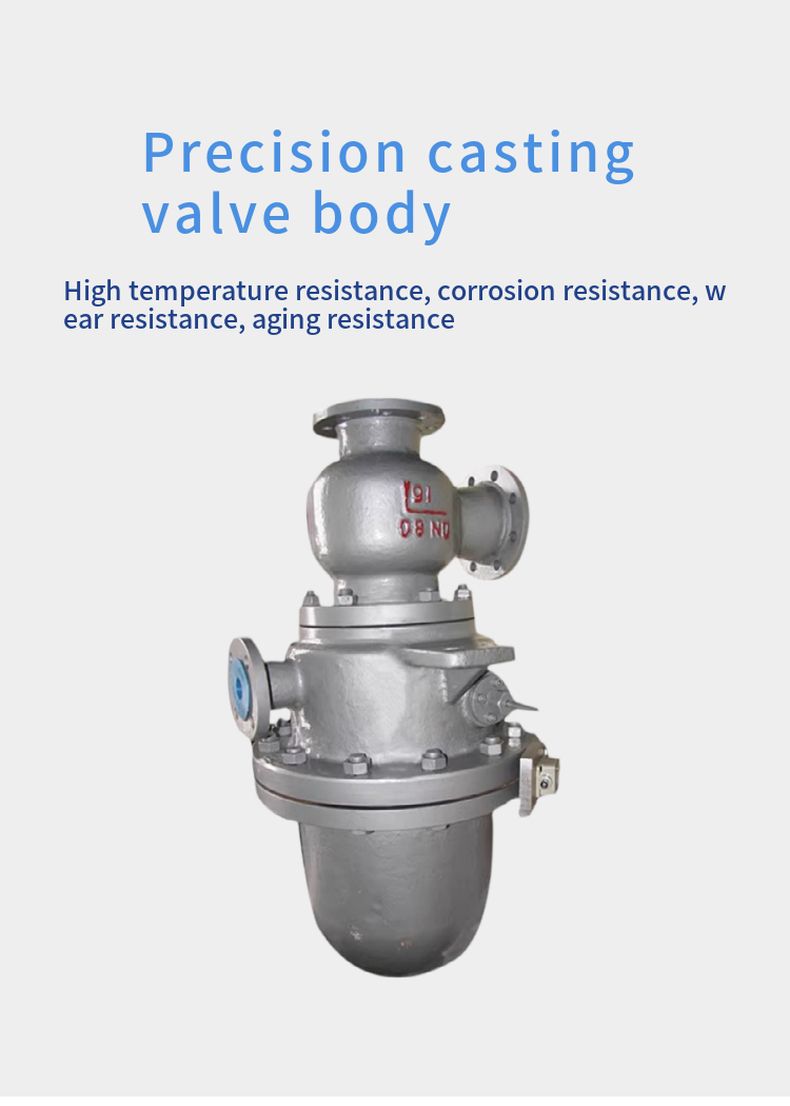

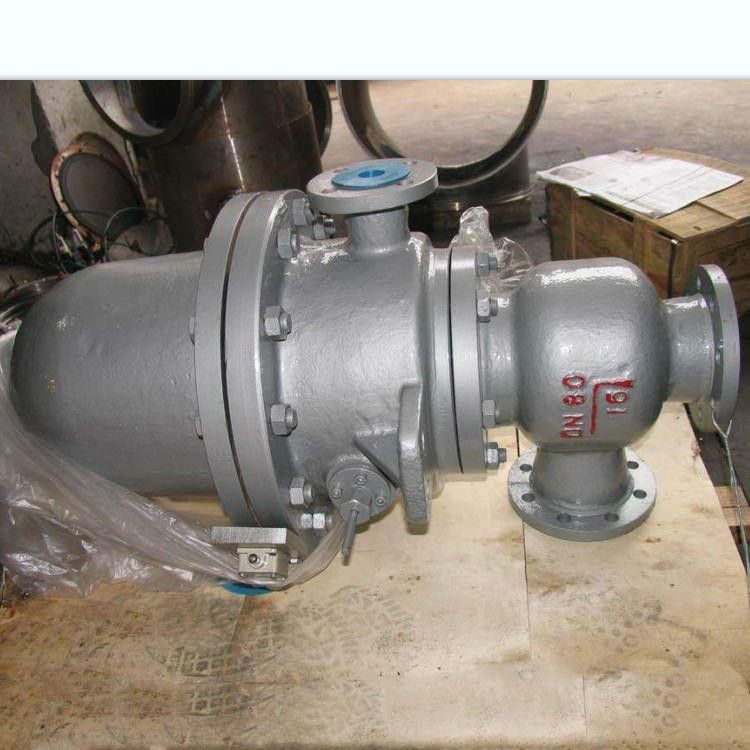

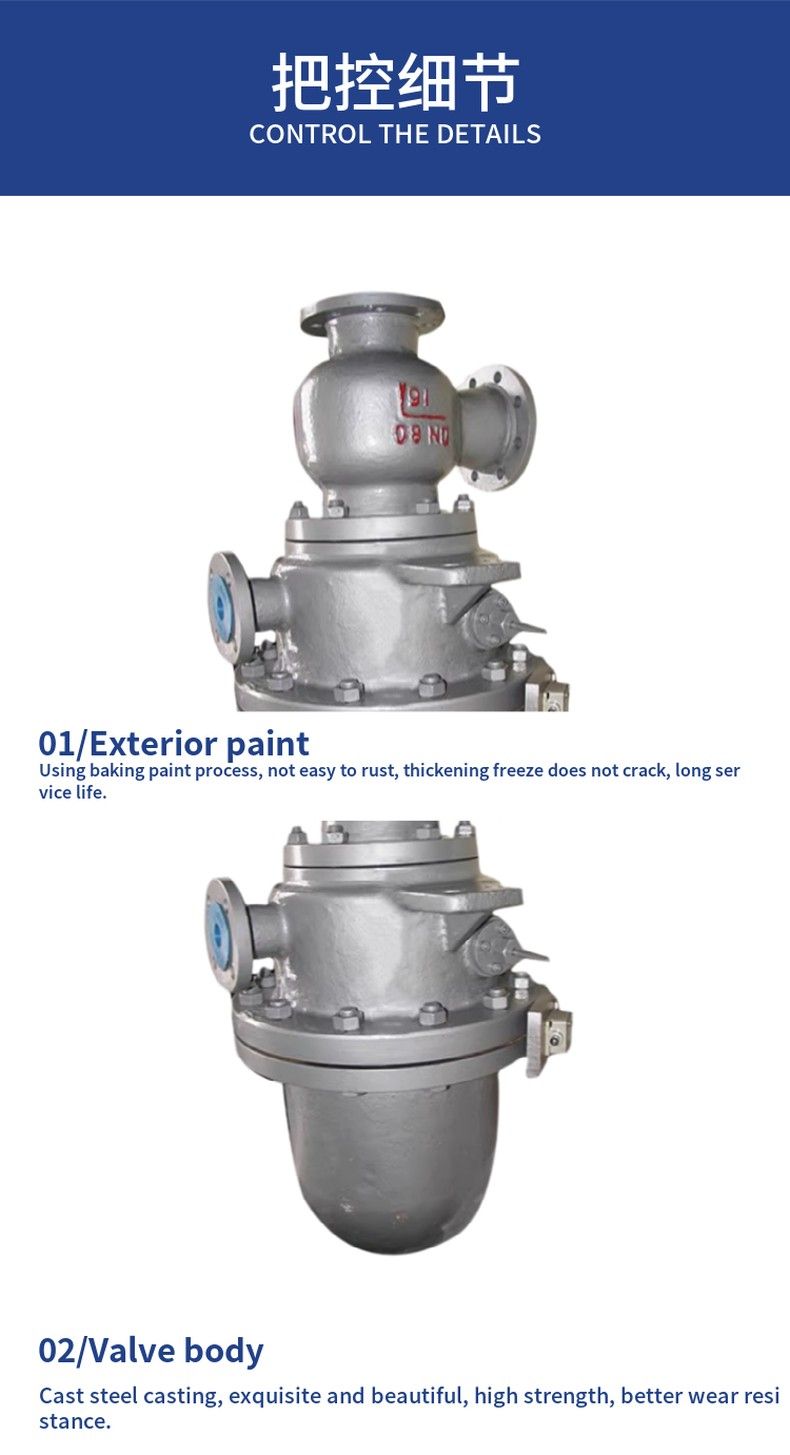

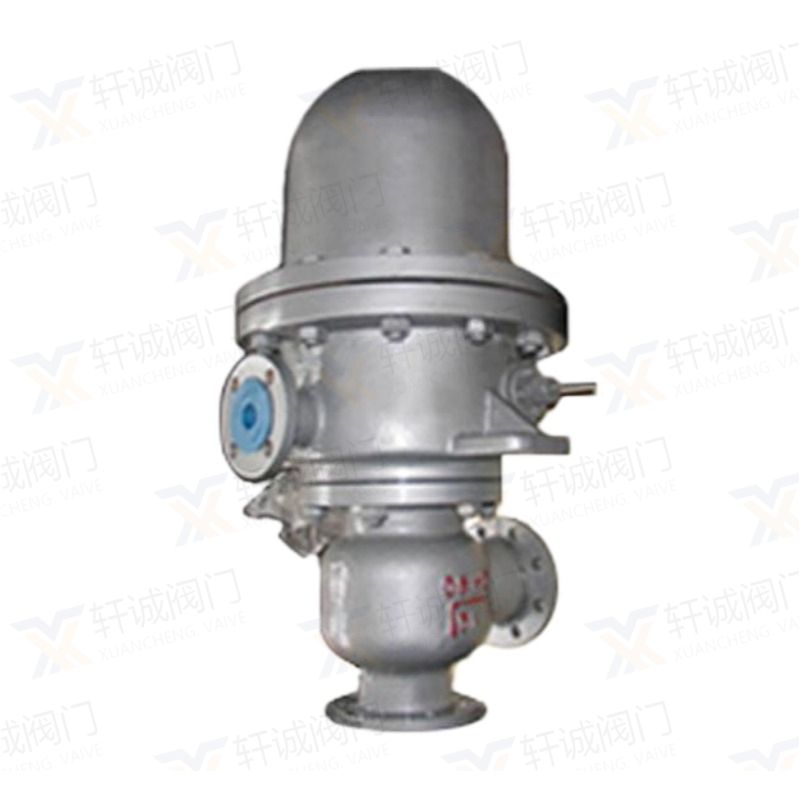

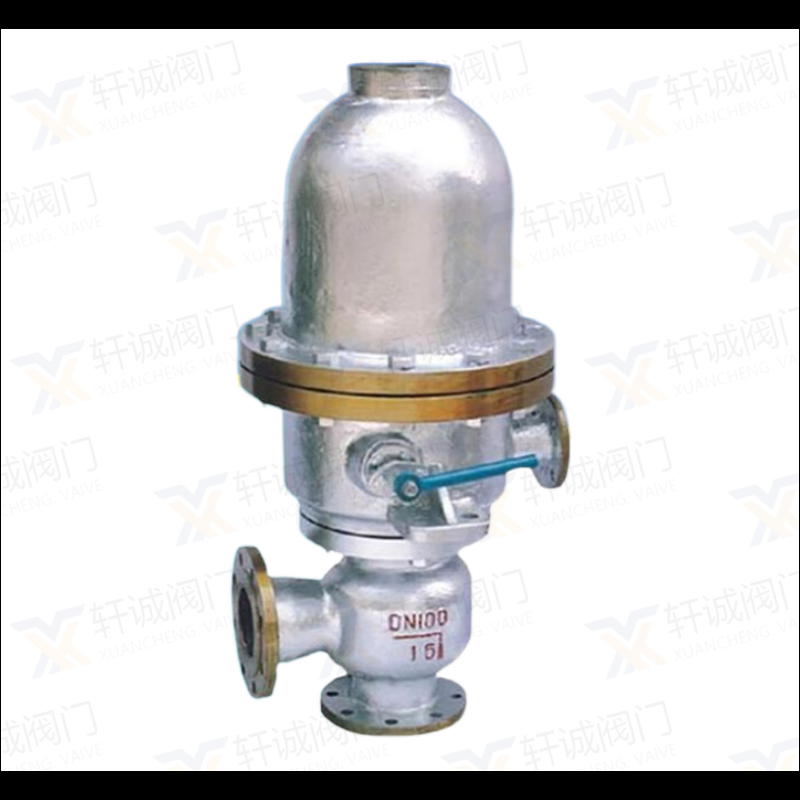

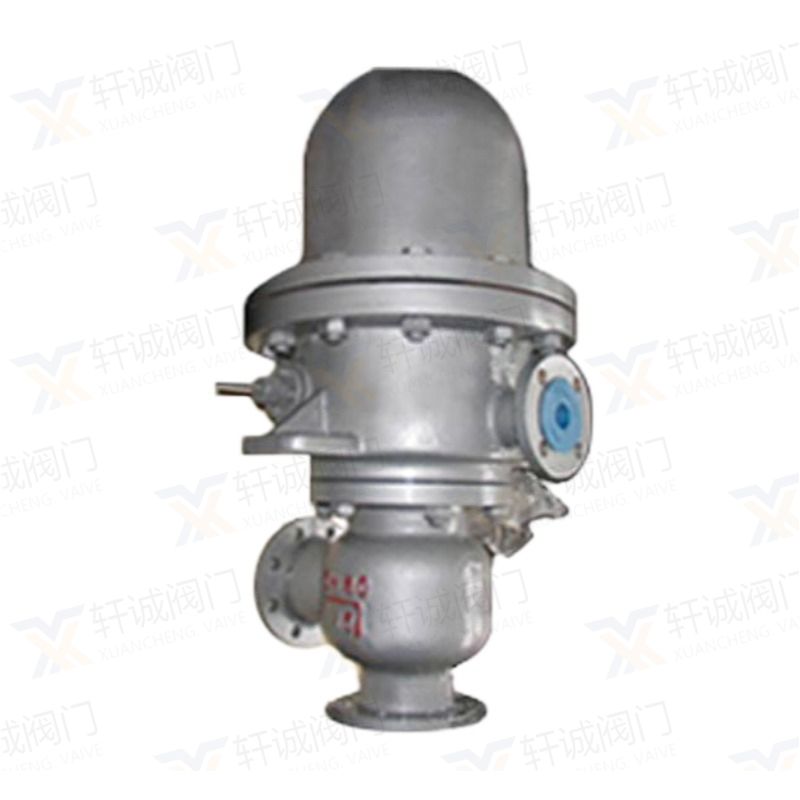

T47H float trap regulating valve

T47H-16C or Q float type steam trap (the introduction of the former Soviet Union original model T47H-16C float type steam trap) is suitable for power stations, chemical, pharmaceutical, paper and other industries with heaters in the industrial sector, for the adjustment of the water level of deoxygenated soda tank, effectively control the amount of water in the heater must be equipment.
Type No.
T47H
Class
Float ball type steam trap regulator
For use
An industrial sector with heaters for industries such as power stations

How it Works

1, the valve size is large, suitable for larger back pressure and will not leak steam, the discharged condensate is close to the steam pressure of saturated water, it is conducive to improve the valve equipment thermal efficiency and secondary steam utilization of energy saving features.
2. The valve rises with the condensate level, and when the float rises to 403mm from the bottom plane of the cover, the valve is fully opened so that a large amount of cold condensate is discharged into the water tank. When the float drops 113 mm, the valve is completely closed, and the condensate can not flow out, so that the stable limit of the float changes within the space range of 113-403 mm, so that the valve can only discharge air and water and high temperature condensate water, and prevent the superiority of steam leakage.

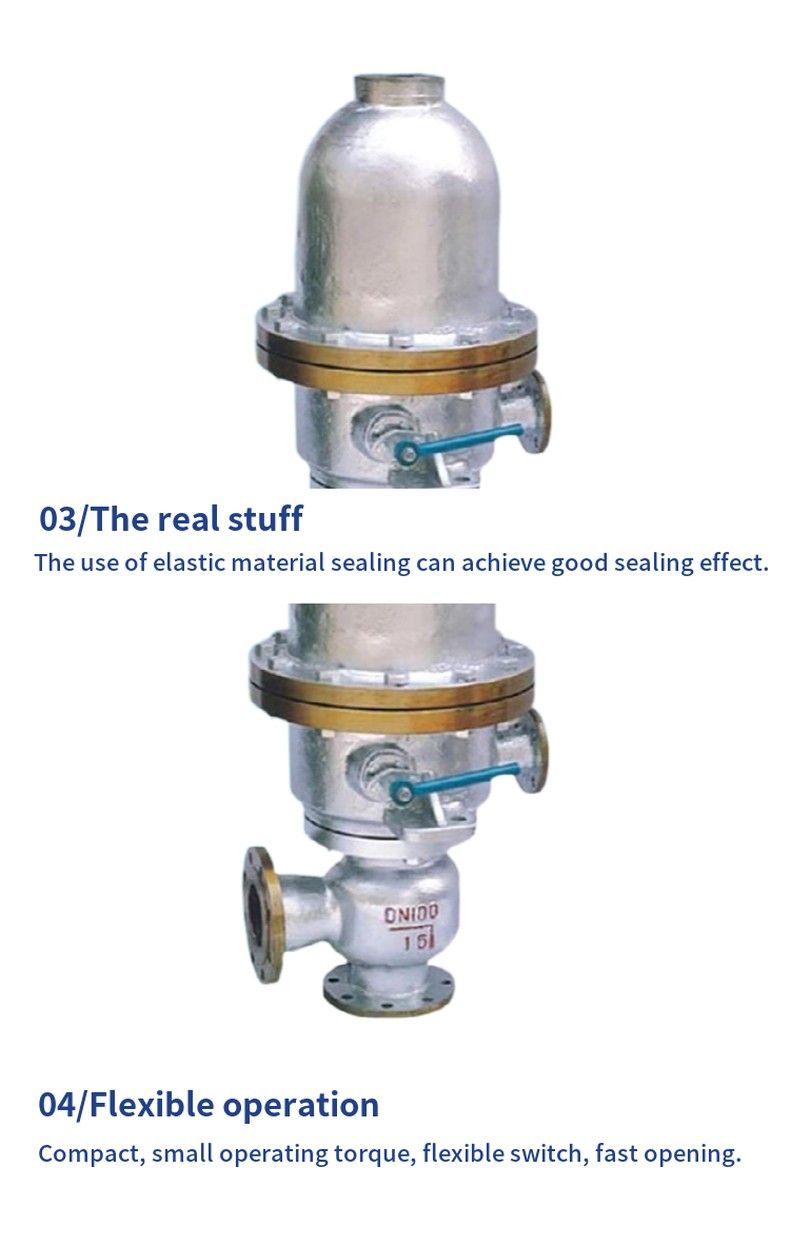

3, the valve is the use of condensate liquid level change and float up and down, can also be operated by the handle, so as to drive the lower part of the opening and closing device, open and close, to achieve the function of drainage and air blocking.

Specification parameters
