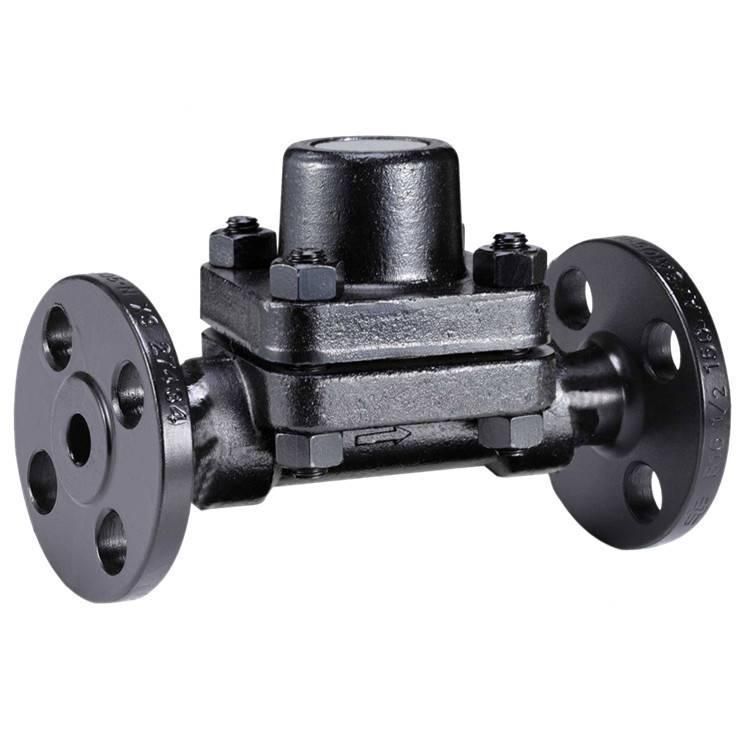

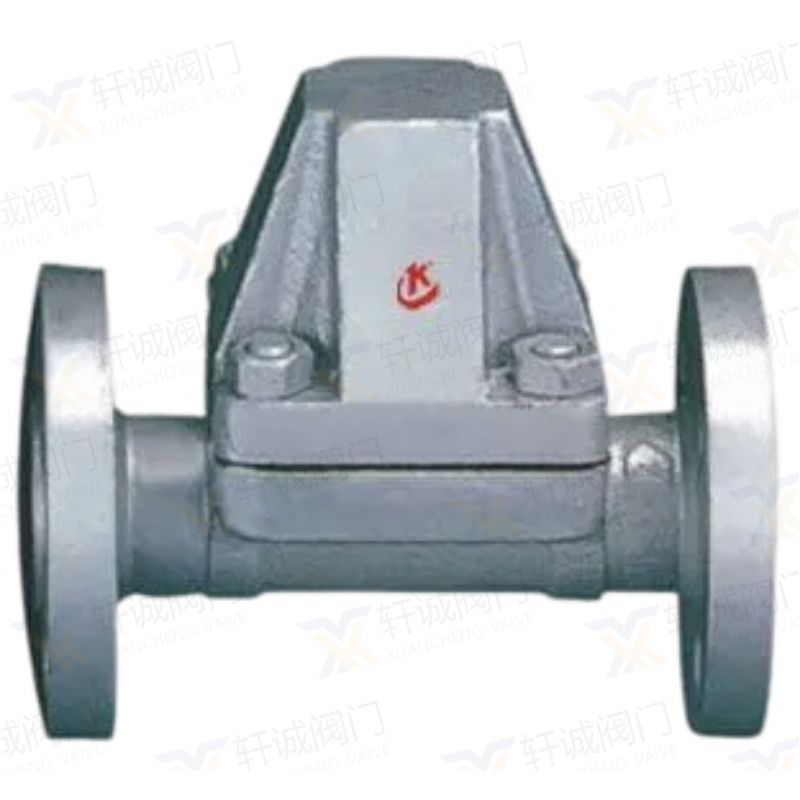

CS67H adjustable bimetallic sheet steam trap

The valve can automatically discharge the condensate water in the steam heating system to ensure that the system works efficiently under the condition of saving energy. Unique structure, excellent performance, large displacement, small leakage, drainage temperature can be adjusted, the supercooling degree is about 2 degrees Celsius, can exclude a large number of cold air and other non-condensing steam body, will not produce steam blocking phenomenon. Replaceable memory, easy maintenance and adjustment. Bimetal trap can be used in power station, petroleum, chemical, paper, textile, metallurgy and other industrial steam heating system.

CS17H(CS67H) adjustable bimetal plate steam trap detailed introduction
Features :
1, sensitive induction, continuous drainage, no noise, strong corrosion resistance.
2. In the early stage of equipment movement, air and condensate can be quickly discharged without steam lock phenomenon.
3, small and lightweight design, easy installation, but also can be installed at any Angle.

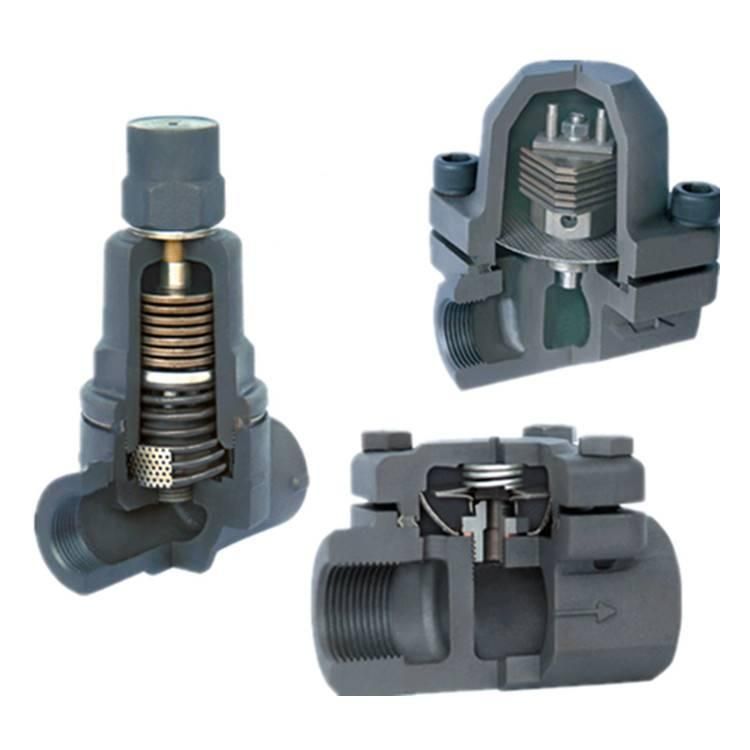

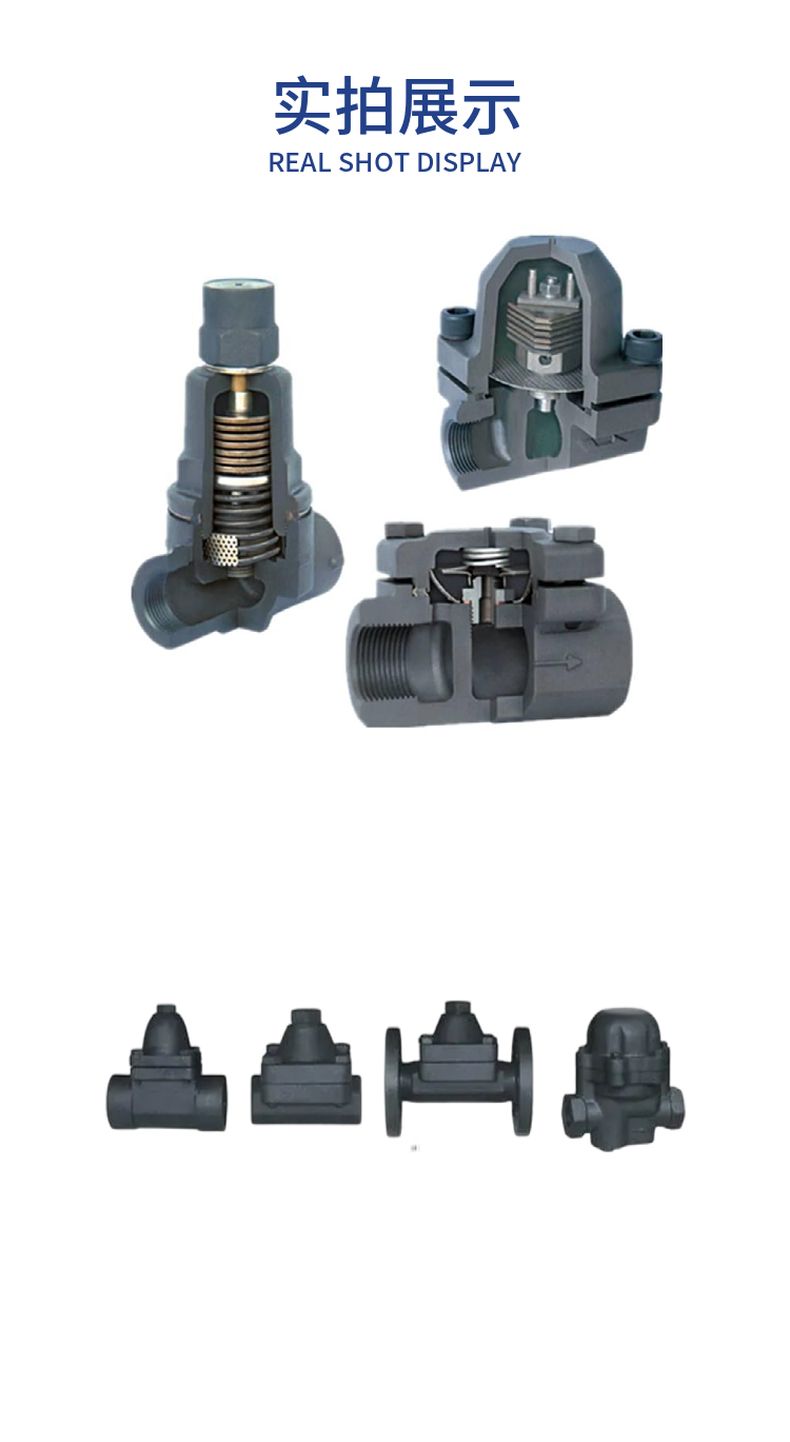

4. The valve adopts the principle of bimetal sheet thermal expansion and cold contraction to achieve the opening and closing effect of drainage and steam resistance.
The main appearance and connection size

Model number	Nominal diameter DN	Threaded connection				Socket welded connection					Flange connections
		Rc	L	H	W	L	H	W	D	T	L	H	D	K	d	C	F	N - Φ
		(mm)				(mm)					(mm)
CS17H-16C CS47H-16C CS67H-16C	15	1/2	100	92	82	100	92	82	22	12	150	92	95	65	45	14	2	4-14
	20	Three quarters of	100	92	82	100	92	82	27	12	150	92	105	75	55	14	2	4-14
	25	1	100	92	82	100	92	82	34	12	160	92	115	85	65	14	2	4-14
	32	1^1/4	165	140	115	165	140	115	42	13	200	140	135	100	78	16	2	4 to 18
	40	1^1/2	165	140	115	165	140	115	48	13	200	140	145	110	85	16	3	4 to 18
	50	2	175	140	115	175	140	115	61	14	230	140	160	125	100	16	3	4 to 18
CS17H-25 CS47H-25 CS67H-25	15	1/2	100	92	82	100	92	82	22	12	150	92	95	65	45	14	2	4-14
	20	Three quarters of	100	92	82	100	92	82	27	12	150	92	105	75	55	14	2	4-14
	25	1	100	92	82	100	92	82	34	12	160	92	115	85	65	14	2	4-14
	32	1^1/4	165	140	115	165	140	115	42	13	200	140	135	100	78	16	2	4 to 18
	40	1^1/2	165	140	115	165	140	115	48	13	200	140	145	110	85	16	3	4 to 18
	50	2	175	140	115	175	140	115	61	14	230	140	160	125	100	16	3	4 to 18
CS17H-40 CS47H-40 CS67H-40	15	1/2	100	92	82	100	92	82	22	12	150	92	95	65	45	14	2	4-14
	20	Three quarters of	100	92	82	100	92	82	27	12	150	92	105	75	55	14	2	4-14
	25	1	100	92	82	100	92	82	34	12	160	92	115	85	65	14	2	4-14
	32	1^1/4	165	140	115	165	140	115	42	13	200	140	135	100	78	16	2	4 to 18
	40	1^1/2	165	140	115	165	140	115	48	13	200	140	145	110	85	16	3	4 to 18
	50	2	175	140	115	175	140	115	61	14	230	140	160	125	100	16	3	4 to 18
