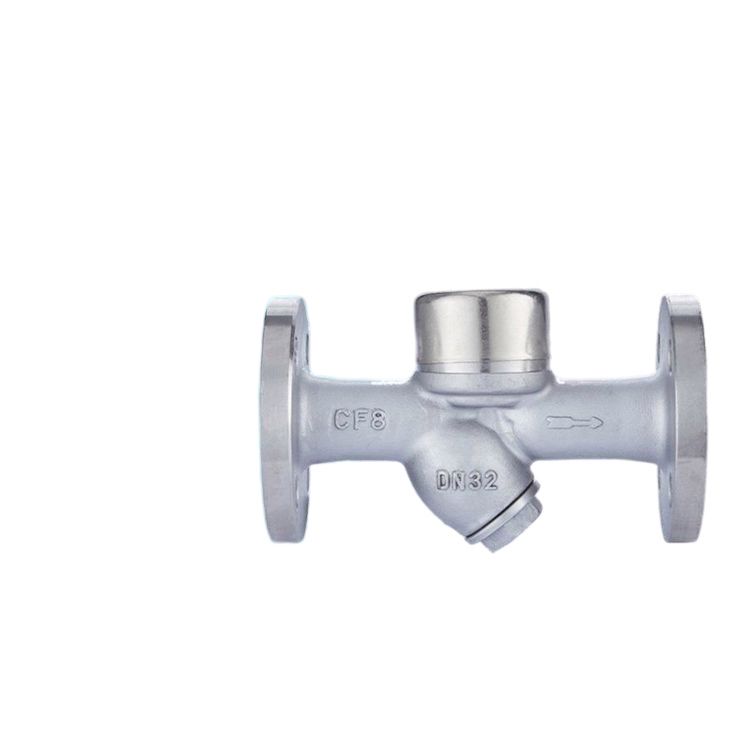

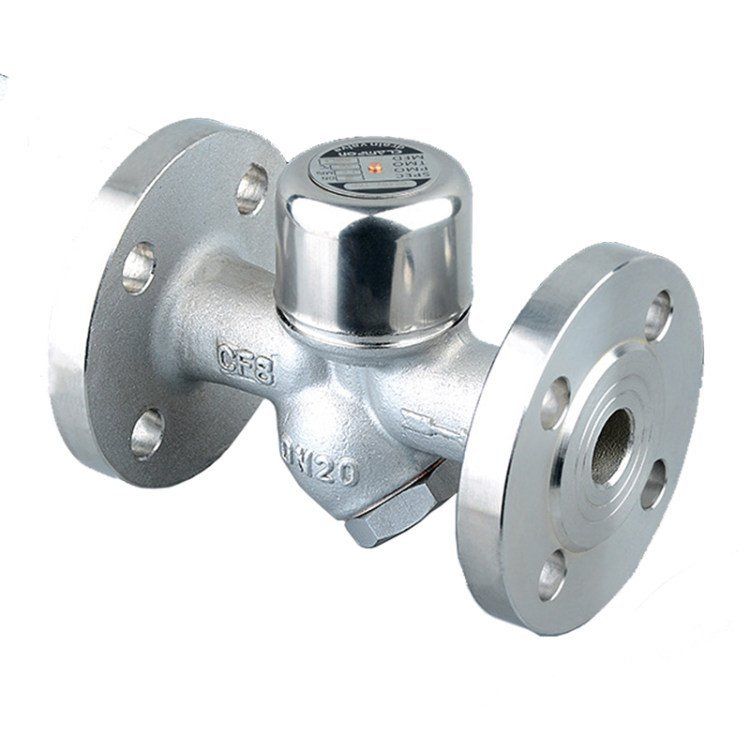

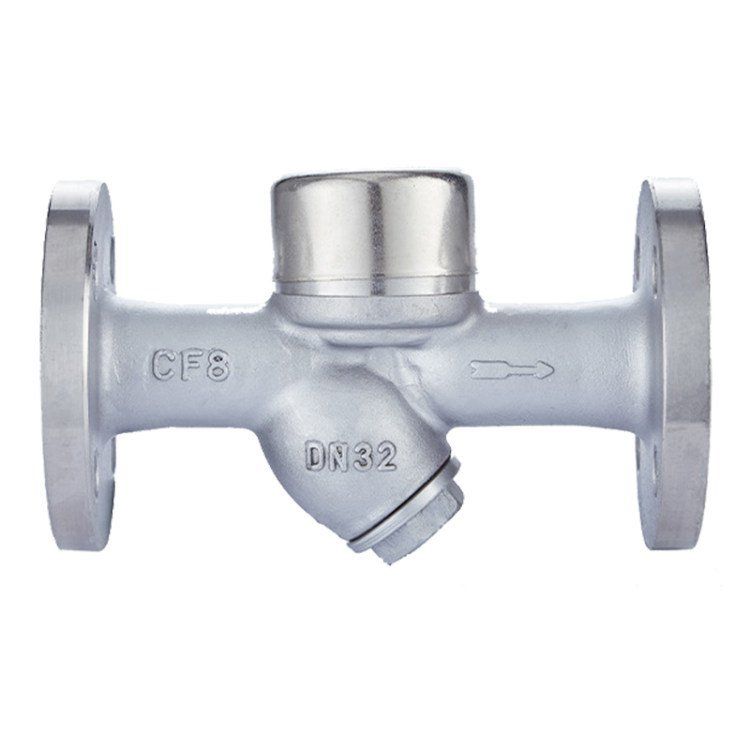

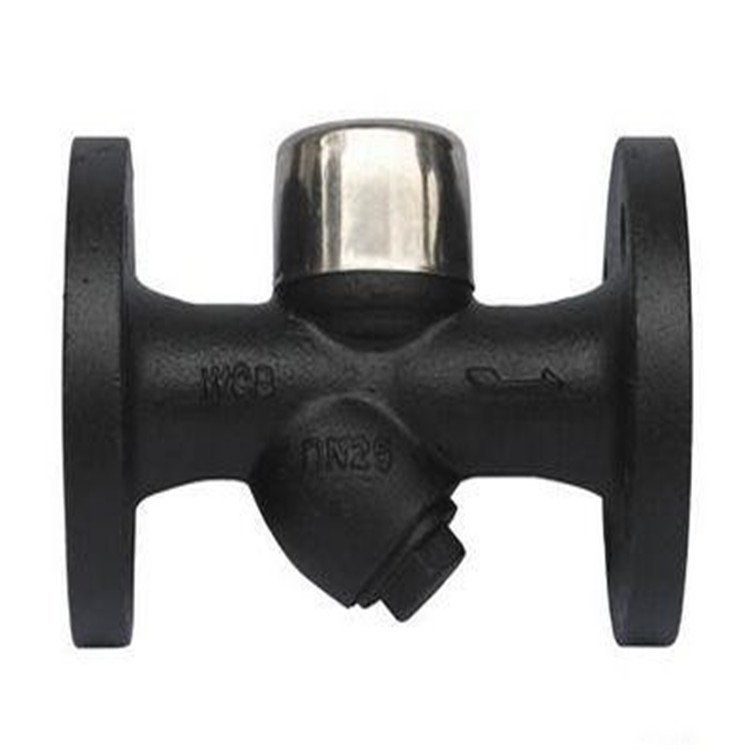

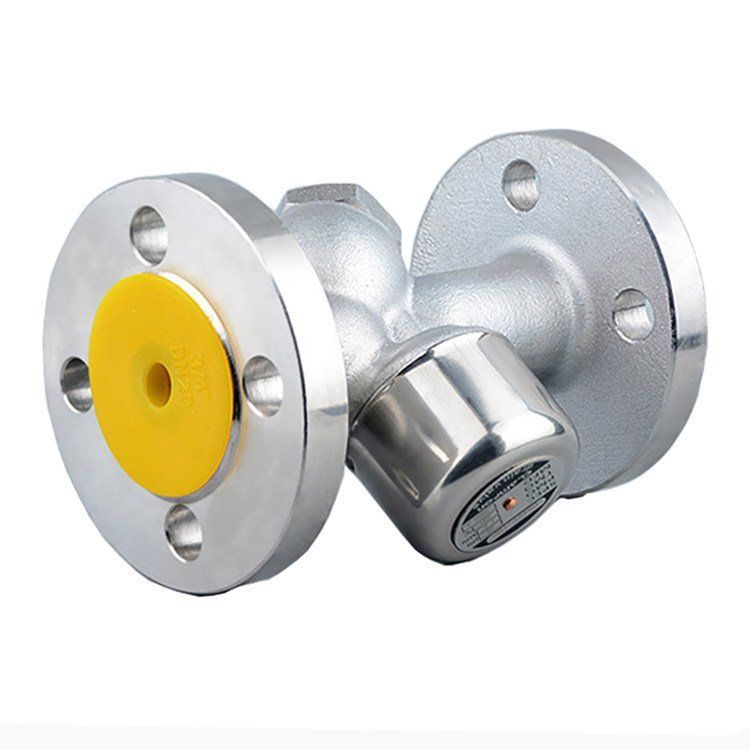

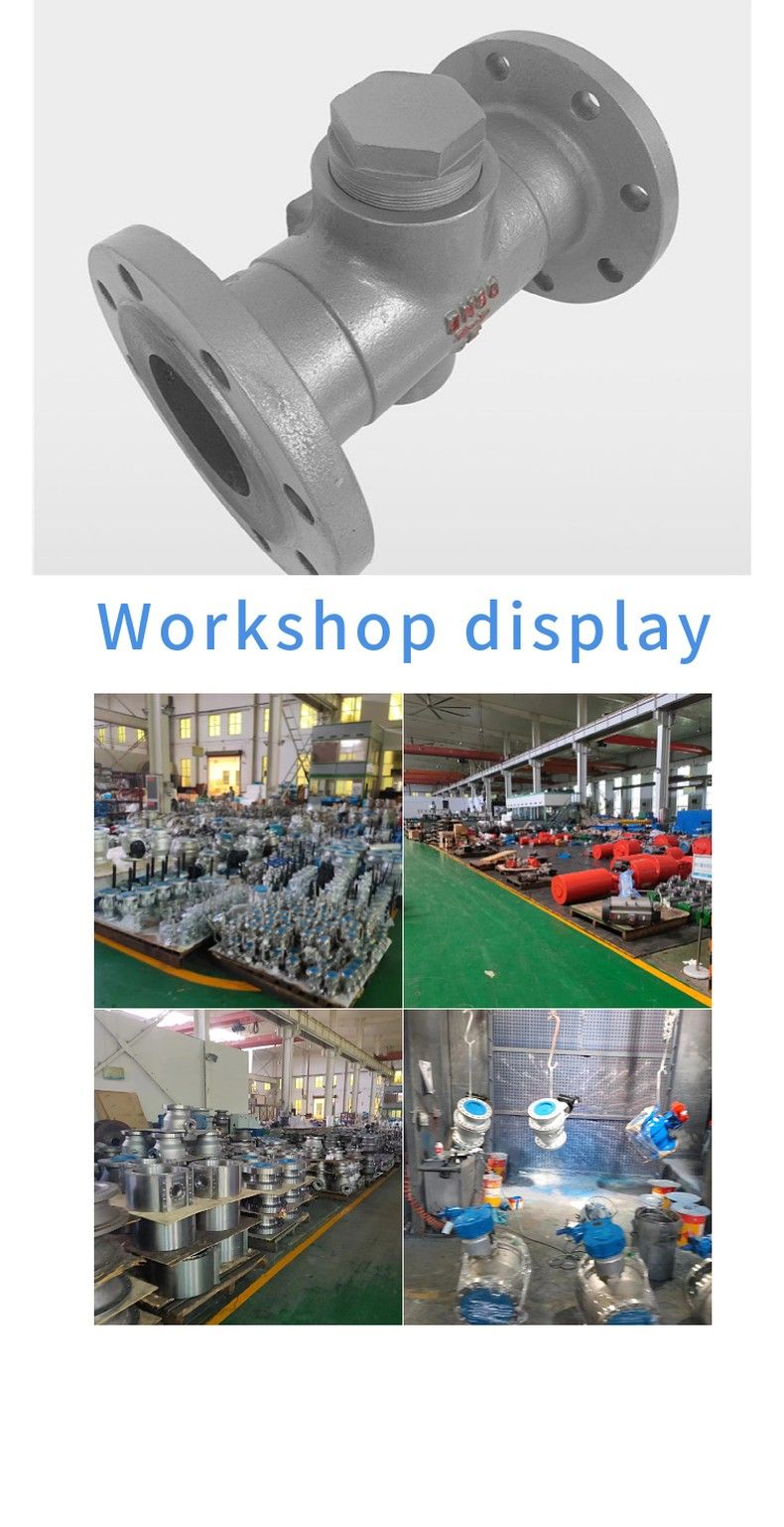

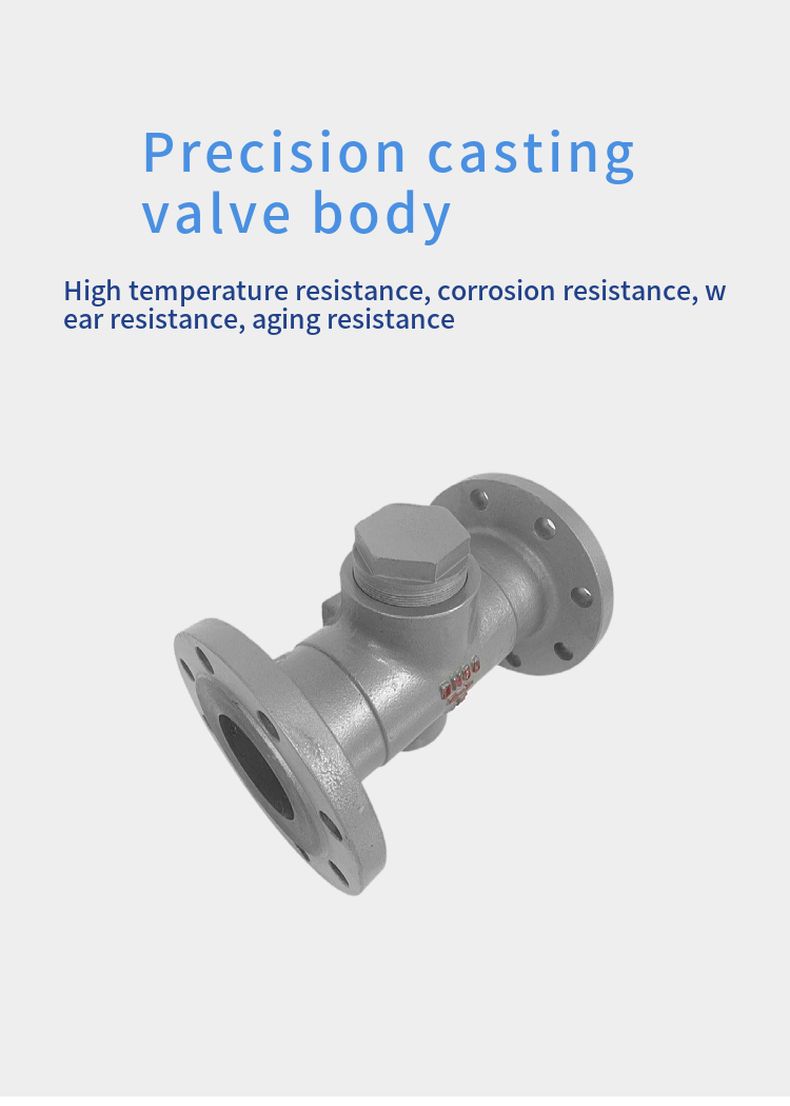

CS49H thermal steam trap

Technical parameter
Product category: Beijing type trap, thermal power trap, disc trap, steam trap, trap
Product Model :CS19W/CS49W/CS19H/CS19H
Nominal diameter (DN): 15-100mm
Nominal pressure (PN): 0.05-4.0Mpa
* Working temperature (TMO) :425 ºC
Working medium: steam condensate
Connection method: flange, internal thread, socket welding No load leakage rate: less than 3%
Subcooling degree :8 ºC
CS49H Beijing type thermal power disc trap is suitable for steam pipelines and steam equipment, to prevent steam leakage, eliminate the effect of condensate, so as to achieve energy saving and prevent possible failures.


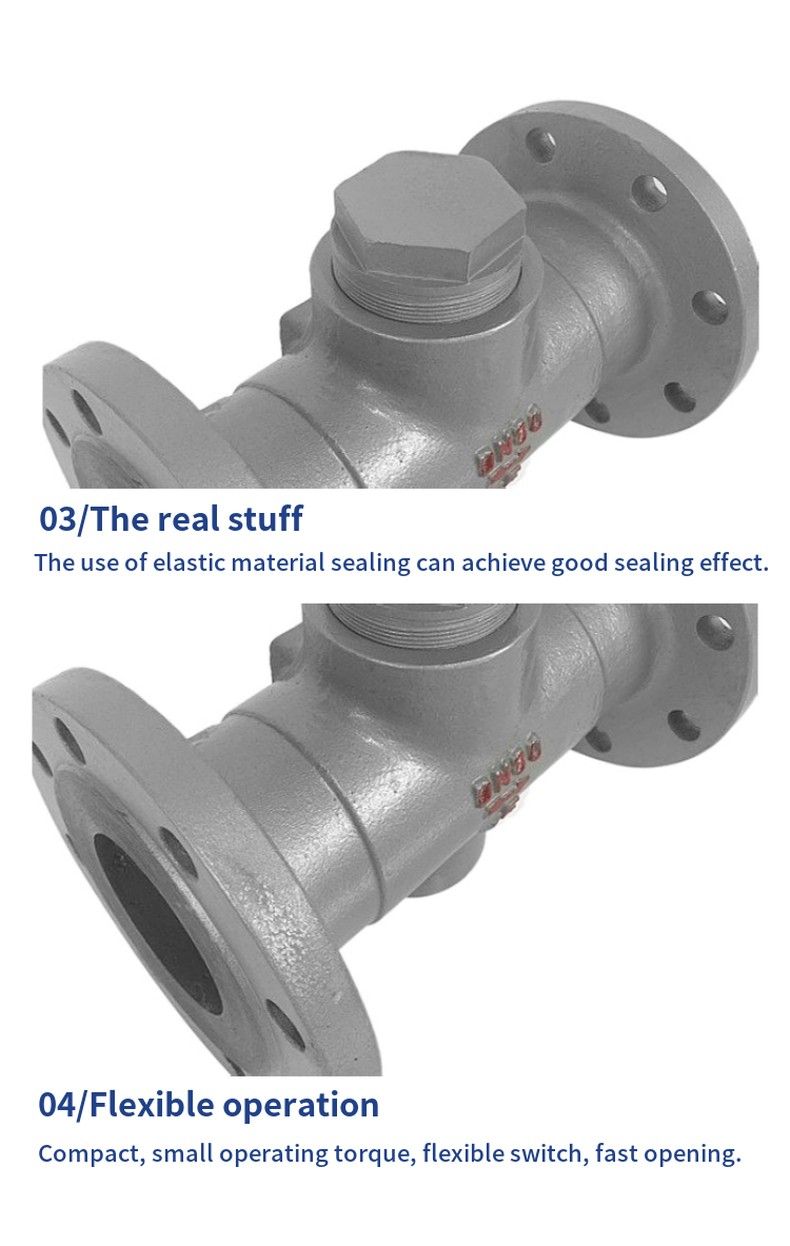

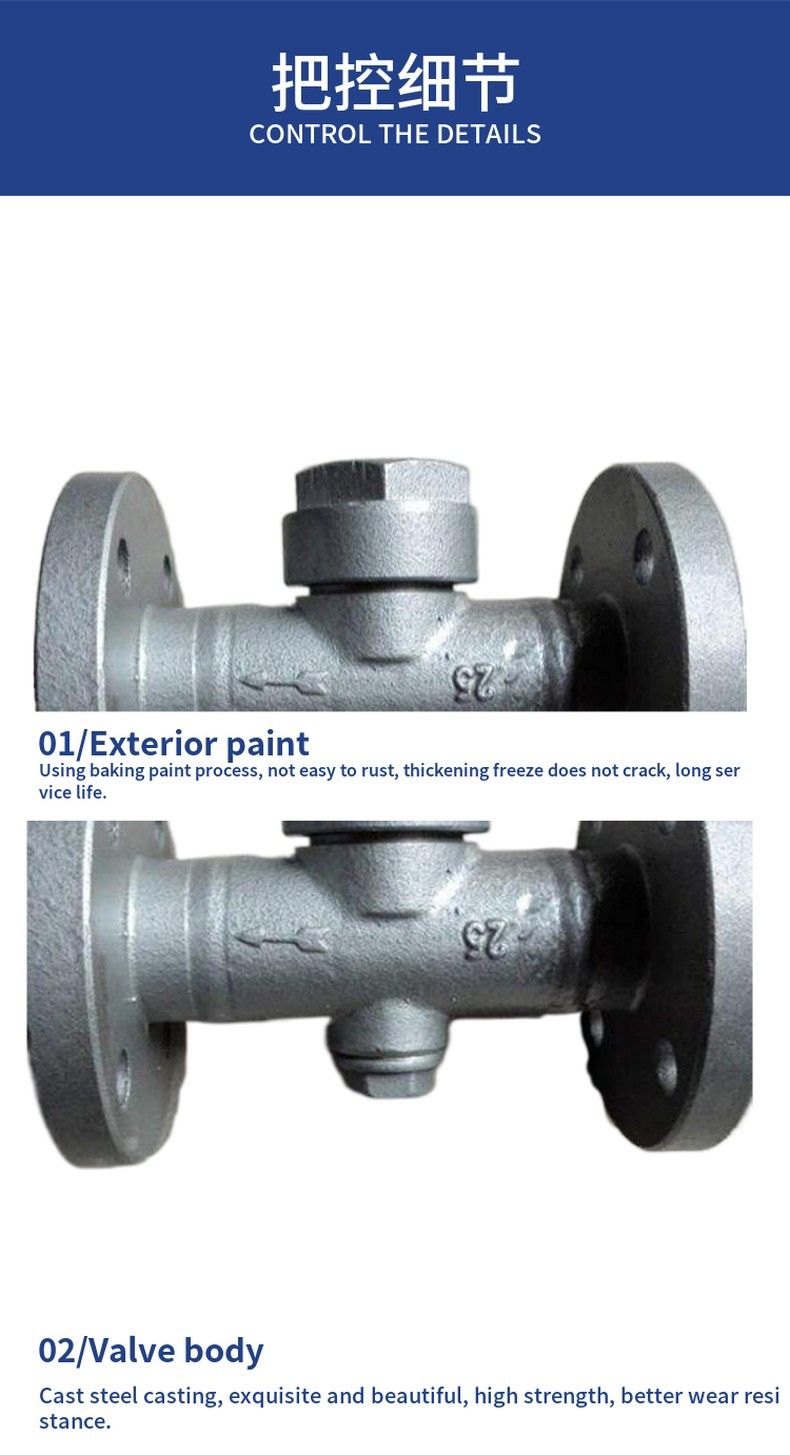

Product Features

1. Small size, light weight, not limited by the installation position. 2. All materials are stainless steel parts, durable, corrosion resistant. 3. It is not afraid of freezing in the outdoor, resistant to water shock and overheating. 4. The supercooling degree is 8 ºC, the leakage rate is less than 3% of the actual displacement, and the back pressure is 50%. 5. Simple structure, easy installation and maintenance.

Working principle

If no condensate is produced on the superheated steam pipeline, the trap will not open, and the working quality is high. The valve body is alloy steel, the valve core is cemented carbide, the valve allows the temperature of 550ºC, durable, long service life, is a special trap for high pressure, high temperature superheated steam. The disc steam trap is based on the principle of Bohard thermal power, the use of steam and condensate thermal dynamics of different characteristics, causing kinetic energy and potential energy static and static pressure changes. The upper and lower pressure difference of the action part valve plate changes, and the starting valve plate opens and closes, so as to achieve the purpose of preventing steam and drainage.
Overall dimensions
