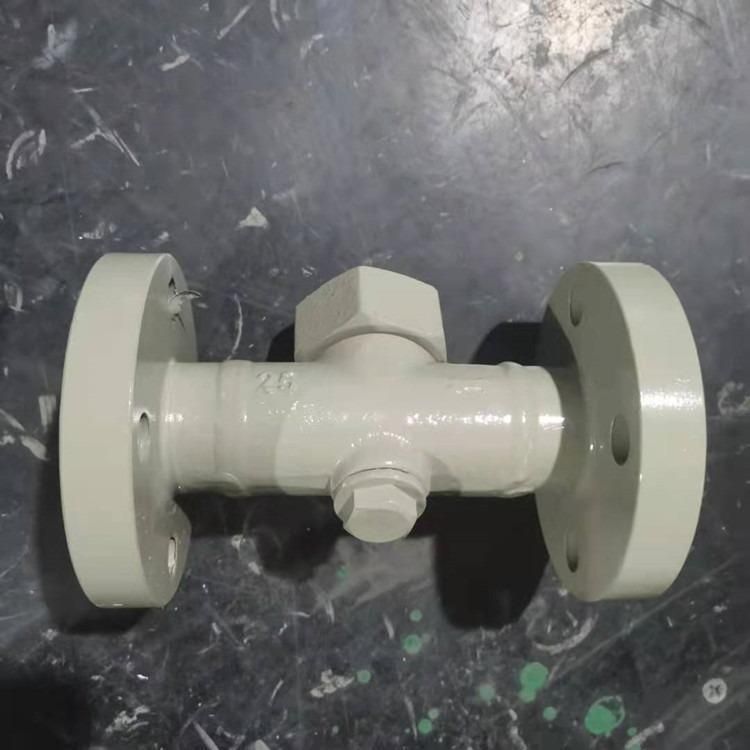

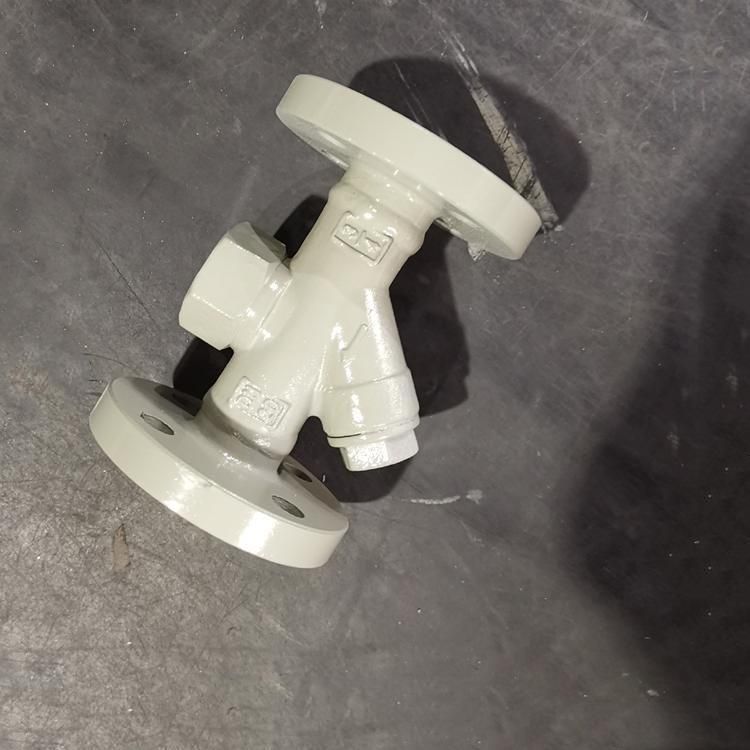

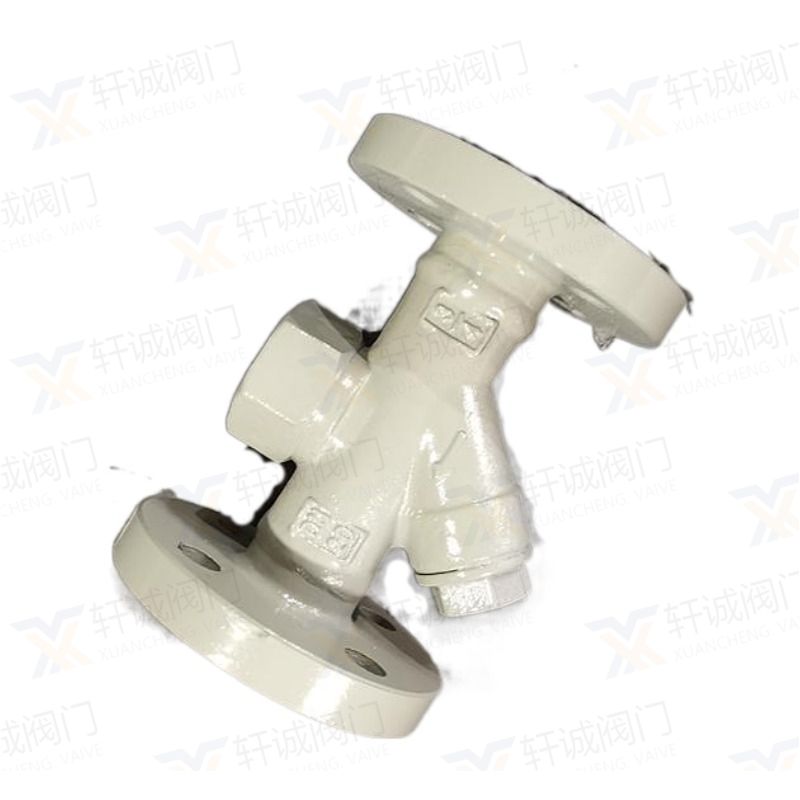

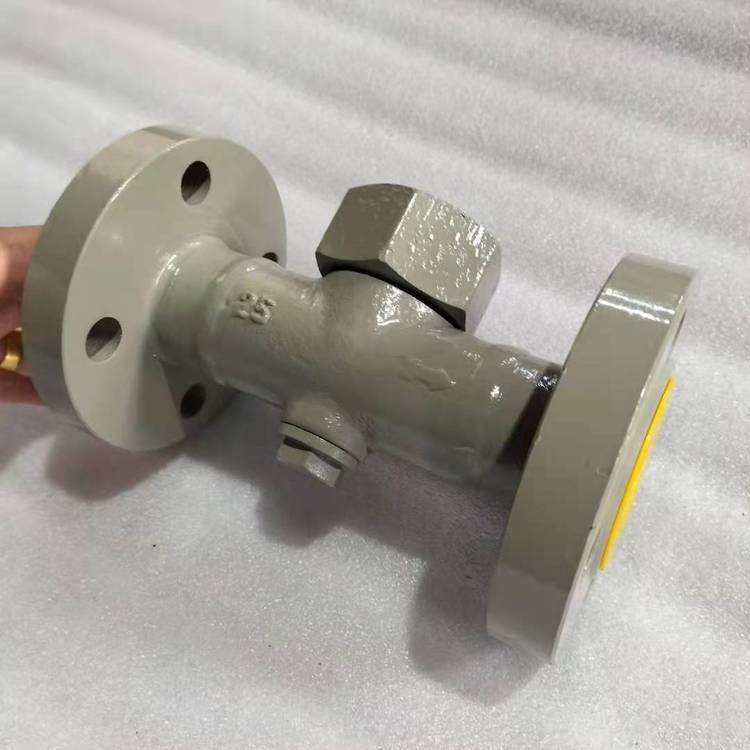

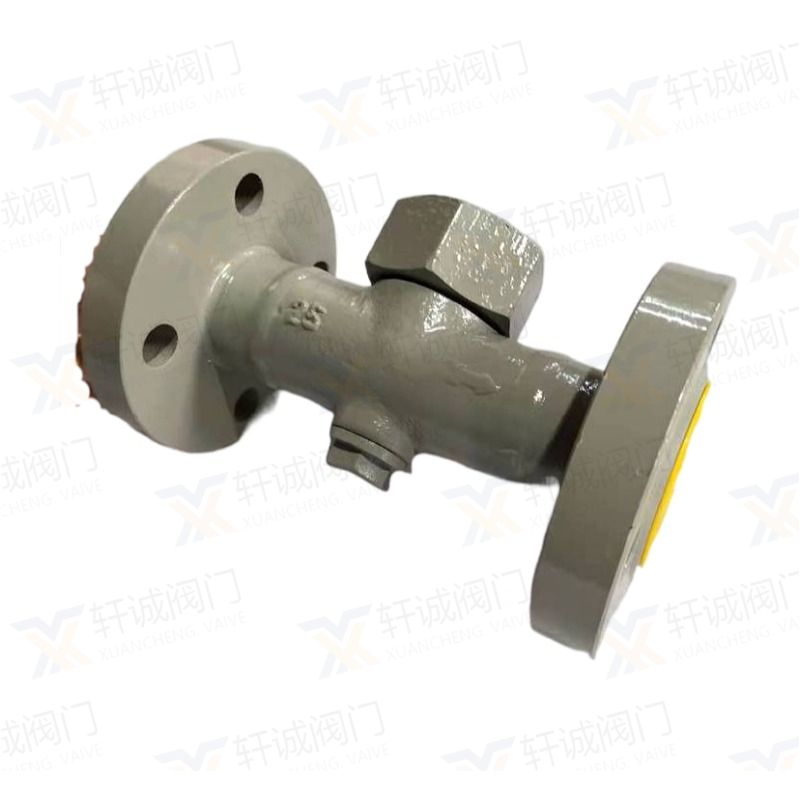

CS47H adjustable bimetallic sheet steam trap

CS47H adjustable bimetal disc steam trap

CS47H adjustable bimetal sheet steam trap main features: unique structure, excellent performance, large displacement, adjustable steam leakage temperature, supercooling degree of about 2ºC, may exclude a large number of cold air and other non-condensing steam body, will not produce steam blocking phenomenon. Replaceable internals, easy maintenance and adjustment. Two, CS47H adjustable double

Details of CS47H

First, CS47H adjustable bimetal disc steam trap main features:
unique structure, excellent performance, large displacement, adjustable steam leakage temperature, supercooling degree of about 2ºC, may exclude a large number of cold air and other non-condensing steam body, will not produce steam blocking phenomenon. Replaceable internals, easy maintenance and adjustment.

Two, CS47H adjustable bimetal disc steam trap main performance specifications:

Type/ Item item	CS17H-16C CS47H-16C CS67H-16C	CS17H-25 CS47H-25 CS67H-25	CS17H-40 CS47H-40 CS67H-40	Unit Unit
Nominal Pressure . Nominal pressure	1.6	2.5	4.0	Mpa
Shell Test Pressure Shell test pressure	2.4	3.8	6.0
Maximum working pressure Max	1.6	2.5	4.0
MaxWorks Temperature Maxworks Temperature	203	220	247	ºC
MaxVouchsafement Temperature	425	425	425	ºC
Working Medium . Working medium	Steam, condensate Stemam

CS47H adjustable bimetal sheet steam trap material For Main Parts Materal For Main Parts

Model Type/ Item item	17CS47H-671625C40
Body body

Four, CS47H adjustable bimetal disc steam trap main shape and connection size
Main External And Connecting Dinensions:

Model Type	DN	Threaded connection				Undertake welded connections					Flange connections
		RC	L	H	W	L	H	W	d'	T	L	H	D	K	d	C	F	N - phi
		(mm)				(mm)					(mm)
CS17H-16C CS47H-16C CS67H-16C	15	1/2	100	92	82	100	92	82	22	12	150	92	95	65	45	14	2	4-14
	20	Three quarters of	100	92	82	100	92	82	27	12	150	92	105	75	55	14	2	4-14
	25	1	100	92	82	100	92	82	34	12	160	92	115	85	65	14	2	4-14
	32	1¹ /	165	140	115	165	140	115	42	13	200	140	135	100	78	16	2	4 to 18
	40	1¹ /	165	140	115	165	140	115	48	13	200	140	145	110	85	16	3	4 to 18
	50	2	175	140	115	175	140	115	61	14	230	140	160	125	100	16	3	4 to 18
CS17H-25 CS47H-25 CS67H-25	15	1/2	100	92	82	100	92	82	22	12	150	92	95	65	45	14	2	4-14
	20	Three quarters of	100	92	82	100	92	82	27	12	150	92	105	75	55	14	2	4-14
	25	1	100	92	82	100	92	82	34	12	160	92	115	85	65	14	2	4-14
	32	1¹ /	165	140	115	165	140	115	42	13	200	140	135	100	78	16	2	4 to 18
	40	1¹ /	165	140	115	165	140	115	48	13	230	140	145	110	85	16	3	4 to 18
	50	2	175	140	115	175	140	115	61	14	230	140	160	125	100	16	3	4 to 18
CS17H-40 CS47H-40 CS67H-40	15	1/2	100	92	82	100	92	82	22	12	250	92	95	65	45	14	2	4-14
	20	Three quarters of	100	92	82	100	92	82	27	12	150	92	105	75	55	14	2	4-14
	25	1	100	92	82	100	92	82	34	12	160	92	115	85	65	14	2	4-14
	32	1¹ /	165	140	115	165	140	115	42	13	200	140	135	100	78	16	2	4 to 18
	40	1¹ /	165	140	115	165	140	115	48	13	200	140	145	110	85	16	3	4 to 18
	50	2	175	140	115	175	140	115	61	14	230	140	160	125	100	16	3	4 to 18
