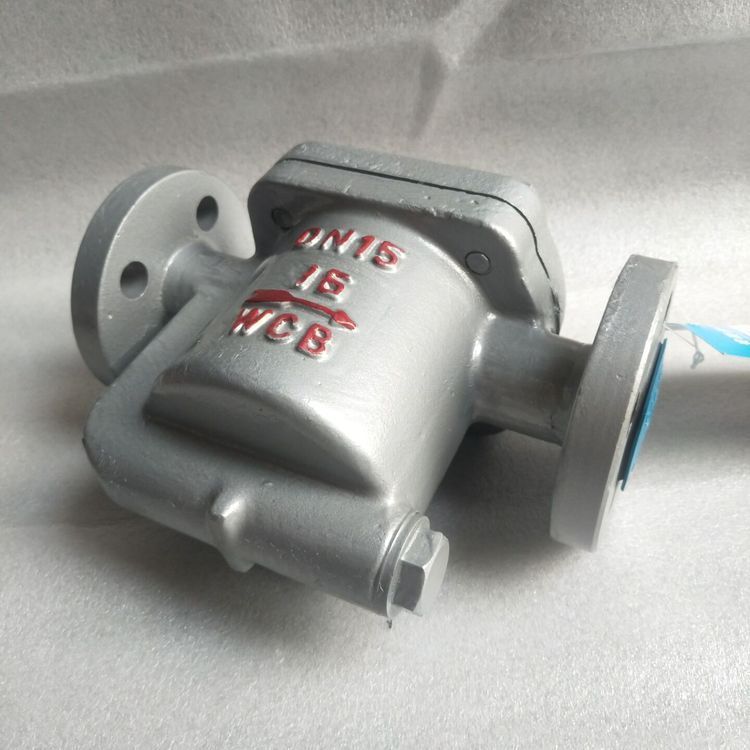

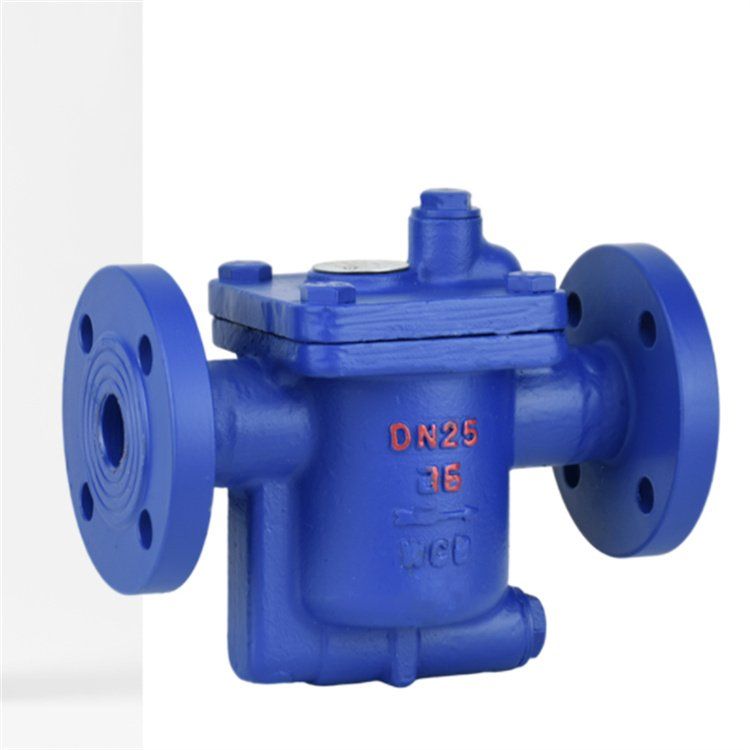

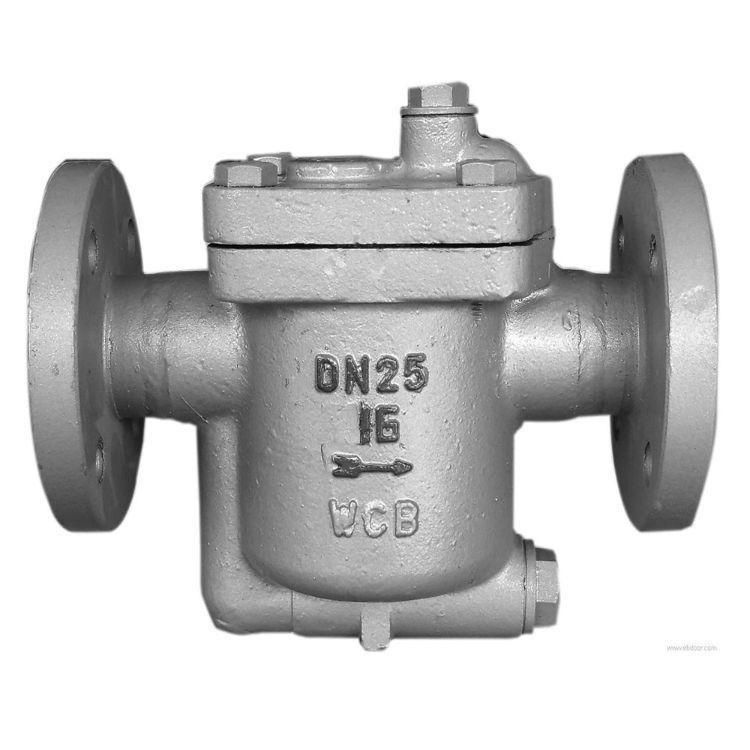

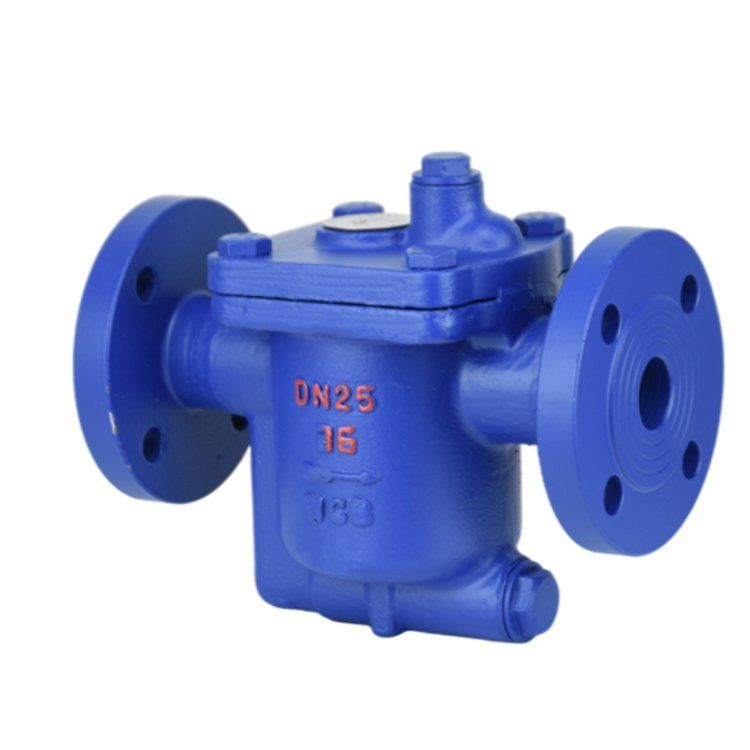

CS45H bell-shaped float inverted bucket steam trap

Characteristic performance

1, combined with the lever mechanism can be made into high pressure valve.
2, the mouth shape of the floating anti-water blow, the upper level of the bucket does not overflow the vent hole, can effectively prevent steam lock, air blockage phenomenon. (non-condensing high temperature air can also be excluded)
3, water separation is reliable: (water vapor enters from the lower part of the valve through the U-shaped channel), the valve is always in a sealed state, effectively prevent steam leakage.
4, the back pressure rate is 90% high
5, the internal parts are all made of stainless steel, and installed on the valve cover, maintenance is very convenient.
6, the interior is equipped with large displacement double valve seat differential pressure machinery and SCCV closing system, small volume and large displacement.
7, strong adaptability to the amount of condensate, can be intermittent discharge, but also continuous discharge.
Double valve seat differential pressure machinery and SCCV closing mode
SCCV closing mode and double valve seat differential pressure mechanical installation in the same unit long life, when the condensation water increases, the bucket loses pressure buoyancy resulting in mechanical reverse seal and pressure difference, the main valve opens and obtains large displacement, the use of steam equipment quickly start, maximize the thermal efficiency of the machine.

External dimension
