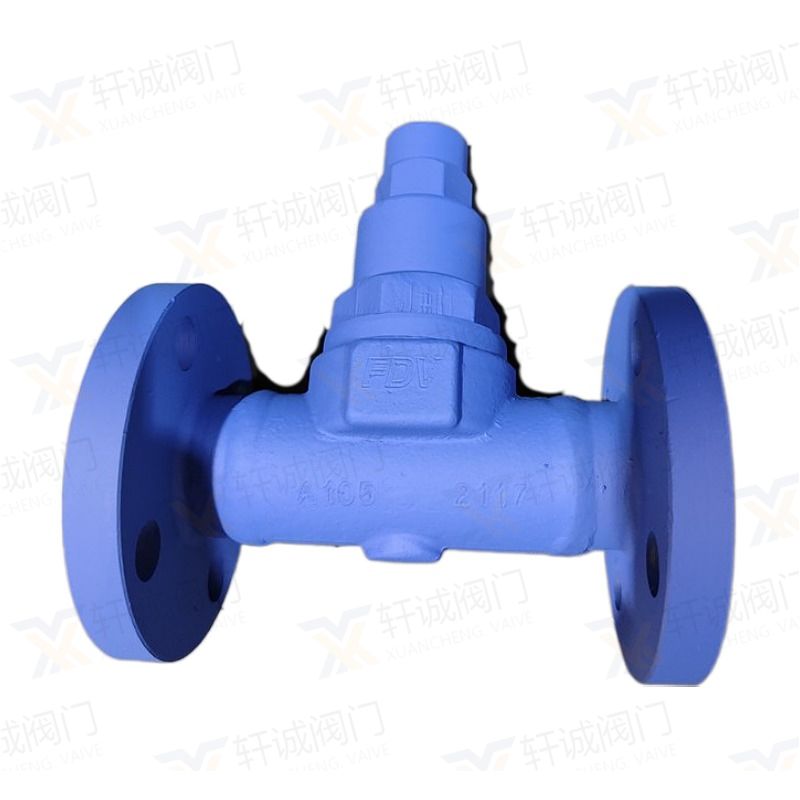

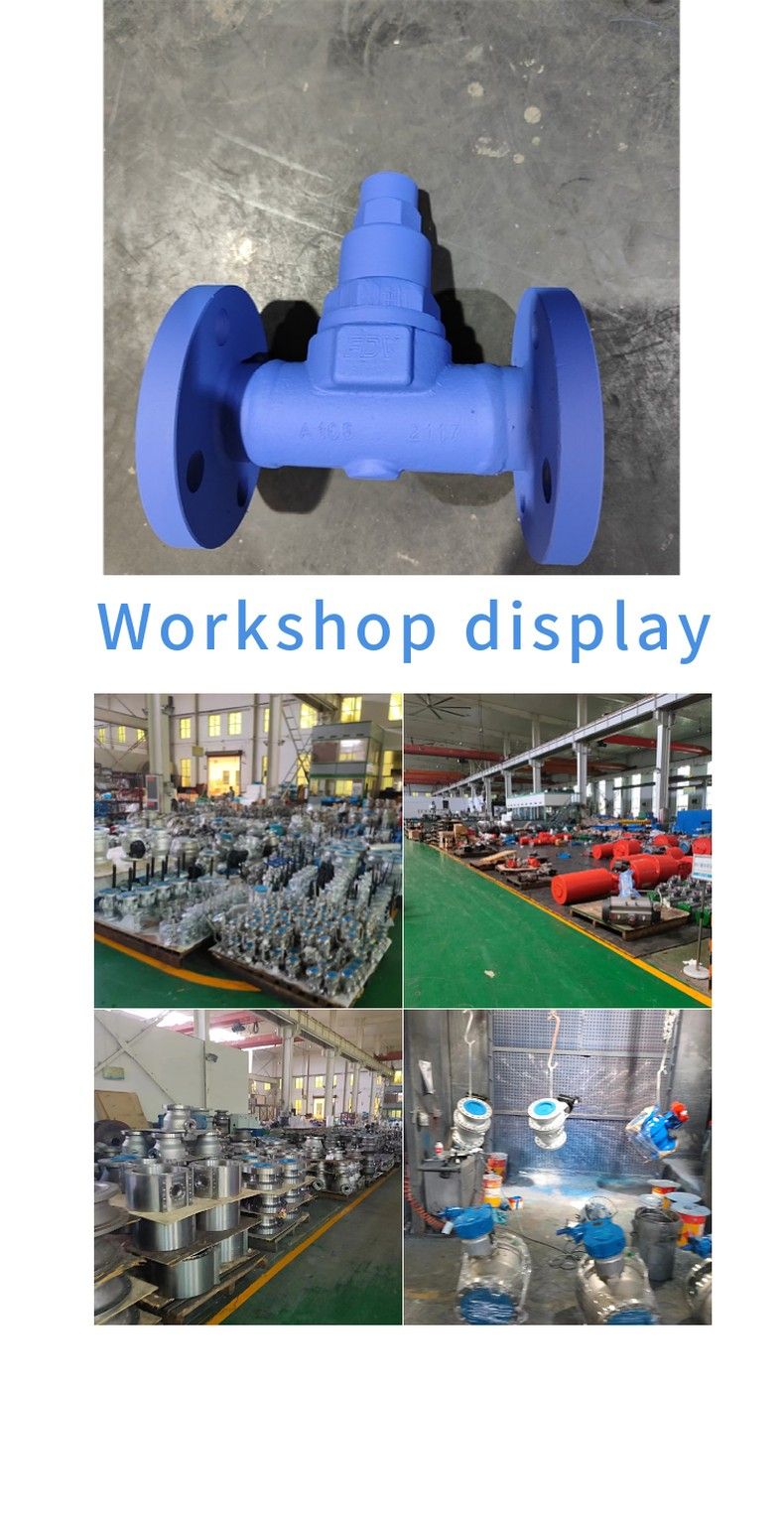

CS44F liquid expansion steam trap
Equipment used for steam pipe network heat tracing, instrument heat tracing, domestic heating and allowing heating equipment with high temperature condensate water to drain
CS44H/F liquid expansion bellows steam traps
The liquid expansion trap is the most economical and energy-saving type of thermostatic trap for experimental use. Its advantages are: small size, light weight, not afraid of freezing, can automatically exhaust air, any position can be installed; The back pressure rate is greater than 80%, the expansion of stainless steel bellows is large, easy to adjust, the valve is equipped with adjustment bolts, can be adjusted according to the need to adjust the use of temperature, the general undercooling degree below saturation temperature 18 ºC -40 ºC.
The bellows trap is suitable for steam pipe network heating, instrument heating, domestic heating and heating equipment drainage that allows high temperature condensate to exist, and has a wide range of use.
Special point
Strong and durable, long service life, etc
Class
Liquid expansion bellows steam traps
Type No.
CS44H/F
Contents
Product descriptions

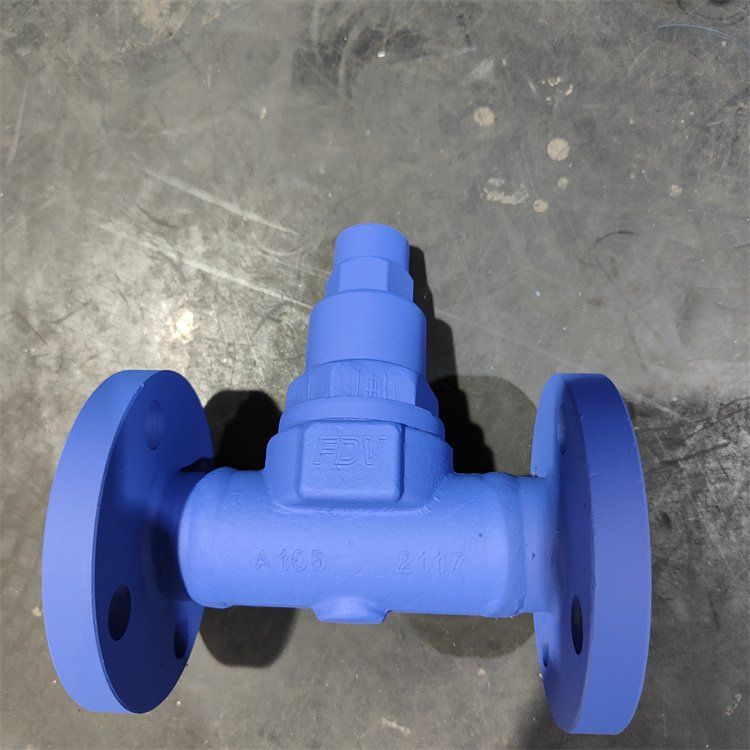

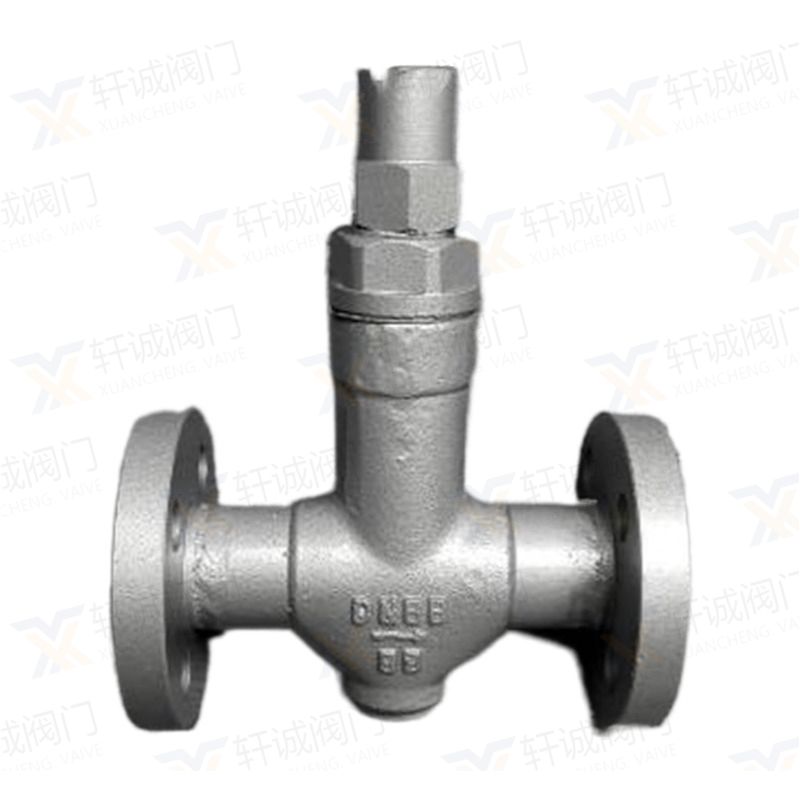

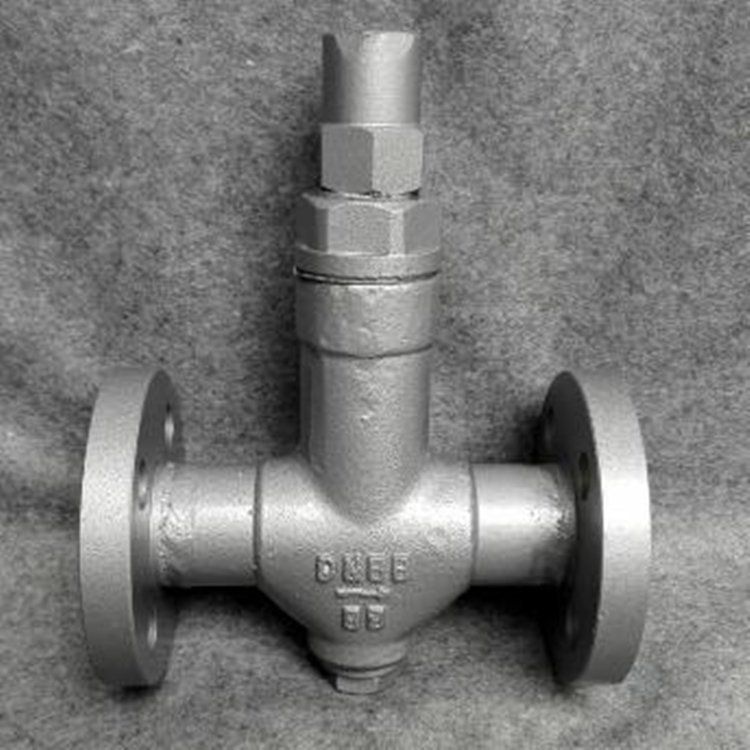

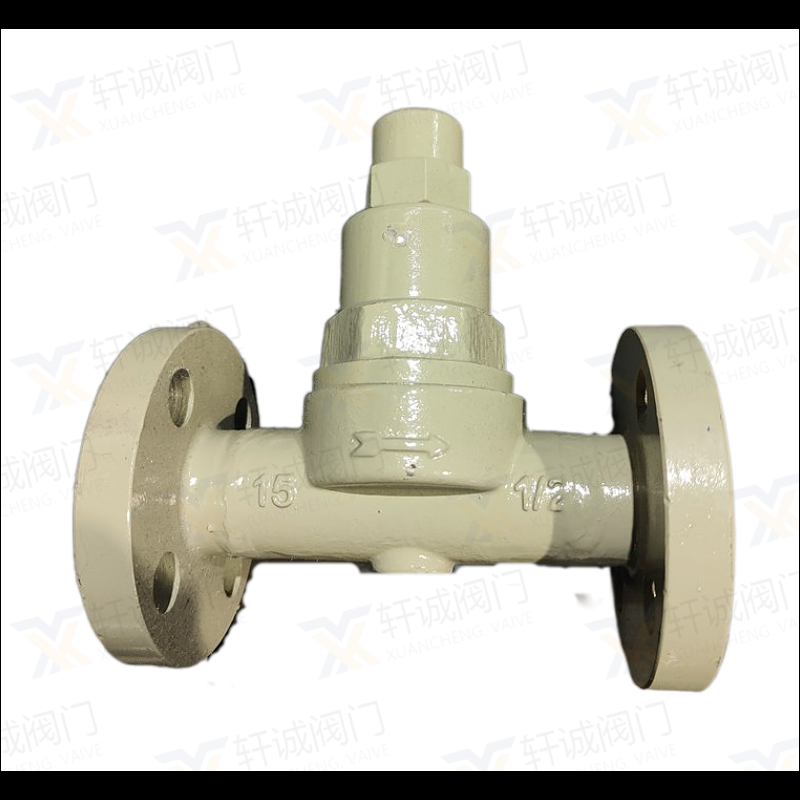

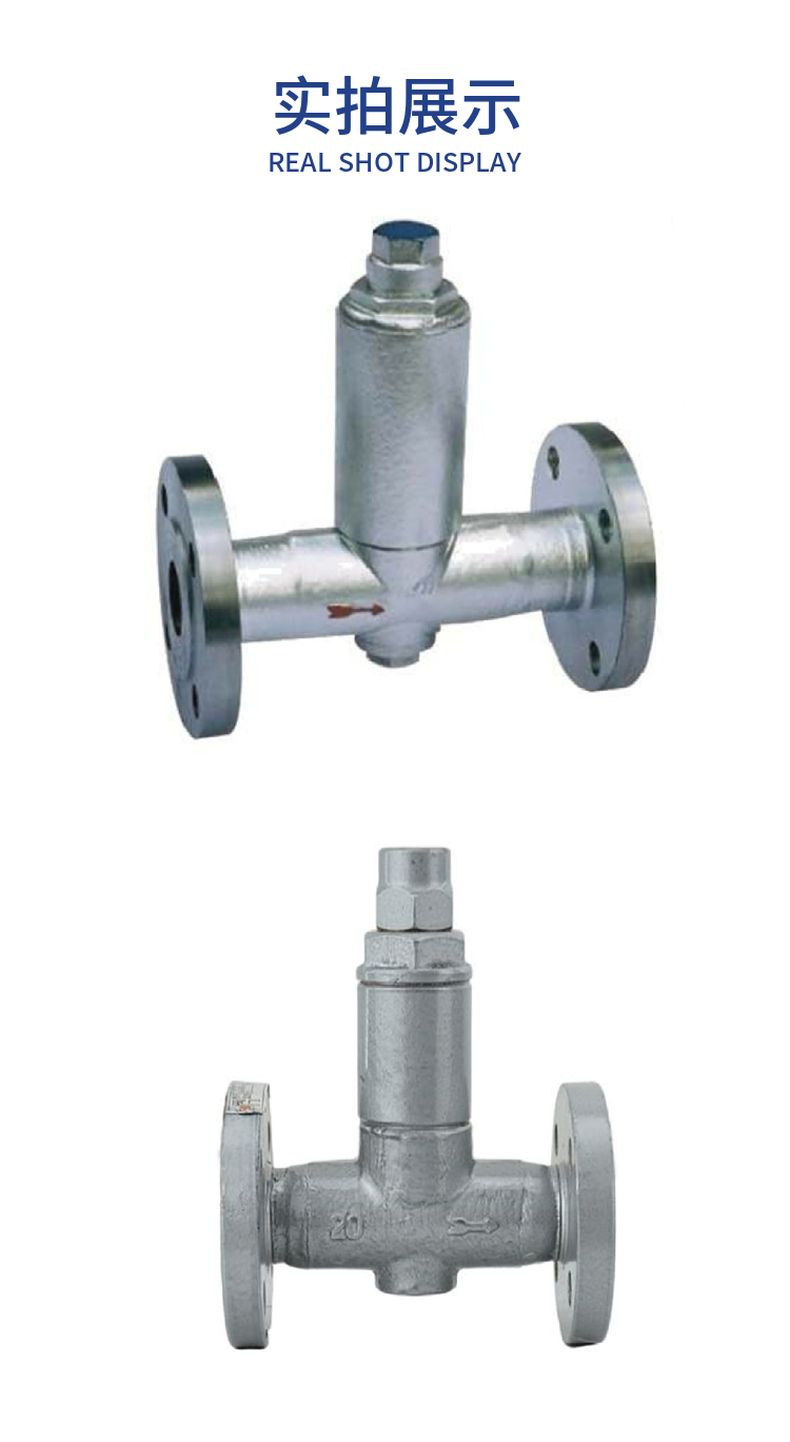

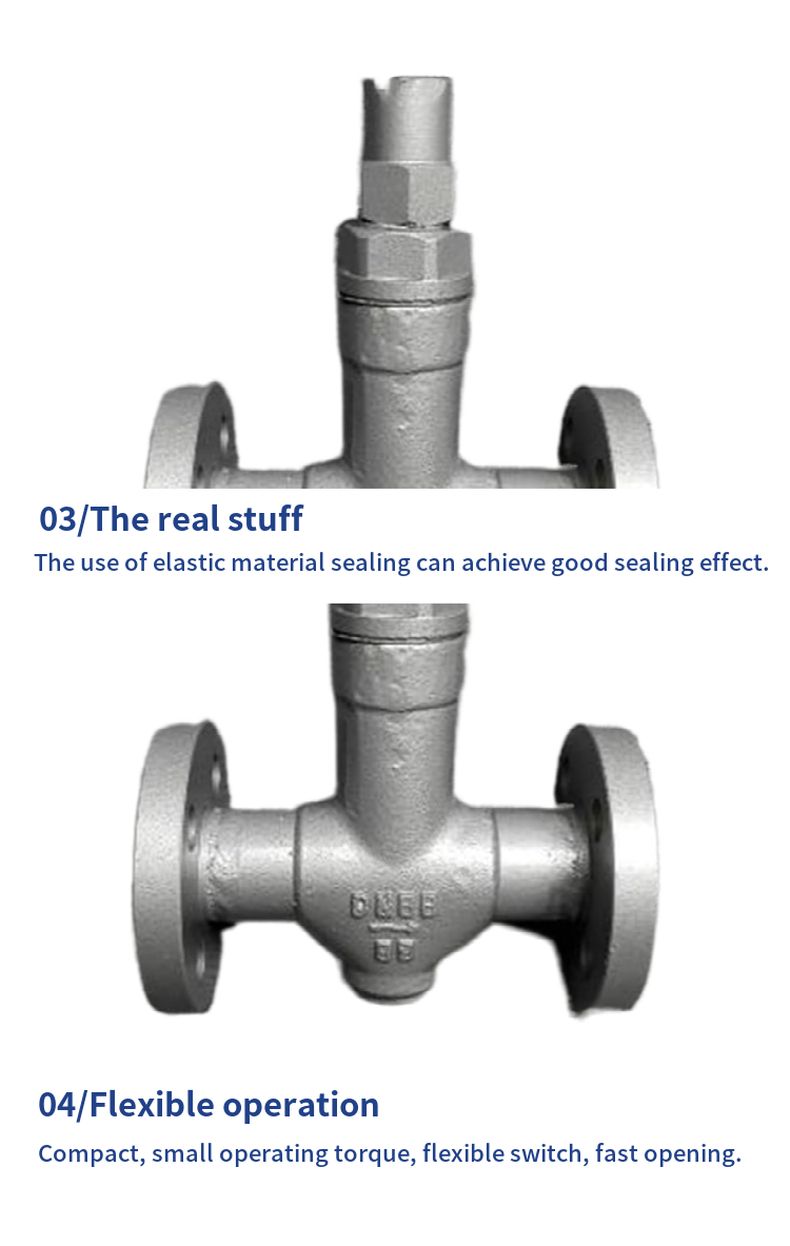

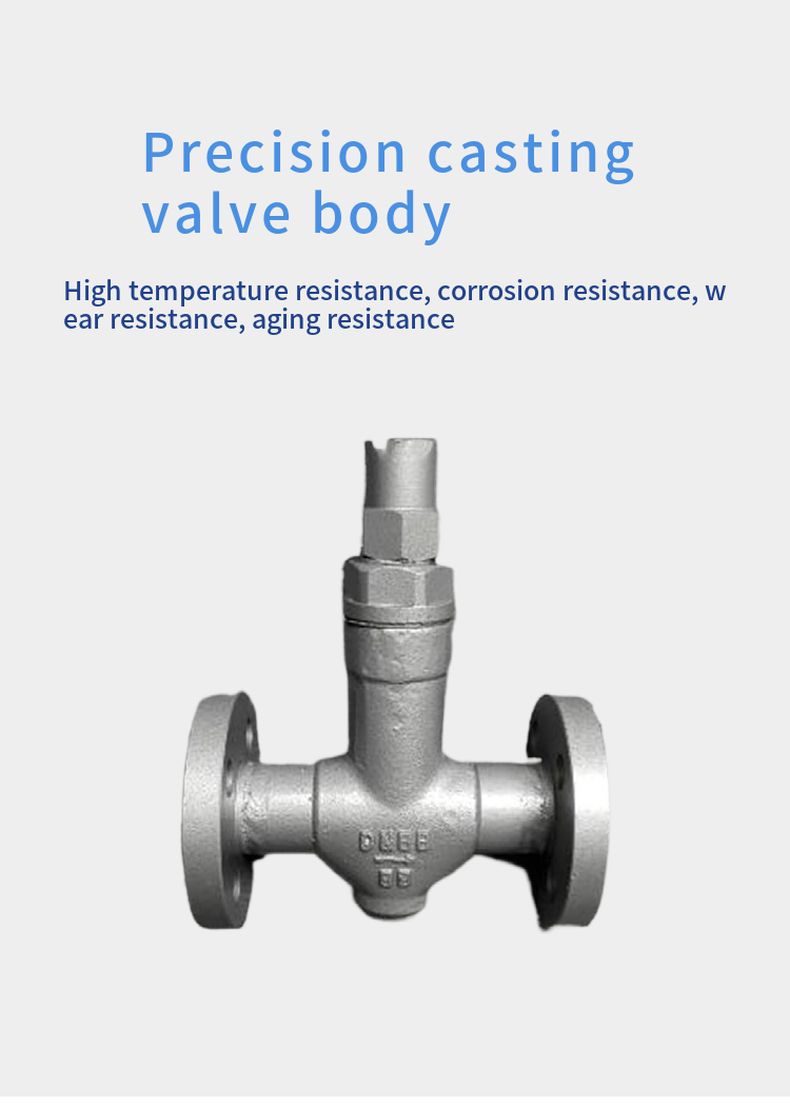

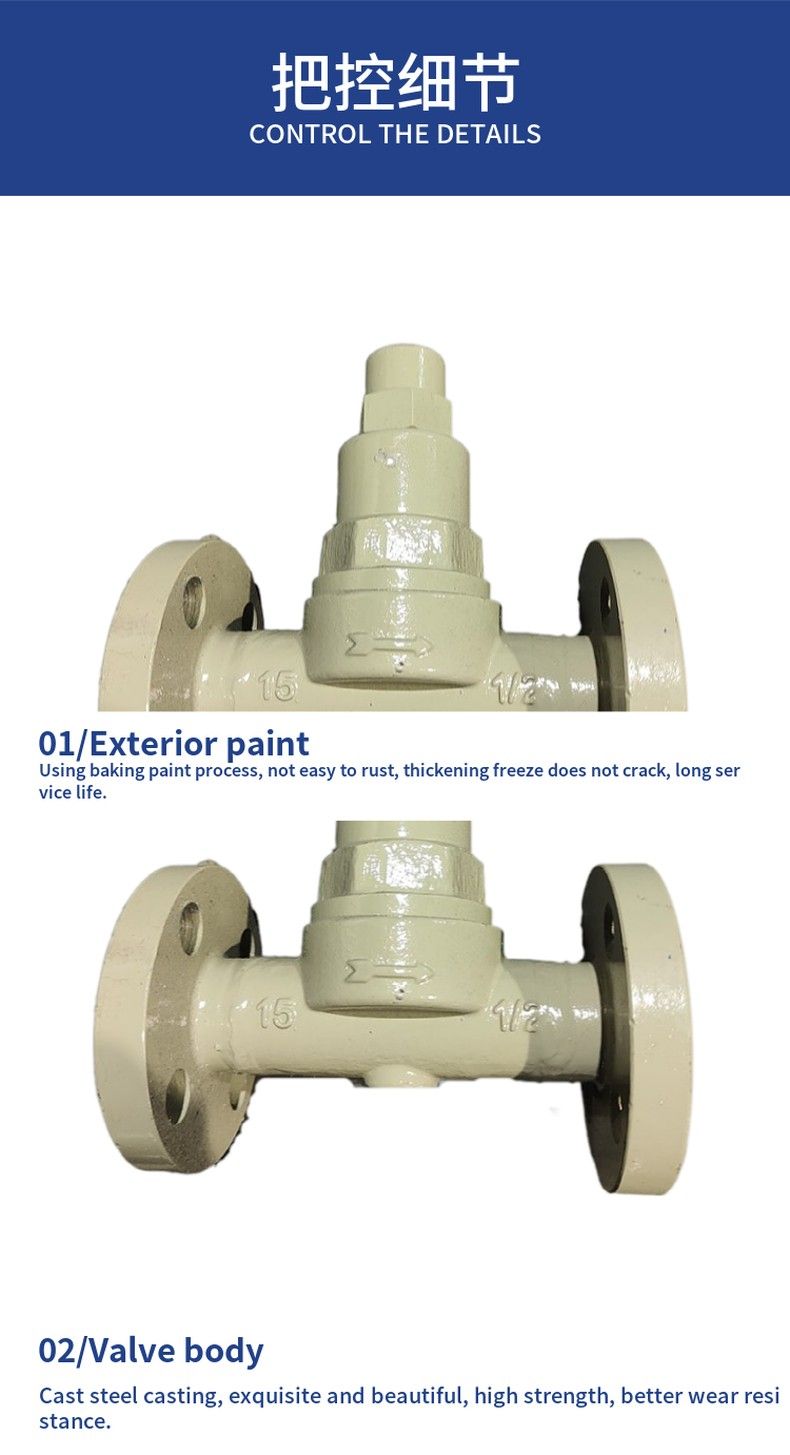

CS44H/F liquid expansion bellows steam trap
The liquid expansion trap is the most economical and energy-saving type of thermostatic trap for experimental use. Its advantages are: small size, light weight, not afraid of freezing, can automatically exhaust air, any position can be installed; The back pressure rate is greater than 80%, the expansion of stainless steel bellows is large, easy to adjust, the valve is equipped with adjustment bolts, can be adjusted according to the need to adjust the use of temperature, the general undercooling degree below saturation temperature 18 ºC -40 ºC.
The bellows trap is suitable for steam pipe network heating, instrument heating, domestic heating and heating equipment drainage that allows high temperature condensate to exist, and has a wide range of use.
Special point
1. Stainless steel glass pipe is durable and has long service life.
2. The discharge temperature of condensate can be adjusted, the sensible heat is used, and the energy saving effect is remarkable.
3. There is always condensate in front of the valve to form a reliable water seal without steam leakage. 4. Not affected by vibration, steam pressure fluctuation and water hammer.
5. Can be installed at any Angle, not limited by the installation orientation, and excellent air exhaust performance.
6. Simple structure, and with a filter device, easy installation and maintenance.
Working principle
The internal structure of the liquid expansion trap is a stainless steel bellows as the main action element, which is filled with a liquid whose vaporization temperature is lower than the saturation temperature of water. When the device starts, the pipe appears cooling condensate water, the liquid in the bellows is in a condensing state, and the valve center is in the open position under the spring's elasticity. When the condensate temperature gradually rises, the liquid filled in the bellows begins to evaporate and expand, the internal pressure increases, the deformation and elongation drive the valve core to move in the direction of closing. Before the condensate reaches the saturation temperature, the trap is completely closed. There is always high temperature condensate before the valve, no steam leakage, and the energy saving effect is good.
