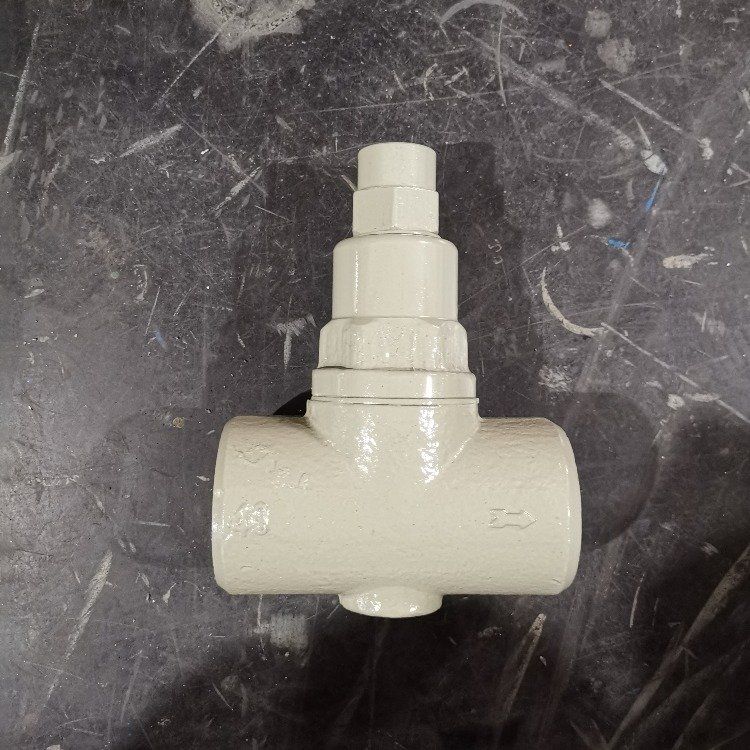

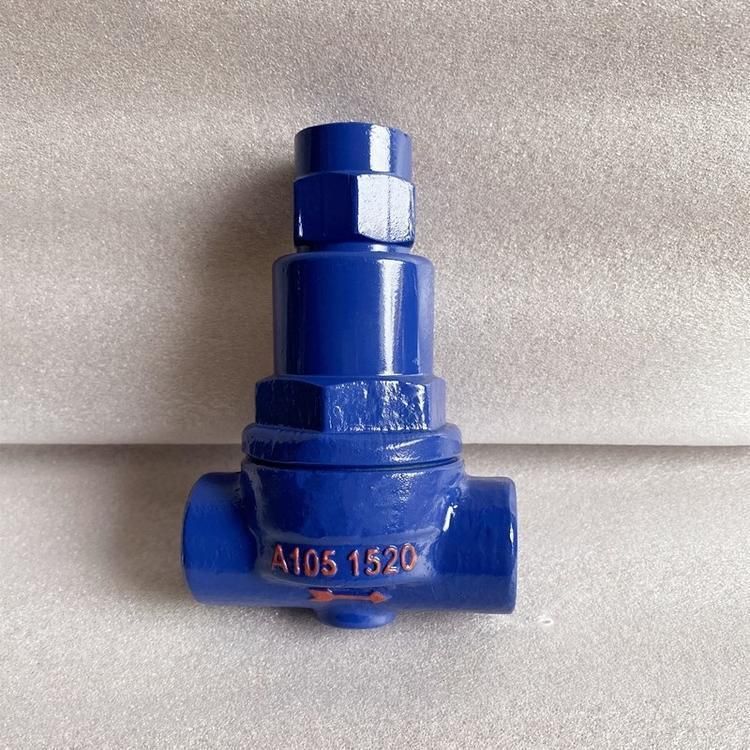

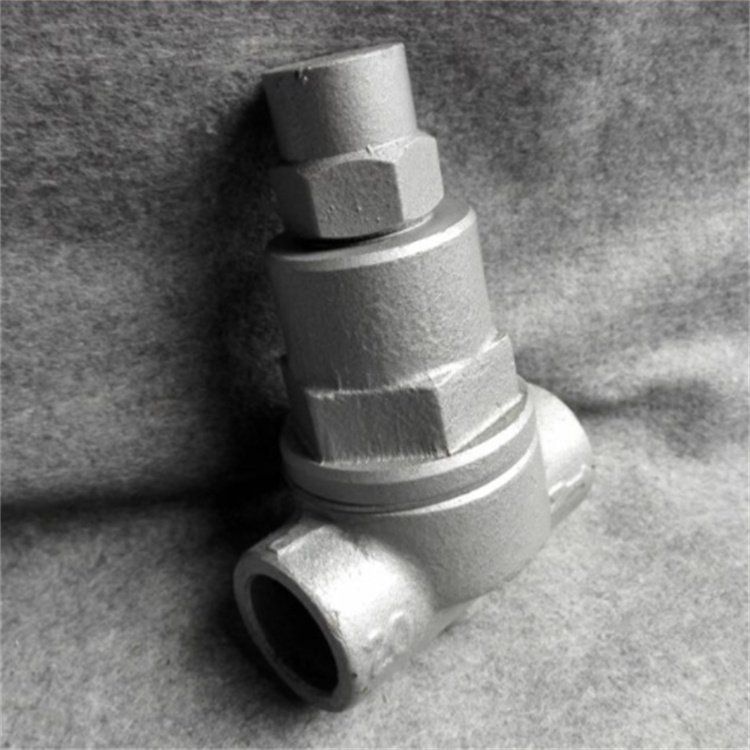

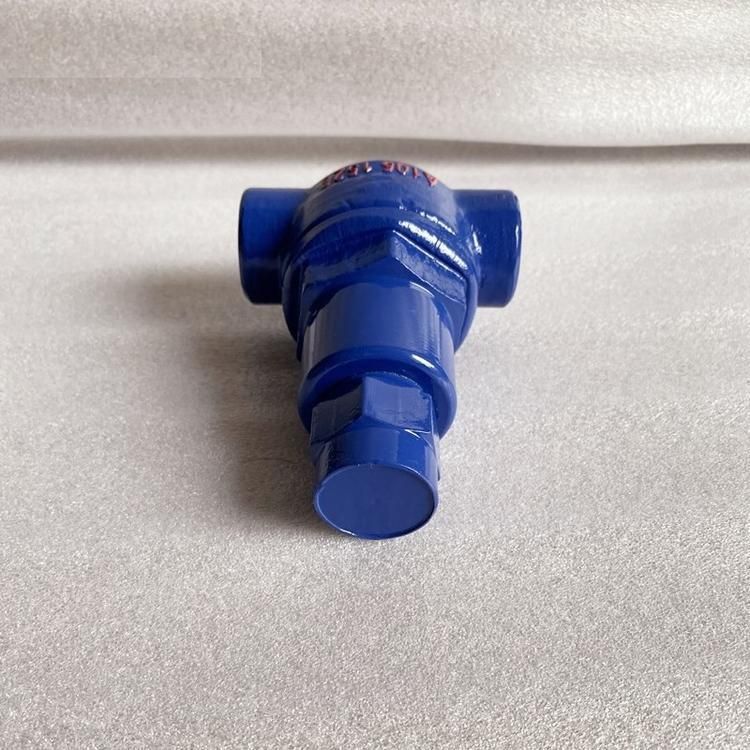

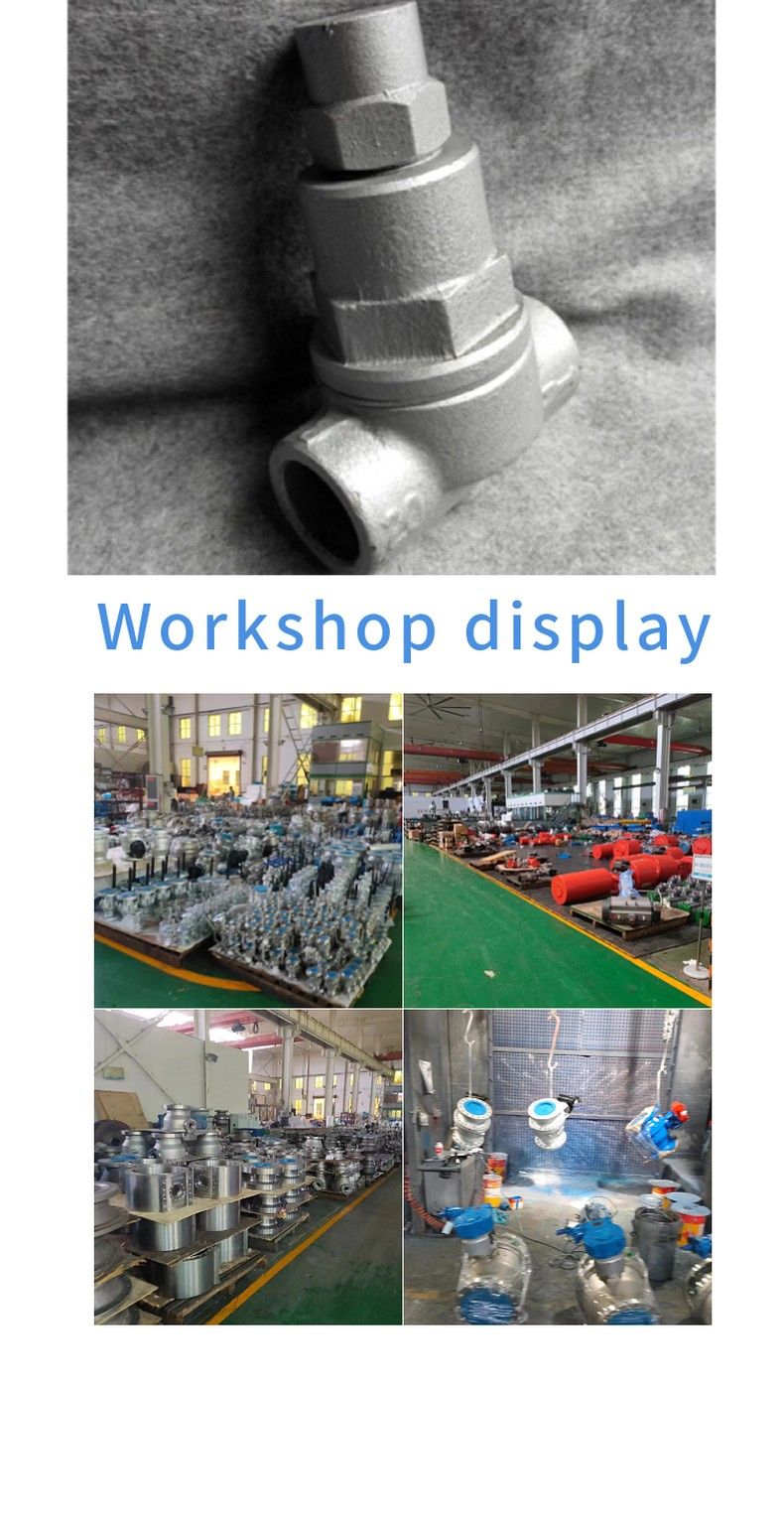

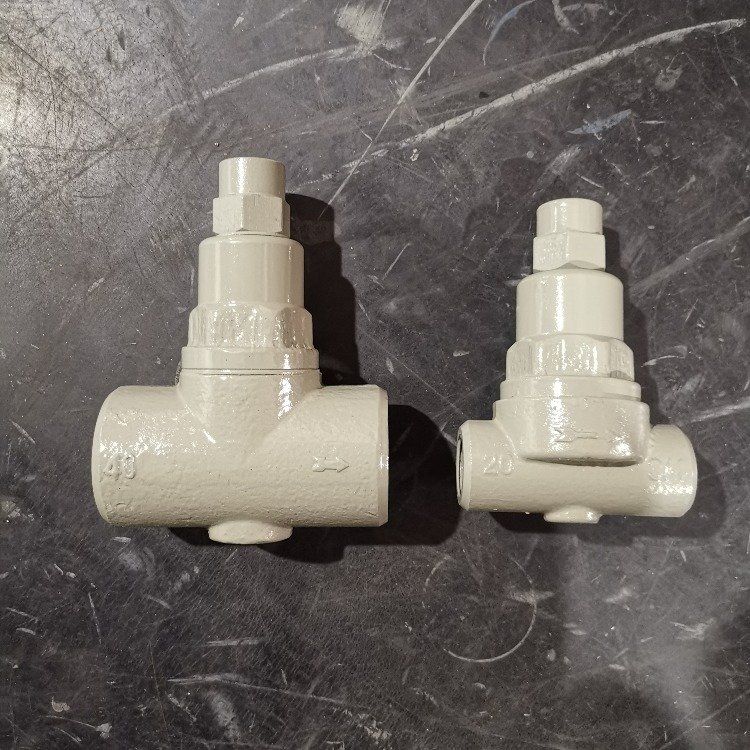

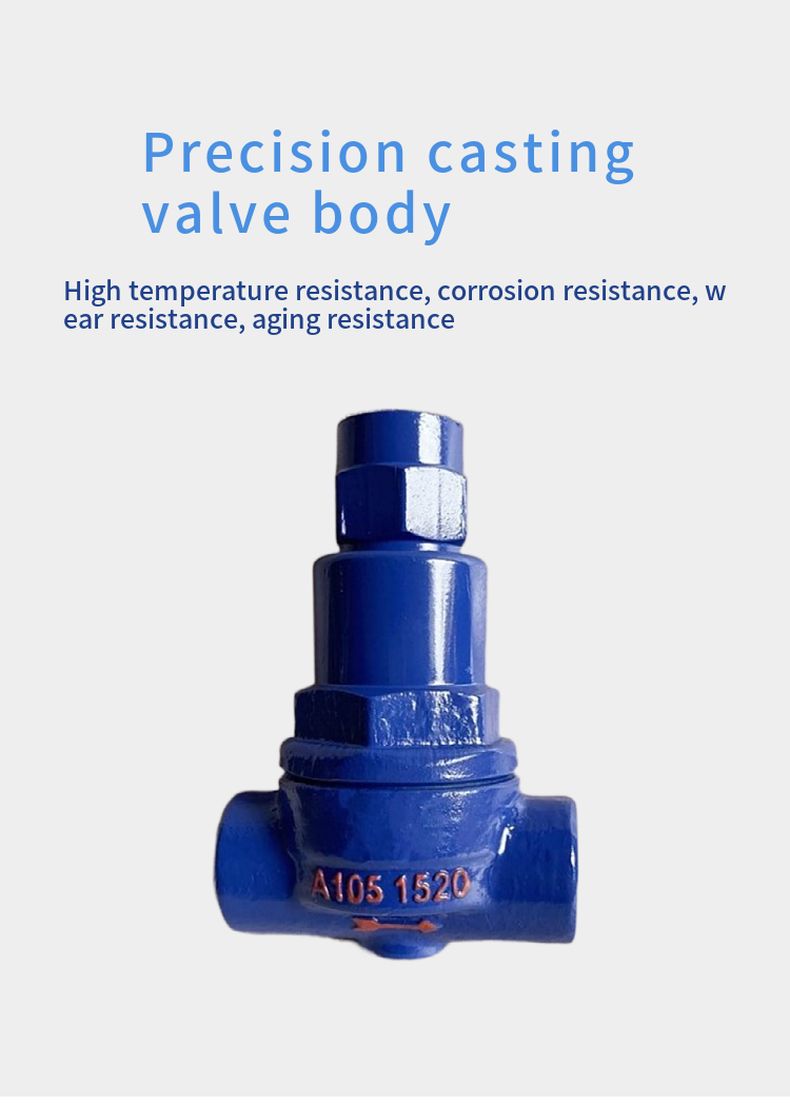

CS17H adjustable bimetallic sheet steam trap

Product introduction

CS17H Adjustable bimetallic sheet temperature adjustable steam trap
Bimetal disc traps are the most robust of thermostatic steam traps. Its advantages are: not afraid of water strike, high pressure resistance, small size, light weight, not afraid of freezing, can automatically exhaust air, any position can be installed; The back pressure rate is greater than 80%.
The trap is suitable for steam pipe main pipe, pipe network heat tracing, instrument heat tracing, domestic heating and heating equipment that allows high temperature condensate water to drain, and has a wide range of use.

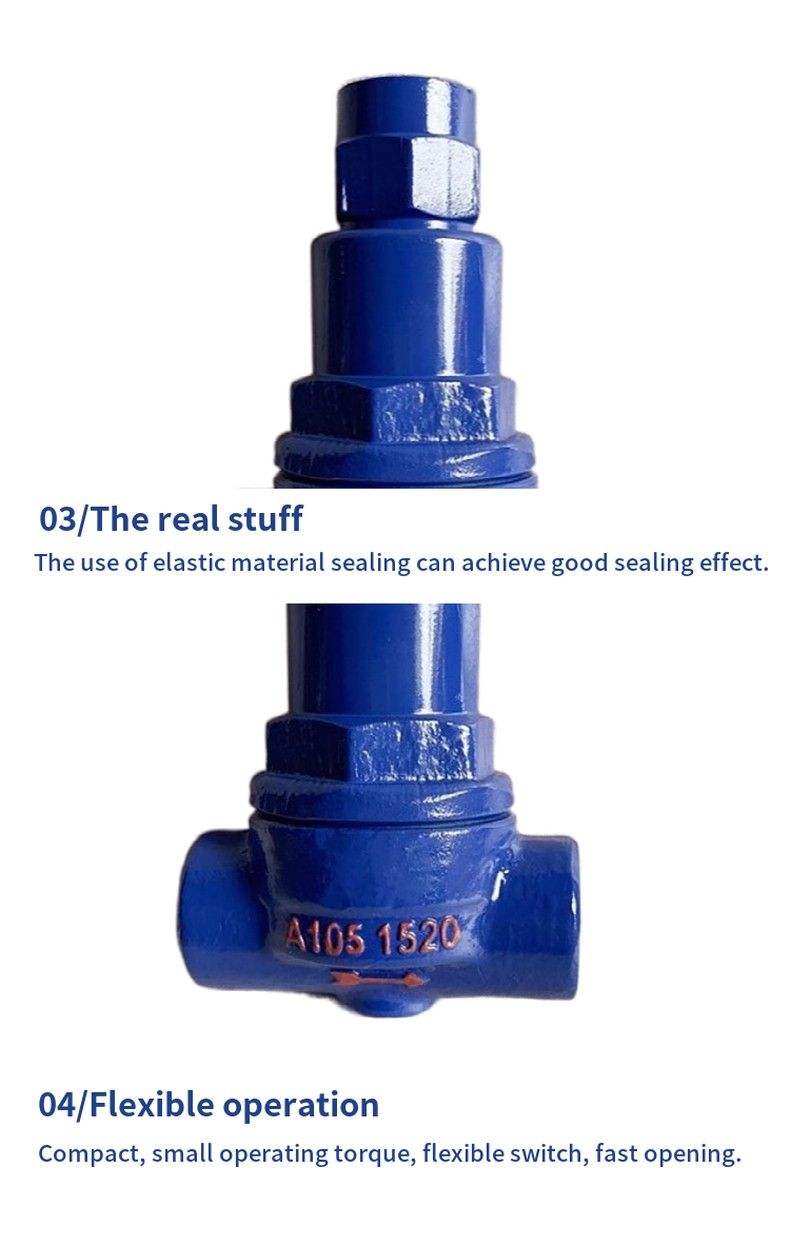

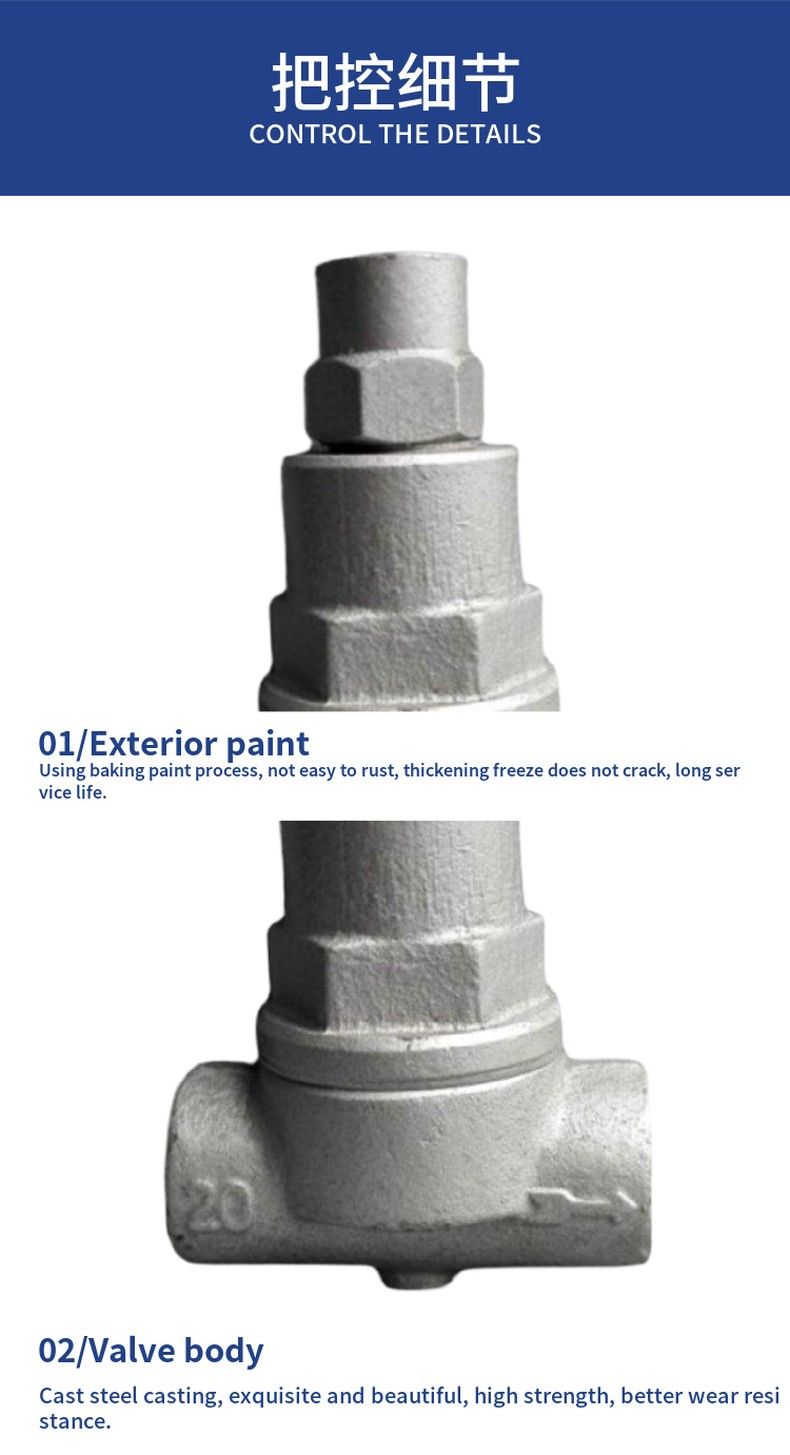

Features

1. The discharge temperature of condensate can be adjusted to effectively use the sensible heat of condensate.
2. There is always condensate in front of the valve to form a water seal without steam leakage.
3. It can be installed at any Angle and the drainage temperature can be adjusted at any time.
4. Water strike resistance, excellent exhaust performance.
5. Spherical closing mode, long service life

Working principle

Bimetal plate trap is a bimetal plate temperature sensing element to drive the valve core to switch the valve. When the device is just started, there is low-temperature condensate in the pipeline, the bimetal sheet is flat, and the spool is in the open position under the spring's elasticity. When the temperature of the condensate gradually rises, the temperature sensing element of the bimetal plate begins to bend and deform, and pushes the valve core to the closed position. The trap is completely closed before the condensate reaches saturation temperature. There is always high temperature condensate in front of the valve, no steam leakage, and good energy saving effect.

Model Specification Size

Product model number	Diameter (mm)	Connection method	Working pressure Scope (Mpa)	Maximum allowable Temperature (C)	Body material	Exterior dimensions
L	H1	H2	W
LTB6 (CS17H-16C)	15 to 25	Thread	0.01-1.6	220	WBC A105	95	111	23	60
LTB6F CS47H-16C	15	Francois	0.01-1.6	220	WBC A105	150	111	23	60
20	Francois	0.01-1.6	220	WBC A105	160	111	23	60
25	Francois	0.01-1.6	220	WBC A105	160	111	26	60
32	Francois	0.01-1.6	220	WBC A105	210	118	27	61
40	Francois	0.01-1.6	220	WBC A105	230	123	30	66
50	Francois	0.01-1.6	220	WBC A105	230	123	30	66
(LTB6W) CS67H-16C	15	Socket welding	0.01-1.6	220	WBC A105	95	106	35	58
20	Socket welding	0.01-1.6	220	WBC A105	95	106	35	58
25	Socket welding	0.01-1.6	220	WBC A105	95	106	35	58
(TB11) CS17H-16C	15	Thread	0.01-1.6	220	WBC A105	95	106	35	58
20	Thread	0.01-1.6	220	WBC A105	95	106	35	58
25	Screw thread	0.01-1.6	220	WBC A105	95	106	35	58
(TB11F) CS47H-16C	15	Francois	0.01-1.6	220	WBC A105	150	111	23	60
20	Francois	0.01-1.6	220	WBC A105	160	111	23	60
25	Francois	0.01-1.6	220	WBC A105	160	111	26	60
32	Francois	0.01-1.6	220	WBC A105	210	118	27	61
40	Francois	0.01-1.6	220	WBC A105	230	123	30	66
50	Francois	0.01-1.6	220	WBC A105	230	123	30	66
LTB3 CS17H-16C	15	Thread	0.1-1.6	350	WBC A105	85	80	23	54
20	Thread	0.1-1.6	350	WBC A105	85	80	23	54
25	Thread	0.1-1.6	350	WBC A105	85	80	23	54
LTB3F CS17H-16C	15	Francois	0.1-1.6	350	WBC A105	150	80	23	54
20	Francois	0.1-1.6	350	WBC A105	15.	80	23	54
25	Francois	0.1-1.6	350	WBC A105	160	80	23	54
LTB3W CS17H-16C	15	Socket welding	0.1-1.6	350	WBC A105	85	80	23	54
20	Socket welding	0.1-1.6	350	WBC A105	85	80	23	54
25	Socket welding	0.1-1.6	350	WBC A105	85	80	23	54
LTB5 CS67H-16C	15 to 25	Thread	0.01-1.6	350	WBC A105	85	90	20	62
LTB5F CS17H-16	15-20 25	Francois	0.01-1.6	350	WBC A105	150 160	80	23	54
(LTB5W) CS67H-16C	15 to 25	Socket Weld	0.01-1.6	350	WBC A105	85	80	23	54
