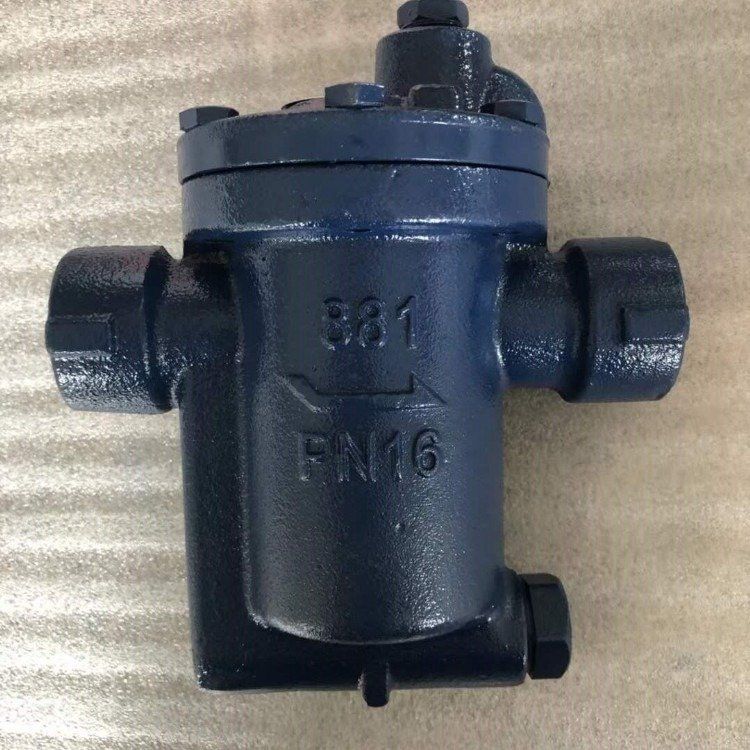

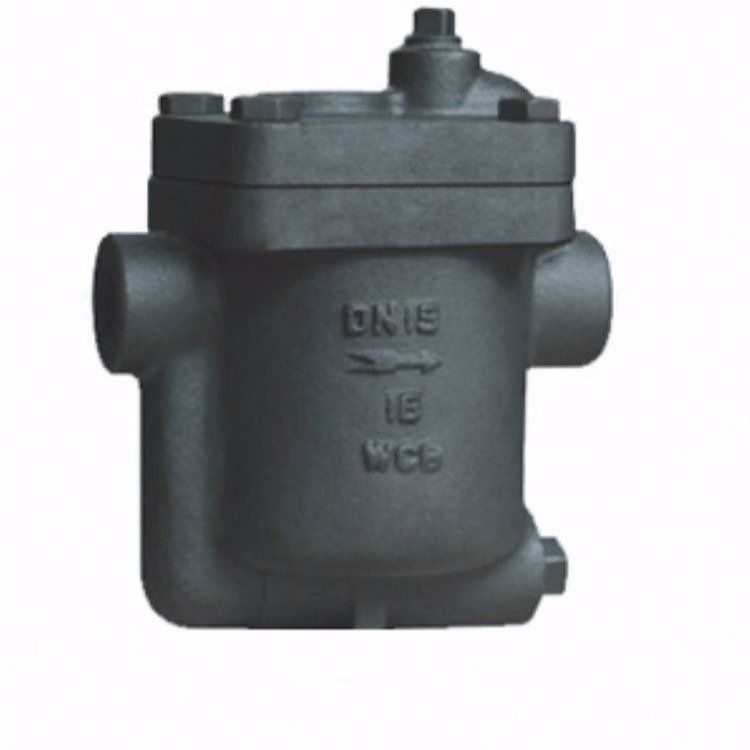

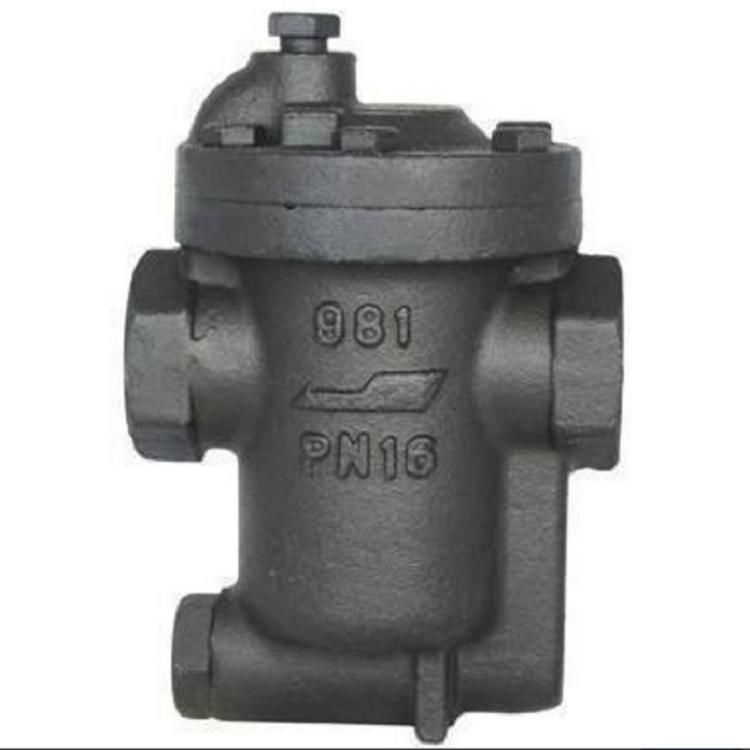

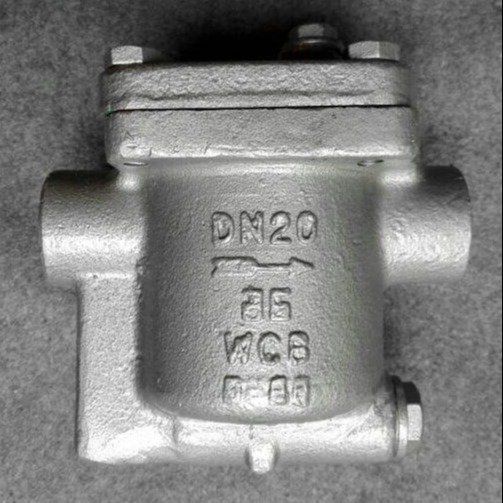

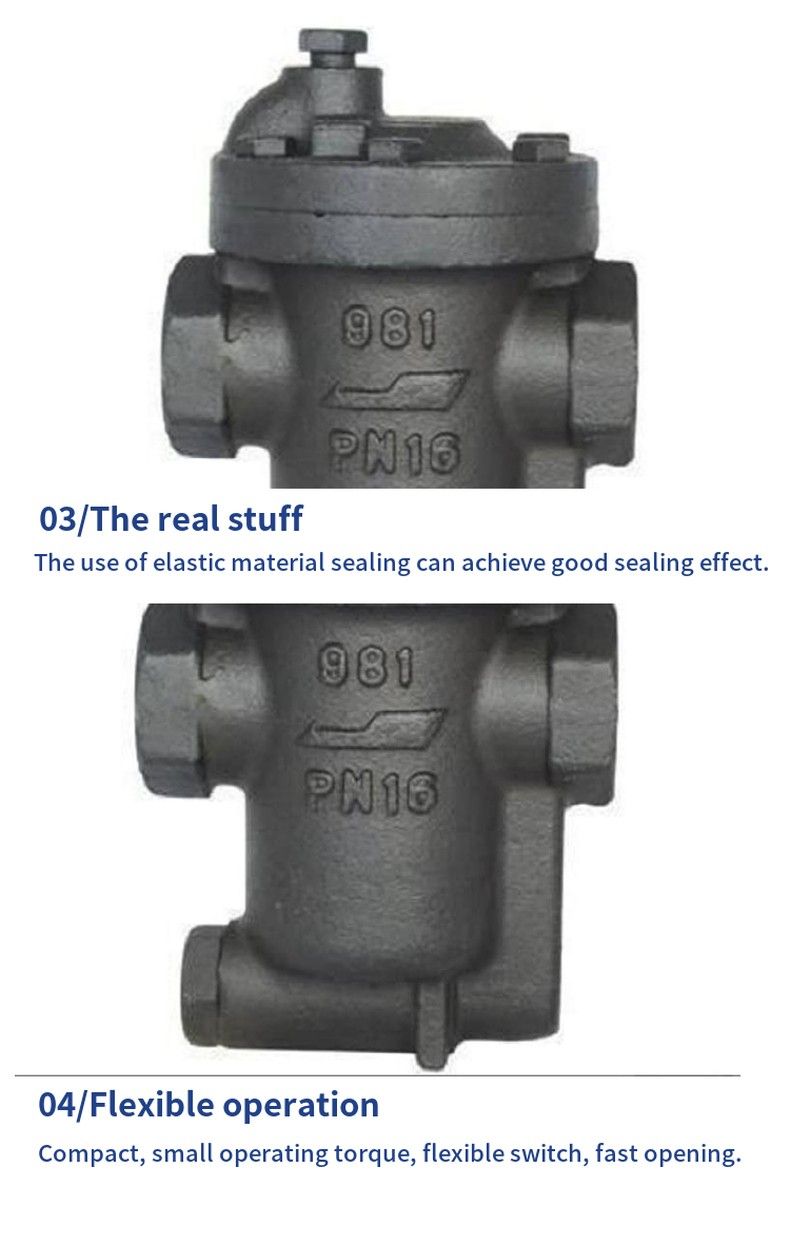

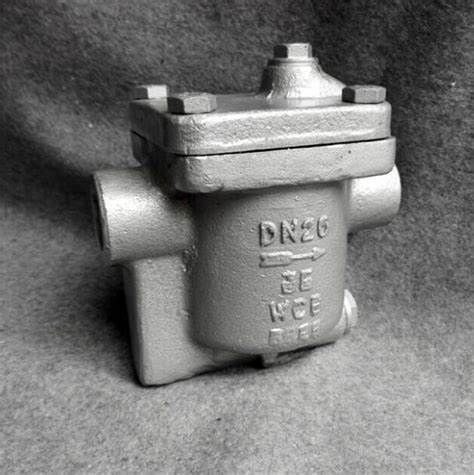

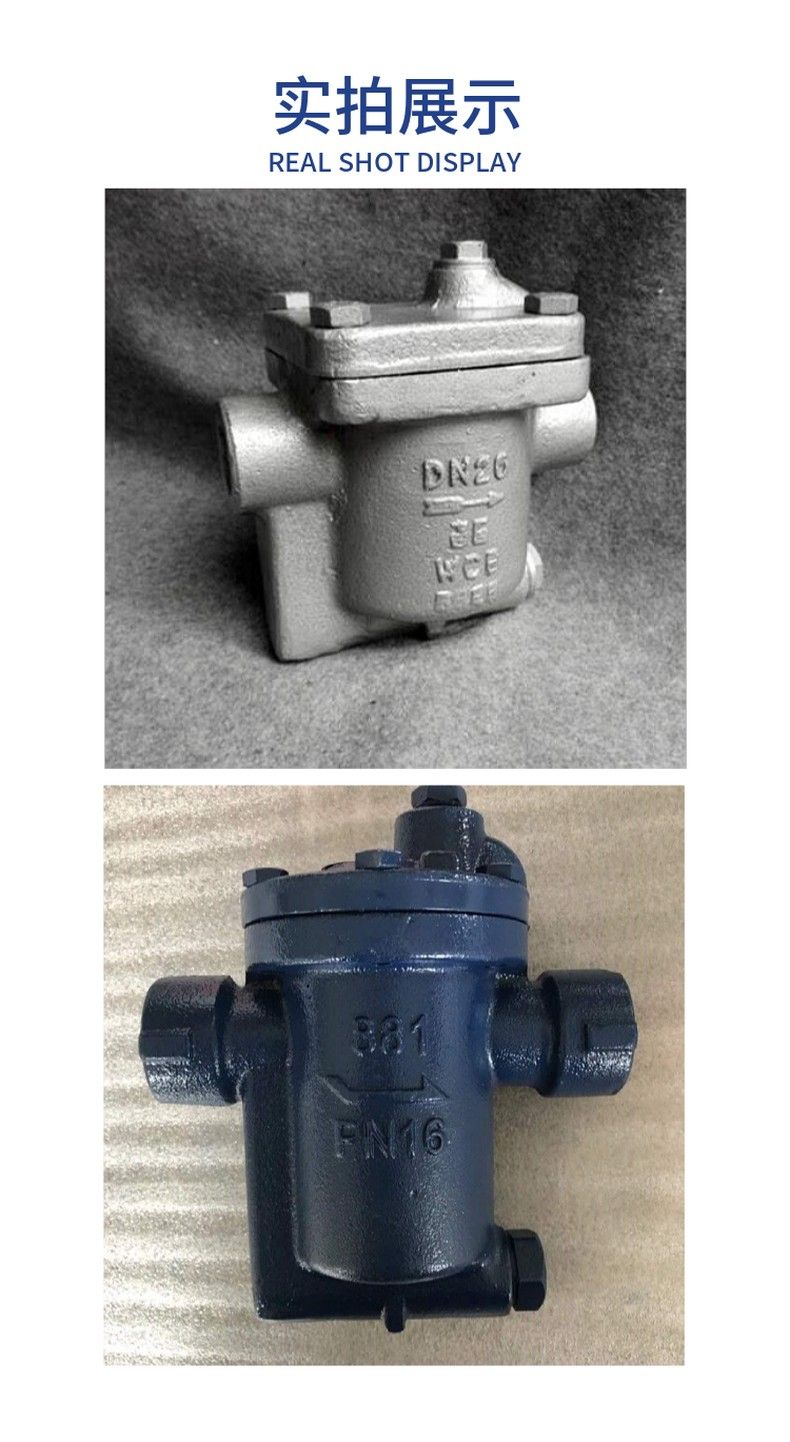

CS15H bell-shaped float inverted bucket steam trap

1, CS15H bell-shaped float inverted bucket steam trap characteristics and performance :
1, strong adaptability to the amount of condensate, both intermittent discharge, and continuous discharge.
2, the internal equipped with large displacement of double valve seat differential pressure machinery and SCCV closing system, small volume and large displacement.
3, the internal parts are all made of stainless steel, and installed on the valve cover, maintenance is very convenient.
4, the back pressure rate is 90% high
5, the separation of water and water is reliable :(water vapor enters from the lower part of the valve through the U-shaped channel), the valve is always in the water seal state, effectively prevent steam leakage.
6. The open-mouth-shaped float is resistant to water strike, and the bucket is provided with overflow vents, which can effectively prevent steam lock and air blockage. (non-condensing high temperature air can also be excluded)
7, and lever mechanical combination can be made into a high pressure valve.
2. CS15H bell-shaped float inverted bucket steam trap double seat differential pressure machinery and SCCV closing mode:
 SCCV closing mode and double valve seat differential pressure mechanical installation in the same unit long life, when the condensation water increases, the bucket loses buoyancy resulting in mechanical reverse seal and pressure difference, the main valve is opened to obtain large displacement, the use of steam equipment quickly start, maximize the thermal efficiency of the machine.


3, CS15H bell float (inverted bucket) type steam trap technical parameters:

4, CS15H bell float (inverted bucket) type steam trap main parts materials:

5, CS15H bell float (inverted bucket) type steam trap dimensions and weight:
