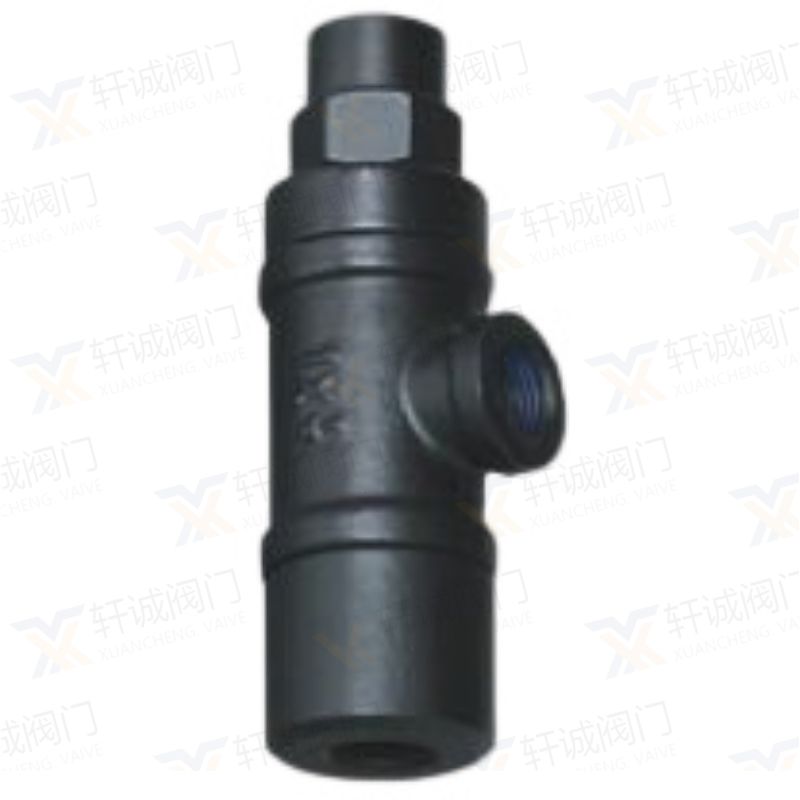

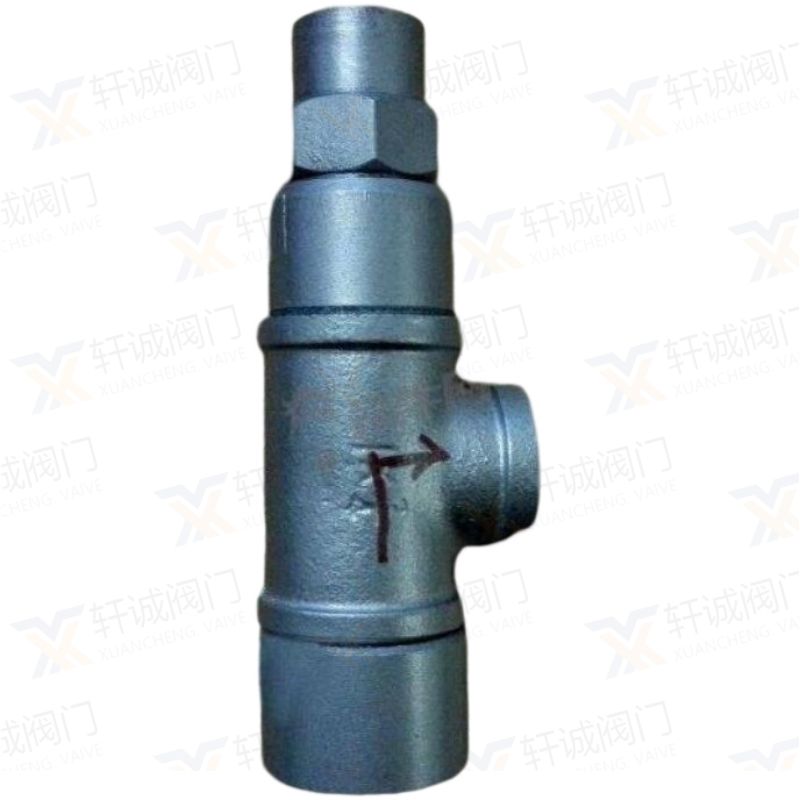

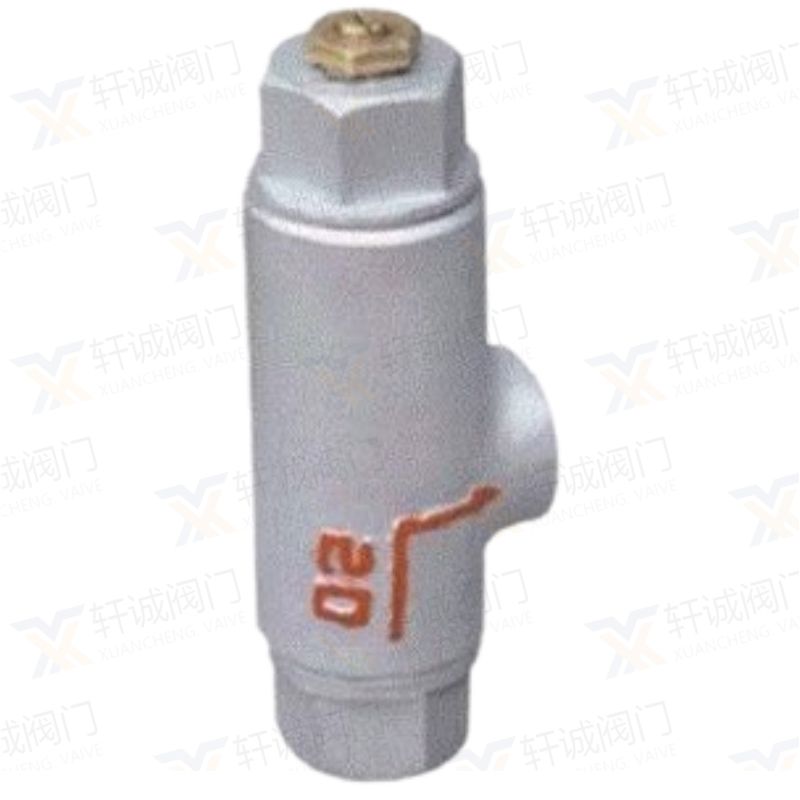

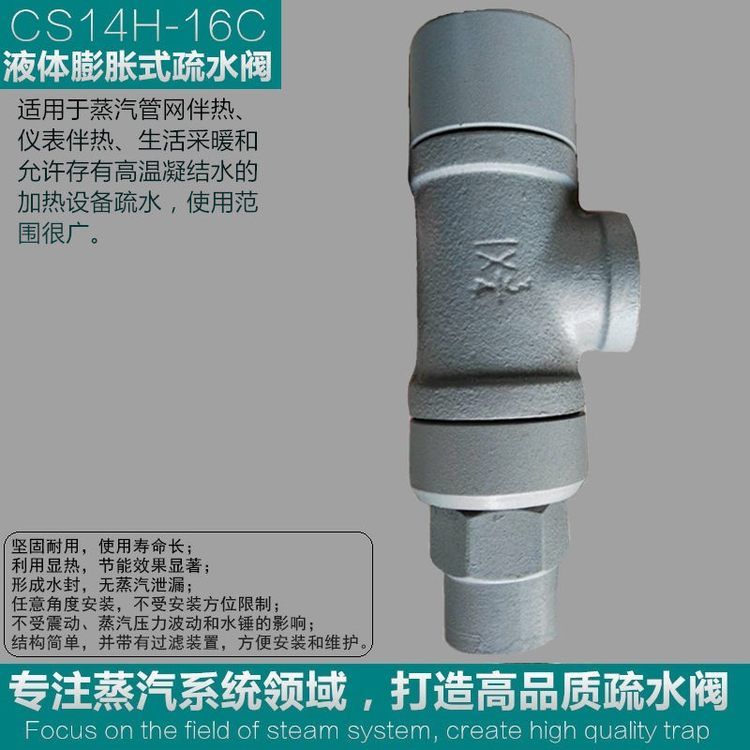

CS14H liquid expansion steam trap

intro

CS14H/F-18C, CS44H/F-16C type liquid expansion trap is a kind of thermostatic trap, it can be in the steam pipe network and steam equipment, timely removal of condensate and automatically prevent steam leakage, so as to ensure steam supply. With the normal progress of steam equipment, improve the efficiency of steam transmission and heat source, the product's key temperature inner parts, the use of high-quality steel pipe, special welding process made of energy saving effect is remarkable.

Detailed information

Structural features

1, with drainage temperature adjustment mechanism, can be adjusted between 60-100ºC, easy to use.
2, the drainage is continuous, and no noise.
3, temperature sensitive element, stainless steel corrosion resistance.
4, not affected by vibration, steam pressure fluctuations and water temperature.
5, small size, light weight, easy to install.
6, excellent exhaust air ability, can withstand overheating steam and water temperature.
7, within the pressure range is a fixed supercooling and circulation operation.
8, the valve is equipped with a membrane box, there are single group, double group, multiple groups. Suitable for a large number of occasions.
9, temperature sensing element, strong corrosion resistance, so that the valve life is durable.
10, the body has two kinds of carbon steel stainless steel, small light weight, vertical installation effect is the best, can also be installed at any Angle.

Technical parameters
