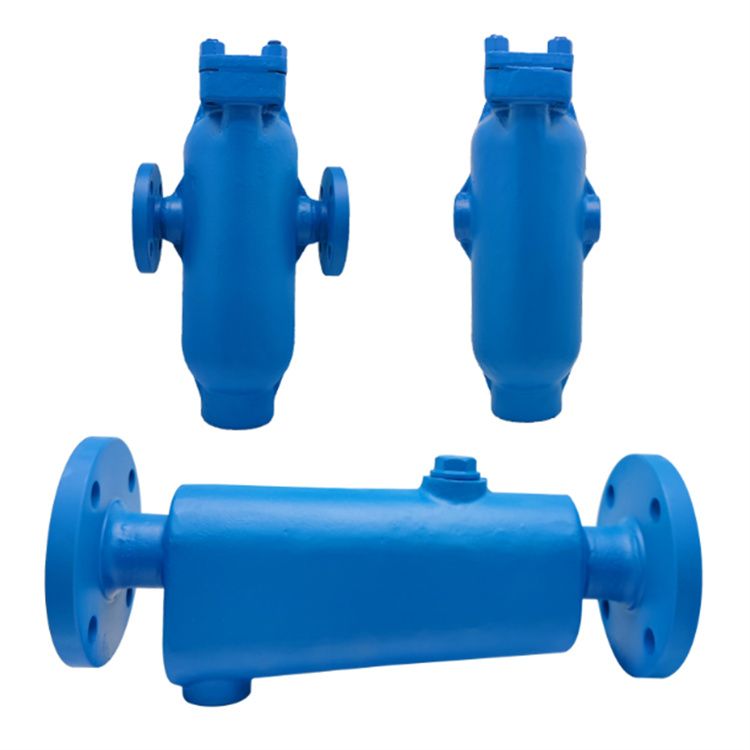

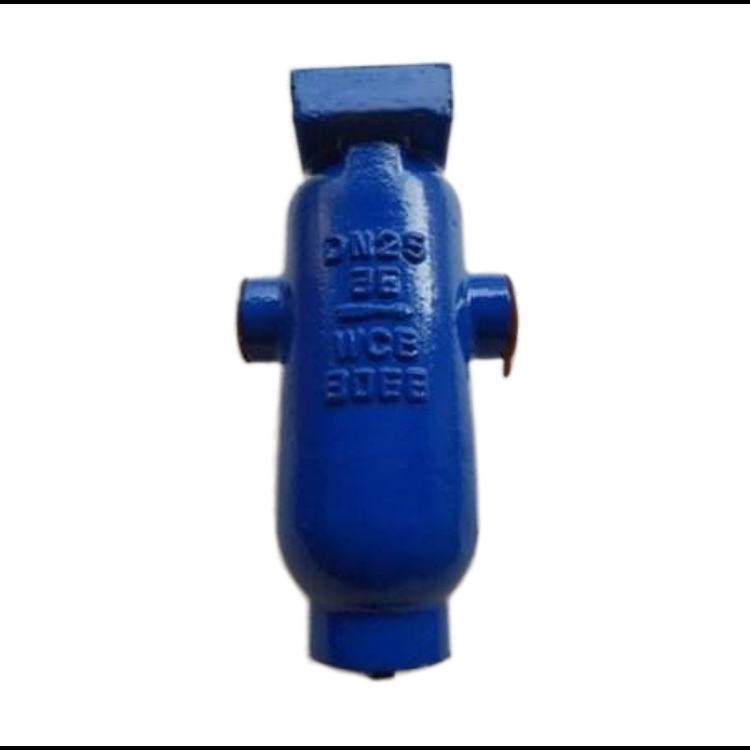

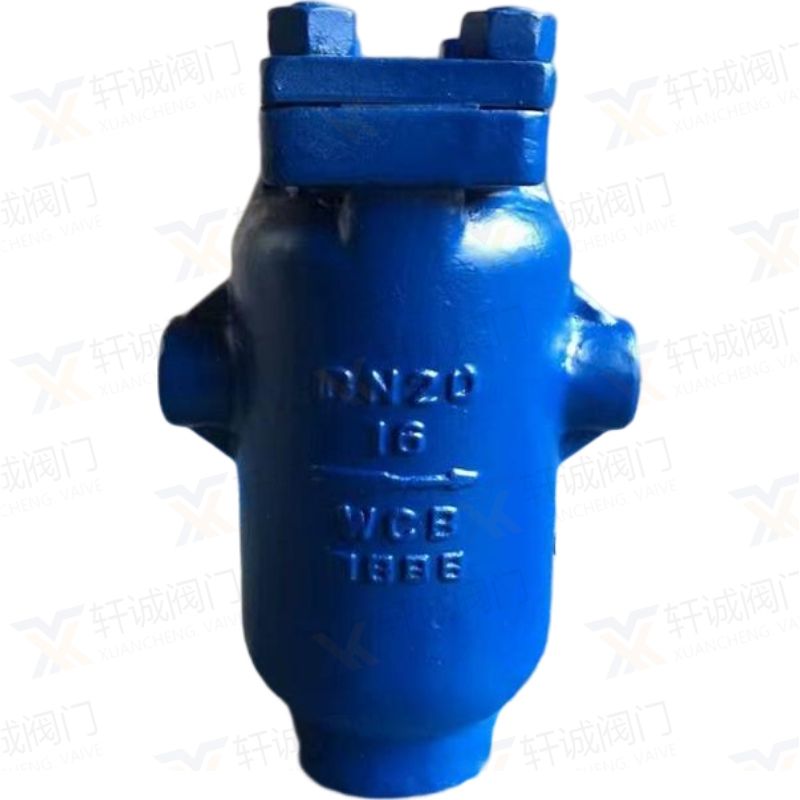

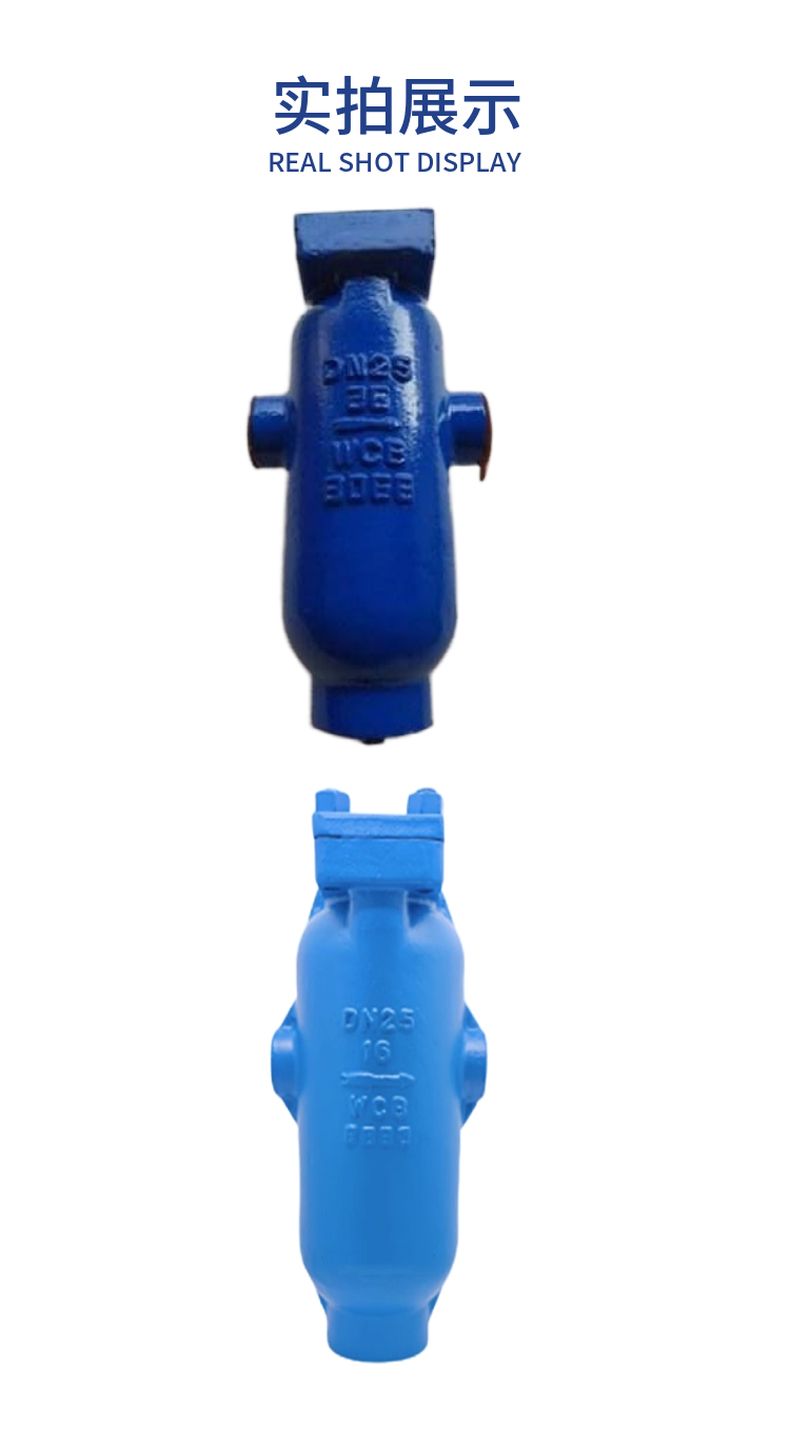

CF11 steam separator


CF11 type steam separator Introduction
 CF11 type steam separator, is the use of steam flow to sharply change the way, the steam and the steam contained in the suspended water droplets separated, improve product quality and production efficiency.
CF11 type steam separator structural characteristics
 1, for the steam equipment to provide high dryness steam, sent to the steam equipment, improve the thermal efficiency of the equipment, reduce the impact force in the pipeline.
2, and prevent water strike, and the separated condensate, by the lower part of the separator trap excluded.
3, CF11 soda separator is also suitable for separating condensate from compressed air.
4, * high separation efficiency (dryness can reach 98%)* low pressure drop (about 5 ‰); Structure according to the pressure vessel specification design.
5, water separator for pressure vessel structure carbon steel or stainless steel equipment. For the case that the steam contains air, the upper part of the steam separator is designed with an air outlet.
CF11 type steam separator working principle
 Steam separator A large amount of water vapor into the steam separator, and in which to centrifugal downward inclined movement. The trapped water is separated due to the reduction of speed. The separated liquid flows into the lower part and is discharged through the trap, and the dry and clean steam is discharged from the outlet of the separator.
CF11 type steam separator main parts materials

CF11 steam separator external connection dimensions
