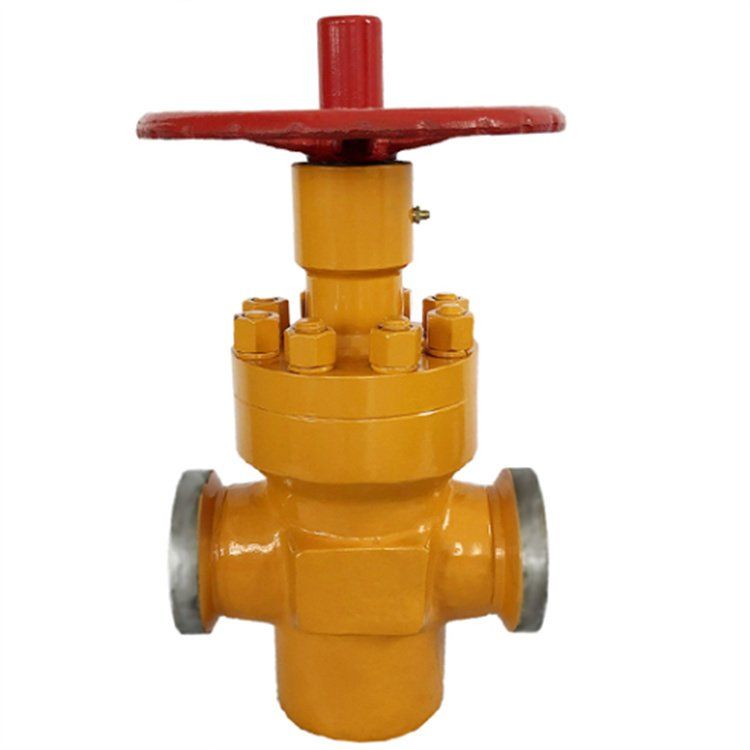

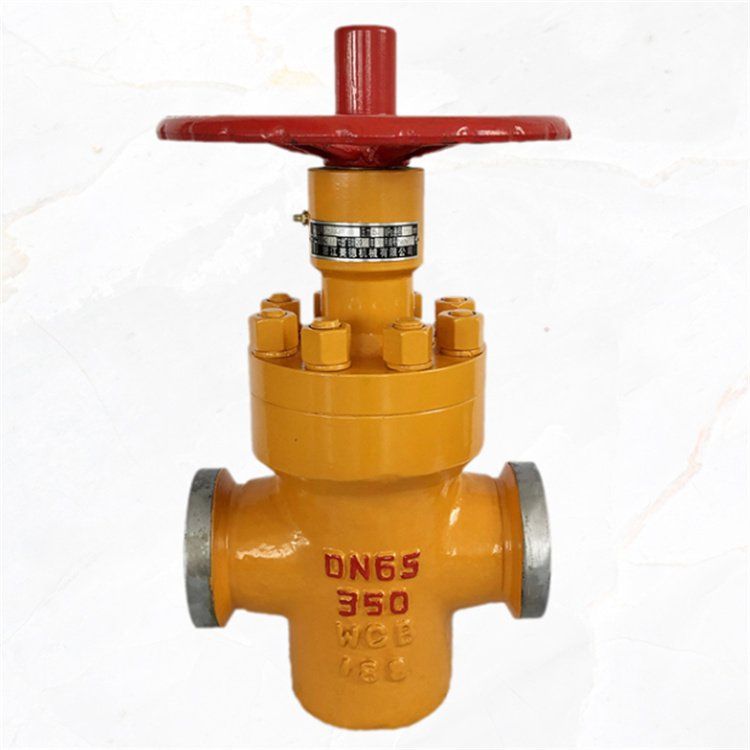

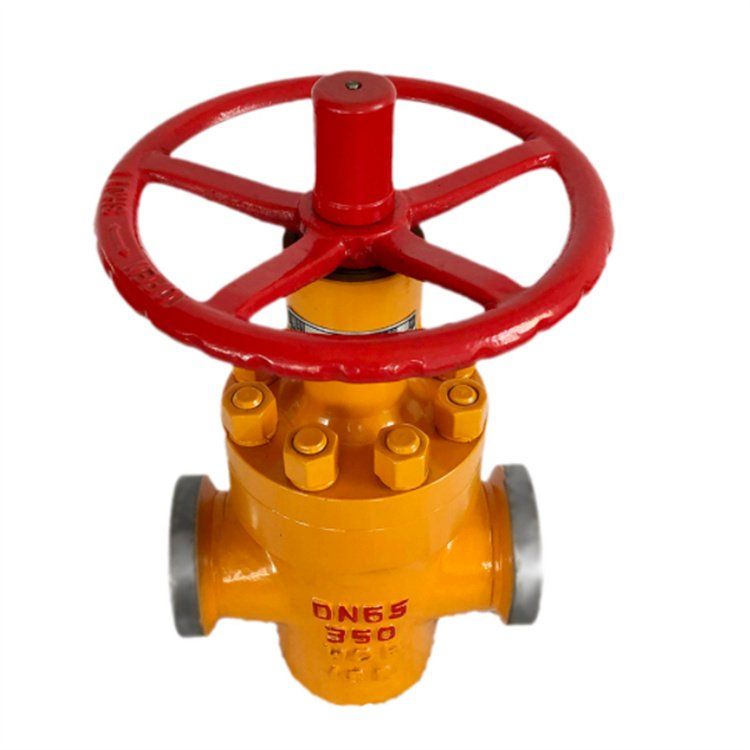

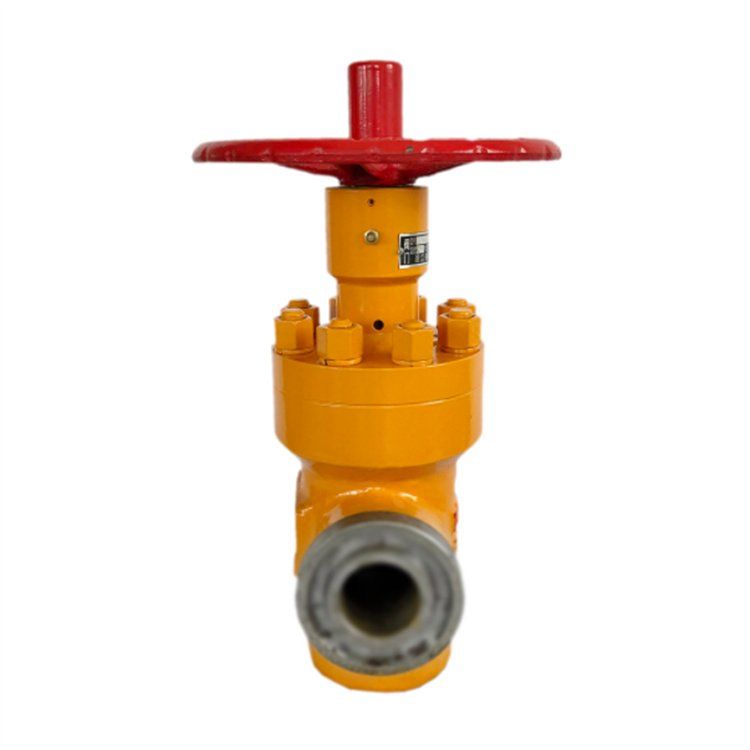

ZF83Y-350C clamp oil field high pressure flat gate valve

Clamp high pressure flat gate valve

First, Z83Y sleeve clamp high pressure flat gate valve features:
The series of our company's method is reasonable in structure, reliable in sealing and light in operation. The sealing surface is sprayed with cemented carbide, which has the advantages of anti-corrosion, wear resistance, erosion resistance, etc., and can be used for throttling. Especially suitable for the working pressure of 16MPa-45mpa, the working temperature of 120ºC of water, oil, mud, natural gas pipeline as a control medium flow of the opening and closing and regulating device.

Second, Z83Y sleeve clamp high pressure flat gate valve details:


Main external and connecting dimensions. Main external and connecting dimensions

Iv. Product features
Double seal;
High bearing capacity of valve body;
The lower part of the gate is provided with a diversion hole;
The channel is straight-through flow resistance is small;
Reliable sealing, small friction;
To achieve the flow of arbitrary regulation;
