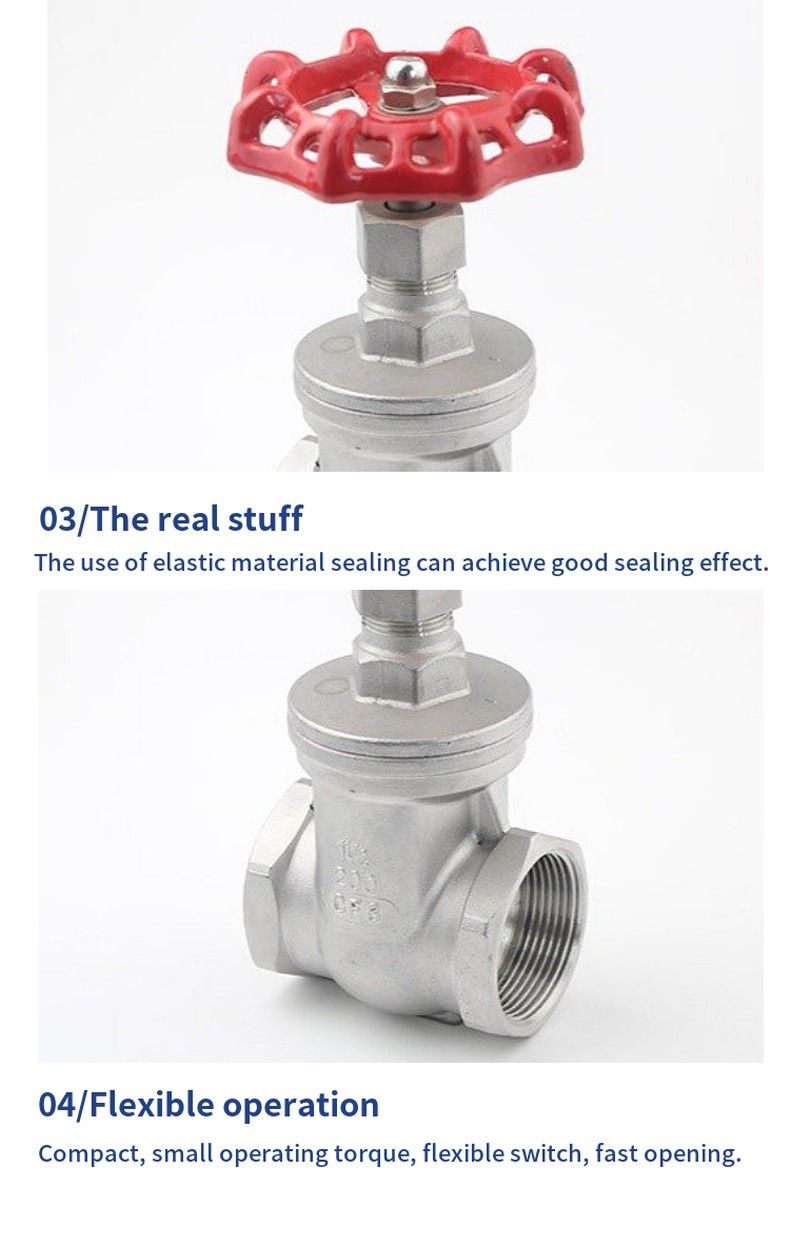

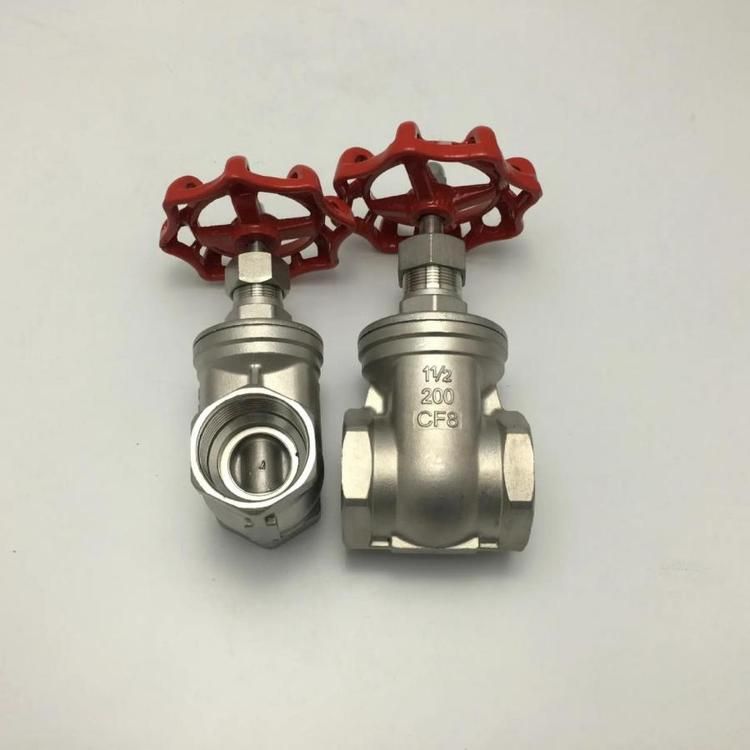

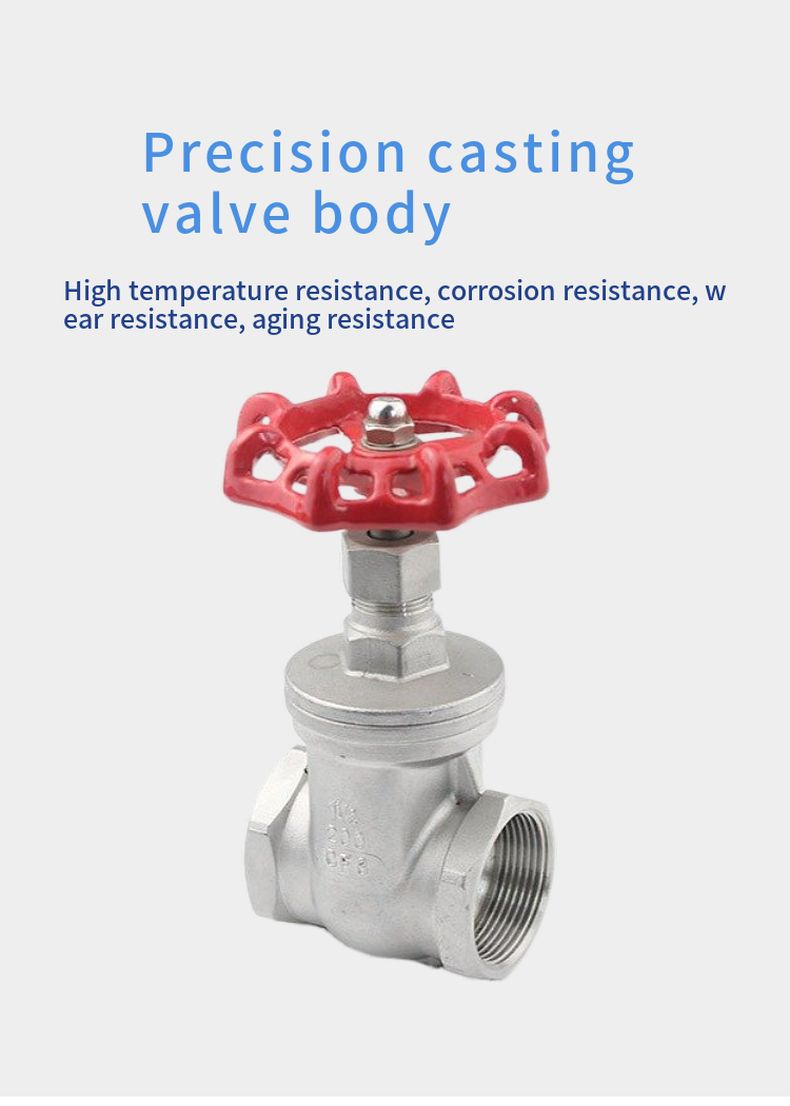

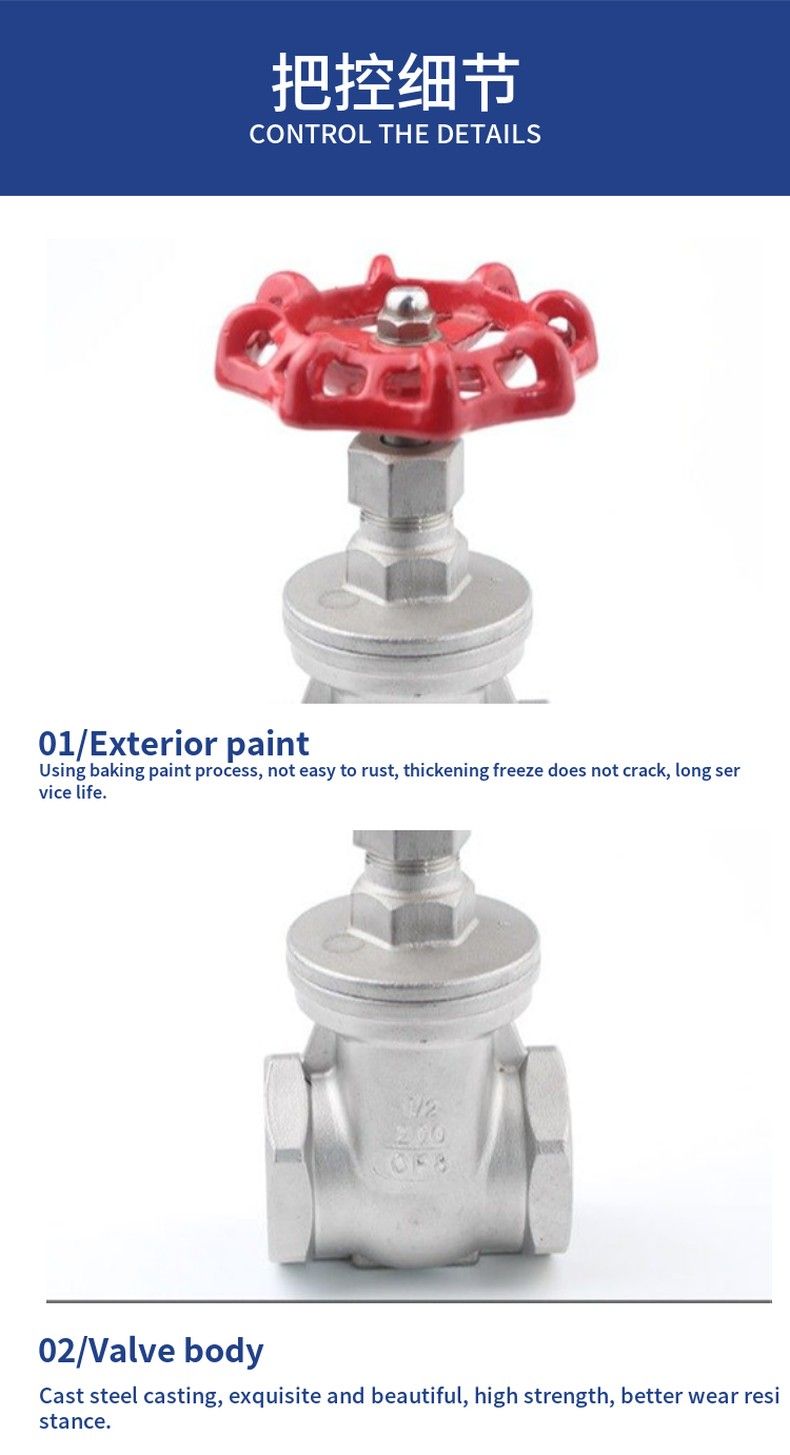

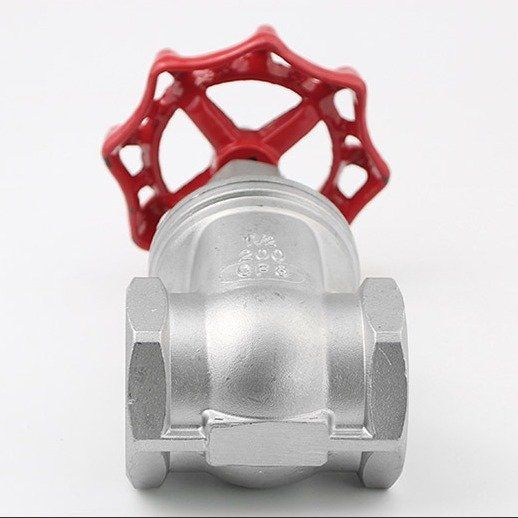

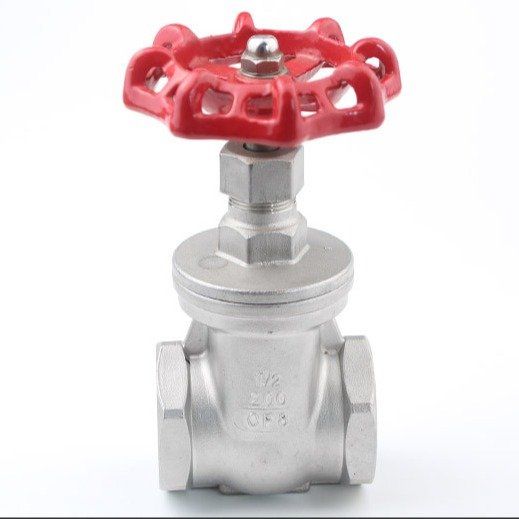

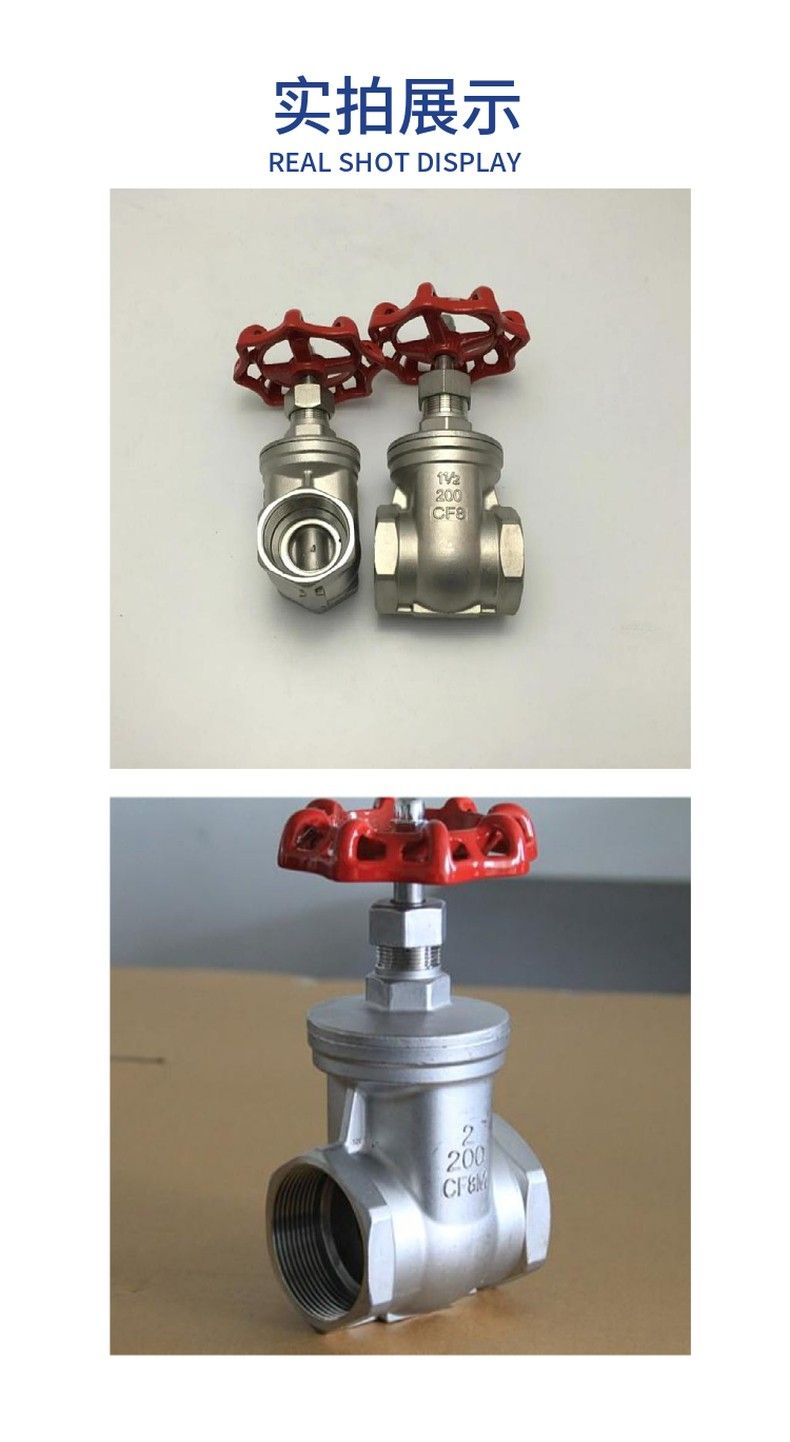

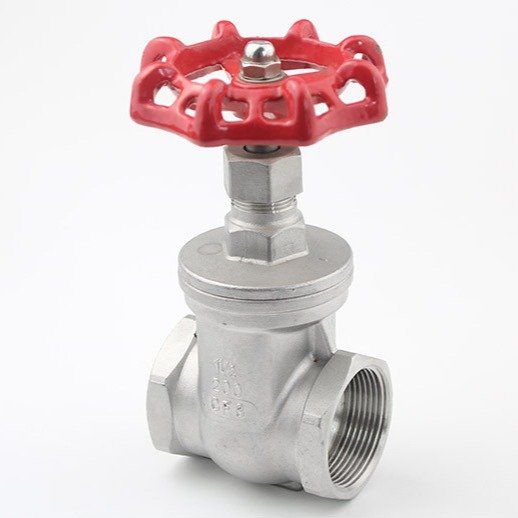

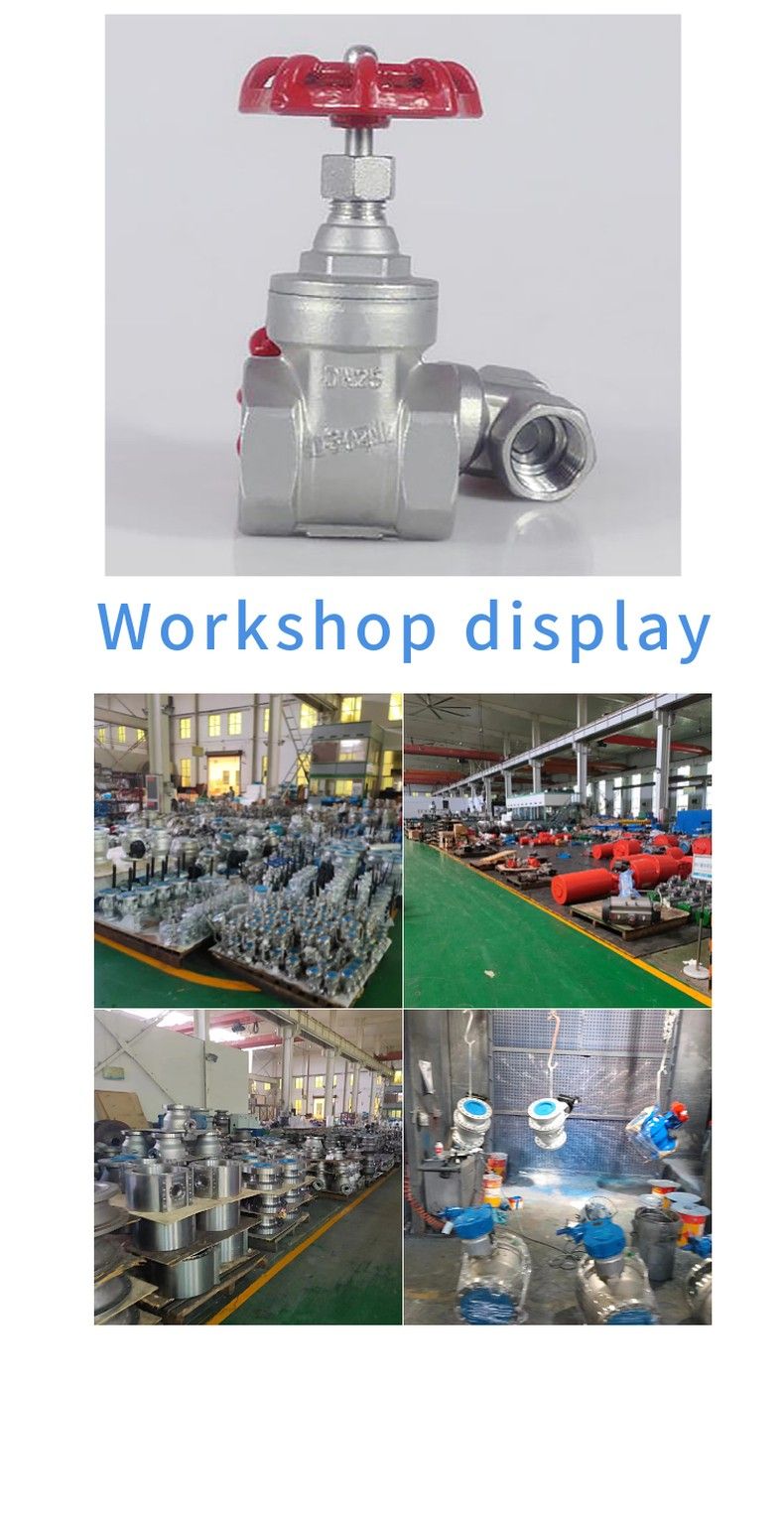

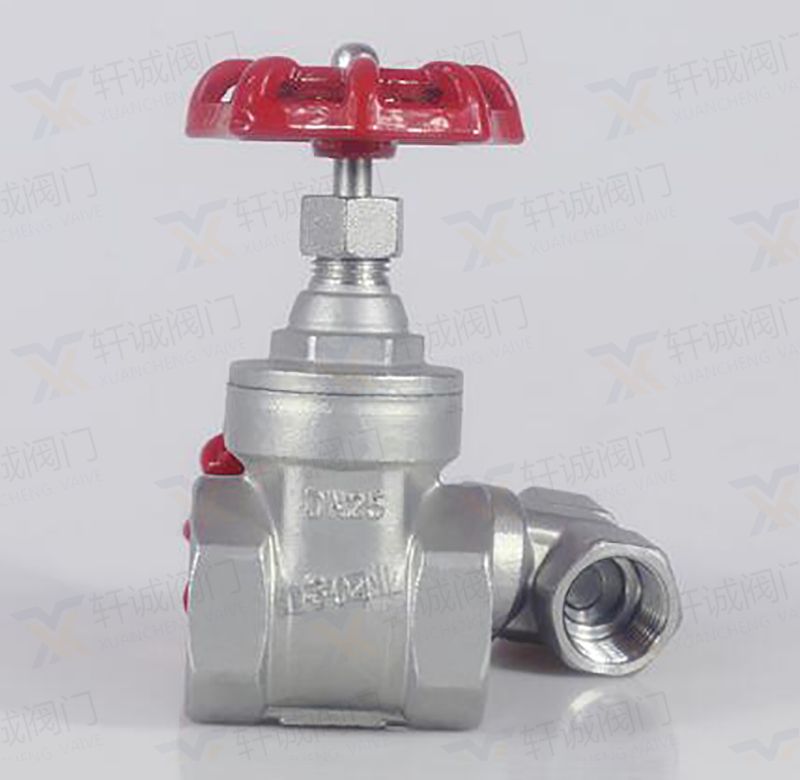

Z15W stainless steel wire gate valve

First, stainless steel internal thread gate valve
Product Description
1, design and manufacture according to GB12234-892
, structure length according to GB12221-893
, flange size according to JB/T79-944
, valve inspection and test according to GB13927

Second, stainless steel internal thread gate valve performance specification

Model Number	Nominal pressure (MPa)	Experimental pressure			Operating temperature (C)	Applicable medium
Model Number	Nominal pressure (MPa)	Strength (water)(Mpa)	Seal (water) air	Low pressure sealed air (Mpa)	Operating temperature (C)	Applicable medium
Z4IH-16C Z41W-16P(R)	1.6	2.4	1.8	0.6	200 or less	NITRICACID
						Nitricacid
						ACETICACID
						aceticacid
						NITRICACID
Z41W-25P(R)	2.5	3.8	2.8	0.6	200 or less	Nitric acids
Z41W-40P(R)	4.0	6.0	4.4	0.6	200 or less	ACETICACID
Z41W-64P(R)	6.4	9.6	7.0	0.6	200 or less	Acetic acids

Three, stainless steel internal thread gate valve main parts materials

Serial number NO.	Part Name	Material
1	Valve body	Stainless steel CF8M/CF8
2	Ram	Stainless steel CF8M/CF8
3	Stem	Stainless steel SS316/304
4	Bonnet	Stainless steel CF8M/CF8
5	Stuffing	Tef-lon PTFE
6	Thrust gasket	Stainless steel SS304
7	Stem holder	Stainless steel SS316/SS304
8	Stuffing	Tef-lon PTFE
9	Nuts	Stainless steel SS304
10	Fill the gland nut	Stainless steel SS316/SS304
11	Handwheel	Aluminium alloy
12	Chrome Cards	aluminum
13	Hand wheel spacers	Stainless steel SS304
14	Handwheel nuts	Stainless steel SS304

Four, stainless steel internal thread gate valve main connection size and weight unit :mm

SIZE	1/2"	3/4"	1"	1 1/4"	1 1/2"	2. ""
d	15	20	25	32	38	50
H	90	97	108	120	146	163
L	55	60	65	75	85	95
D	70	70	80	80	90	100
