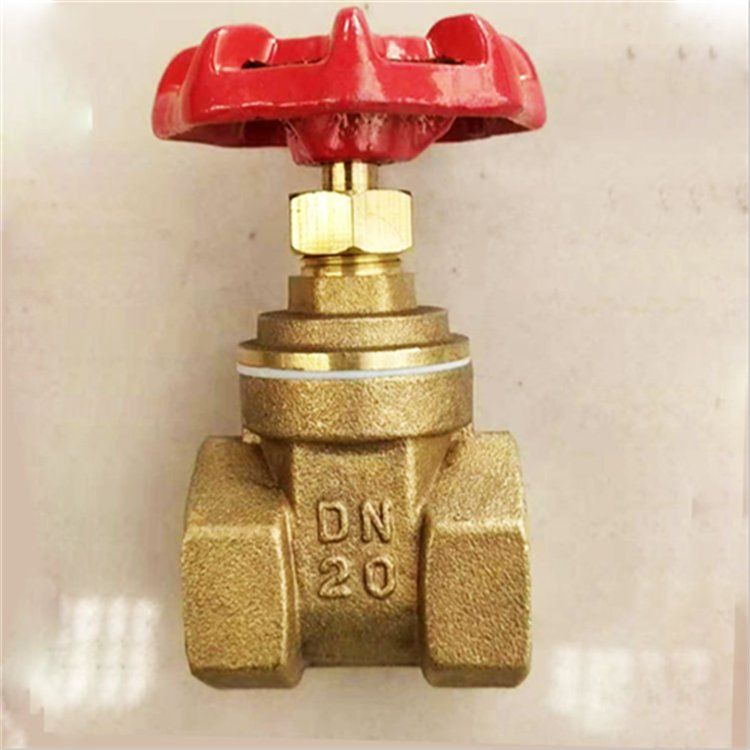

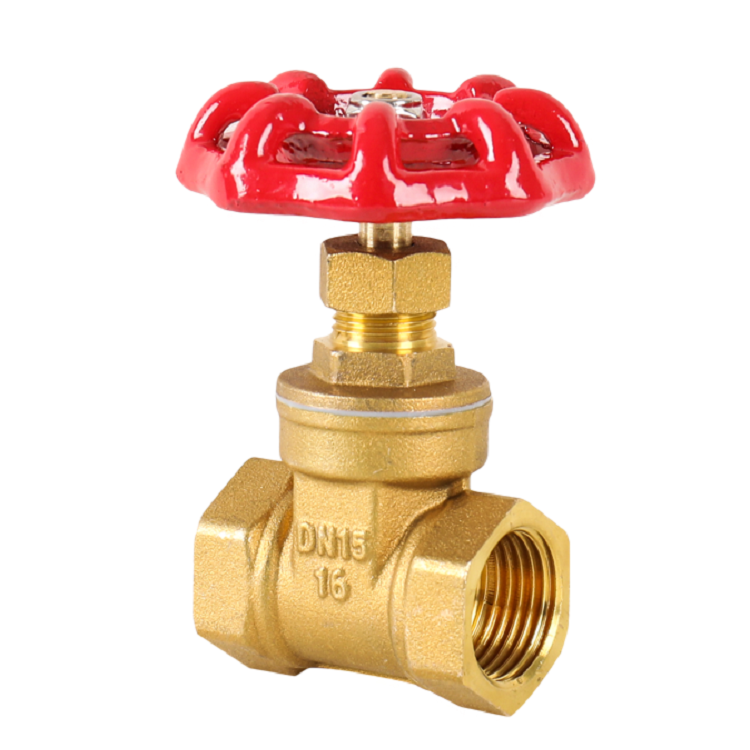

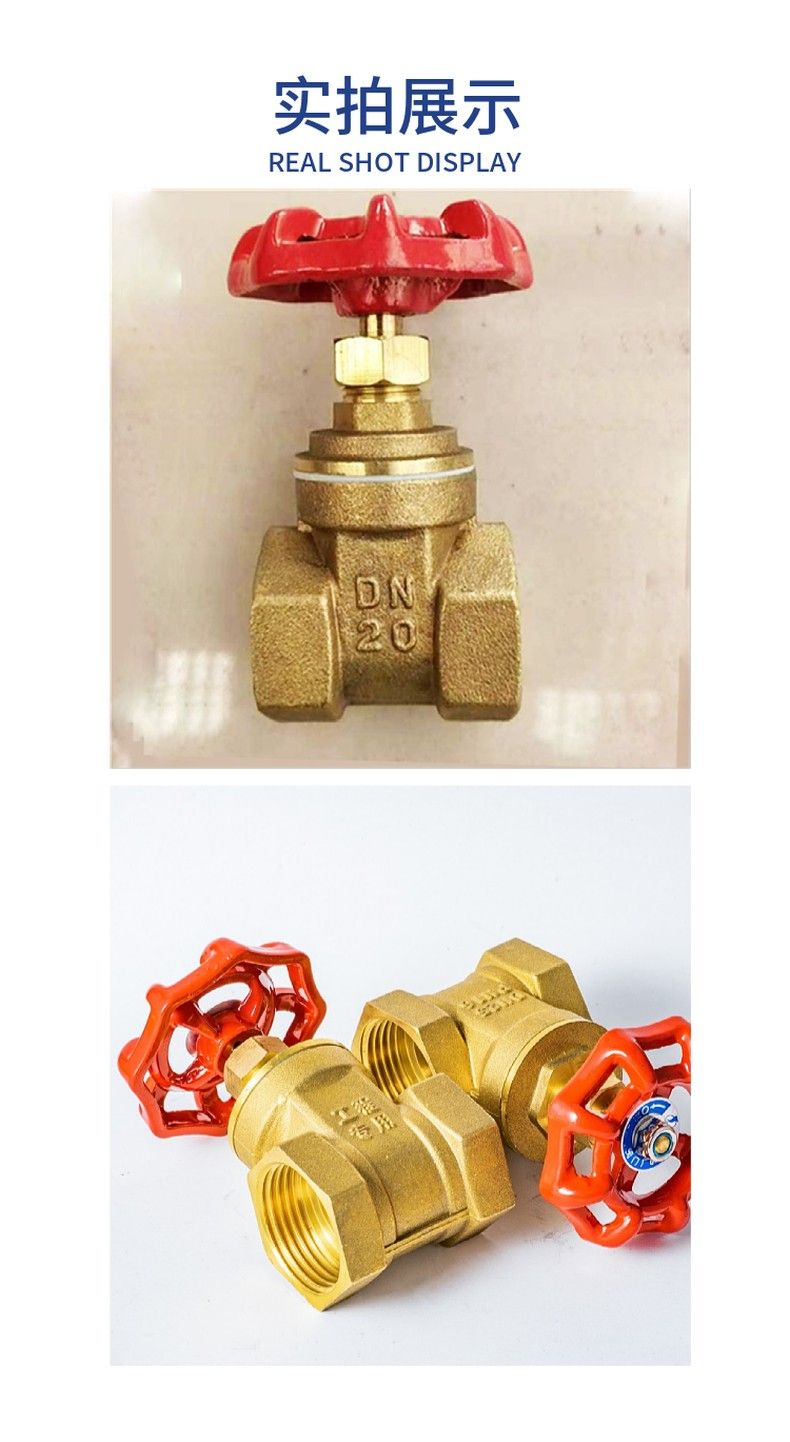

Z15W-16T brass gate valve

Z15W-16T brass gate valve Main performance parameters:
Nominal pressure 1.6Mpa
Applicable temperature -20ºC≤t≤170ºC
Applicable medium water, non-corrosive liquid, saturated steam
Thread standard in line with ISO7 standard

Z15W-16T brass gate valve connection size
Nominal diameter DN(mm) SizeLBHD
15 1/2 45 12.8 71 55
20 3/4 49.5 17 75.5 55
25 1 55 21 87.5 60
32 1 1/4 59.5 27 103 72
40 1 1/2 63 34 113.5 72
50 2 69 45 133.5 80
65 2 1/2 88 56 163.5 100
80 3 95 68 189.5 110
100 4 114 90 235 130
