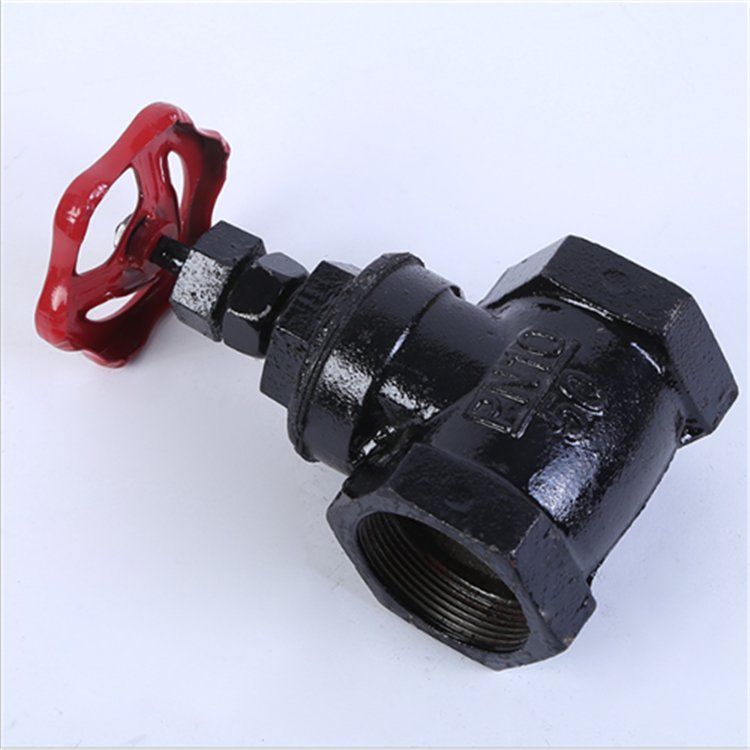

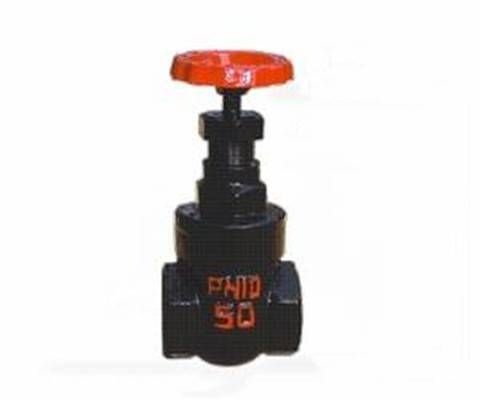

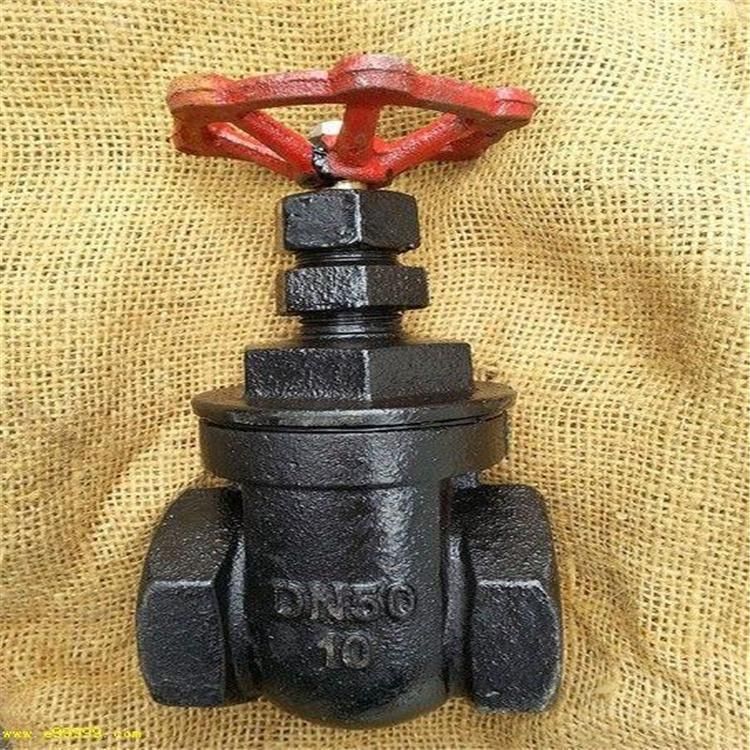

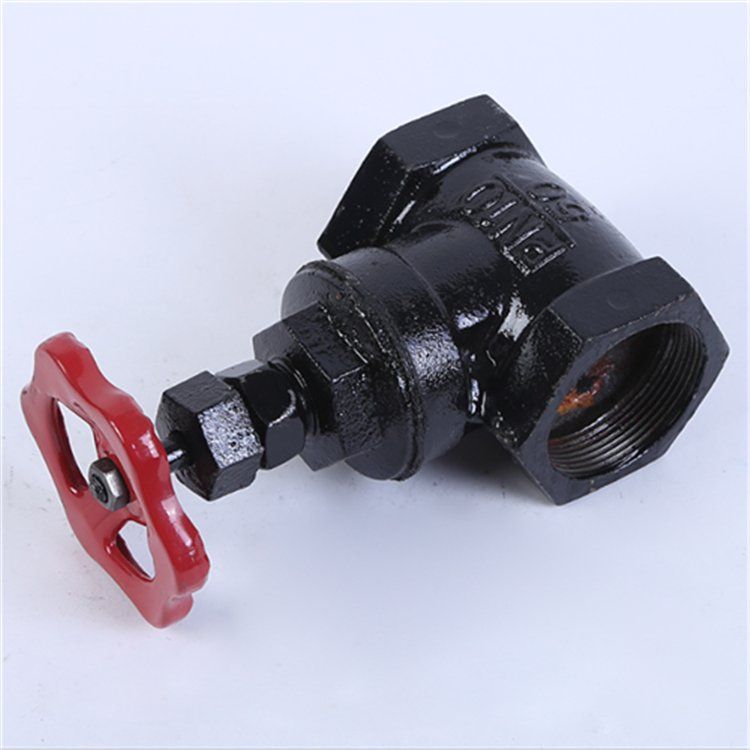

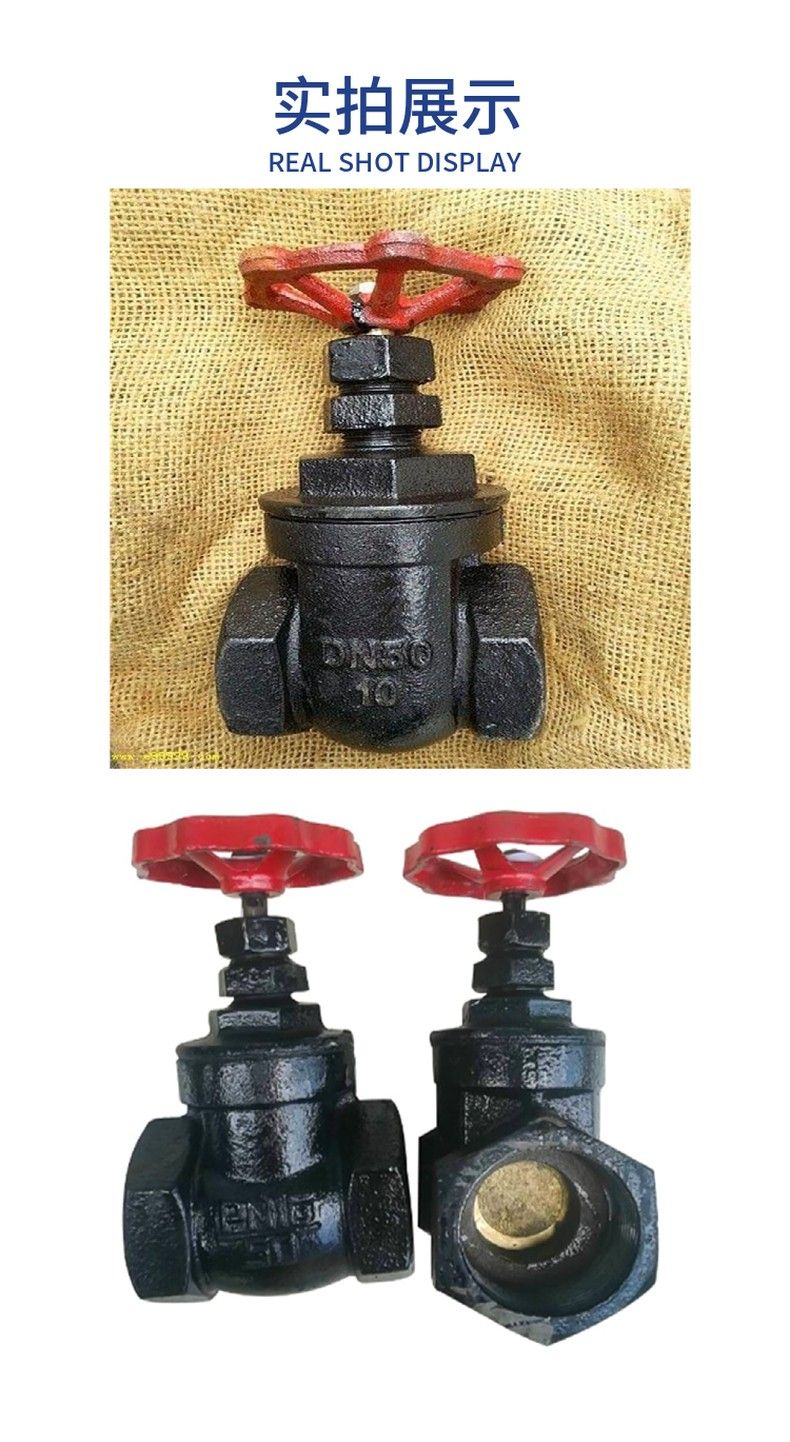

Z15T internal thread hidden rod wedge gate valve
Share:
Model number
Nominal pressure MPa
Test pressure MPa
Operating
temperature
Medium
used
Shell
Seal
Z15T - 10
1.0
1.5
1.1
120 ºC or less
Water, steam and other non-corrosive media
Body cap
Gray cast iron
Valve stem
Carbon steel
Ram seal ring
copper
Stuffing
Oil-soaked asbestos wrapping
Diameter
DN(mm)
Pipe thread
G(")
Square inch dimensions(mm)
L
L1
S
H
Do
15
1/2
65
12
27
105
65
20
Three quarters of
70
14
34
120
65
25
1
80
15
42
150
80
32
1 1/4
85
16
55
155
80
40
1 1/2
95
20
60
170
100
50
2
110
22
80
210
100
65
2 1/2
120
25
95
240
135
80
3
145
30
105
275
140
100
4
155
30
135
300
160
