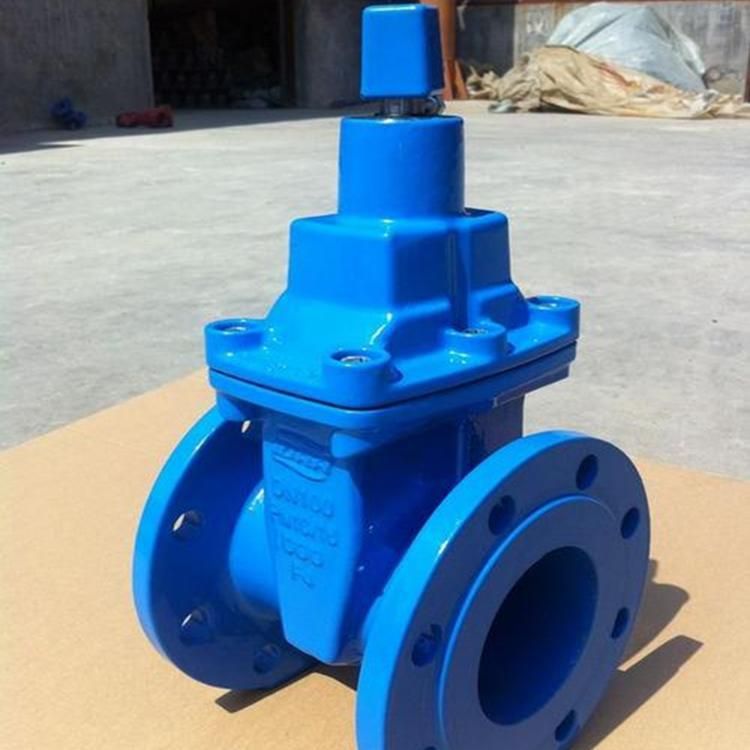

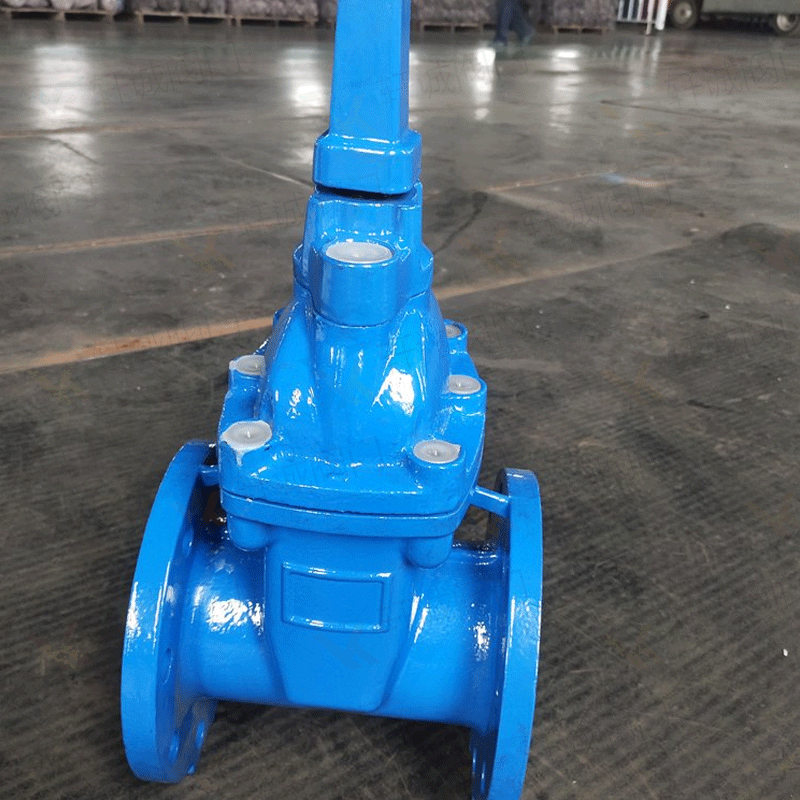

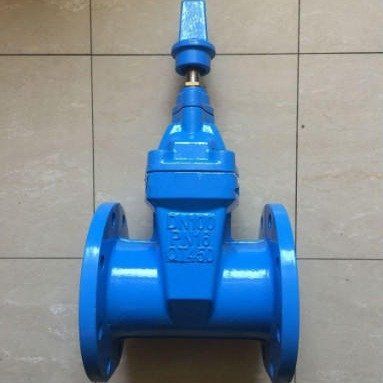

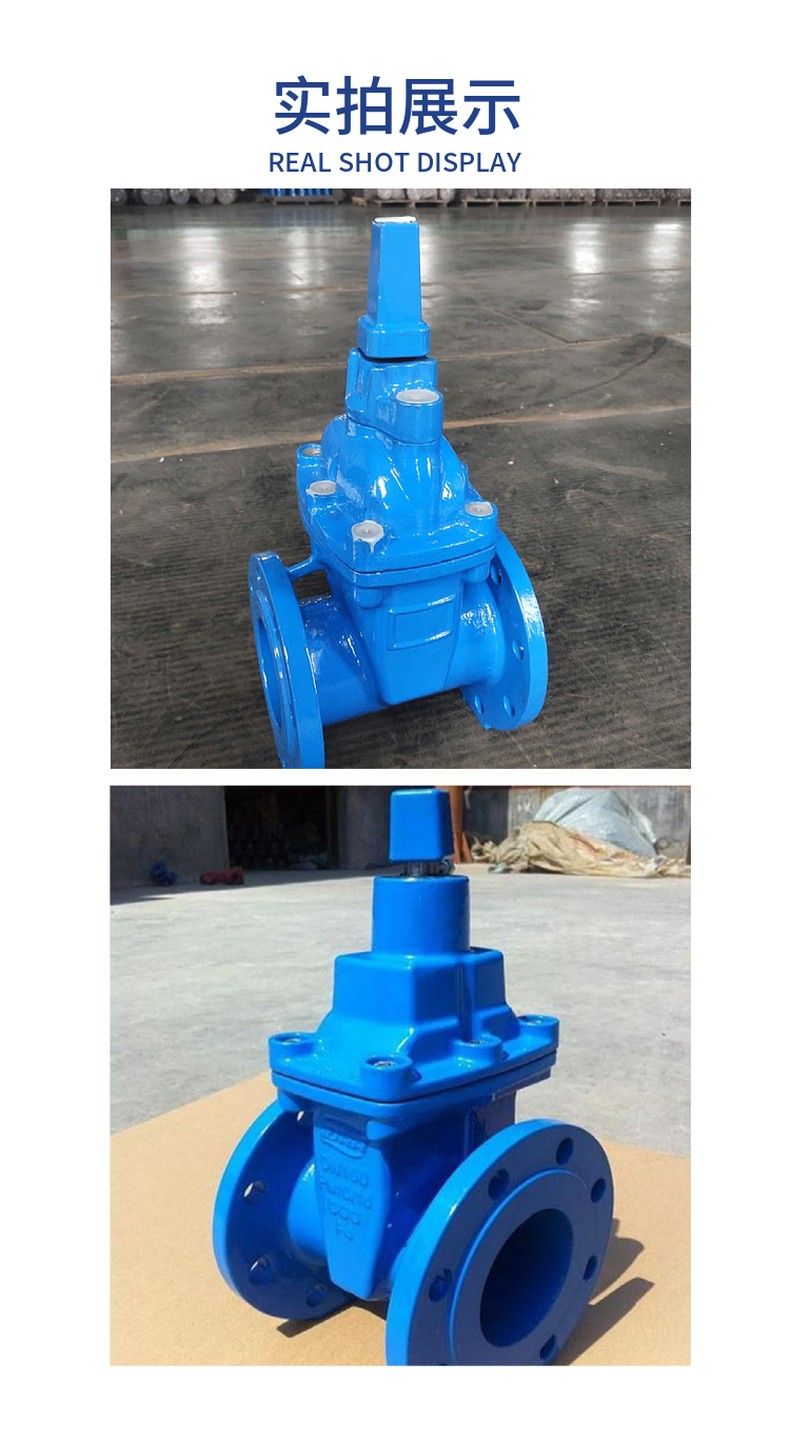

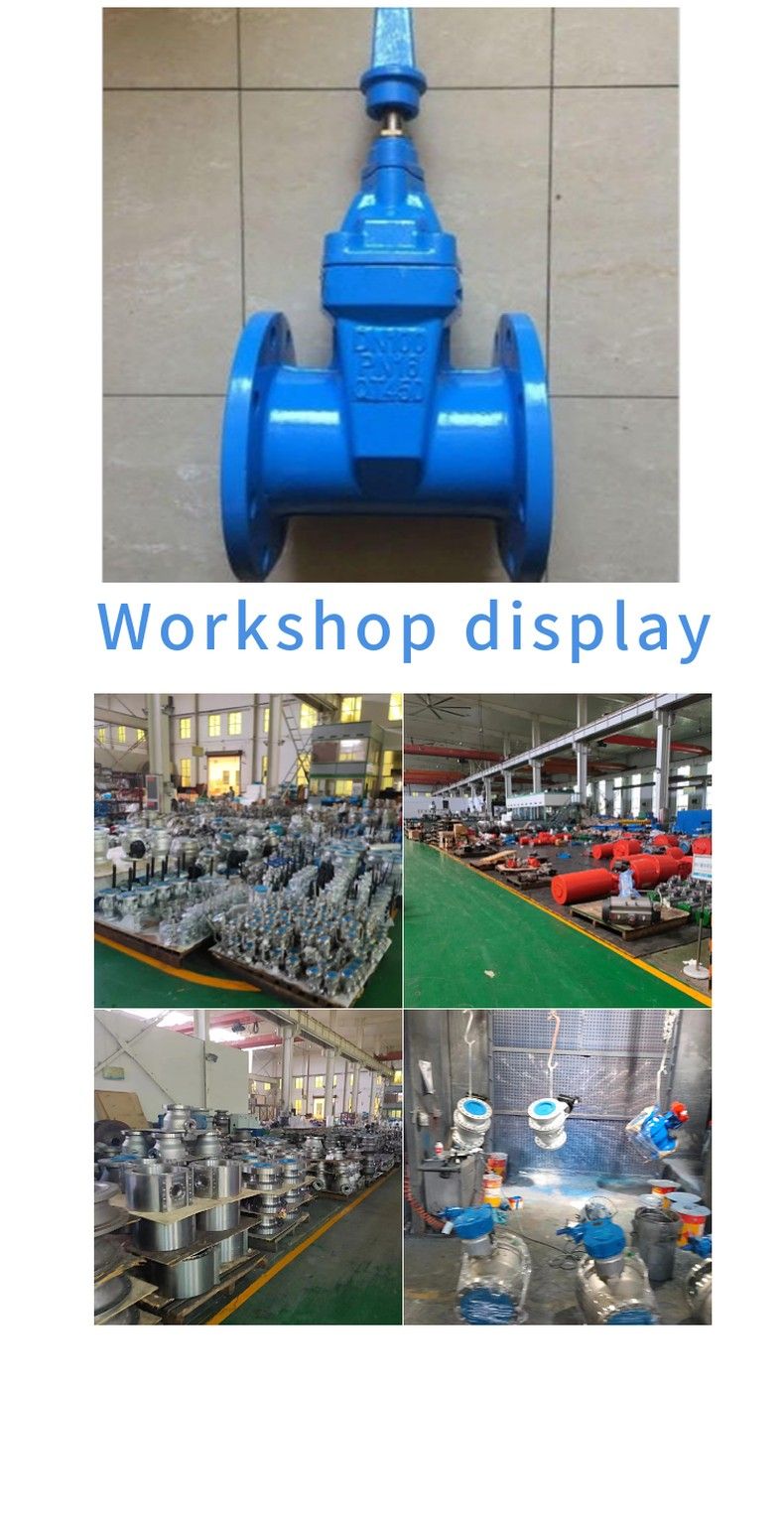

RVCX buried elastic seat seal gate valve

RVCX buried flexible seat soft seal gate valve is composed of valve body, valve cover, valve stem, valve stem nut, gate plate and other parts. The valve uses the elastic disc to produce micro elastic deformation compensation effect to achieve good sealing effect, the valve has the advantages of light switch, reliable seal, good elastic memory and service life bench, using full diameter, dark rod operation, Middle flange for tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, ship, metallurgy, energy system and other body pipelines as a regulating and intercepting device used.
Main performance parameters of RVCX buried elastic seat seal gate valve:

Two, RVCX buried elastic seat seal gate valve features:
1, RVCX buried elastic seat seal gate valve overall valve cover dark rod design, compact structure; Valve stem nut and gate two-body structure, no blocking phenomenon occurs; Through the channel, no leakage cavity; Valve stem seal with "O" sealing ring.

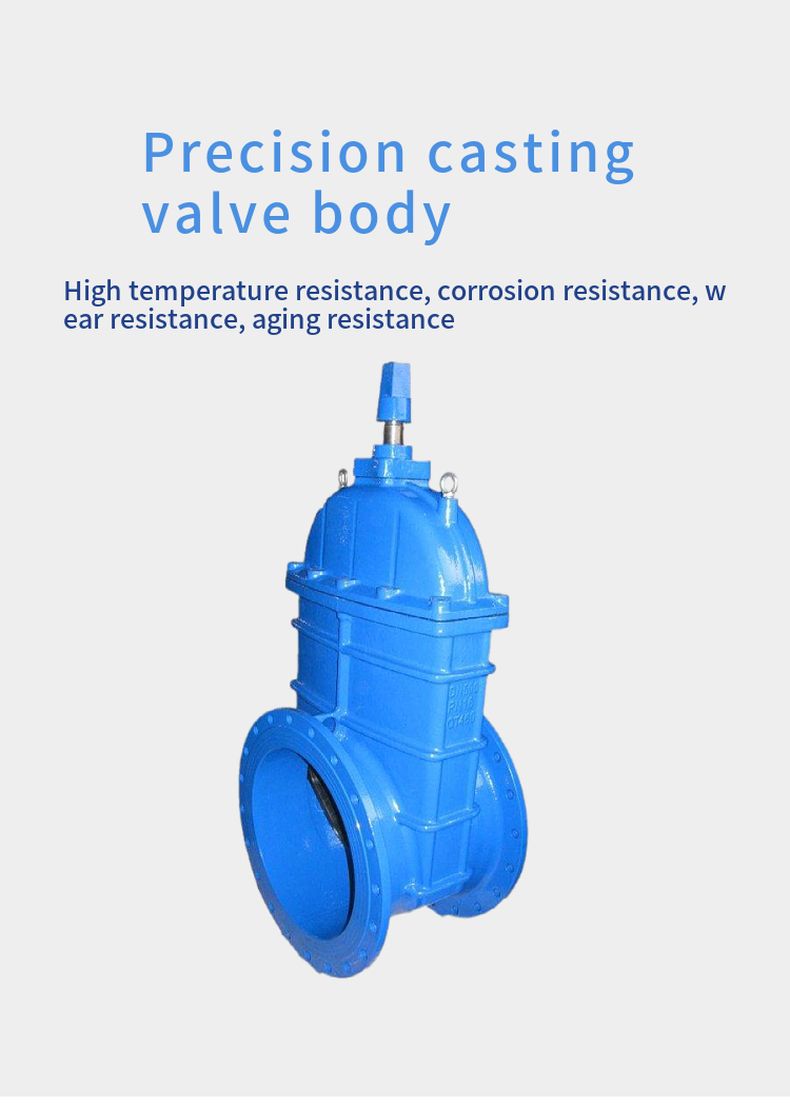

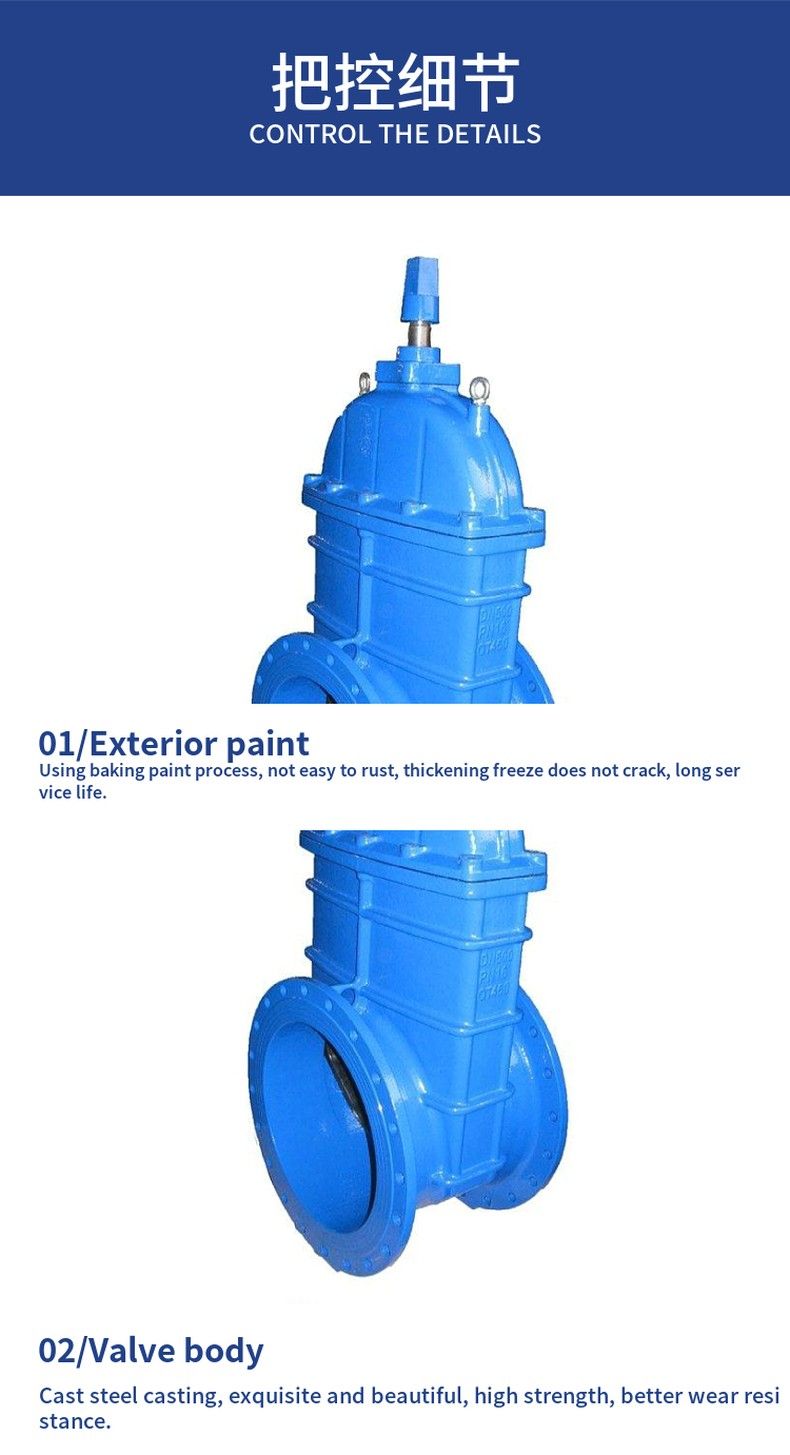

2, has excellent anti-corrosion performance, the shell inside, the outer surface spray epoxy resin, when necessary, the inner surface lined with enamel; Connecting bolts using hex bolts, the top rubber seal.
3, RVCX buried elastic seat seal gate valve reliable hygiene epoxy resin in line with the health standard GB/T17219-1998, the overall cover of gate rubber in line with health inspection; Valve stem, valve stem nut and other parts are made of stainless steel or bronze and other materials that are not corroded by water
Three, RVCX buried elastic seat seal gate valve main parts materials:

Four, RVCX buried elastic seat seal gate valve main size and weight:
