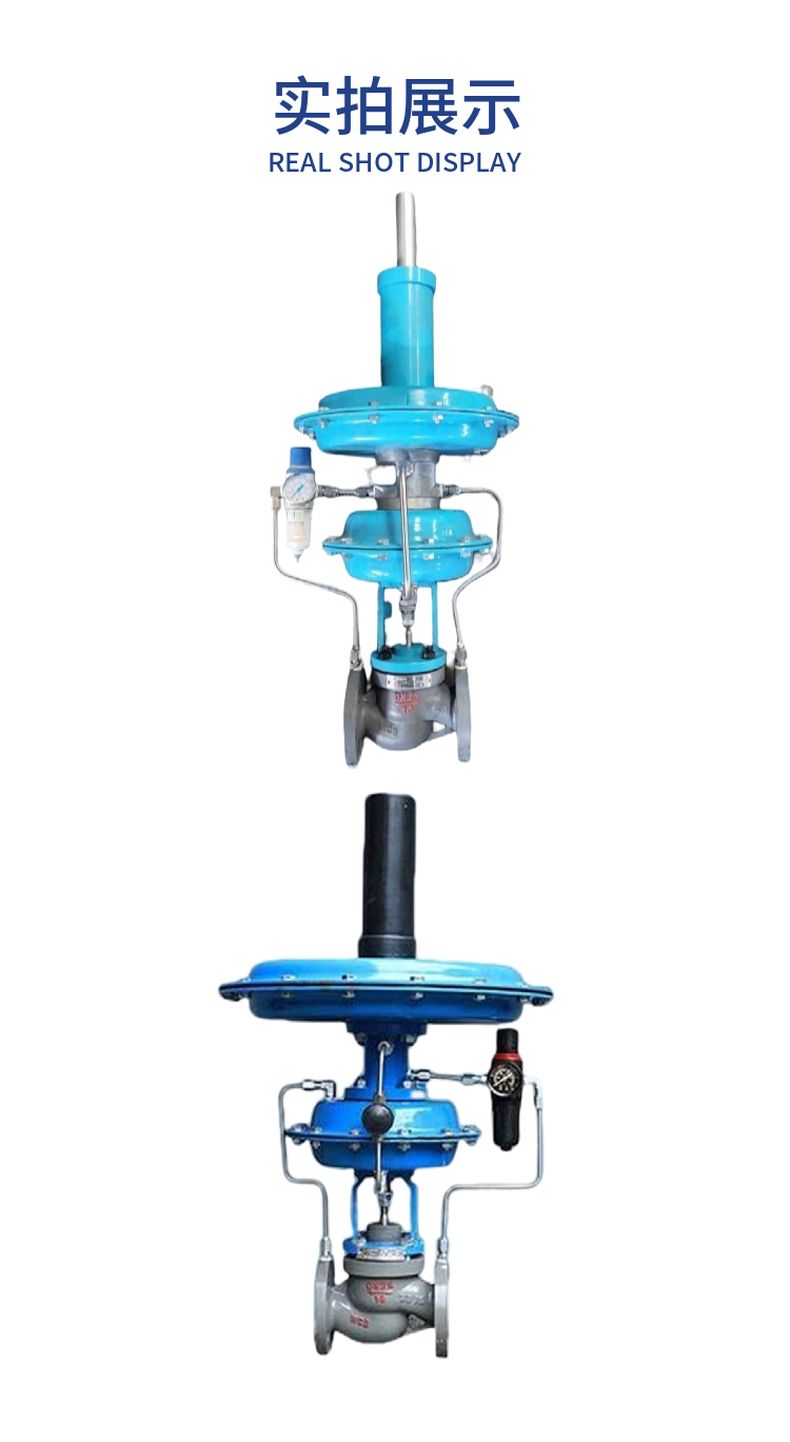

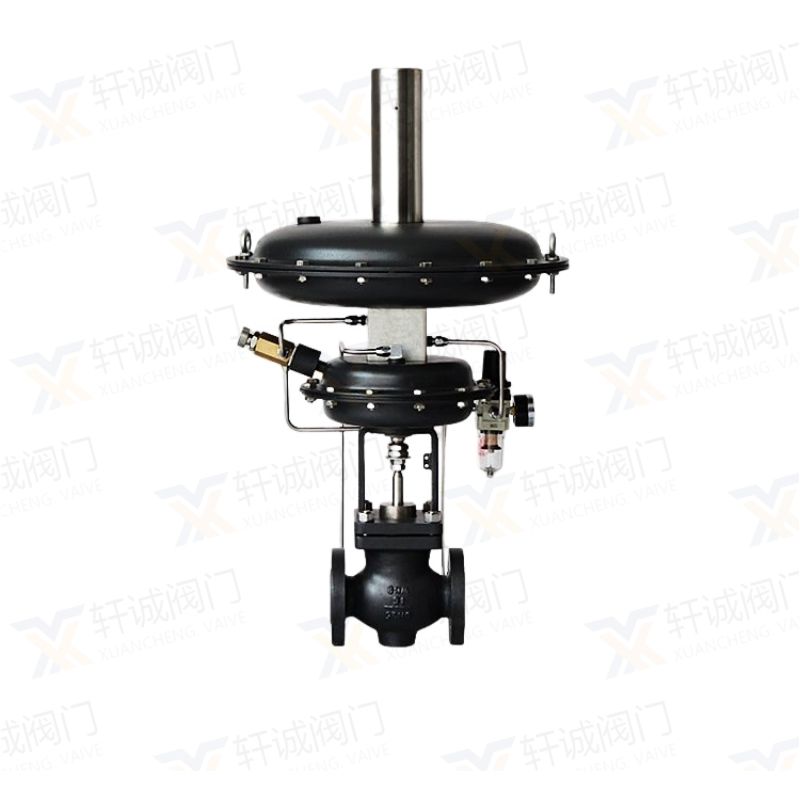

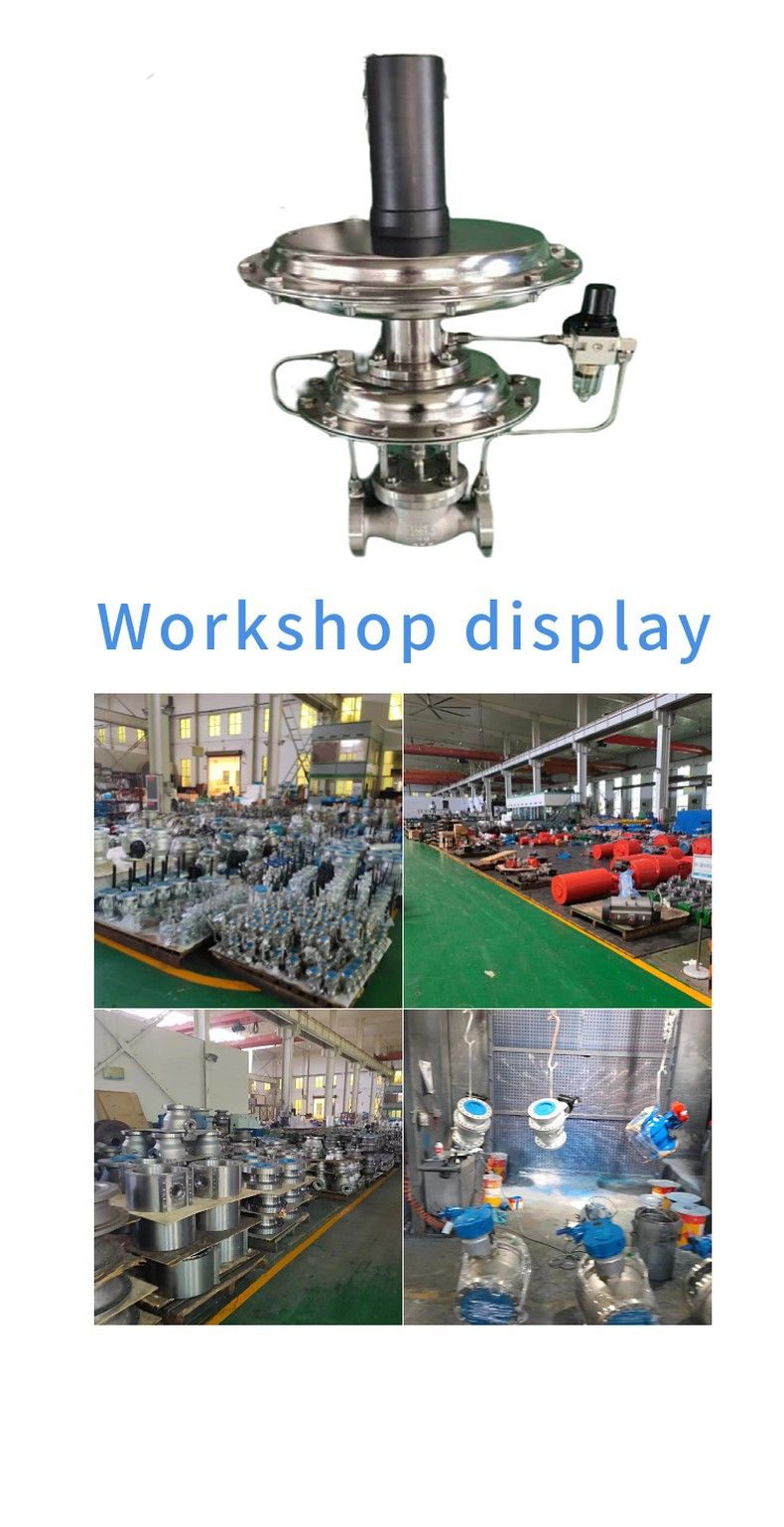

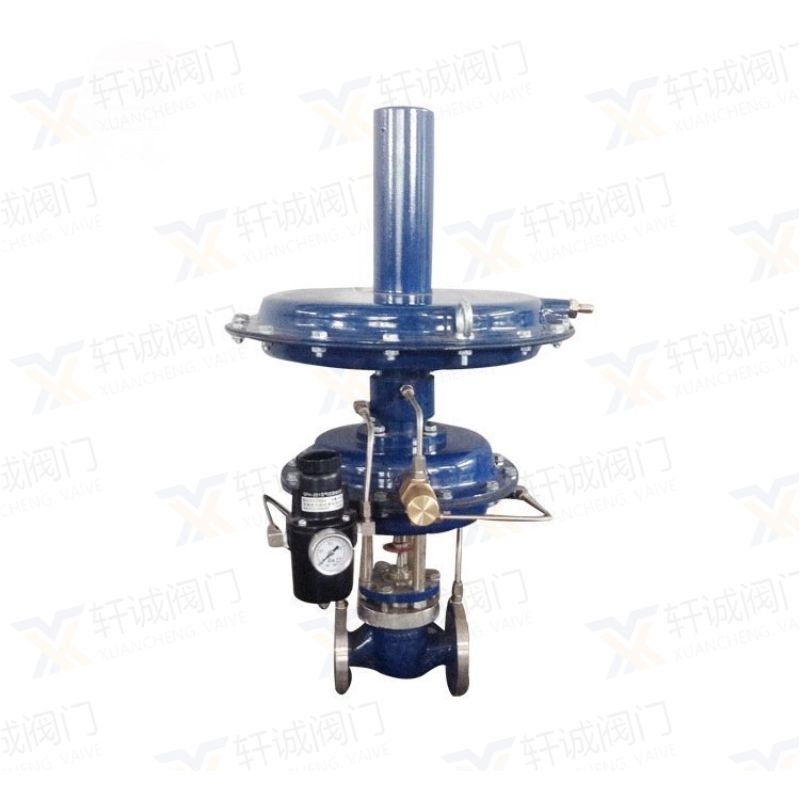

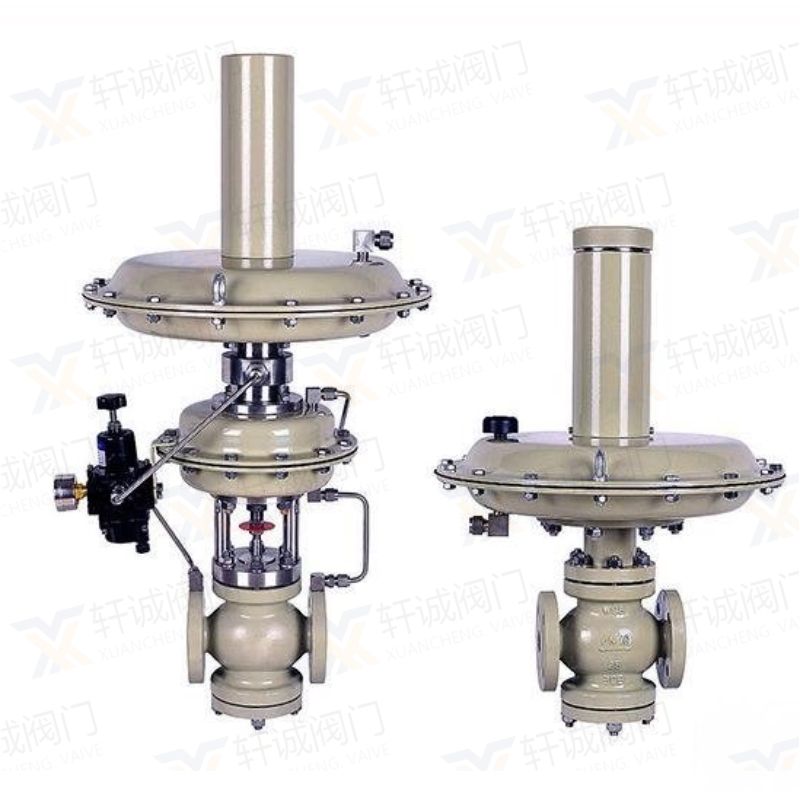

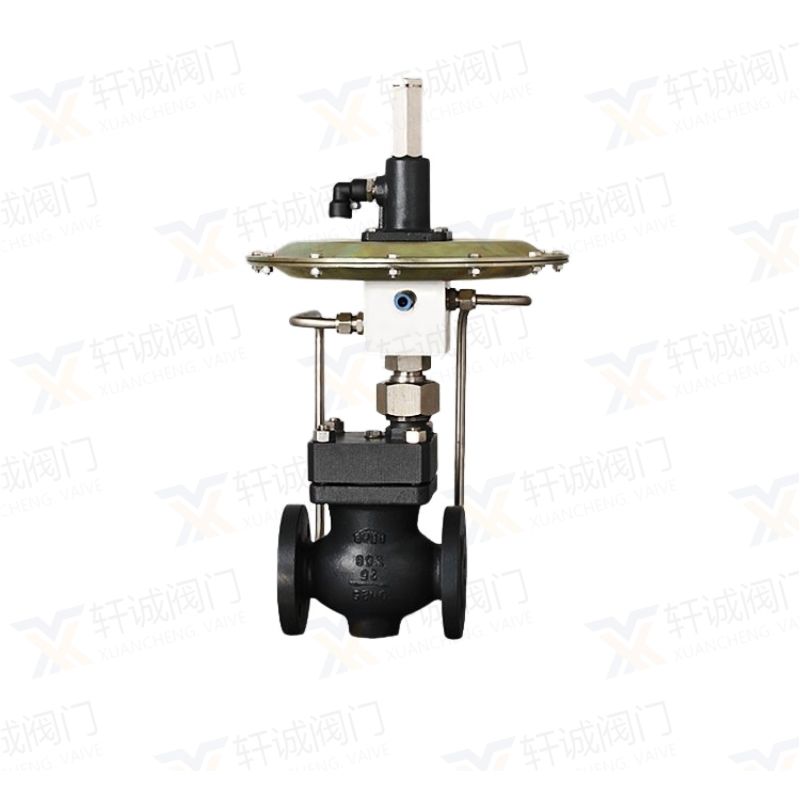

ZZYVP nitrogen seal valve

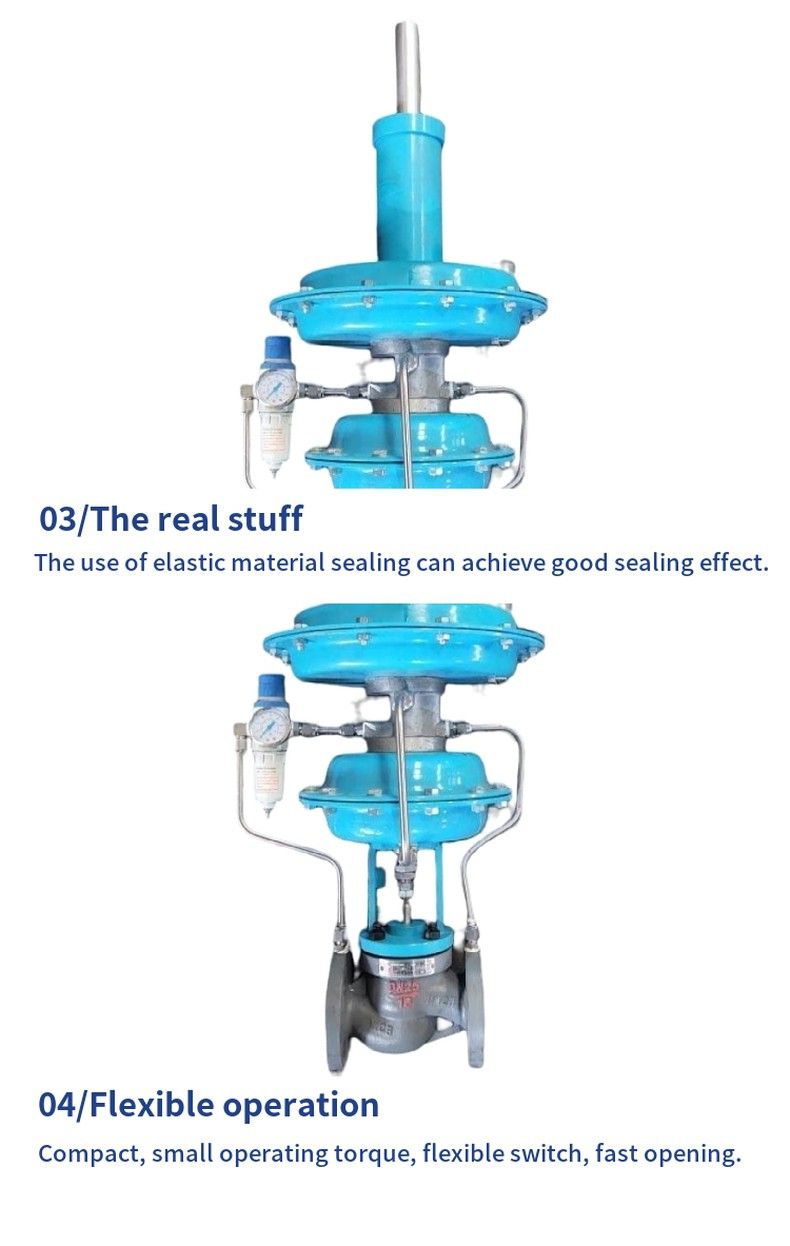

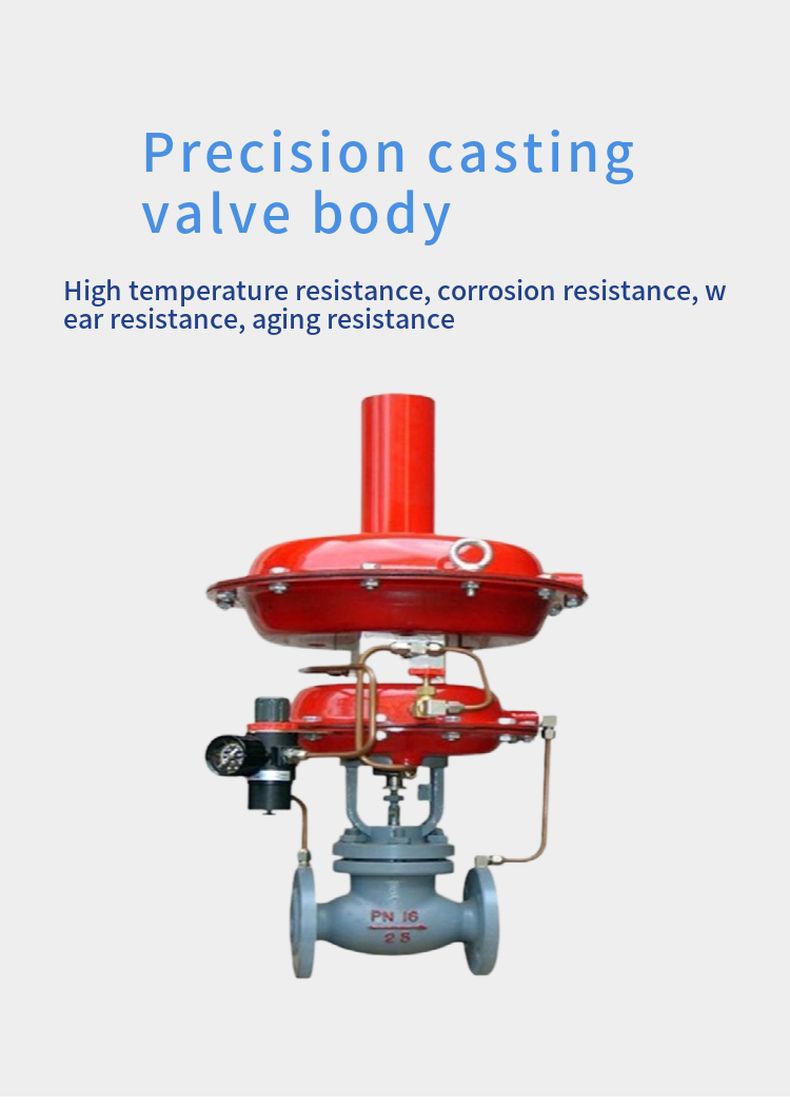

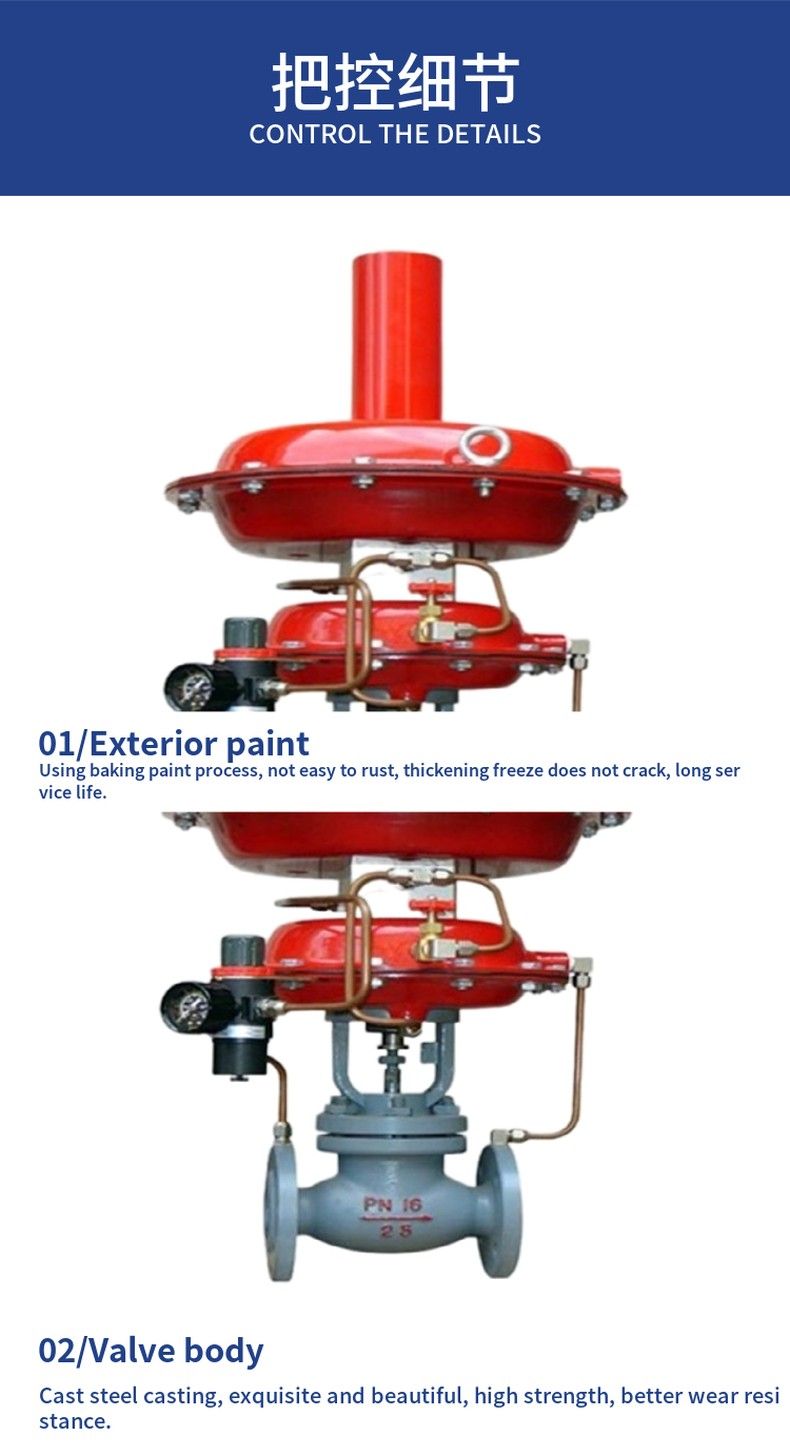

Nitrogen sealing valve (that is, nitrogen sealing device) is mainly used for constant nitrogen pressure control at the top of the storage tank to protect the materials in the tank from nitriding and the safety of the storage tank. The nitrogen sealing valve is composed of two parts: quick release valve and self-operated micro-pressure regulating valve. The quick relief valve is composed of a pressure controller and a single-seat cut-off valve.
When the pressure in the tank rises to the set pressure, the quick release valve opens quickly to release the excess pressure in the tank. When the pressure in the tank decreases, the micro-pressure regulator opens the valve and fills the tank with nitrogen. Nominal pressure 0.1Mpa, the pressure can be set according to the stage, from 0.5Kpa to 66Kpa below, medium temperature temperature ≤80ºC.
Nitrogen-sealed valve technical parameters

Nominal diameter (mm)	20			25	40		50	80		100	150
Valve seat diameter (mm)	6	15	20	25	32	40	50	65	80	100	125	150
Rated flow factor Kv	3.2	5	8	10	20	32	50	80	100	160	250	400
Pressure adjustment range	0.5 ~ 70 20 ~ 120 60 ~ 400 300 ~ 700 500 ~ 1000 KPa
Nominal pressure PN	1.0, 1.6 MPa
Temperature of the medium to be adjusted	80, 200 ºC
Flow characteristics	Quick-open type
Adjustment accuracy	5% or less
Allowable pressure drop (MPa)	1.6				1.6		1.1	0.6		0.4
Film effective area (C)	200				280			400
Allowable leak	Comply with ANSIB16.104-1976 Class IV
Bonnet form	Standard type (one-piece)
Gland type	Bolt-down type
Seal packing	V-type PTFE packing, containing impregnated PTFE asbestos packing, asbestos textile packing, graphite packing
Spool form	Single seat type spool
Flow characteristics	Straightness

Nitrogen sealing valve parts material

Part name	Part material
Body (code name)	WCB (C)	CF8 (P)	CF8M (R)	CF3M (RL)
Valve seat	304	304	316	316L
Pad wicks	304	304	316	316L
Valve cover	Q235	304	316	316L
Valve stem	304	304	316	316L
Lower membrane cap	Q235
Diaphragm	EPDM or FKM clip fiber
Upper membrane cover	Q235
Gland	Q235
Threaded caps	Q235

Nitrogen seal valve connection dimensions

Nominal diameter (DN)		20	25	32	40	50	65	80	100	125	150
L		150	160	180	200	230	290	310	350	400	480
H	Old type	105	117	120	139	144	188	208	220	268	278
H	Fine Miniature	52.5	57.5	75	75	85.5	92.5	100	110	142.5	158
H1		330	330	350	350	360	430	440	450	520	650
A		310								400
