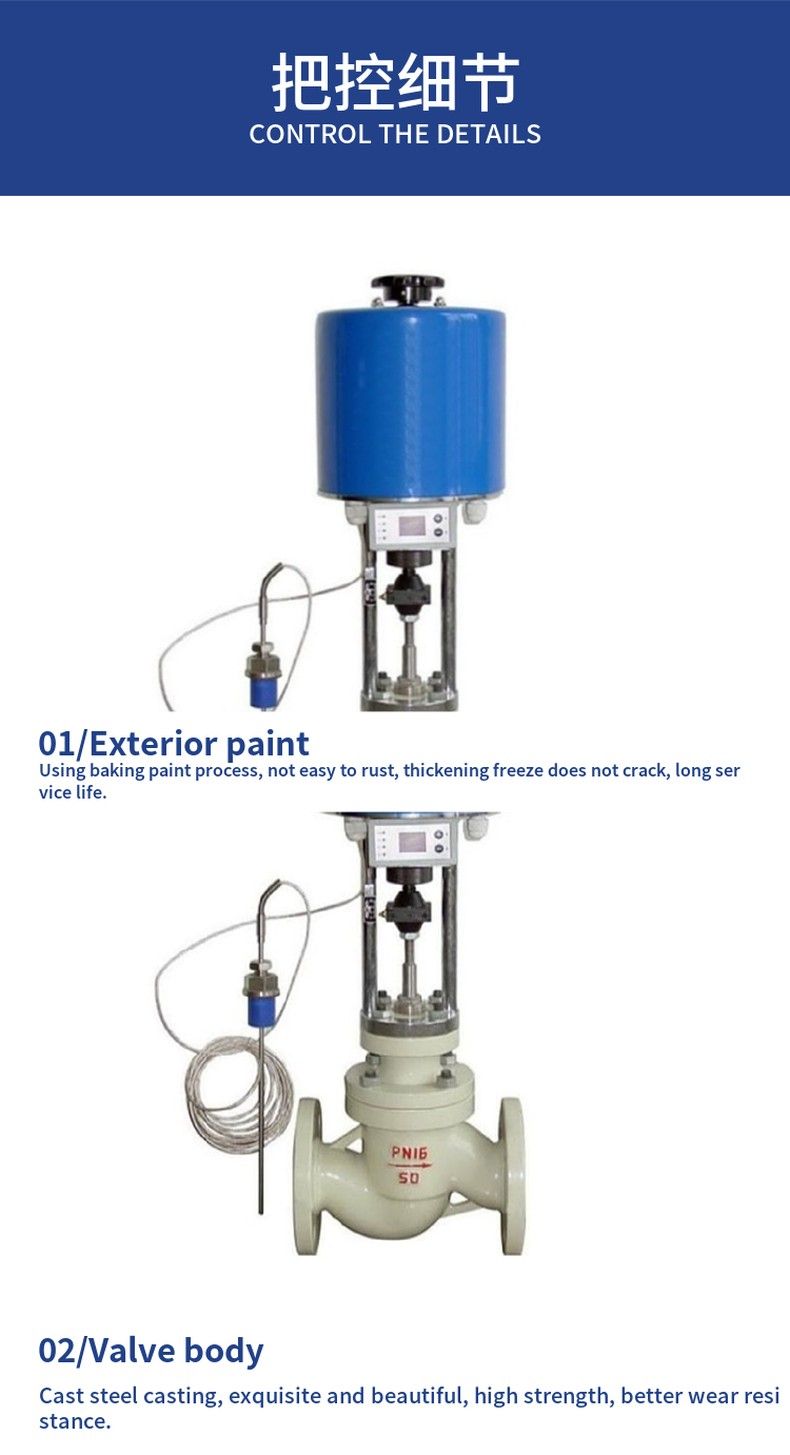

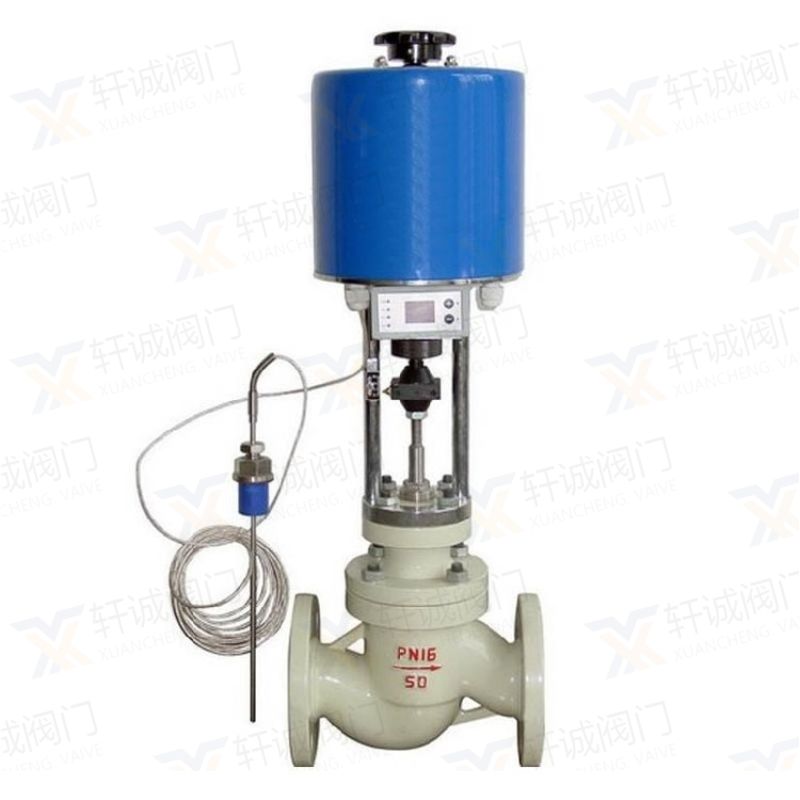

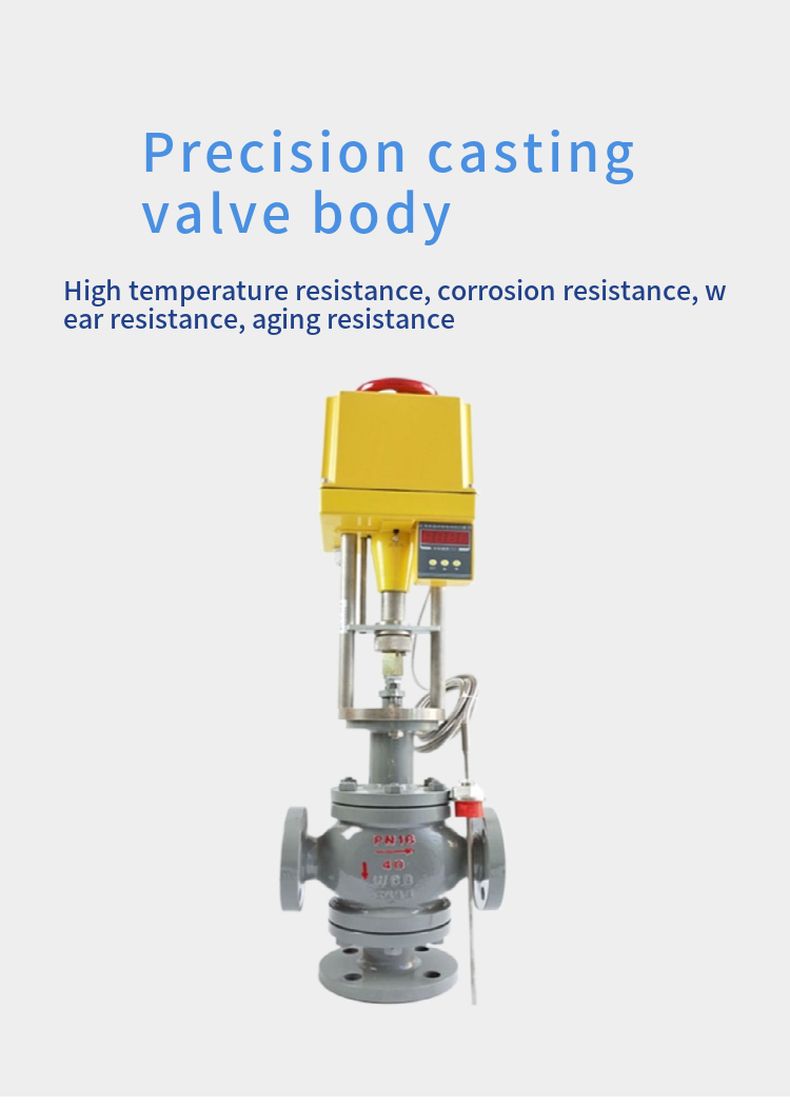

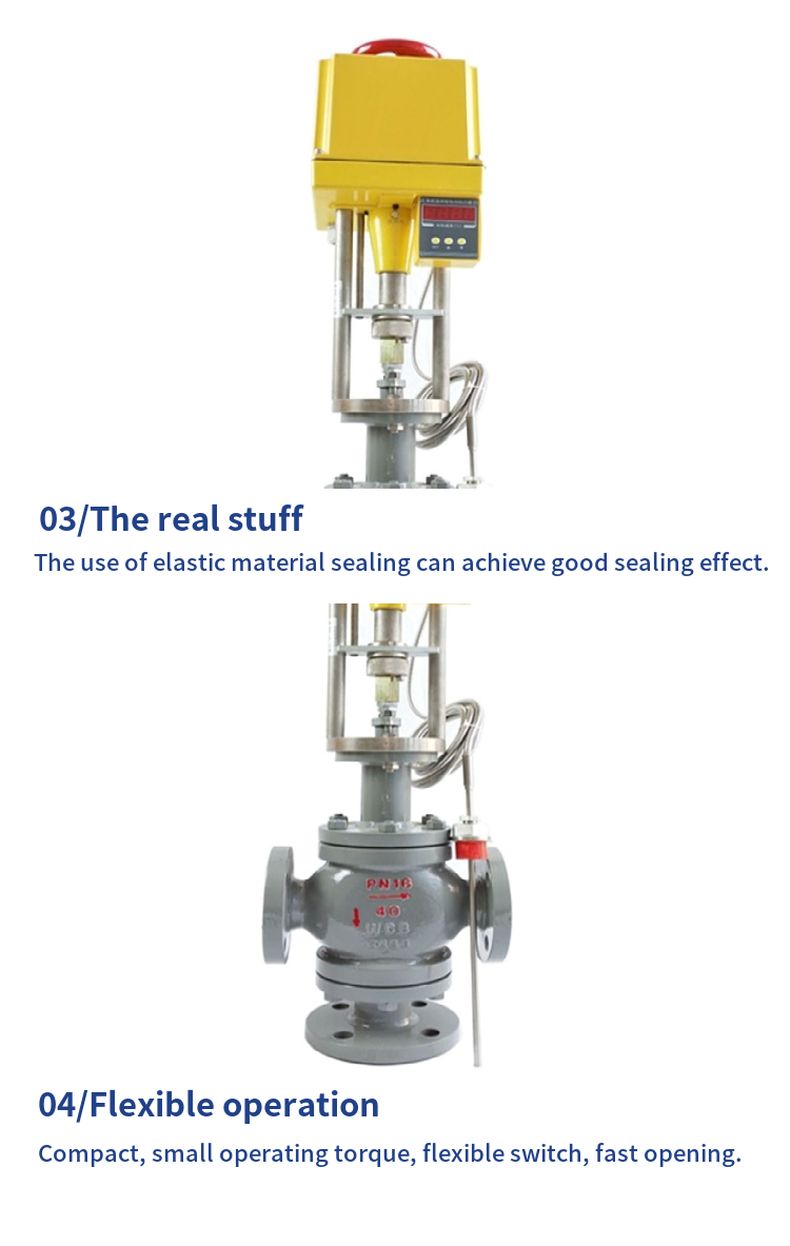

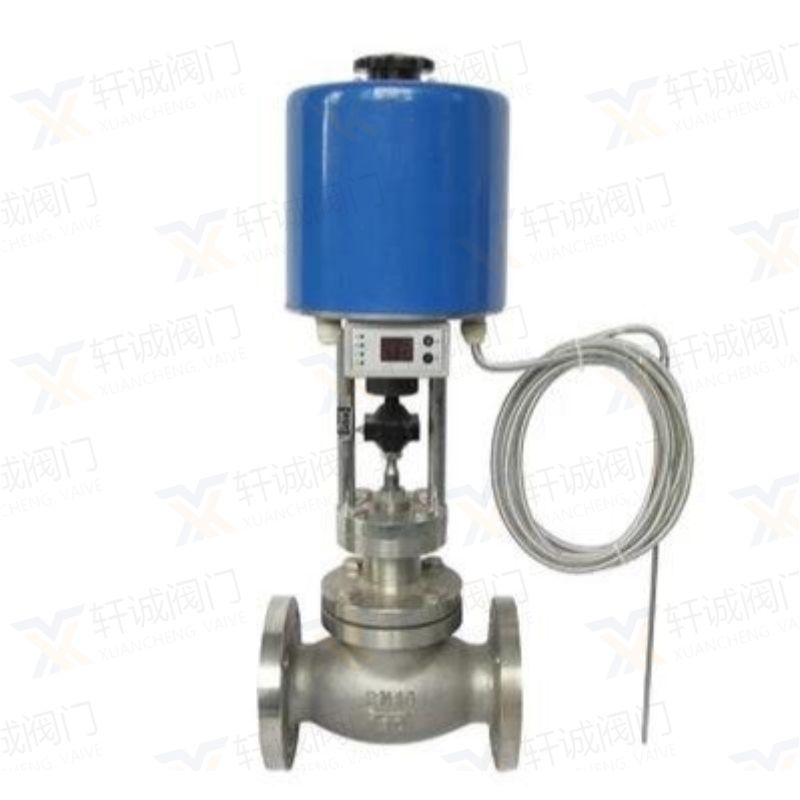

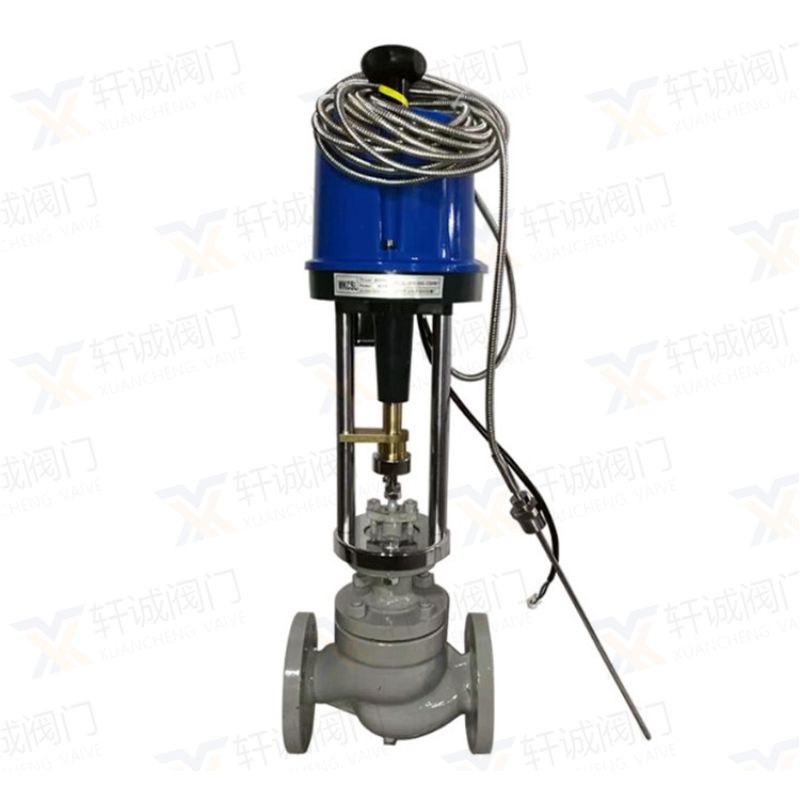

ZZWPE self-operated electric temperature control regulating valve

A brief introduction of self controlled temperature control valve ZZWPE type

Self-controlled temperature control valve (suitable for large caliber and thermal oil control), the biggest feature of the valve is only ordinary 220V power supply, the use of the medium's own energy, directly to steam, hot gas, hot oil and gas and other media temperature automatic regulation and control, can also be used to prevent overheating or heat exchange

Self-operated electronic control temperature regulating valve ZZWPE type details

Product name:

ZZWPE temperature self-reliant [electronic type] regulating valve

Product Introduction

Self-controlled temperature control valve (suitable for large caliber and thermal oil control), the biggest feature of the valve is only ordinary 220V power supply, using the energy of the medium to be adjusted directly to the temperature of steam, hot gas, hot oil and gas and other media to automatically adjust and control, Can also be used in the prevention of overheating or heat exchange occasions, the valve structure is simple, easy to operate, choose a wide range of temperature control, response time, reliable sealing performance, and can be adjusted at will in the operation, so widely used in chemical, petroleum, food, textile, hotels and restaurants and other departments of hot water supply

Product Features

The nominal diameter of this series of products is from 20 to 200mm, the nominal pressure is 1.0, 1.6, 4.0, 6.4MPa, the temperature range is from -20ºC~350ºC, the received signal is 0~10mA.DC or 4~20mA.DC to change the flow rate of the modulated medium, so that the controlled process parameters remain at the given value. The single-seat adjustment type is suitable for small pressure difference, large medium viscosity or slight particle impurity occasions. Sleeve regulating type is suitable for large pressure difference occasions

Main parts materials

Main parts materials
Valve body, valve cover: HT200, ZG230-450, ZG1Cr18Ni9Ti Sp
ool: ZG1Cr18Ni9Ti, Stailai alloy welding reinforced polytetrafluoroethylene
packing: polytetrafluoroethylene, flexible graphite
push rod, bushing: 2Cr13
gasket: Rubber asbestos board, 10, 1Cr18Ni9Ti asbestos winding gasket
bellows: 1Cr18Ni9Ti

Technical parameters

Main technical parameters

Nominal diameter DN(mm)(valve seat diameter dn)20253240506580100125150200(10)(12)(15)(20)Rated flow coefficientStraight stage1.82.84.46.91117.627.54469110176275440690Equal percentage1.62.546.31016254063100160250400630Rated stroke (mm)16254060Nominal pressure PN(MPa)1.0 1.6 4.0 6.4Inherent Flow CharacteristicsStraight line, etc. %Inherently adjustable ratio50Amount of leakage allowedSingle seatHard seal: Class IV Soft seal: Class VISleeveHard seal: Class II Soft seal: Class VIOperating temperature t(° C)-20~ 200-40 ~ 250-40 ~ 450-60 ~450Signal range (mA.DC)0 to 10 4 to 20Mode of actionElectric off type electric on typeAmbient temperature (° C)Electric regulating valve: -20~70ºCAmbient humidityElectric regulating valve: ≤95%Power supply voltage220V 50Hz

The performance index of this product is GB/T4213-92. Related technical parameters of electric actuator

Nominal diameter DN(mm)20253240506580100125150200Electric handling mechanismCommon typeZAZ-60DKZ-310ZAZ-60DKZ-310DKZ-410DKZ-410DKZ-510Electronic typeJHZAZ1JHZAZ1JHZAZ3JHZAZ3Electric actuator thrust (N)Full travel time (S)Normal type400400040040006400640016000Electronic type2000400060008000Normal type12.5203248Electronic Type30304860Power consumed (N)Normal type2835Electronic type6152540

The data in the table is only the general configuration, the specific selection is based on the main parameters and user requirements.

Allowable pressure difference

Single-seat adjustable allowable differential pressure gauge unit: MPa

Nominal diameter(mm)Thrust (N)20253240506580100125150200101215204003.902.711.730.950.620.370.240.1520006.406.406.404.873.1140006.406.406.406.406.113.732.391.5360001.380.910.5464001.450.950.610.400.280.1580000.500.340.19160000.980.680.38

Sleeve adjustable type allowable differential pressure gauge

Nominal diameter (mm)Thrust (N)202532405065801001251502004001.941.621.311.080.8820006.406.4040006.406.406.406.406.4060006.406.406.4064006.406.406.406.406.406.4080006.406.406.40160006.406.406.40

If the allowable pressure difference is greater than the nominal pressure, take the nominal pressure value.

Performance indicators

Main performance index

Serial numberItemsSingle-seated valveSleeve valve1Basic error (%)+ / - 2.52Return difference (%)2.03Dead zone (%)3.04Rated stroke deviation (%)+ 2.55Deviation of rated flow coefficient (%)Plus or minus 106Inherent flow characteristicsComply with the slope deviation specified in IEC534-1, GB/T4213-92

Common type unit: mm

Nominal diameter DN20253240506580100125150200A460530630B230230260H1490540625L150160180200230290310350400480600H2175180215218230280285315400460540H35357.5707582.592.5100110125142.5170WeightPN16405052545658758795132135155PN64535658656884110129177180210

Electronic type unit: mm

Nominal diameter DN20253240506580100125150200DPhi 155Phi 162Phi 170H4290325380L150160180200230290310350400480600H5175180215218230280285315400460540H6535870758292100110125142170WeightPN164010121517183446547679100PN641316192627436985120125150

Connection standard

Connection size and standard
flange standard: cast iron flange according to GB4216-84, cast iron
flange according to GB9113-88 flange sealing surface type: PN10,
PN16 convex PN40, PN64 convex surface, valve body is concave
structure length: GB12221-89
jacket insulation jacket heat body interface: Butt welding φ18×4
valve body flange and flange end face distance can be manufactured according to the specified standard. Such as ANSI, JIS, DIN and other standards
