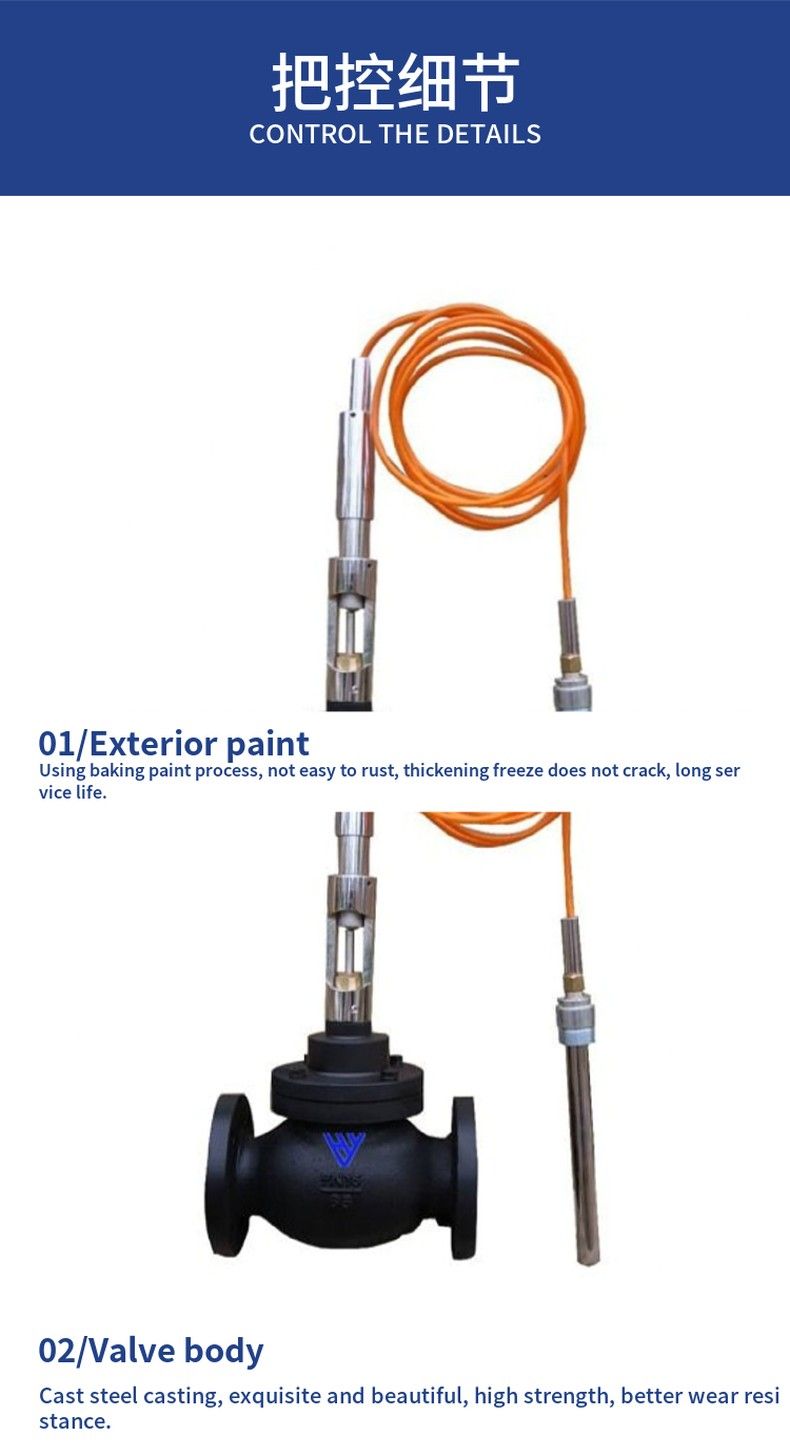

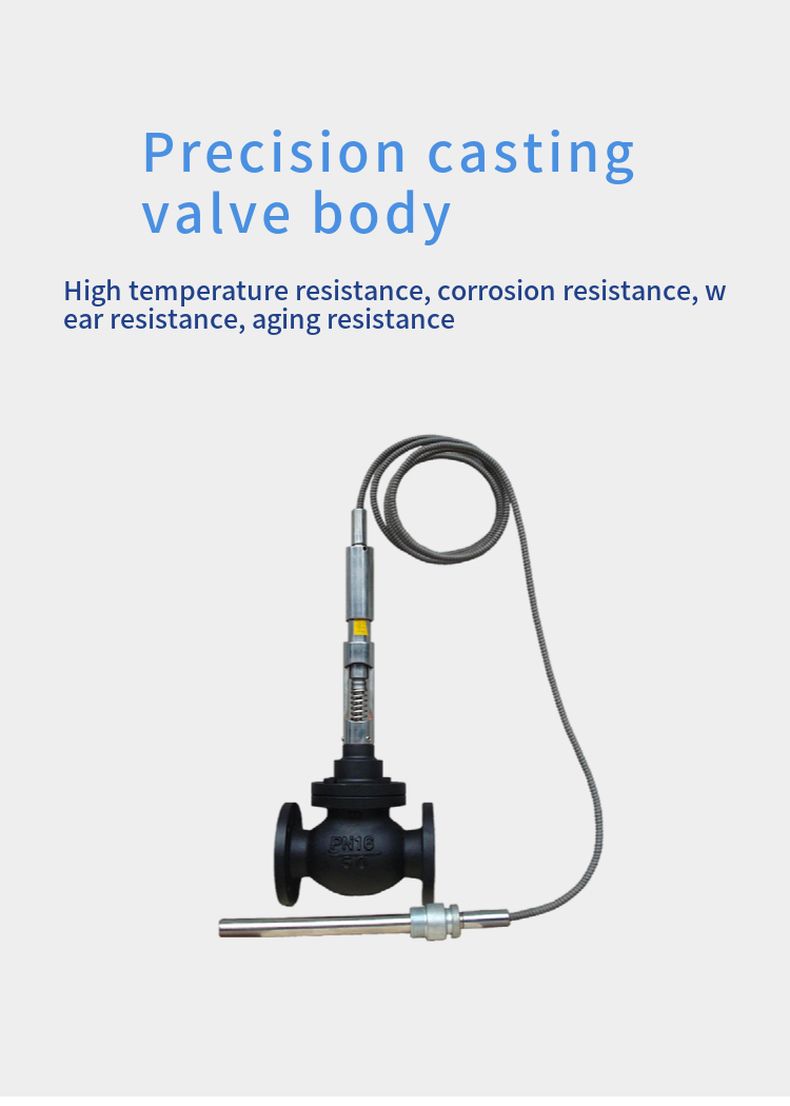

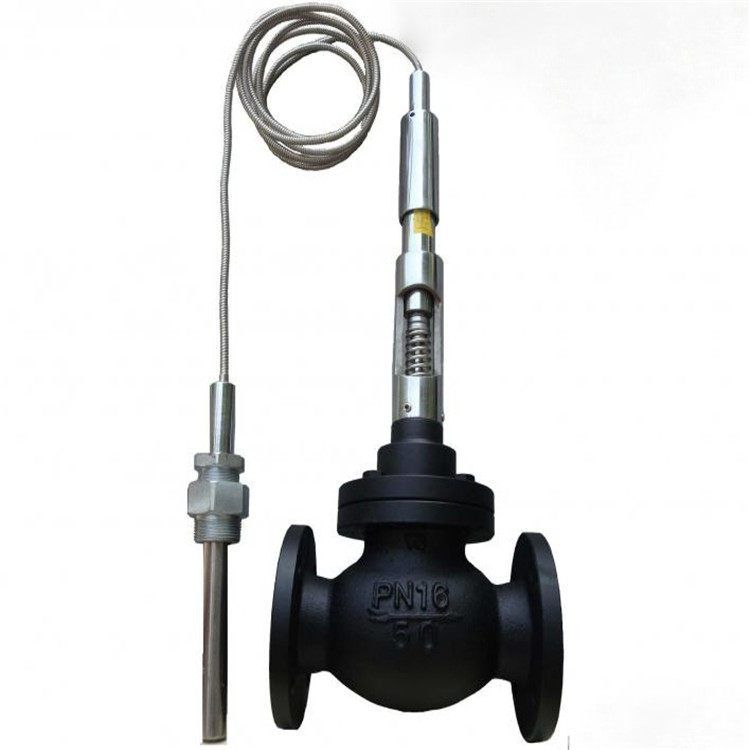

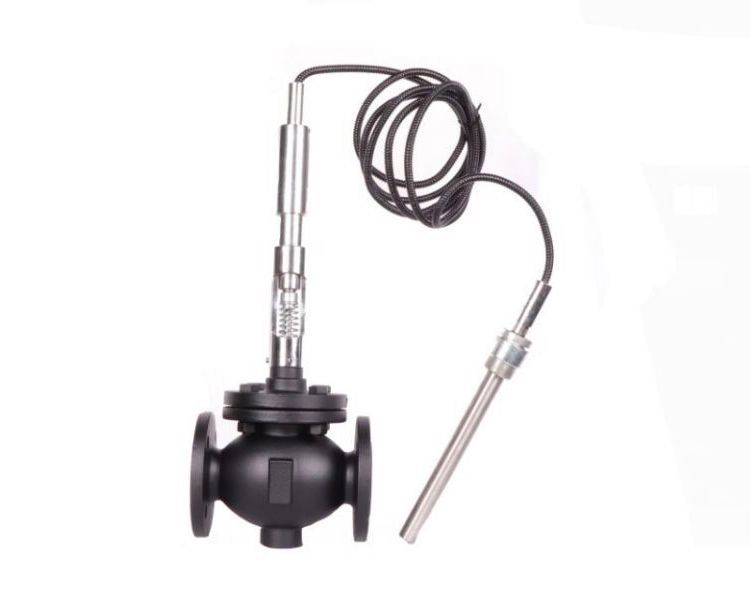

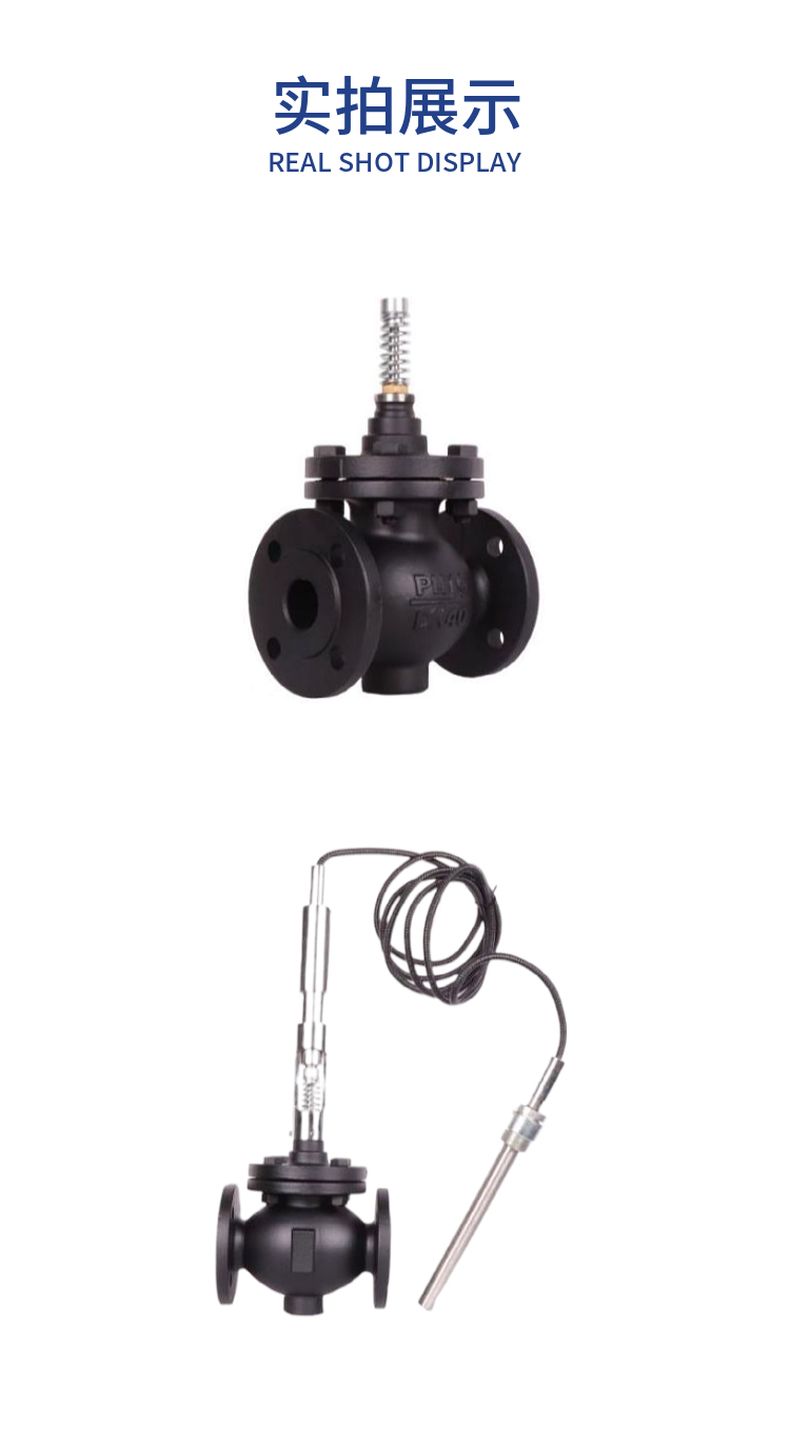

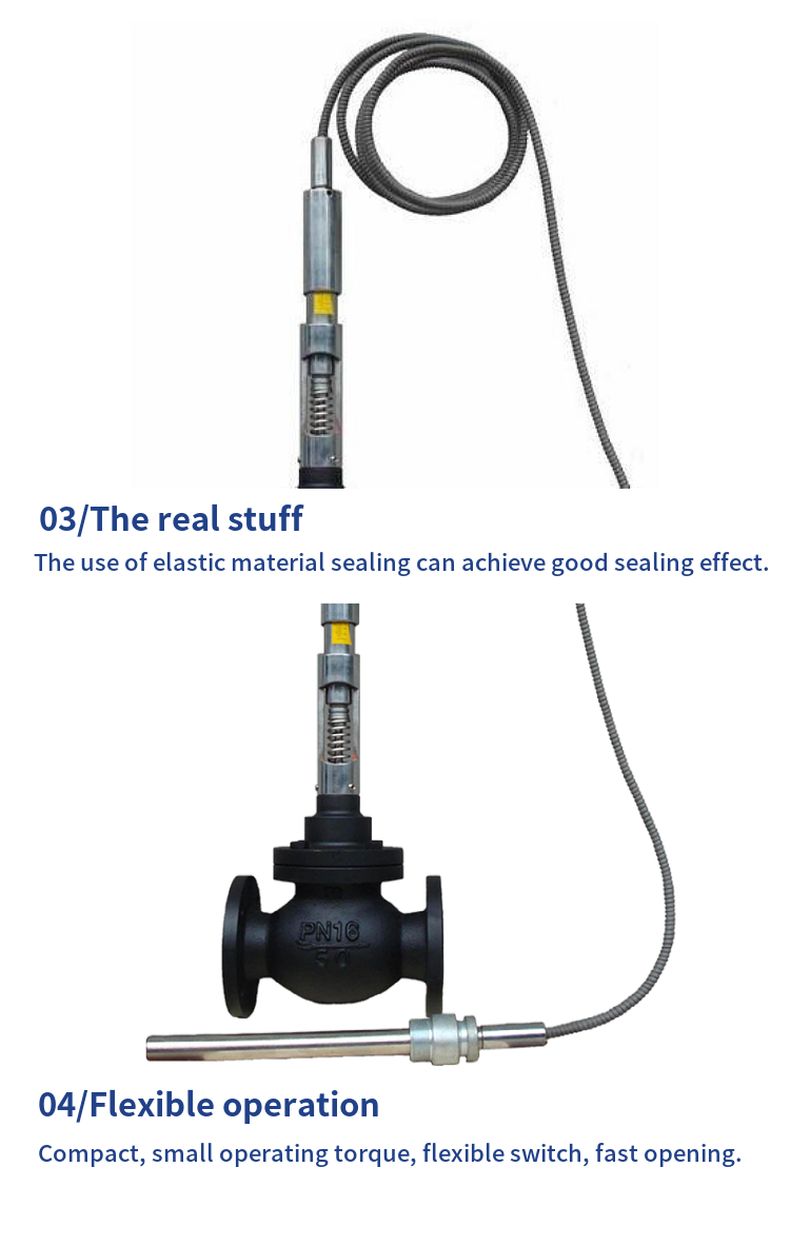

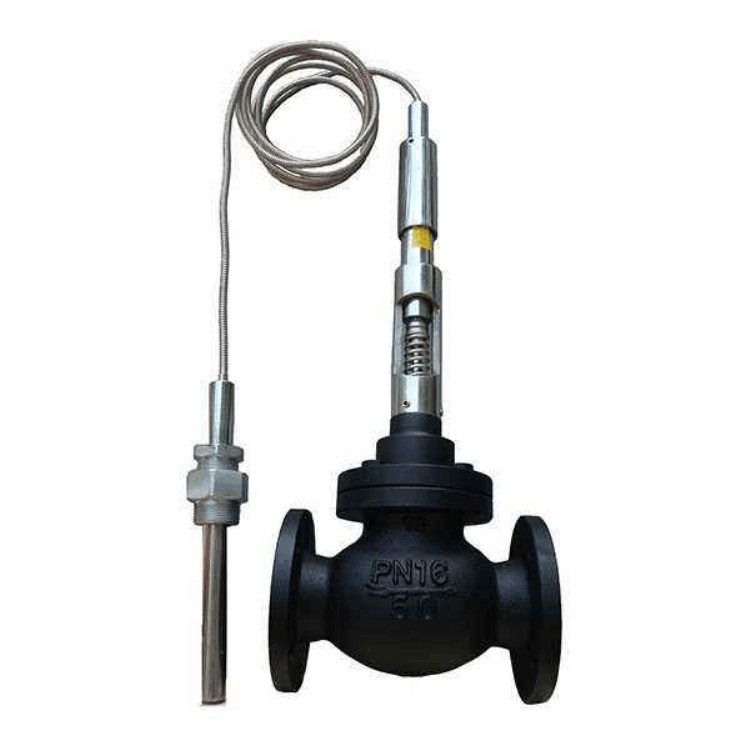

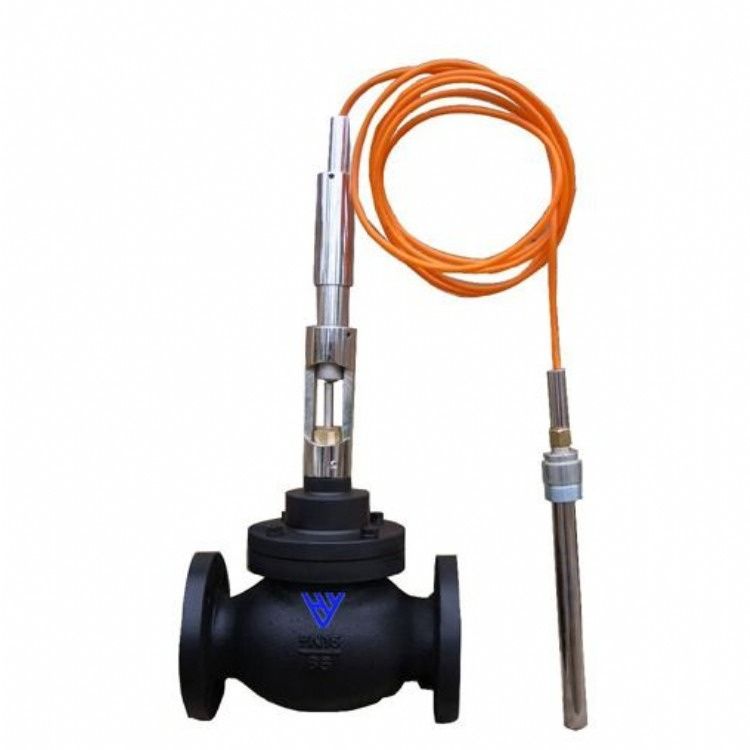

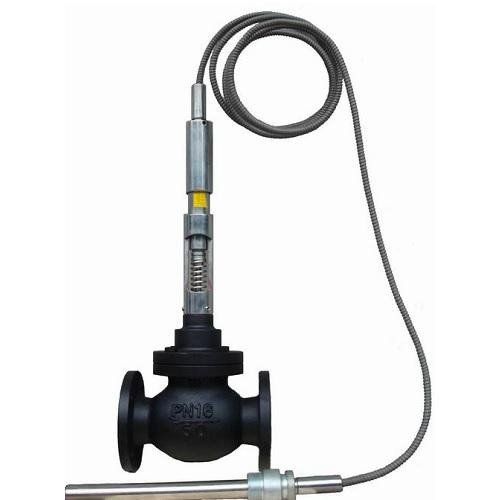

ZZWP Self-operated temperature control valve

Nominal diameter DN(mm) (valve seat diameter dn)		20				25	32	40	50	65	80	100	125	150	200
		(10)	(12)	(15)	(20)
Rated flow coefficient	Straight stage	1.8	2.8	4.4	6.9	11	17.6	27.5	44	69	110	176	275	440	690
	Equal percentage	1.6	2.5	4	6.3	10	16	25	40	63	100	160	250	400	630
Rated stroke (mm)		16					25			40			60
Nominal pressure PN(MPa)		1.0 1.6 4.0 6.4
Inherent Flow Characteristics		Straight line, etc. %
Inherently adjustable ratio		50
Allowable leakage	Single seat	Hard seal: Class IV Soft seal: Class VI
	Sleeve	Hard seal: Class II Soft seal: Class VI
Operating temperature t(° C)		-20~ 200-40 ~ 250-40 ~ 450-60 ~450
Signal range (mA.DC)		0 to 10 4 to 20
Mode of action		Electric off type electric on type
Ambient temperature (° C)		Electric regulating valve: -20~70ºC
Ambient humidity		Electric regulating valve: ≤95%
Power supply voltage		220V 50Hz

The performance index of this product is GB/T4213-92. Related technical parameters of electric actuator

Nominal diameter DN(mm)		20	25	32	40	50	65	80	100	125	150	200
Electric handling mechanism	Common type	ZAZ-60 DKZ-310		ZAZ-60 DKZ-310			DKZ-410			DKZ-410 DKZ-510
	Electronic type	JHZAZ1		JHZAZ1			JHZAZ3			JHZAZ3
Electric actuator thrust (N) Full travel time (S)	Normal type	400 4000		400 4000			6400			6400 16000
	Electronic type	2000		4000			6000			8000
	Normal type	12.5		20			32			48
	Electronic type	30		30			48			60
Power consumed (N)	Common type	28					35
	Electronic type	6		15			25			40

The data in the table is only the general configuration, the specific selection is based on the main parameters and user requirements.
Allowable pressure difference
Single-seat adjustable type allowable differential pressure table bit: MPa

Nominal diameter (mm) Thrust (N)	20				25	32	40	50	65	80	100	125	150	200
Nominal diameter (mm) Thrust (N)	10	12	15	20	25	32	40	50	65	80	100	125	150	200
400	3.90	2.71	1.73	0.95	0.62	0.37	0.24	0.15
2000	6.40	6.40	6.40	4.87	3.11
4000	6.40	6.40	6.40	6.40	6.11	3.73	2.39	1.53
6000									1.38	0.91	0.54
6400									1.45	0.95	0.61	0.40	0.28	0.15
8000												0.50	0.34	0.19
16000												0.98	0.68	0.38

Sleeve adjustable type allowable differential pressure gauge

Nominal diameter (mm) Thrust (N)	20	25	32	40	50	65	80	100	125	150	200
400	1.94	1.62	1.31	1.08	0.88
2000	6.40	6.40
4000	6.40	6.40	6.40	6.40	6.40
6000						6.40	6.40	6.40
6400						6.40	6.40	6.40	6.40	6.40	6.40
8000									6.40	6.40	6.40
16000									6.40	6.40	6.40

If the allowable pressure difference is greater than the nominal pressure, take the nominal pressure value.
Performance indicators

Serial number	Items	Single-seated valve	Sleeve valve
1	Basic error (%)	+ / - 2.5
2	Return difference (%)	2.0
3	Dead zone (%)	3.0
4	Rated stroke deviation (%)	+ 2.5
5	Deviation of rated flow coefficient (%)	Plus or minus 10
6	Inherent flow characteristics	Comply with the slope deviation specified in IEC534-1, GB/T4213-92

Common type unit: mm

Nominal diameter DN		20	25	32	40	50	65	80	100	125	150	200
A		460					530			630
B		230					230			260
H1		490					540			625
L		150	160	180	200	230	290	310	350	400	480	600
H2		175	180	, 215	218	230	280	285	315	400	460	540
H3		53	57.5	70	75	82.5	92.5	100	110	125	142.5	170
Weight	PN1640	50	5254	56	58	75	87	95	132	135	155
Weight	PN64	53	56	58	65	68	84	110	129	177	180	210

Electronic type unit: mm

Nominal diameter DN		20	25	32	40	50	65	80	100	125	150	200
D		Phi 155		Phi 162			Phi 170
H4		290		325			380
L		150	160	180	200	230	290	310	350	400	480	600
H5		175	180	215	218	230	280	285	315	400	460	540
H6		53	58	70	75	82	92	100	110	125	142	170
Weight	PN1640	10	12	15	17	18	34	46	54	76	79	100
Weight	PN64	13	16	19	26	27	43	69	85	120	125	150
