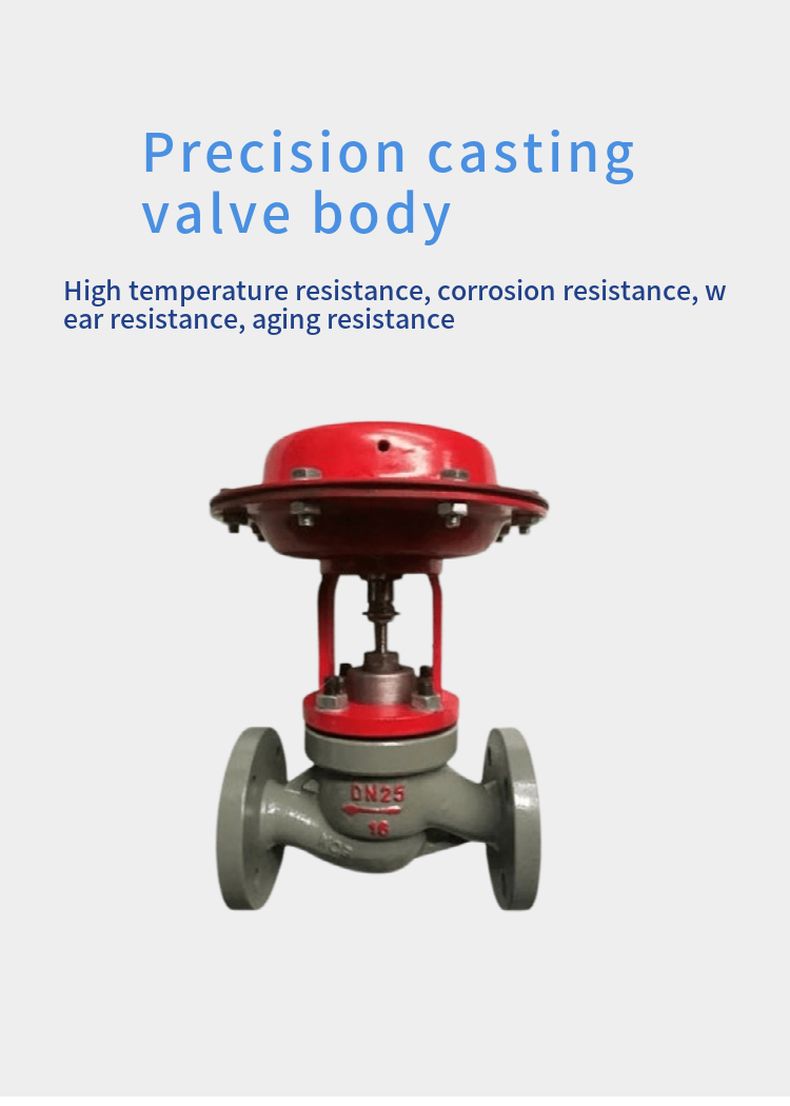

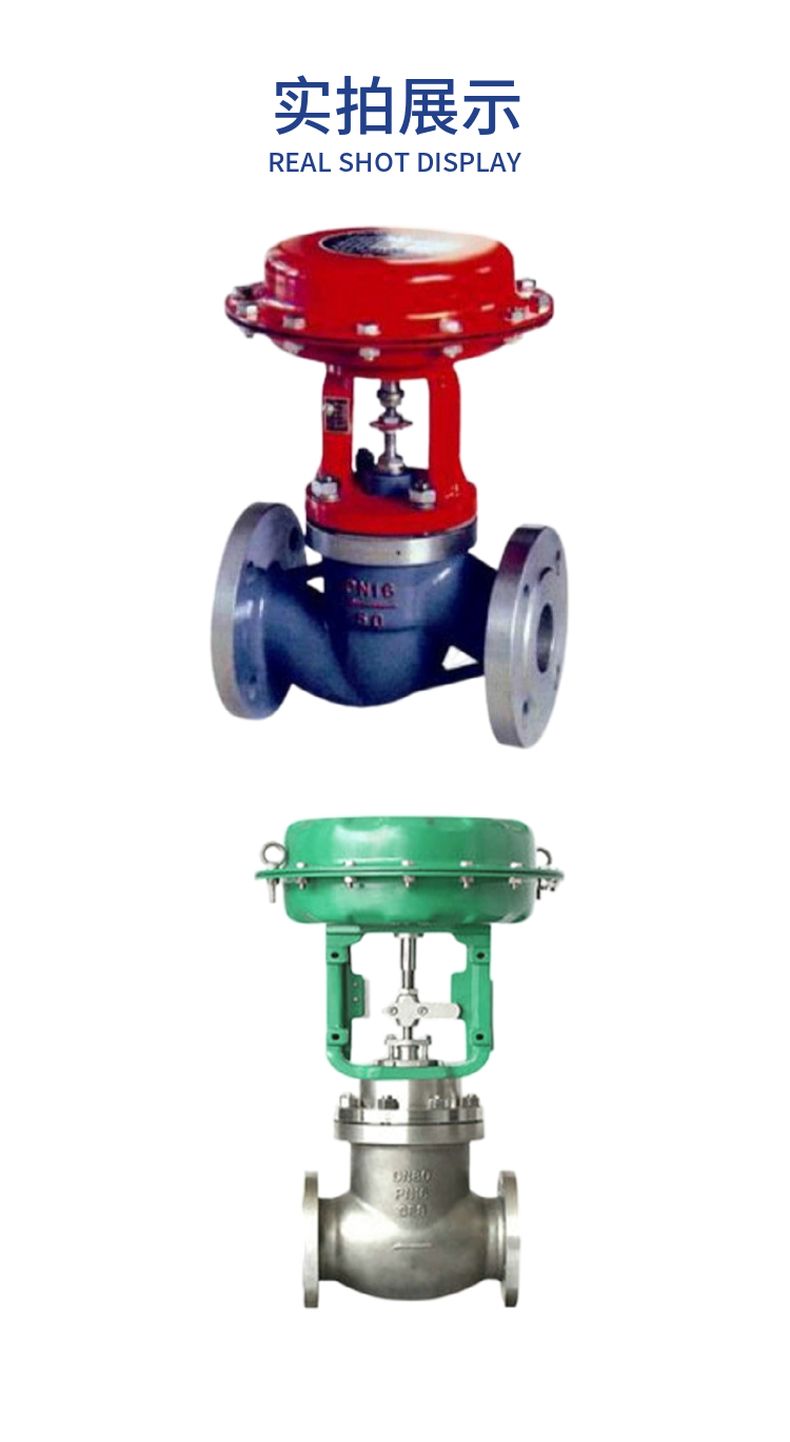

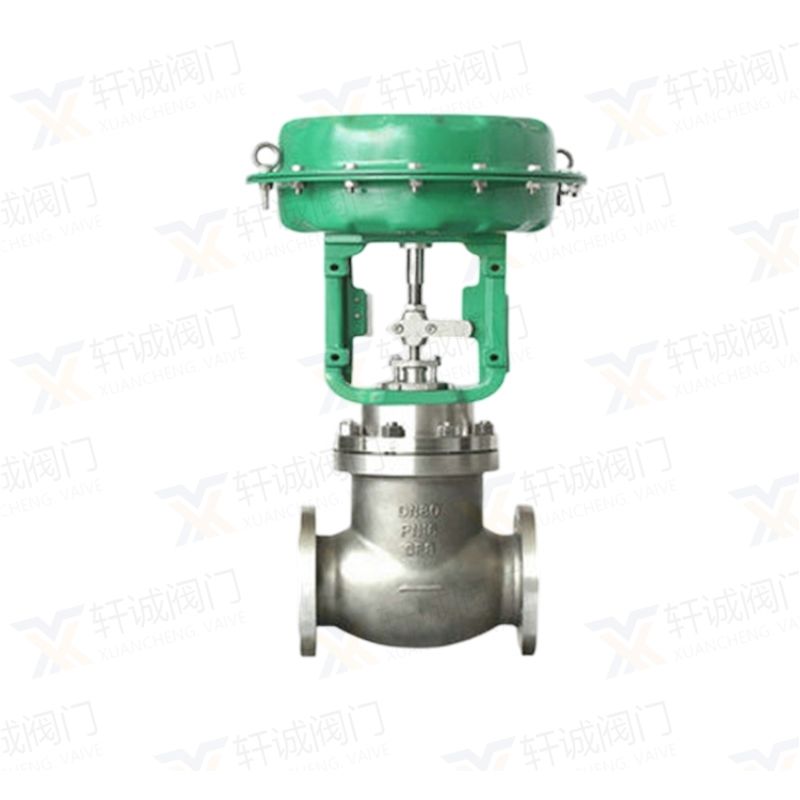

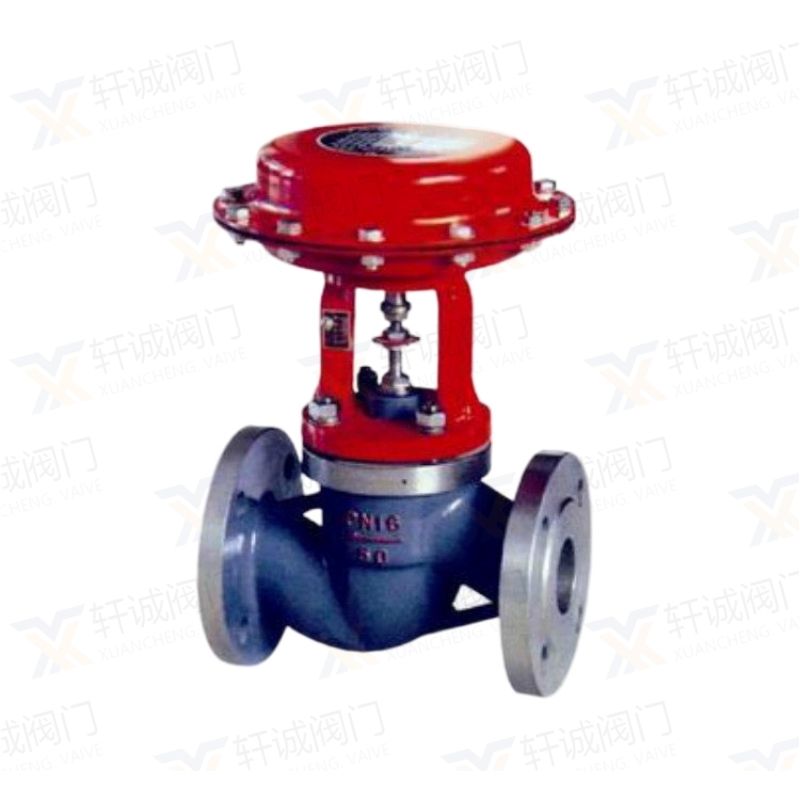

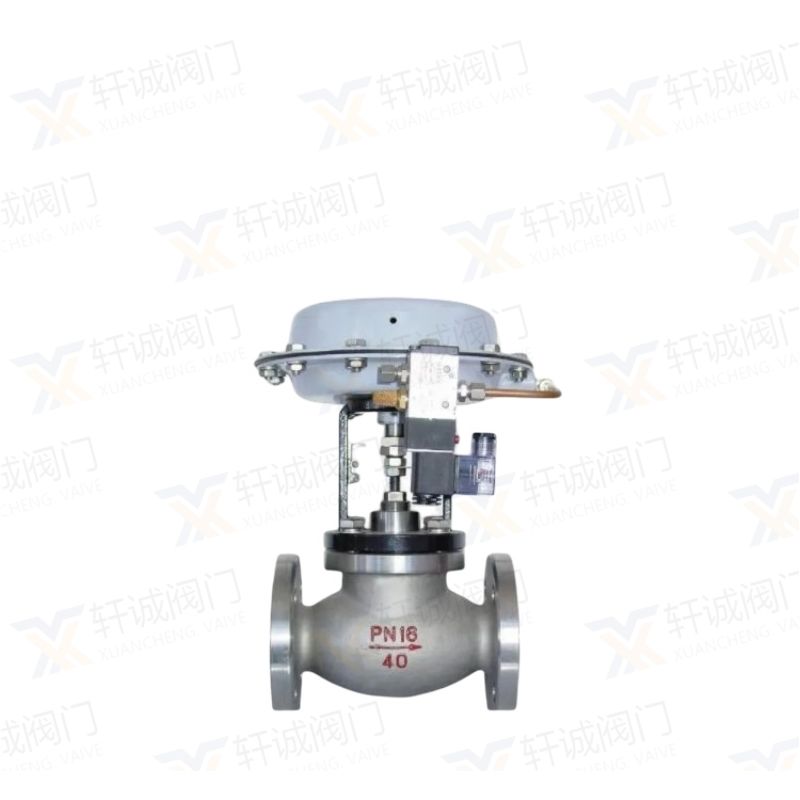

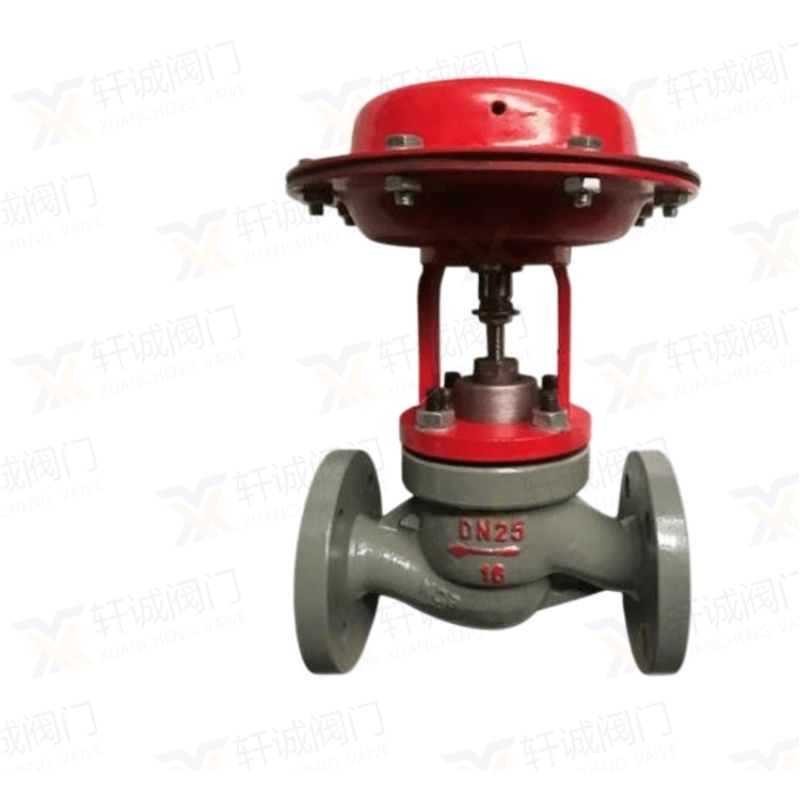

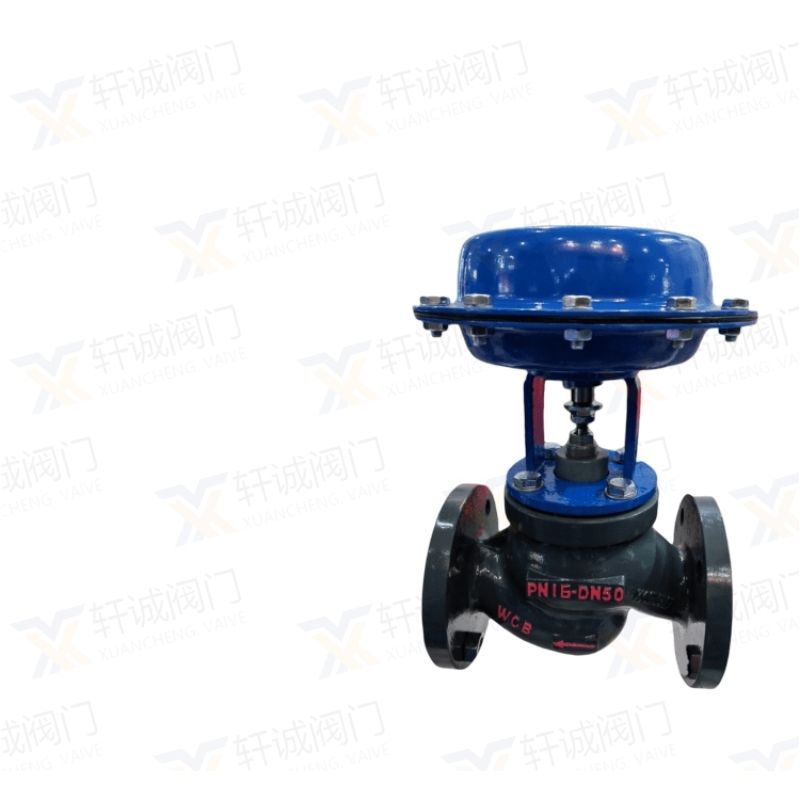

ZMQ pneumatic film cut-off valve

First, pneumatic film cut-off valve -- Overview:

ZMQ pneumatic film cutting valve is equipped with a multi-spring actuator, when the valve receives the adjustment instrument signal after closing, opening or changing the medium flow direction, to achieve the automatic control of pressure, flow, temperature or liquid level and other process parameters.

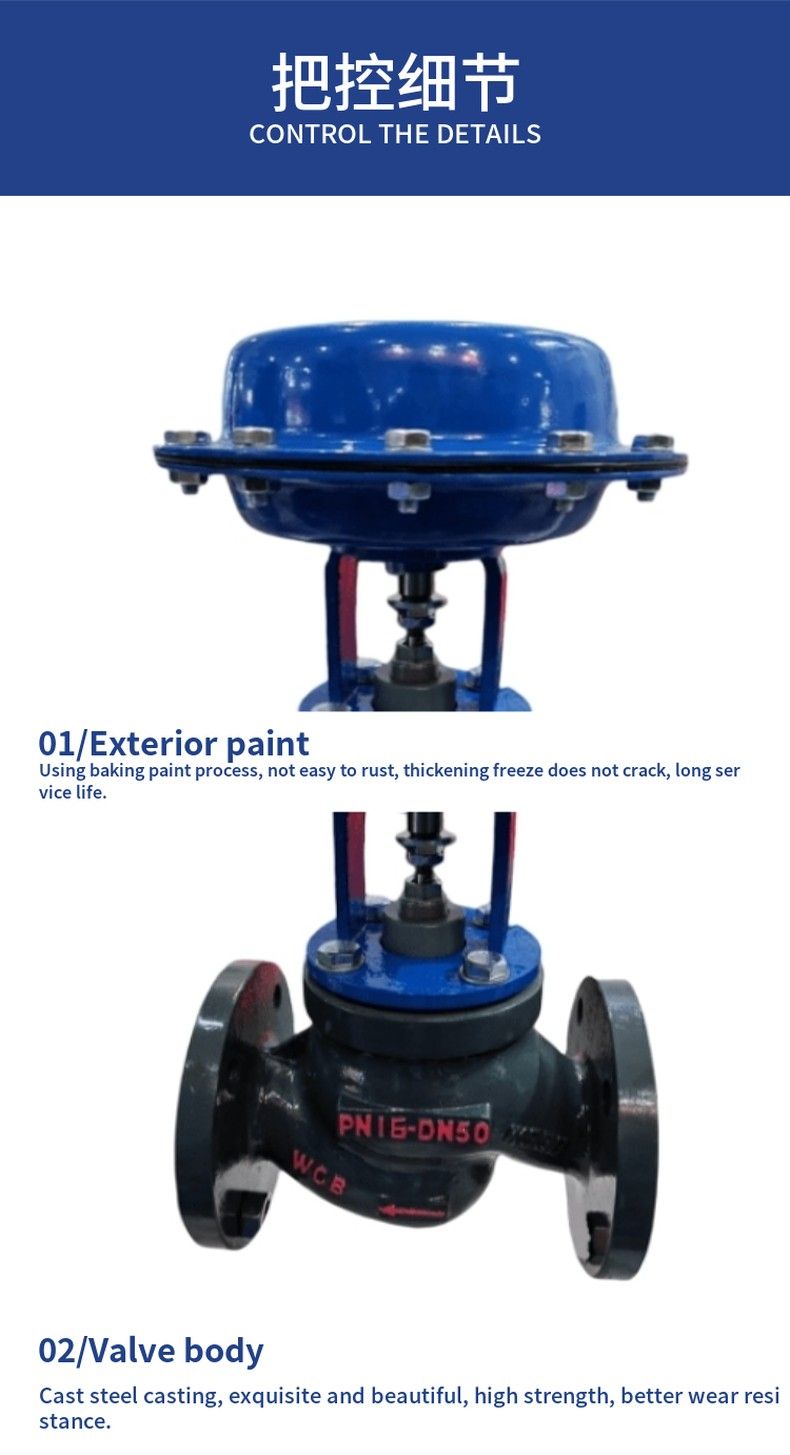

ZMQ pneumatic film cut off valve is composed of two parts: pneumatic film actuator and valve body. With simple structure, sensitive action, good performance, small weight, easy maintenance and other characteristics, widely used in petroleum, chemical industry, metallurgy, electric power, printing and dyeing, environmental protection, food, medicine and other industries of the production process automation control and remote automation control environment.



Pneumatic film cut-off valve adopts top guide structure, equipped with multi-spring actuator. It has the advantages of compact structure, light weight, sensitive action, fluid channel is streamlined S, small pressure drop loss, large valve capacity, convenient disassembly and so on.

The cut-off valve accepts the signal from the regulating instrument, and cuts off, opens or changes the flow direction of the medium to achieve automatic control of the process parameters such as pressure, flow rate and liquid level. Widely used in petroleum, chemical industry, metallurgy, electric power, light industry, textile and other industrial sectors of the production process automatic control and transportation control system.

Xuancheng valve has film type, piston type two. Xuancheng valve body structure has a single seat, sleeve, double seat (two three-way) three kinds, sealing forms have packing seal and bellows seal two kinds, the nominal pressure grade of the product has PN10, 16, 40, 46 four kinds, nominal caliber range DN20 ~ 200mm. Applicable fluid temperature from -60 ~ 450ºC. The leakage grade is IV or VI. The flow characteristic is fast opening.

Two, pneumatic film cutting valve -- Product features:

The multi-spring actuator and the regulating mechanism are connected with three vertical branches, the entire height can be reduced by about 30%, and the weight can be reduced by about 30%.

The valve body is designed according to the principle of fluid mechanics into a low flow resistance channel of equal section, and the number of rated flow systems increases by 30%.

The sealing part of the valve inner part has two kinds of tight and soft seal, Mingke tight type for surfacing cemented carbide, soft seal type for the production of quality materials, good sealing performance.

The balanced valve internals improve the allowable pressure difference of the cut-off valve.

The bellows seal form a complete seal to the moving stem, blocking the possibility of leakage of the medium.

Piston actuator, large operating force, use of large pressure difference.


Three, pneumatic film cutting valve - parts material:

Valve body, sealing sleeve: HT200, ZG230-450, ZG1Cr18Ni9Ti, ZG1Cr18Ni12MO2Ti

Spool, seat: 1Cr18Ni9T, OCr18Ni12MO2Ti, 1Cr18Ni9Ti surfacing Steilai alloy

Sleeve, valve plug: 1Cr18Ni9T, OCr18Ni12MO2Ti, 1Cr18Ni9Ti surfacing Starley alloy

Packing: polytetrafluoroethylene, flexible graphite

Corrugated diaphragm: Buqing rubber clip reinforced polyester fabric

Spring: 60Si2Mn

Valve stem and push rod: 2Cr13, 1Cr18Ni9Ti

Spool, valve plug (soft part) : reinforced PTFE

Bellows: 1Cr18Ni9Ti
