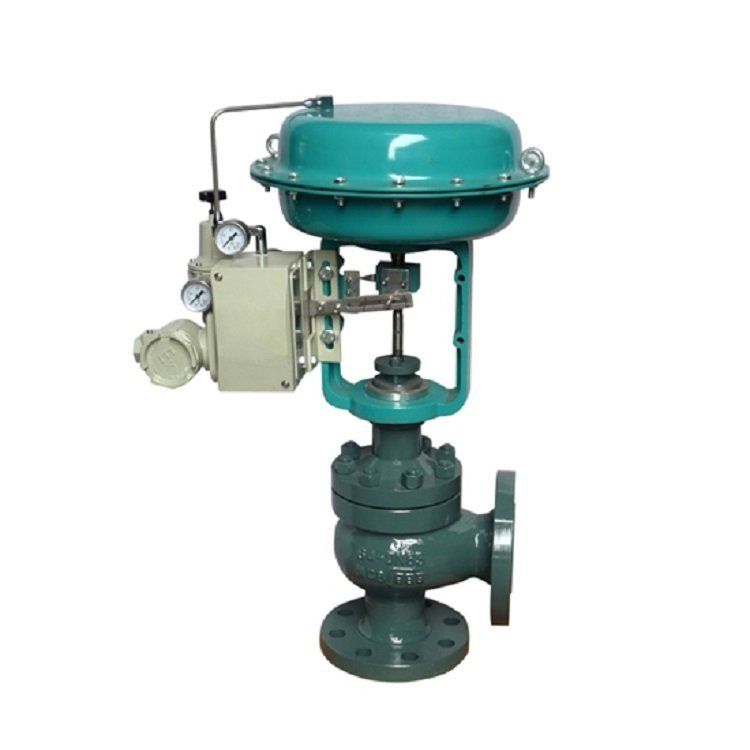

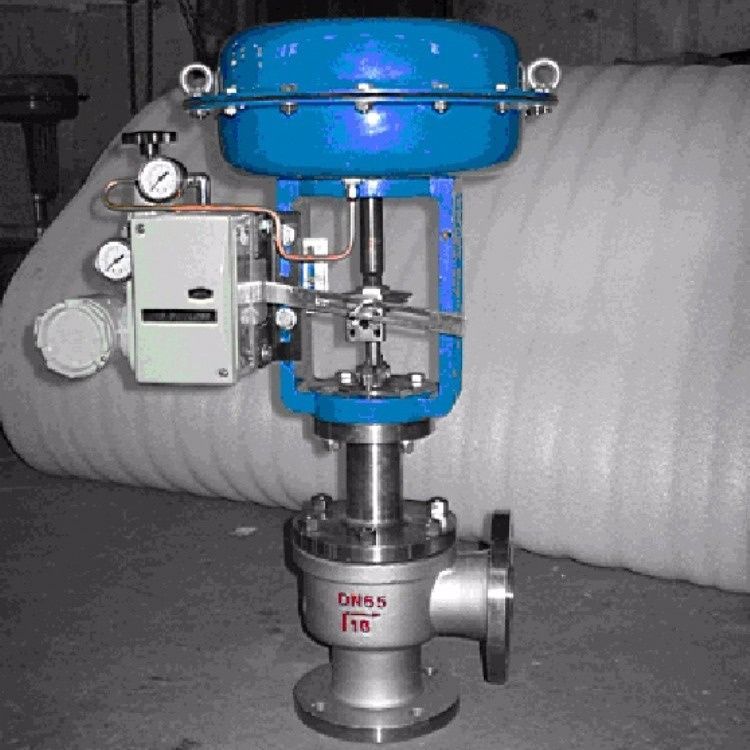

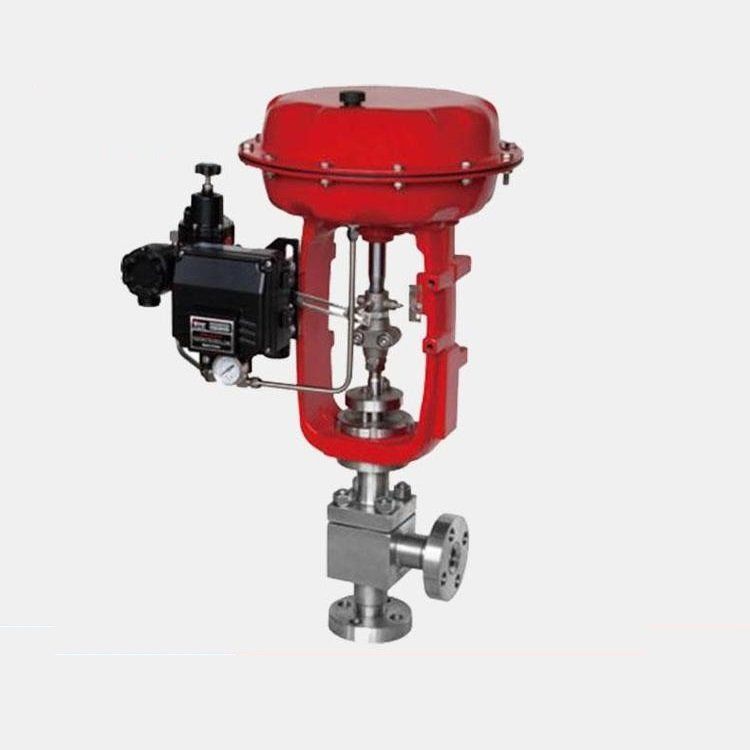

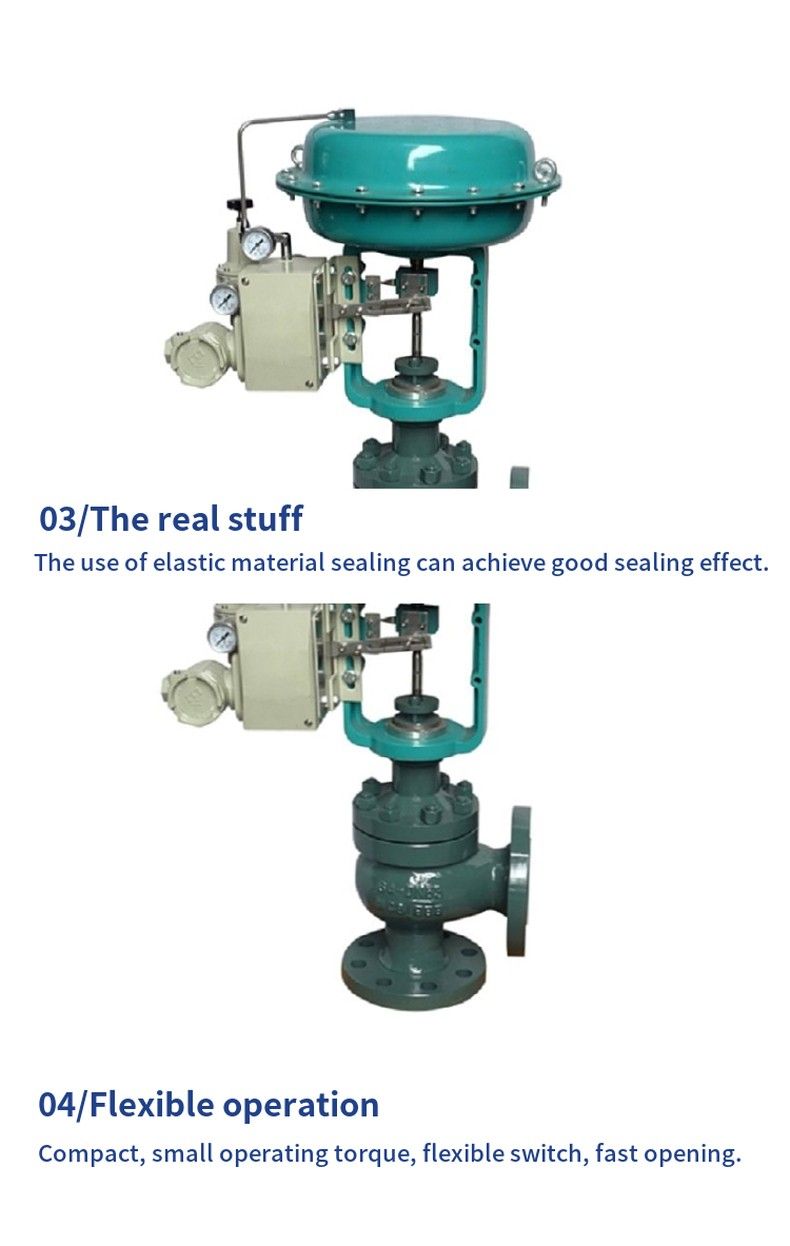

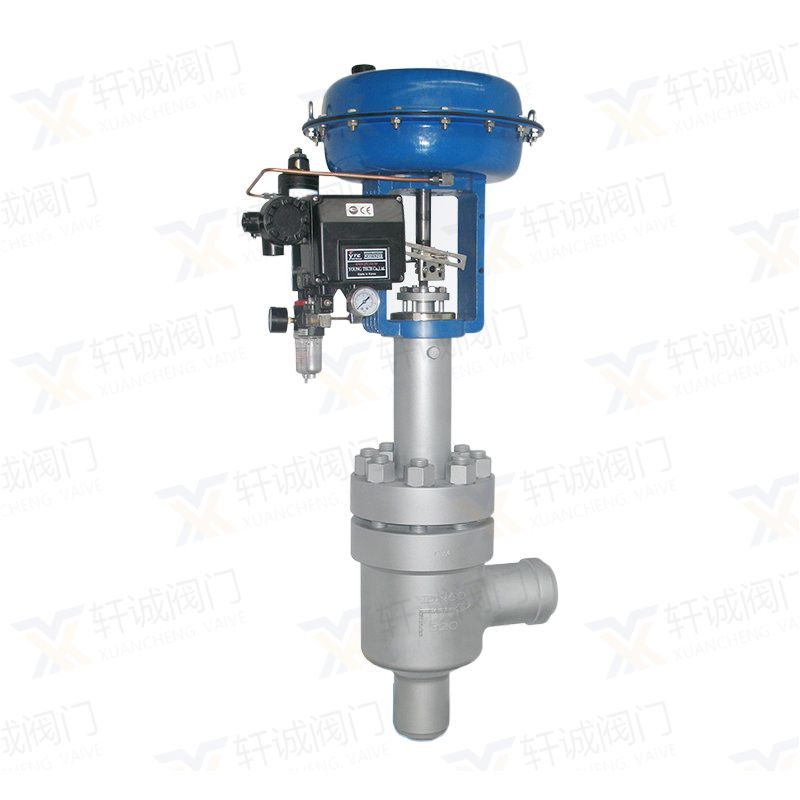

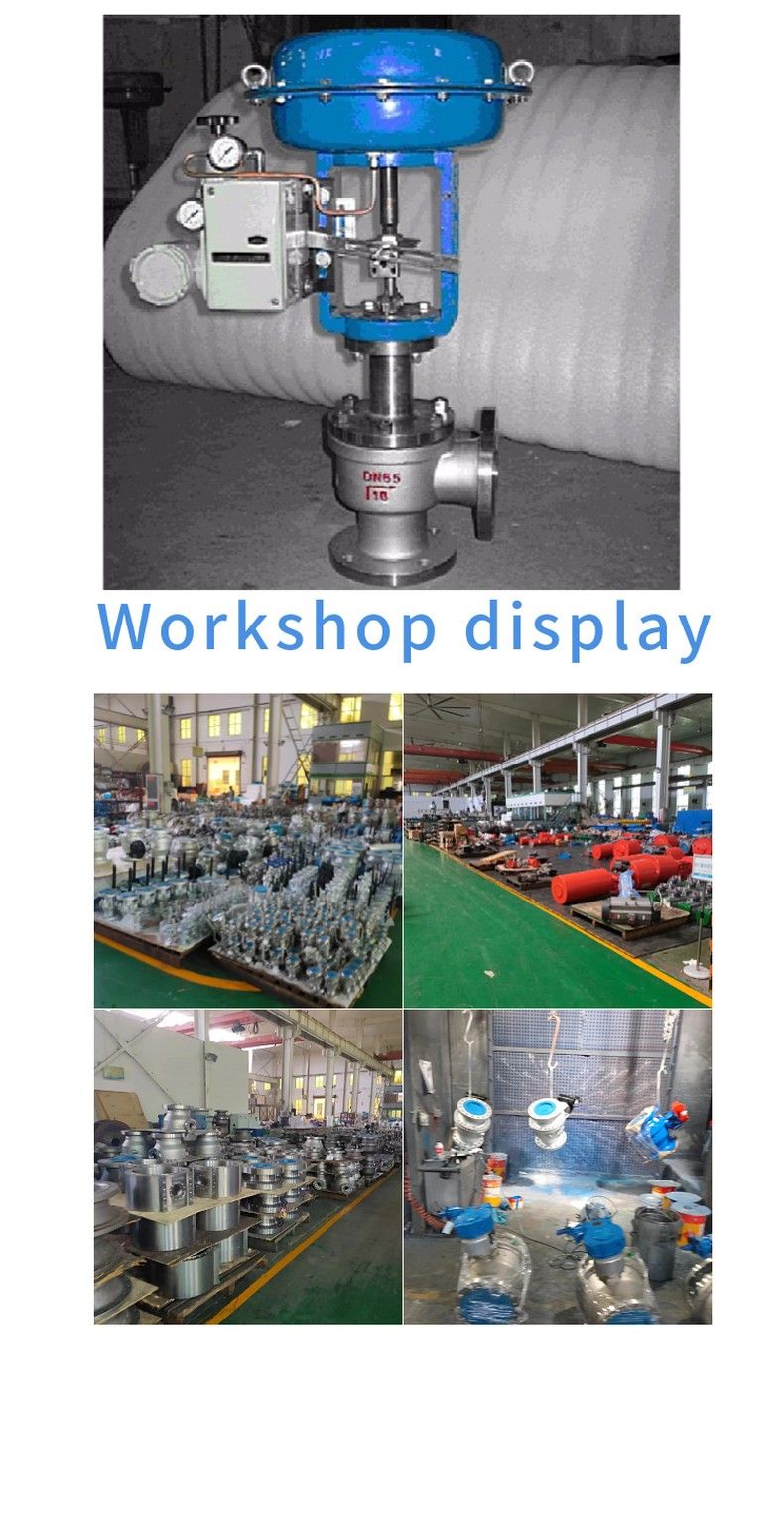

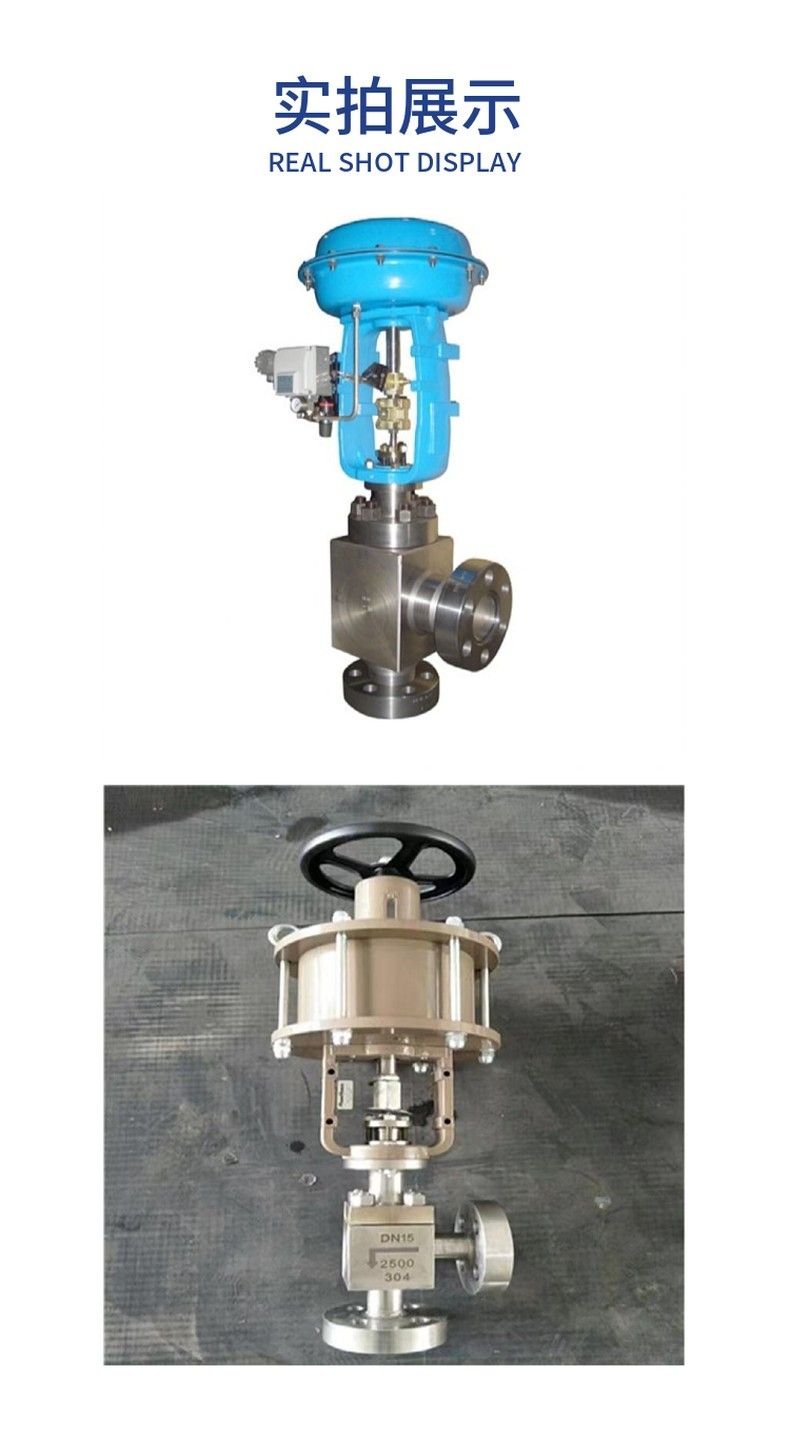

ZMAS pneumatic film Angle regulating valve

ZMA/BS-220, 320 series pneumatic thin instantaneous Angle commercial pressure regulator is composed of pneumatic eruption multi-elastic actuator and angular pressure release valve.

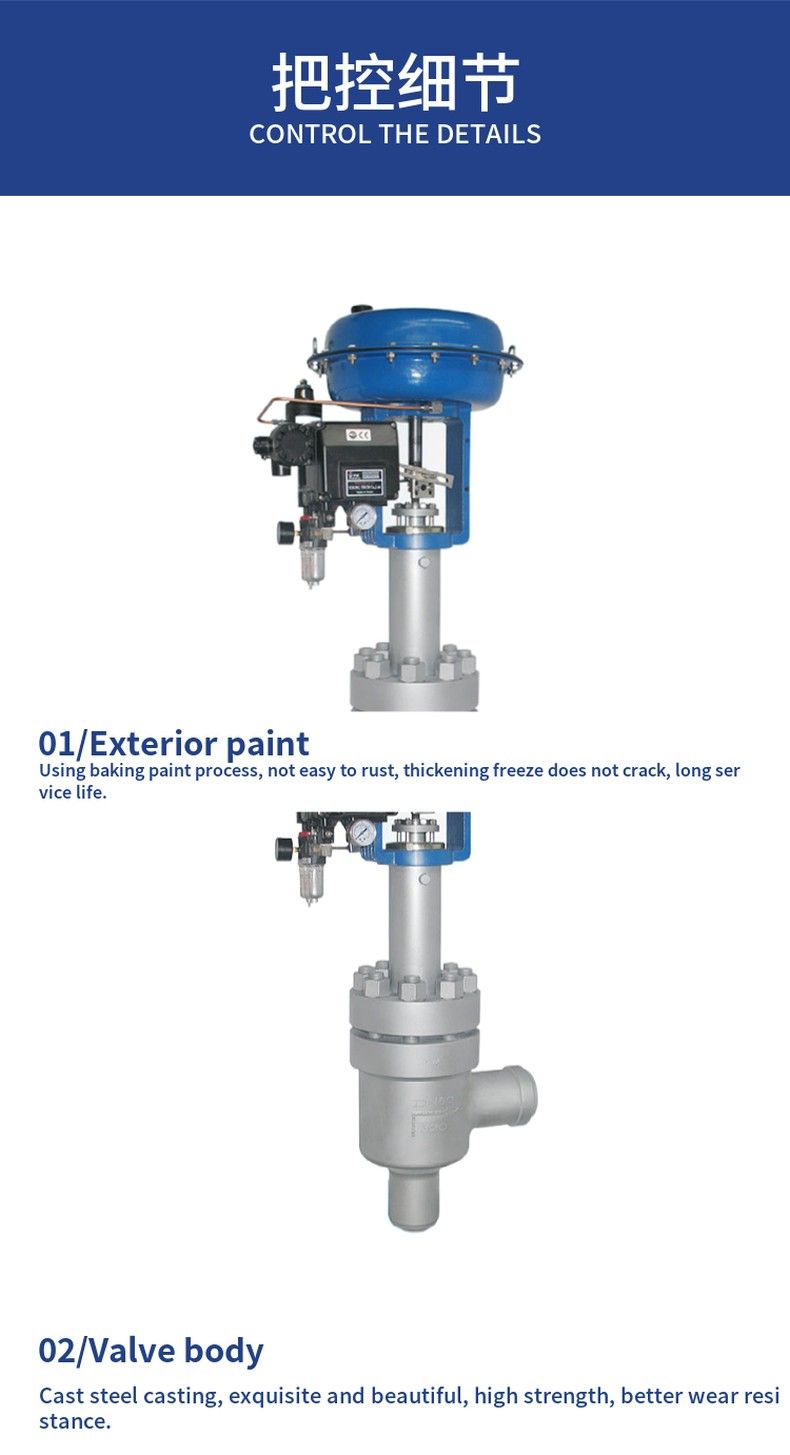

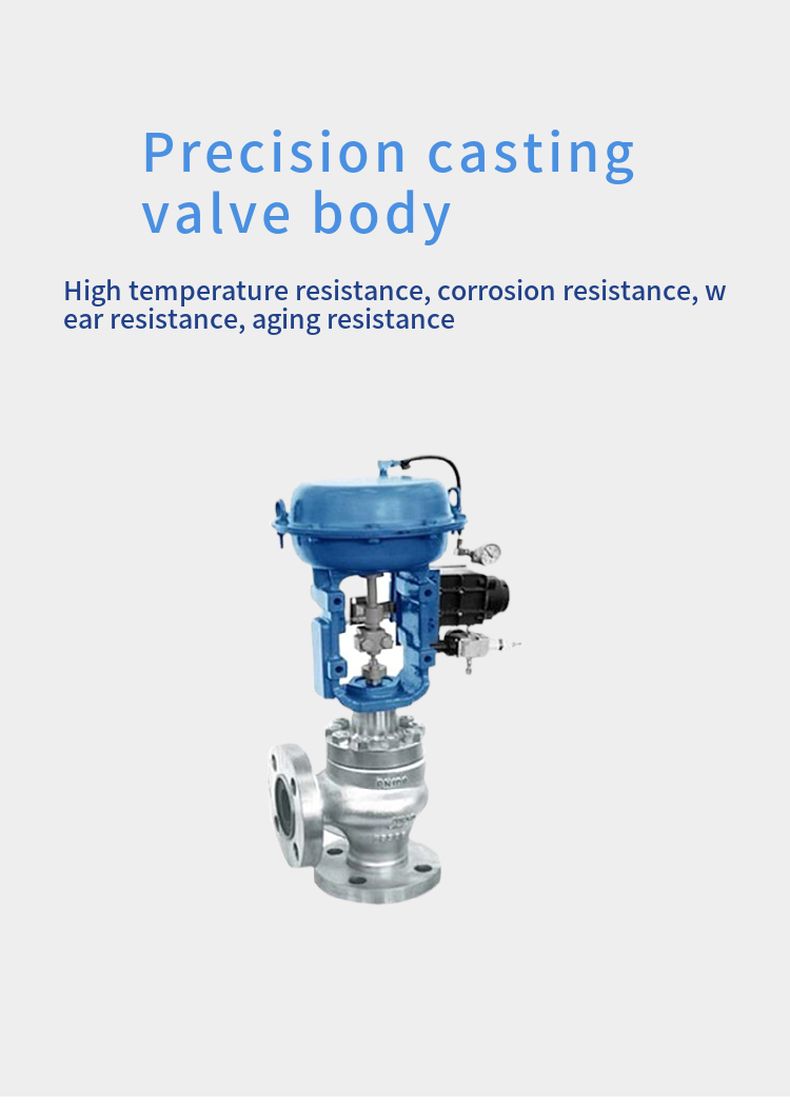

ZMAS angular high pressure pneumatic diaphragm regulator adopts permeable valve seat structure, the valve seat is easy to replace and the sealing performance is good. The valve core is a plunger shape, which is used for the core under the condition of differential pressure. The head is surfacing tungsten cobalt alloy, which has the advantages of cavitation resistance and anti-flushing, greatly improving the service life.
Widely used in chemical industry, oil refining and other industries, especially suitable for synthetic nitrogen, urine industrial commercial pressure and commercial pressure difference medium regulation.

ZMAS angular high pressure pneumatic film regulating valve main technical indicators

Common diameter DN	6			10					15					25						32			40		50		65		80		100
Valve seat diameter DN	3	4	5	6	7	8	9	10	6	7	8	10	12	7	8	10	12	16	20	16	20	30	20	38	30	50	38	65	50	80	65	100
Rated flow coefficient Kv	0.04	0.10 0.16 0.25	0.1	0.10 0.16 0.225	0.4 0.63	1.0	1.6	2.5	0.4 0.63	1.0	1.6	2.5	4.0	1.0	1.6	2.5	4.0	6.3	8	6.3	8	16	10	25	16	40	25	63	40	100	63	160
Flow Characteristics	Straight Lines																	Straight line: equal percentage
Nominal pressure PN (MPa)	22:32
Signal pressure KPa	Standard signal: 20-100; Other signals: 40-200; 60-180.
Mode of action	Air close (B) Air open (K)
With actuator model
Instructions	1, this series is suitable for medium temperature -30~200ºC. 2, the rated flow coefficient and flow characteristics are based on the bottom in side out.

ZMAS angular high pressure pneumatic film regulating valve performance

item	With positioner
Base error %	2.0 mm or less
Return difference %	1.0 or less
Zone 4 %	1.0 or less
Leakage L/h	0.1%* valve rated capacity
Adjustable range R	30:1

Nominal diameter DN	PN(105pa)	Φ D	Φ DK	d	b	N - Φ	L	L1	D	H		Weight (kg)
										Air close type Air open type		Air-closed air-open
6	320	Pipe connections are welded form, outer diameter 14 x inner diameter 6					83	98	230	429	480	12	14
	220
10	320	95	60	12	20	3 to 18	105	90	325	594	673	29	35
	220
15	320	105	68	15	20	3 to 18	105	105		594	673	30	36
	220	95	60
25	320	115	80	23	22	4 to 18	120	120		609	688	31	37
	220	105	68		20	3-10
32	320	135	95	30	25	4-22	135	135	410	834	939	68	83
	220	115	80		22	4 to 18
40	320	165	115	38	32	6-26	165	165		870	974	78	92
	220				28
50	320	200	145	50	40	6-29	190	190		910	1016	94	108
	220	165	115		32	6-26
65	320	225	170	65	50	6-33	215	215	495	1090	1225	463	181
	220	200	145		40	6-29
80	320	260	195	80	60	9-36	260	260		1185	1310	208	226
	220	225	170		50	6-33
100	320	200	235	100	75	8-39	290	290		1235	1360	267	285
	220	260	195		60	6-36
