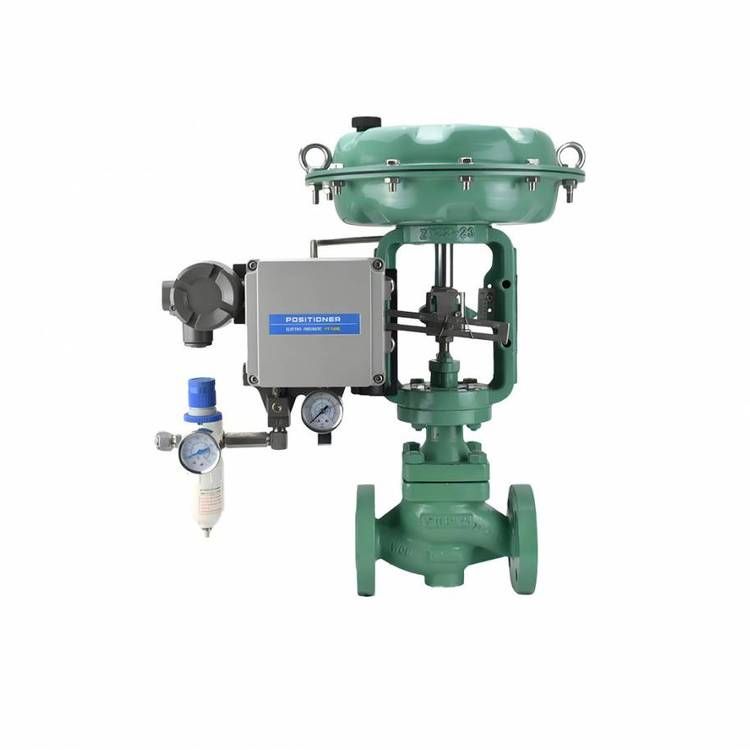

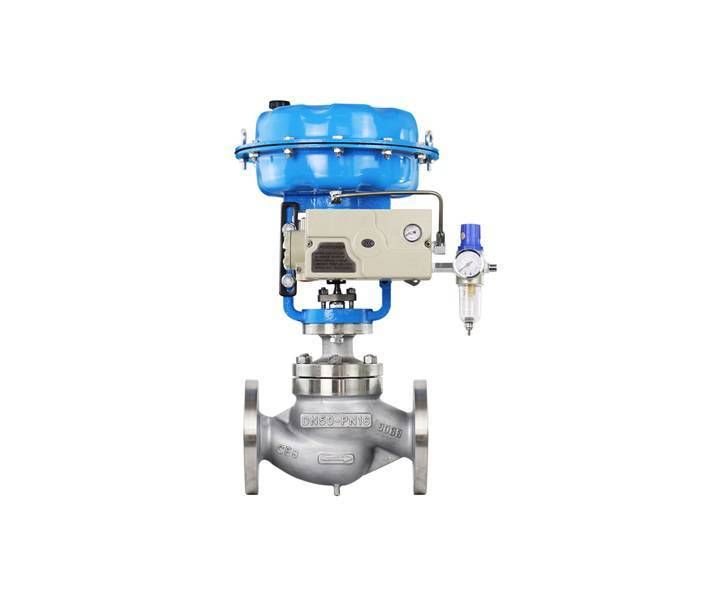

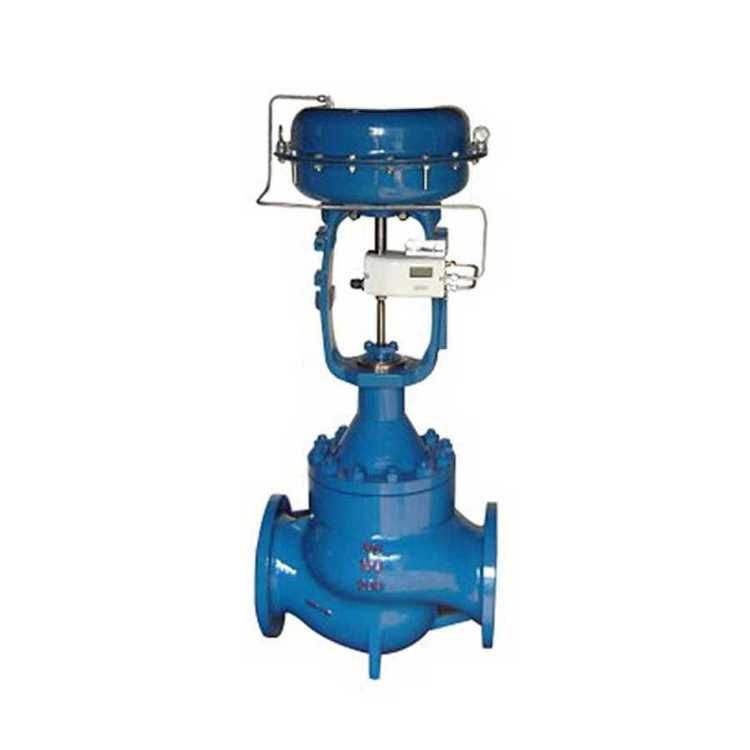

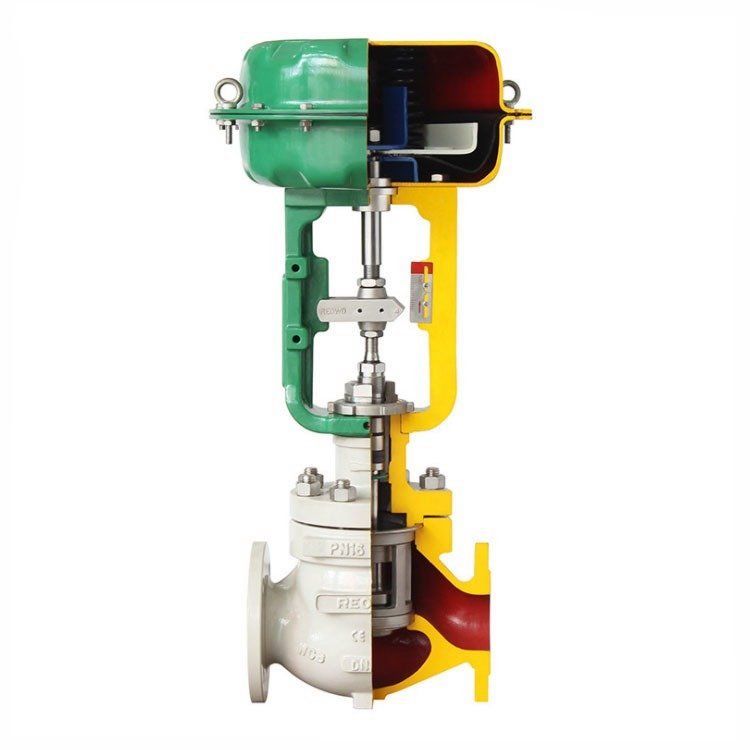

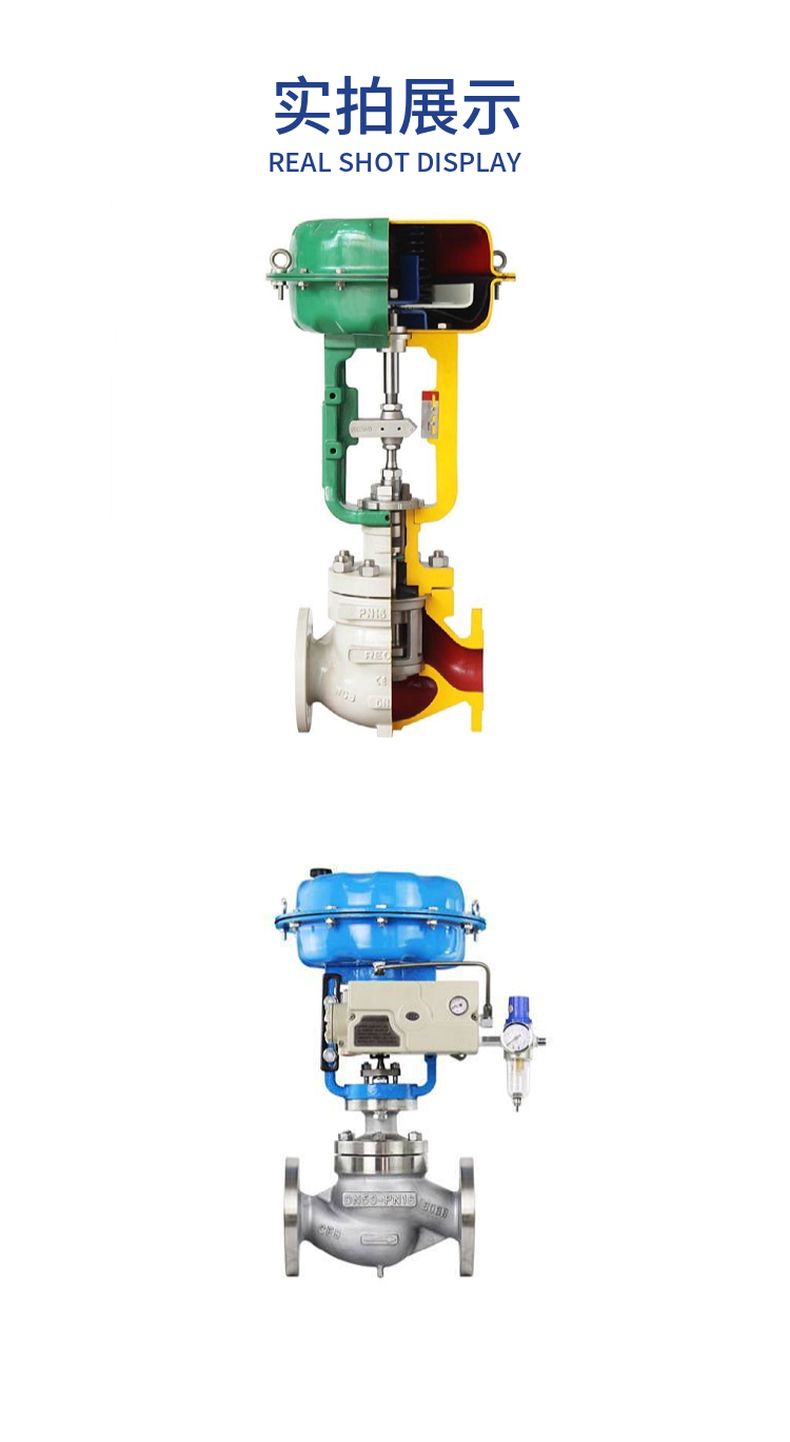

ZMAP pneumatic single-seat regulating valve

Structure characteristics and application range

A
ZMP pneumatic film single-seat regulating valve, single-seat plunger spool, spool with top and bottom guide. Suitable for strict leakage requirements, before and after the valve
B
For occasions where the pressure difference is low and there is a certain year and containing fibrous media, the high pressure difference and large diameter valve should be used with the positioner.

Model, Specification

Categories	Room temperature type		Medium temperature type		Low temperature type
Model number	A 40B ZM P- B 64K	16 ZMAP-\|B 64K	A 40B ZM P- G B 64K	A 40B ZM P- G B 64K	6 A B ZM P-40 D B K 64	6 B ZM A P-40 D K 64
Specifications	G3/4 "; 20	DN25~200	G3/4 "; 20	DN25~200	G3/4 "; 20	DN25~200

Technical parameters and performance indicators

Adjust the main technical parameters of the mechanism

Nominal diameter mm		G 3/4″						20				25	32	40	50	65	80	100	125	150	200
Rated flow factor Kv		0.08	0.12	0.20	0.32	0.50	0.80	1.20	2.00	3.20	5.00	8	12	20	32	50	80	120	200	280	450
Nominal pressure MPa		1.6, 4.0, 6.4 (room temperature type); 4.0, 6.4 (medium temperature type); 0.6, 4.0, 6.4 (low temperature type)
Stroke mm		10; 16										16		25		40			60
Medium temperature ° C		-20~200 (room temperature type); -40~450 (medium temperature type); -250 to -60 (low temperature type)
Flow characteristics		Straight line						Straight line, etc. percentage
Flange size, type		Pipe threaded connection						Cast iron flange according to GB/ T17241.6-1998, Cast steel flange according to JB/ T79.2-94 and JB/ T79.2-94 (low temperature type)
Valve body material	Room temperature type	Zg230-450; ZG1Gr18Ni9Ti										HT200; Zg230-450; ZG1Gr18Ni9Ti
	Medium temperature type	ZG230-450; ZG1Gr18Ni9Ti
	Low temperature type	ZG1Gr18Ni9Ti
Spool material		1Cr18Ni9
Upper valve cover type		Ordinary type (room temperature type); Hot plate type (medium temperature type); Long neck type (low temperature type)
Adjustable ratio		30:1

Note: Can provide users with GB, ANSI, JIS, DIN and other flange structure, the flange distance according to user needs to determine.
Main technical parameters of the actuator

Model number	ZMA(B)-1	ZMA(B)-2	ZMA(B)-3	ZMA(B)-4	ZMA(B)-5
The effective area of the film is ²	200	280	400	630	1000
Stroke mm	10	10 dec	25	40	60
Spring range KPa	20 to 100; 40 to 200; 20 to 60; 60 to 100; 80 ~ 240

Performance indicators

ITEMS		ZMAP ZMBP	ZMAP-D ZMBP-D	Items				ZMAP ZMBP	ZMAP-D ZMBP-D
Basic error %	No locator	+ / - 5.0	+ / - 6.0	Always point deviation %	Qi Pass	No positioner	Starting Point	+ / - 5.0	+ / - 6.0
							End point	+ / - 2.5	+ / - 2.5
	With positioner	+ / - 1.0	+ / - 1.5			Tape positioner	Starting point	+ / - 1.0	+ / - 1.5
							End point	+ / - 1.0	+ / - 1.5
Return difference %	No positioner	3.0	5.0		Air On	No positioner	Starting Point	+ / - 2.5	+ / - 2.5
							End point	+ / - 5.0	+ / - 6.0
	With positioner	1.0	1.5			With Positioner	Starting point	+ / - 1.0	+ / - 1.5
							End point	+ / - 1.0	+ / - 1.5
Dead zone %	No locator	3.0	4.0	Leakage allowed 1/h				1 x 104 x valve rated capacity
	With positioner	0.4	0.6
Deviation of rated stroke %		+ / - 2.5	+ / - 2.5

Allowable pressure difference

Air source pressure KPa		Air close valve					Air open valve
Air source pressure KPa		120		140	180		0
Spring range KPa		20 ~ 100					20 ~ 100	40 ~ 200	80 ~ 240
Nominal diameter mm	Valve seat diameter mm	Allowable pressure difference (the maximum allowable value of △P in the condition of P2=0 at the outlet end of the valve stem)
G3/4″	3	6.4	6.4			6.4	6.4	6.4	6.4
	4
	5
	6
	7
	8
20	10	5.3	6.4			6.4	5.3	6.4	6.4
	12	3.7	6.4				3.7	6.4
	15	2.4	5.5				2.4	5.5
	20	1.3	3.1				1.3	3.1
25	26	0.8	1.6			3.2	0.8	1.6	3.2
32	32	0.55	1.1			2.2	0.55	1.1	2.2
40	40	0.5	1.0			2.0	0.5	1.0	2.0
50	50	0.3	0.6			1.2	0.3	0.6	1.2
65	66	0.3	0.6			1.2	0.3	0.6	1.2
80	80	0.2	0.4			0.8	0.2	0.4	0.8
100	100	0.12	0.24			0.48	0.12	0.24	0.48
125	125	0.12	0.24			0.48	0.12	0.24	0.48
150	150	0.08	0.16			0.32	0.08	0.16	0.32
200	200	0.05	0.1			0.2	0.05	0.1	0.2

Accessories available

Positioners, handwheel mechanisms, air filter pressure reducers, etc.

Overall dimensions

ZMAP type pneumatic normal temperature single-seat regulating valve dimensions mm

Nominal diameter DN	D	L			H				H1
		PN MPa			Room temperature type		Medium temperature type
		1.6	4.0	6.4	Qi Pass	Qi Off	Qi Off	Air to open
G3/4″	230			75	440	480	517	557	30
20	280		180	190	580	617	730	767	50
25	280	185	190	200	685		835		115
32	280	200	210	210	696		847		120
40	325	220	320	235	754		905		130
50	325	250	255	265	784		935		145
65	410	275	285	295	1056		1219		180
80		300	310	320	1076		1239		195
100		350	355	370	1085		1248		200
125	495	410	425	440	1286		1498		245
150		450	460	475	1306		1518		255
200		550	560	570	1381		1593		275

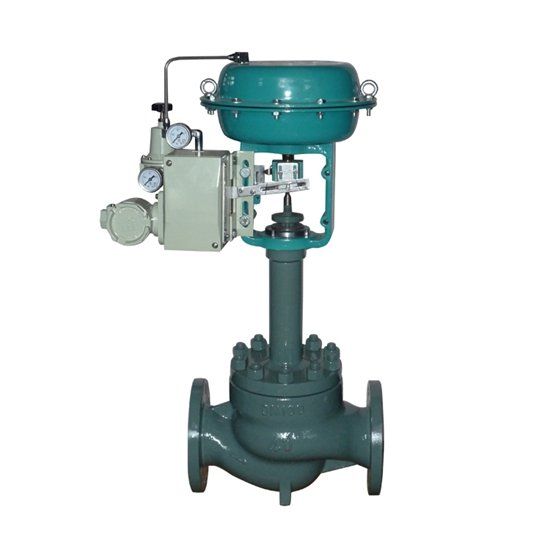

ZMAP pneumatic low-temperature single-seat regulating valve dimensions

Nominal diameter DN		G3/4″	20	25	32	40	50	65	80	100	125	150	200
D		230		280		325		410			495
L	PN6		180	185	200	220	250	275	300	350	410	450	550
	PN40		180	190	210	230	255	285	310	355	425	460	560
	PN64	75	190	200	210	235	265	295	320	370	440	475	570
H	- 250 ºC	1375	1476	1516	1528	1585	1615	1928	1942	1940	2191	2201	2231
		11415	1511
	- 200 ºC	1175	1276	1316	1328	1385	1415	1728	1742	1740	1991	2001	2031
		1215	1311
	- 100 ºC	975	1076	1116	1128	1185	1215	1528	1542	1540	1791	1801	1831
		1015	1111
H1		30	50	97	103	117	132	161	171	175	225	235	270
Dn		135	275	290	310	340	370	410	440	500	590	640	760
H2	- 250 ºC	900						1000			1100
	- 200 ºC	seven hundred						800			900
	- 100 ºC	500						600			seven hundred
