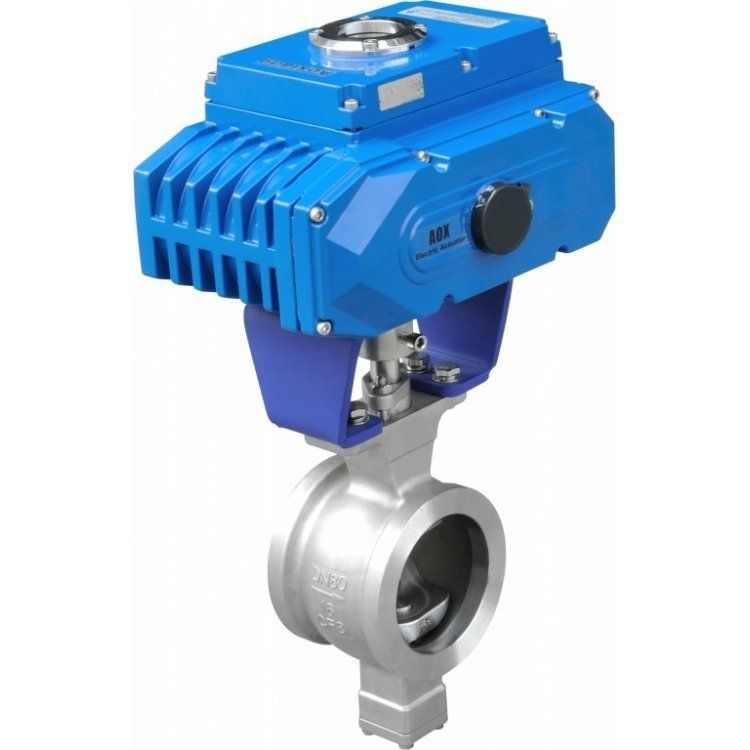

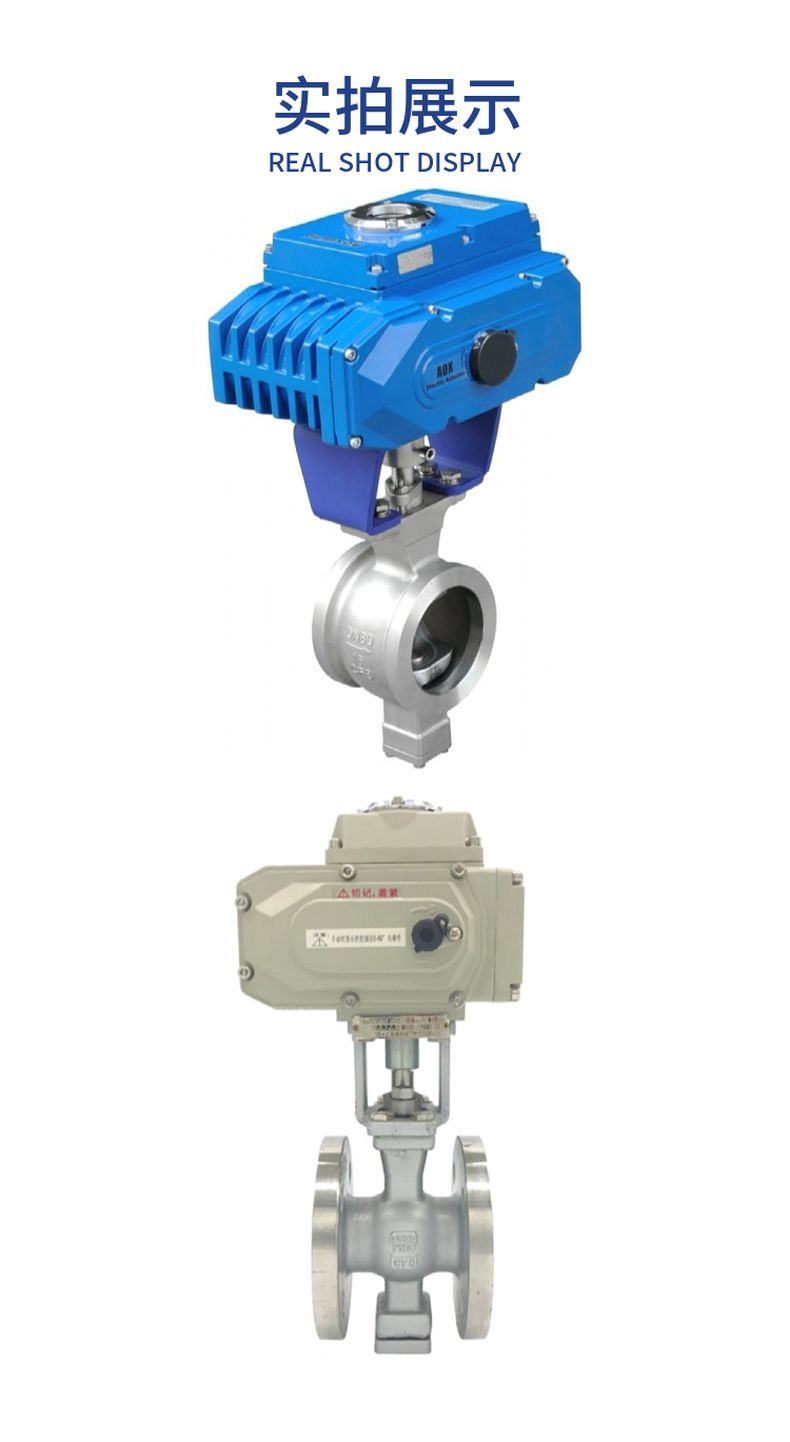

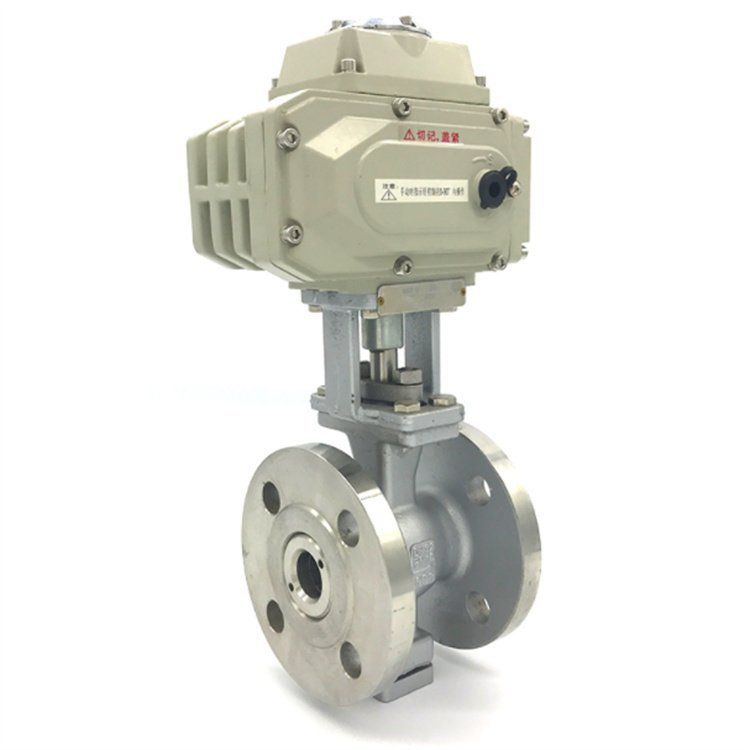

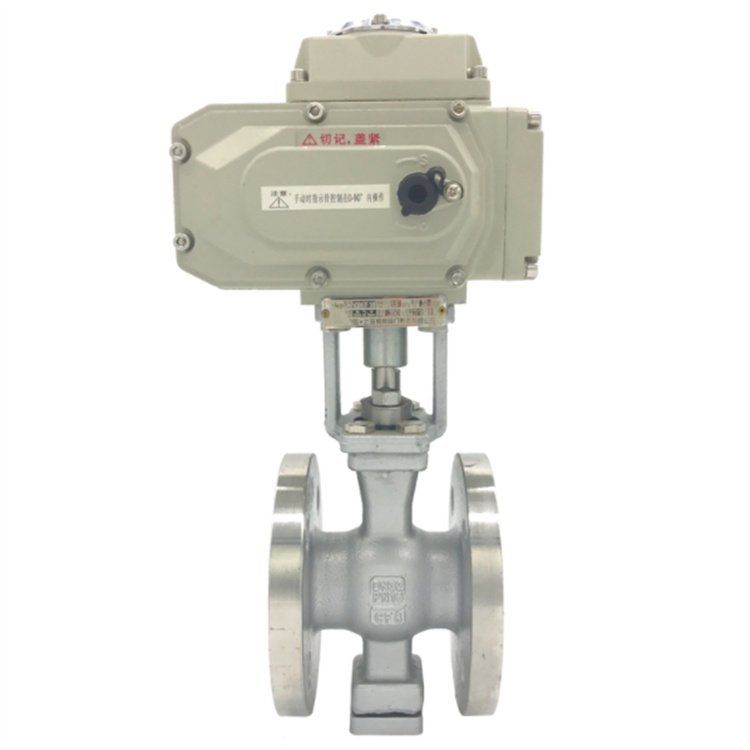

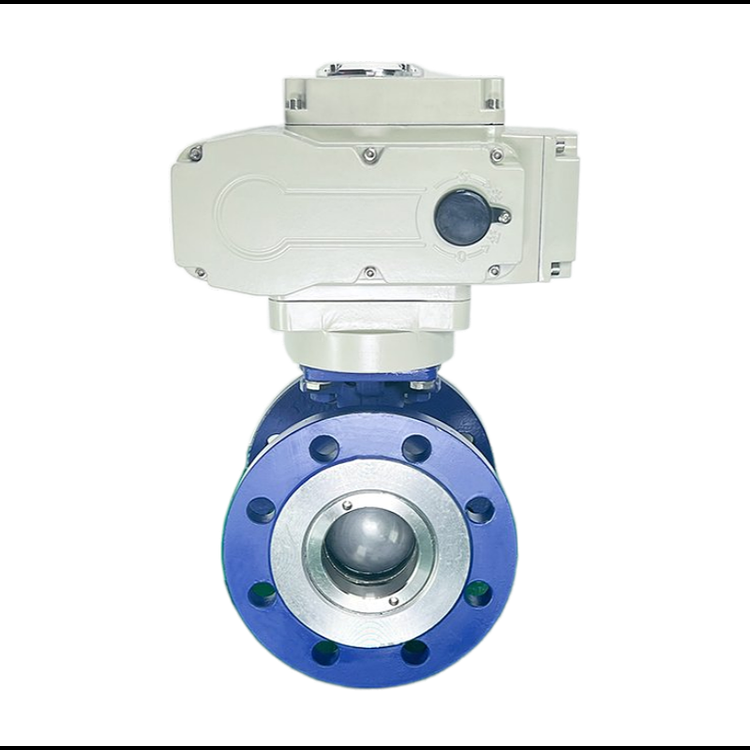

ZDRV electric V-type regulating valve

DRV electric V-type regulating ball valve is a rotary ball valve with a metal core seat or a metal polytetrafluoroethylene seal. It combines the best control characteristics of the ball valve and butterfly valve into one, which can be used as a control valve and a shut-off valve. Its main features are:
Details

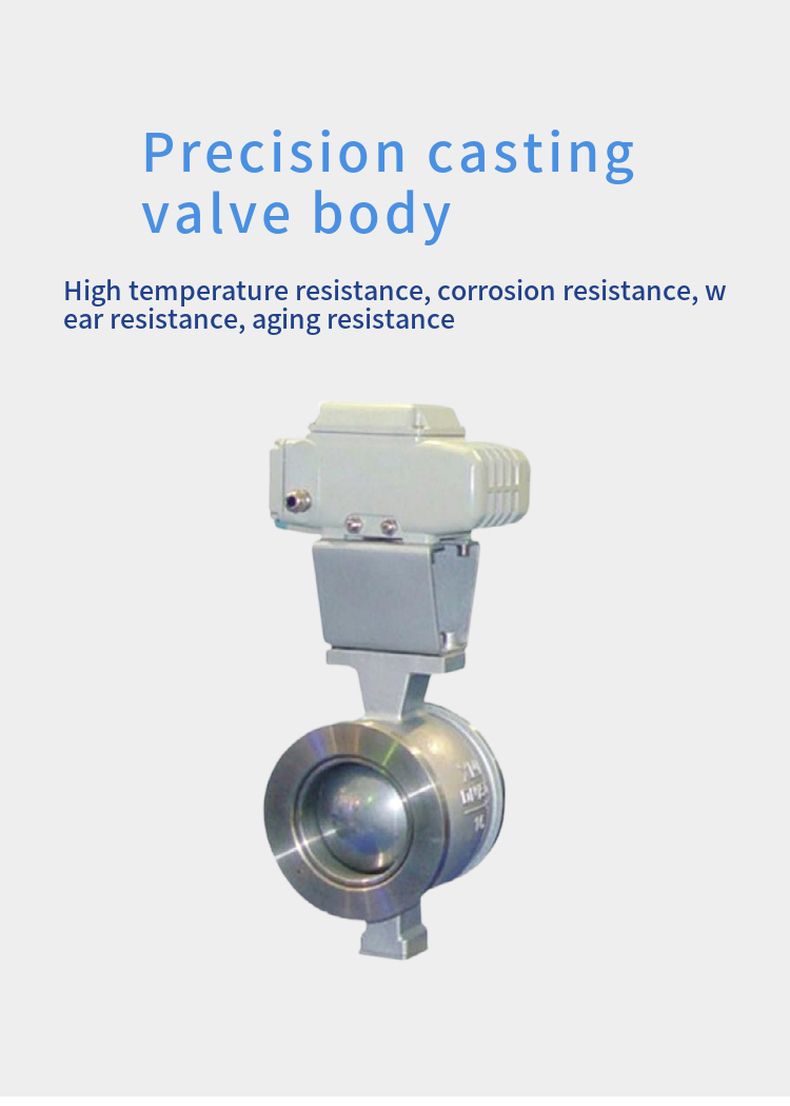

(1) Integral body without any fittings, so it is not affected by pipe or bolt stress, and because the valve body does not have any fittings, the pressure housing is not affected by pressure "sudden change";
(2) With a V-shaped body, even in the case of small flow or high viscosity medium, it can also ensure the accuracy of control within the entire range;

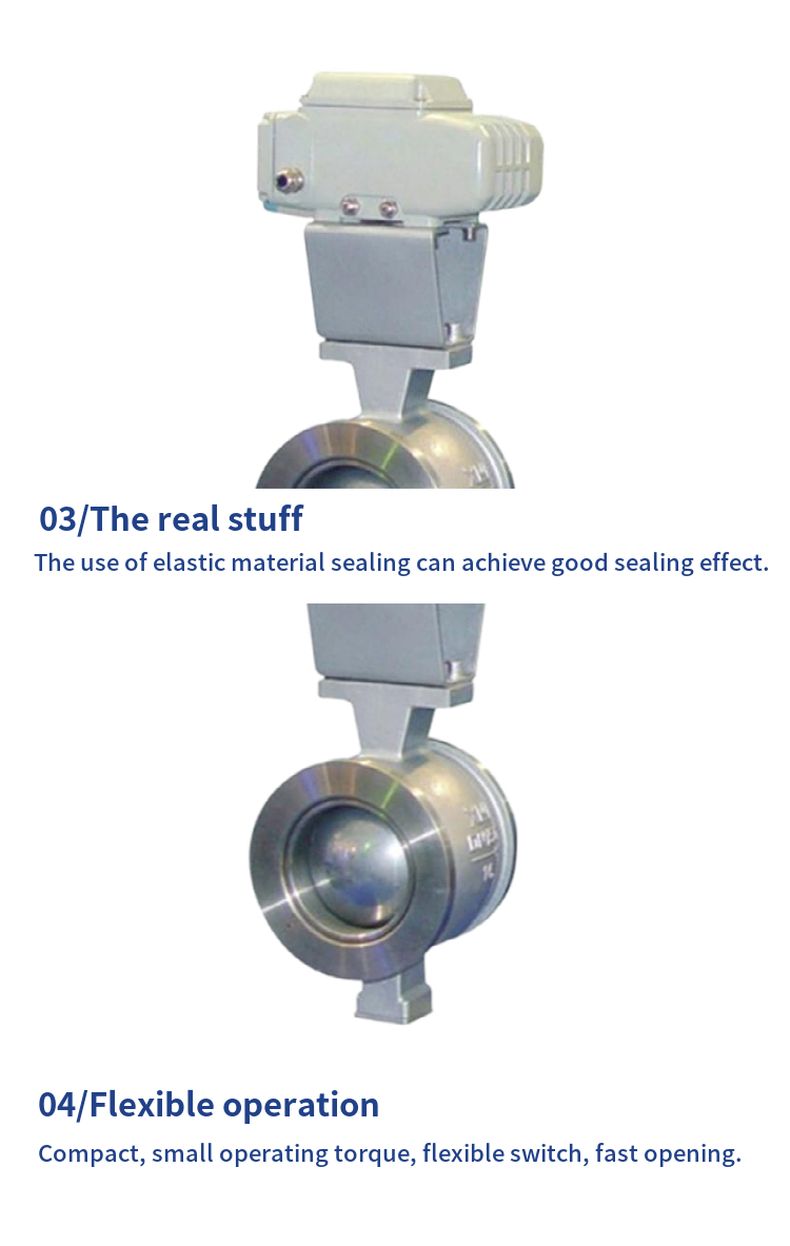

(3) The leak-proof and durable valve seat is lined with PTFE cup or O-type sealing ring with stainless steel inner core at its outer diameter. The valve seat is made of tungsten cobalt carbide with a large section. The structure of the valve seat is further enhanced by an alloy corrugated spring;
(4) when the valve is closed, the wedge shear effect between the V-notch and the valve seat is generated, and it has the function of self-cleaning and can prevent the ball core from sticking, especially suitable for the pipeline scale freezing or containing fiber and particles solid occasions.
Suitable for high viscosity, suspension, pulp and other unclean, fibrous media occasions. The direct connection with the actuator has the advantages of compact structure, small size, light weight, small resistance, stable and reliable action, etc. According to user requirements, the actuator is equipped with UNIC, PSQ, HQ, DHL and other models of electronic electric actuator or GTX, AL and so on
Electric V-type ball valve technical parameters

Nominal diameter DN(mm)		25 to 400
Nominal pressure PN(MPa)		1.6 to 6.4
Nominal pressure Ps(MPa)	Strength test	2.4 to 9.6
	Seal test	1.76 to 7.0
Material \ code		C	P	R
Main parts	Valve body	WCB	ZG1Cr18Ni9Ti	ZGOCr18Ni12Mo2Ti
	Cue	2Cr13	ZG1Cr18Ni9Ti	ZG0Cr18Ni12Mo2Ti
	Valve stem	2Cr13	1Cr18Ni9Ti	0Cr18Ni12Mo2Ti
	Seal ring	Tef-lon, stainless steel, carbide
	filler	Tef-lon, flexible graphite
Applicable conditions	Suitable medium	Water, steam, oil products	Nitric acids	Acetic acids
	Applicable temperature	-28 ~ 400ºC	-28 to 500ºC
Actuators	Type number	CH, 3410R, UNIC, PSQ, HQ, DHL series electronic electric actuator
Connection form		Sandwich type, flange type, flange according to JB79-59 standard

Electric V-type ball valve performance

Basic error	Return difference	Dead zone	Input signal	Output signal
≤±2% of full stroke	≤±2% of full stroke	≤0.8% for full stroke	4 to 20mADC	4 ~ 20mADC

Nominal diameter D (mm)	25	32	40	50	65	80	100	125	150	200	250	300	350	400
Rated flow coefficient Cv	32	43	78	90	160	250	360	610	1120	1850	2950	3700	7195	11466
Nominal pressure PN (MPa)	1.6, 2.5, 4.0, 6.4
Flow Characteristics	Approximate equal percentage (see typical graph), straight line characteristics
Valve plate Angle (degree)	0° ~ to 90° (adjustable)
Allowable leak rating	Soft seal: zero leakage Hard seal: ≤ rated Cv x 0.001%				Soft seal: VI micro bubble level, metal seal: ≤ rated CV×0.065%
Operating time (S/90 degrees)	8.5 to 30				36 ~ 60
Adjustable ratio	250:1						300:1

Electric V-ball valve dimensions

Nominal diameter DN(mm)	Foot size (mm)
	Butt clamp	Flange type					L	H1	H2
	D	D	D1	D2	q	Z - Φ d	L	H1	H2
25	64	110	85	65	14	4-14	102	277	60
40	82	145	110	85	16	4 to 18	114	305	75
50	100	160	125	110	16	4-18	124	364	95
65	120	180	145	120	18	4 to 18	145	379	105
80	131	195	160	135	20	8 to 18	165	389	120
100	158	215	180	155	20	8 to 18	194	402	140
125	180	245	210	185	22	8 to 18	213	426	165
150	216	280	240	210	24	8-23	229	453	185
200	268	335	295	265	26	12-23	243	473	205
250	326	405	355	320	30	12-25	297	540	240
300	460	460	410	3750	30	12-25	338	590	290
350	470	-	-	-	-		-
400	525	-	-	-	-		-
