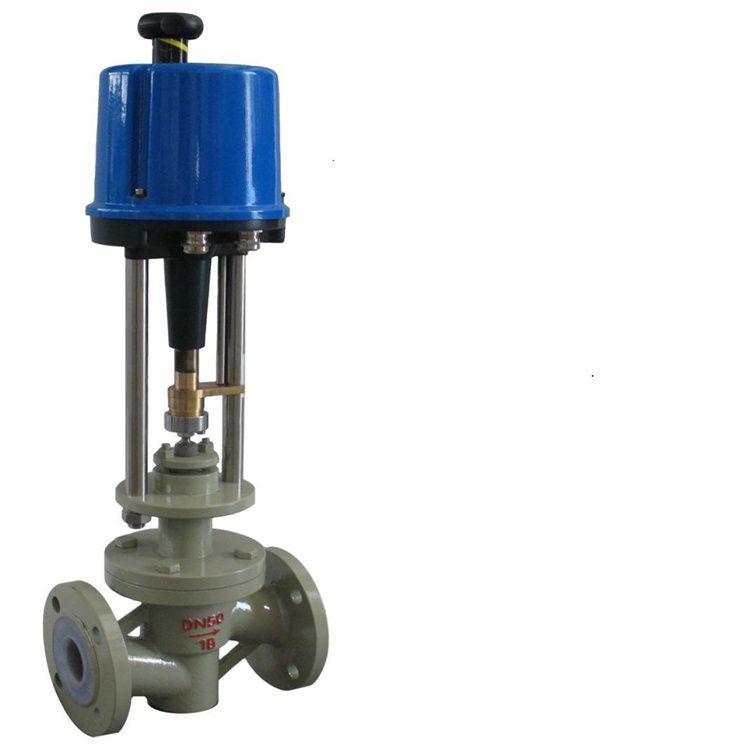

ZDLPF46 electric lined fluorine regulating valve

Details:
ZDLPF46 electric lined fluorine regulating valve is mainly composed of electric actuator and regulating valve body two parts. The electric actuator and other electric regulating valve are the same, which receives the analog signal such as 4-20ma from the controller to control the opening of the valve, so as to achieve the purpose of adjusting the flow rate and pressure of the pipeline medium. *** Electric lined fluorine regulating valve and other ordinary electric regulating valve is the difference between the valve body, some pipelines such as sulfuric acid, aqua regia and other corrosive media, because the corrosion is too strong, ordinary metal regulating valve can not be used in this condition. And the valve body inner wall and valve components in contact with the fluid of the electric fluorine lined valve are using high pressure injection molding process, lined with the best, aging resistant polyperfluorinated ethylene propylene (F46), and the use of polytetrafluoroethylene bellows seal. The metal valve can not be used in the condition of strong corrosive media. The most suitable for the pipeline with strong corrosive medium.
ZDLPF46 electric lined fluorine regulating valve valve

Electric lined fluorine regulator valve inner valve assembly

ZDLPF46 electric lined fluorine regulating valve actuator
