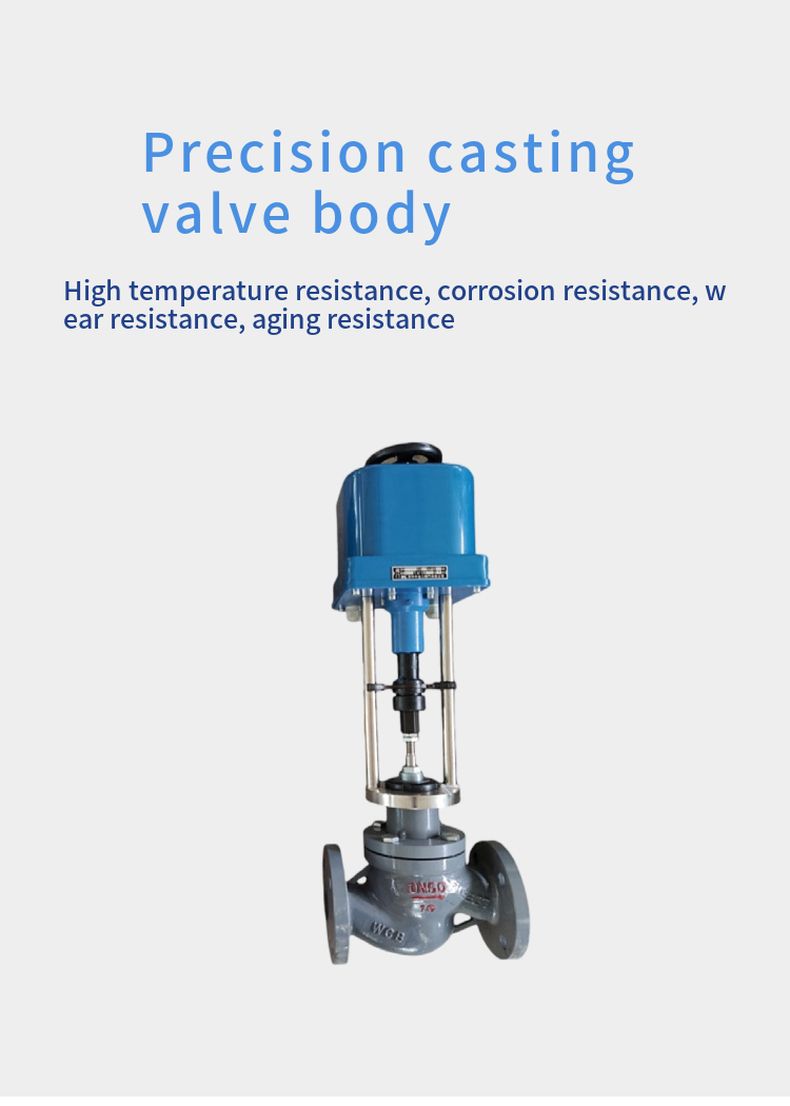

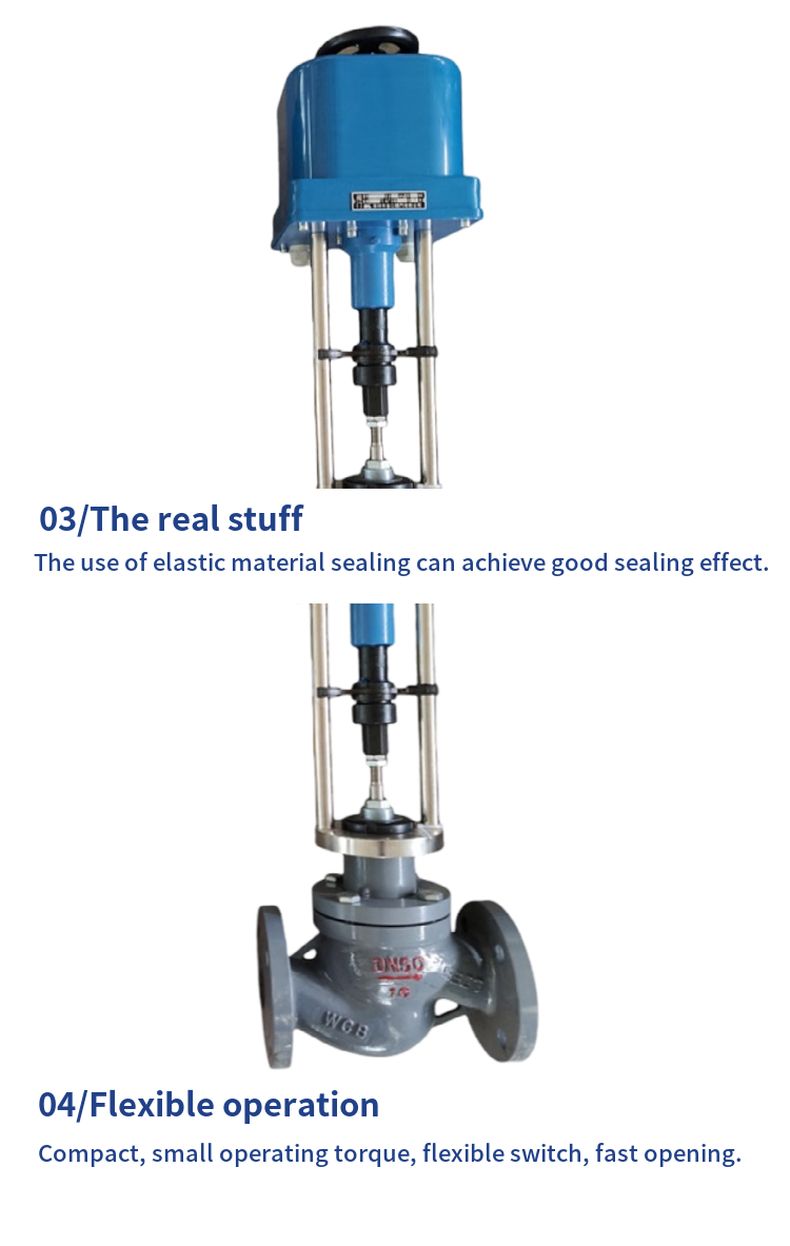

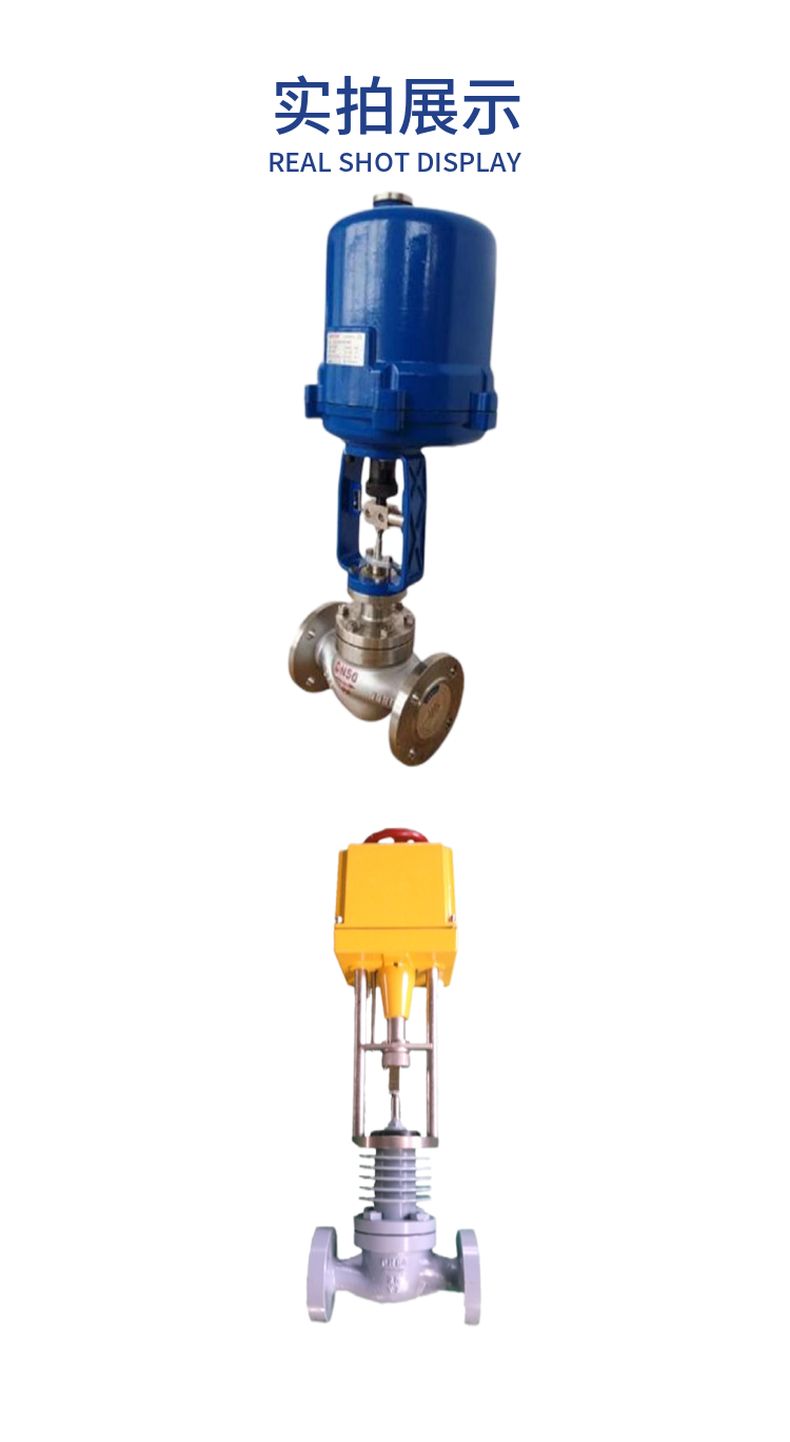

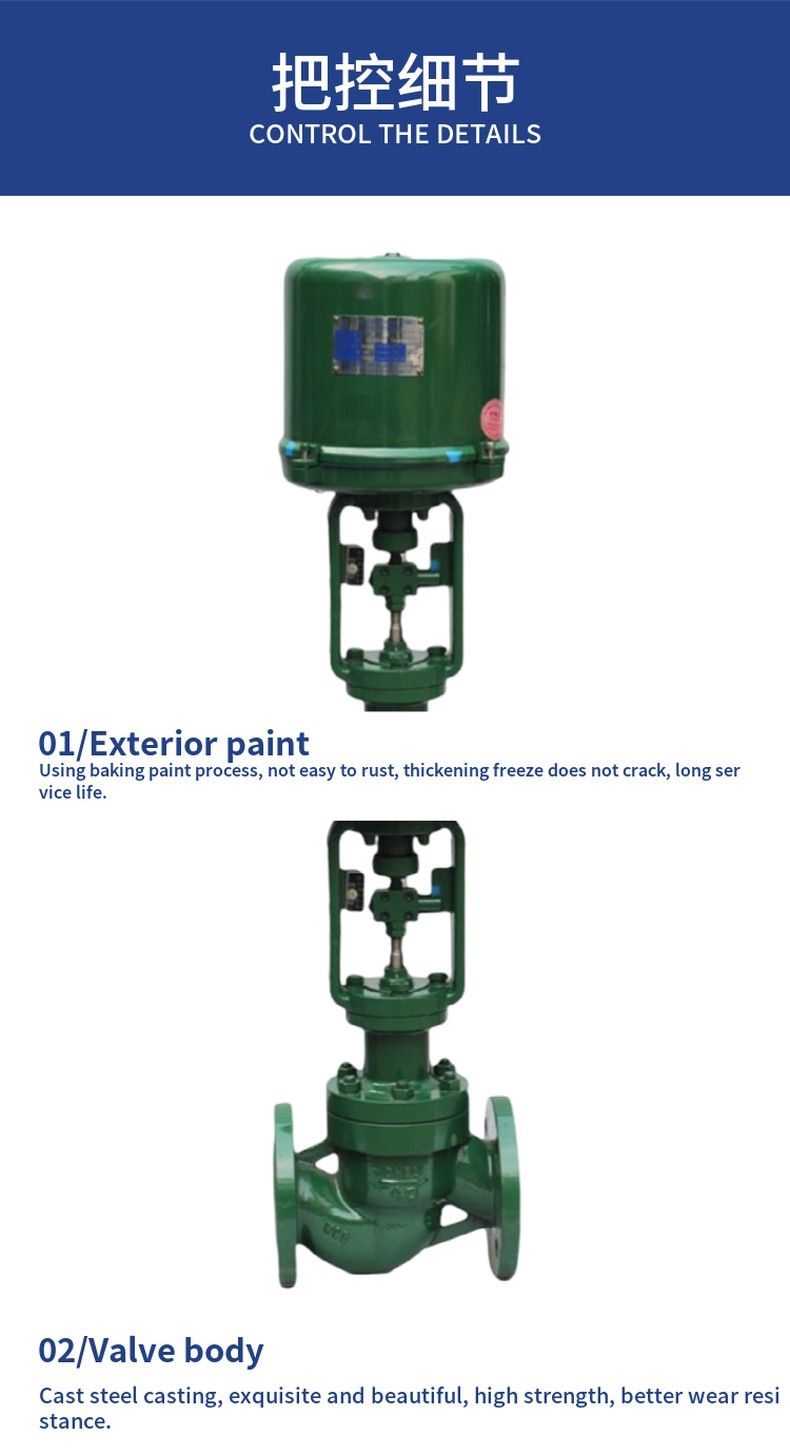

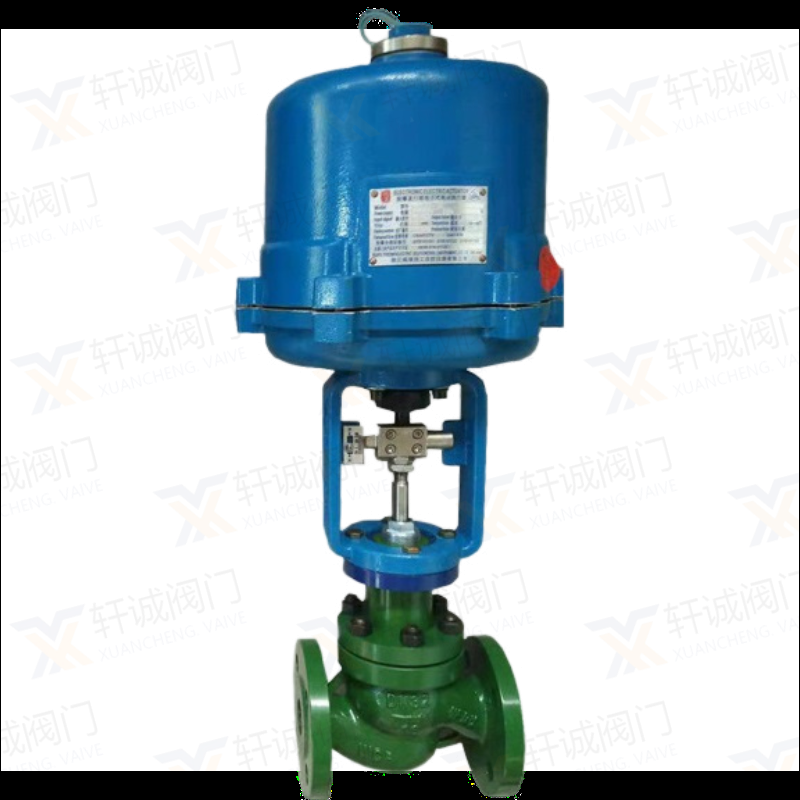

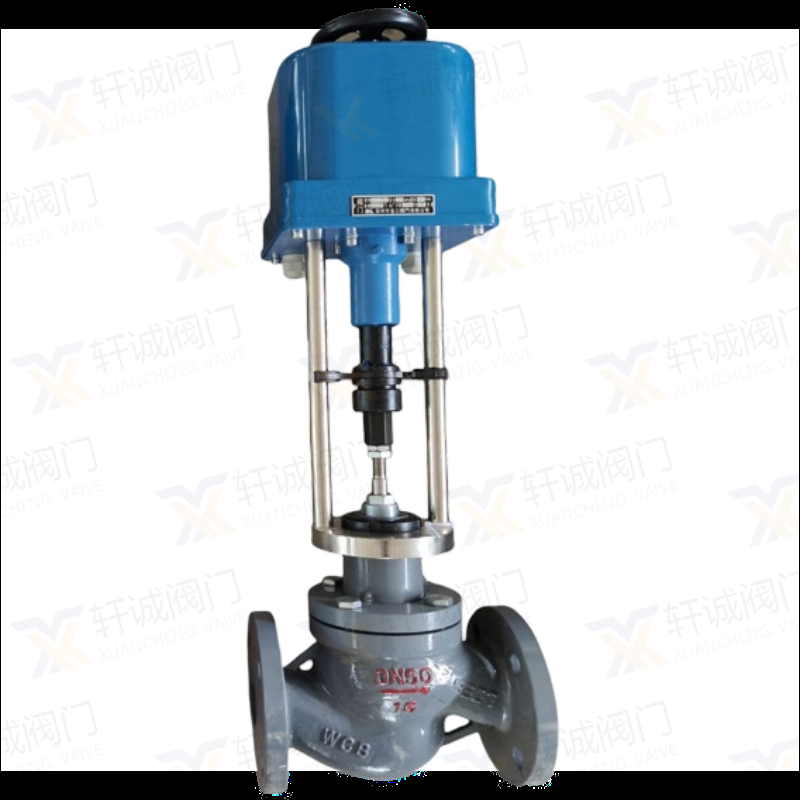

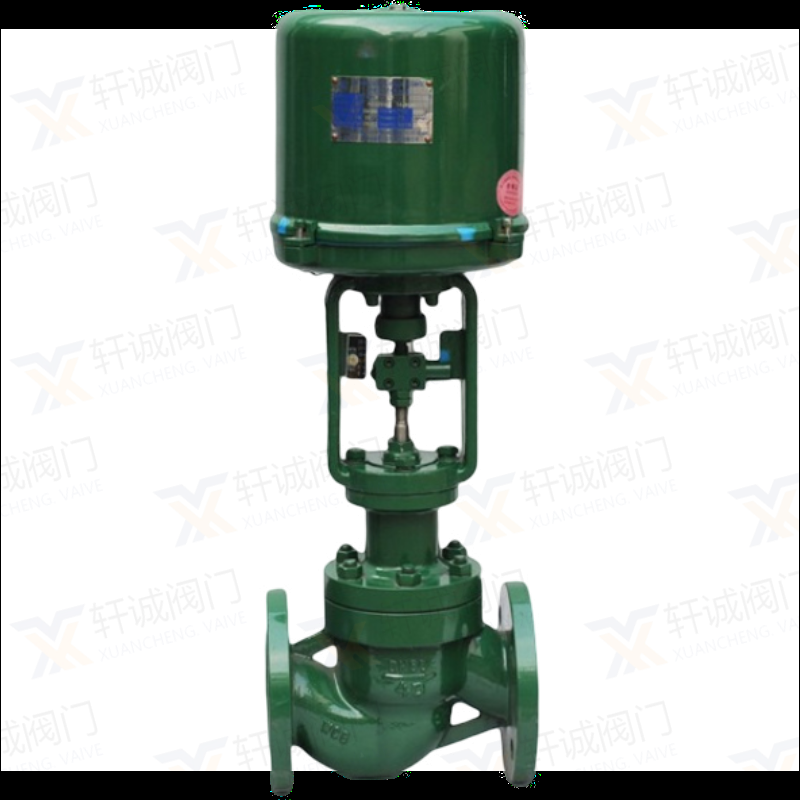

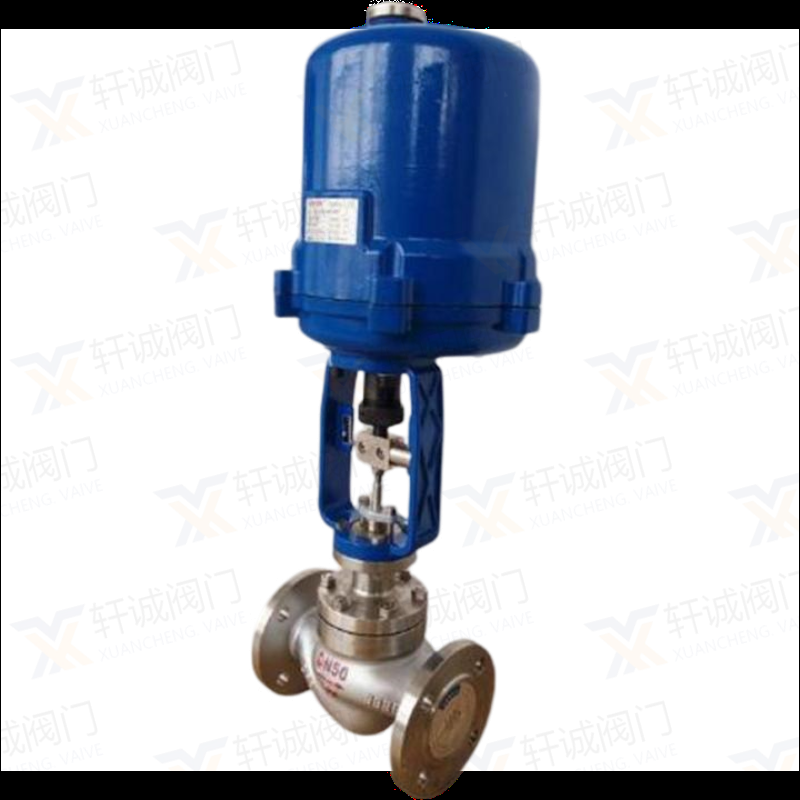

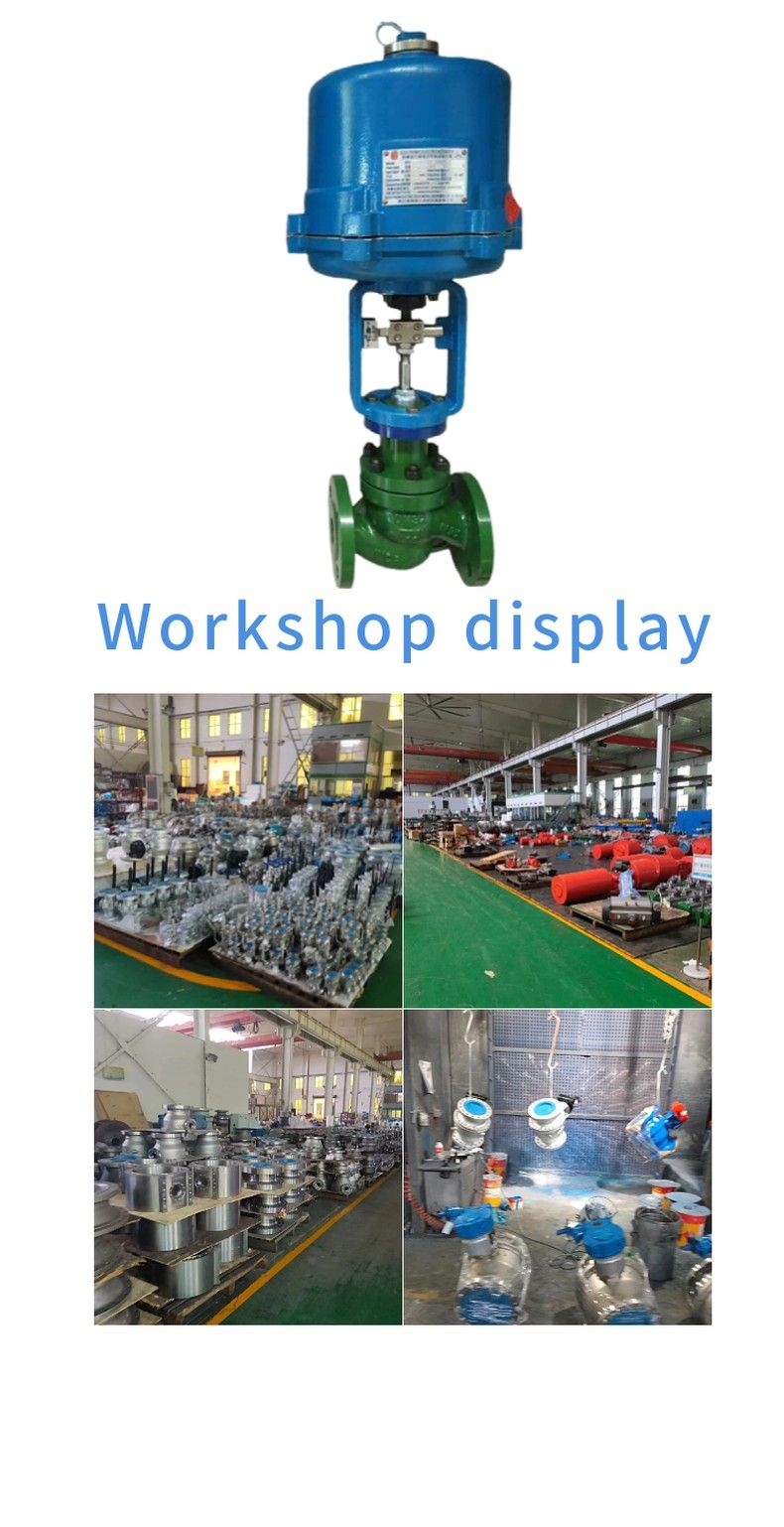

ZDLP electric single-seat regulating valve

Features and applications

ZDLP type electronic electric single-seat regulating valve is composed of 3610L series electronic electric actuator and single-seat regulating mechanism produced jointly with KOSO company of Japan. There is a servo system in the electric actuator, no need to configure a servo amplifier, there is an input signal and power supply to control the operation, the connection is simple, the valve spool of the regulating mechanism is guided by the top, which is suitable for the occasion of strict leakage requirements, low pressure difference before and after the valve and a certain viscosity and containing fibrous media. [1]

Model Specifications

Category	Room temperature type	Medium temperature type	Low temperature type
Model number		ZDLP-(40B/64K)G
Specifications	DN3/4" ~ 200

Technical parameters

Main technical parameters of regulating mechanism

Nominal pass mm			G3/4"						20				25	32	40	50	65	80	100	125	150	200
Valve seat diameter mm			3	4	5	6	7	8	10	12	15	20	26	32	40	50	65	80	100	125	150	200
Rated flow factor Kv			0.08	0.12	0.02	0.32	0.5	0.8	1.2	2.0	3.2	5.0	8.0	12	20	32	50	80	120	200	280	450
Nominal pressure MPa			1.6; 4.0; 6.4(room temperature) 4.0; 6.4 (medium temperature) 1.6; 4.0; 6.4 (low temperature)
Row length mm			10										16		25		40			60
Action speed mm/s			4.2										2.1		3.5		1.7			3.4
Flow characteristics			Straight line						Straight line, etc. percentage
Medium temperature °C			-20 ~ 200 (room temperature); -40 to 450 (medium temperature); -250 to -60 (low temperature)
Flange size, type			Cast iron flange according to GB/T17241.6-1998; Cast steel flange according to JB/T79.2-94 concave (normal, medium temperature) or JB/T79.3-94 mortise groove type (low temperature)
Body material	The male According to pressure force MPa	0.6											Low temperature: ZG230-450; ZG1Cr18Ni9Ti
		1.6											Room temperature: HT200
		4.0							Room temperature: ZG230-450; ZG1Cr18Ni9Ti
									Medium temperature :ZG230-450; ZG1Cr18Ni9Ti
									Low temperature: ZG1Cr18Ni9Ti
		6.4	Room temperature: ZG230-450; ZG1Cr18Ni9Ti
			Medium temperature :ZG230-450; ZG1Cr18Ni9Ti
			Low temperature: ZG1Cr18Ni9Ti
Spool material			1Cr18Ni9
Upper bonnet form			Ordinary type (room temperature type), hot plate type (medium temperature type), long neck type (low temperature type)
Equipped with electronic electric actuator model			361LSA-08 361LXA-08										361LSA-20		361SLB-30		361LSB-50			361LSC-65
													361LXA-20		361LXB-30		361LXB-50			361LXC-99

Note: 1... Can provide users with ANSI, JPI, JIS, DIN and other foreign flange standard products, flange distance can be determined according to user needs.
2. According to the site conditions, explosion-proof actuator can be equipped.
Main technical parameters of the actuator

Rated output force N	Rated output force N	Speed mm/s	Technical parameter
361LSA-08 361LXA-08	800	4.2	Power Supply: 220+10%V a.c. 50Hz Input signal: 1-5V d.c. 4-20mA d.c. (Shielded wire for signal wires) Open signal: 4-20mAd.c. Protection level: equivalent IP55 Explosion-proof mark: Exd II BT4
361LSA-20 361LXA-20	2000	2.1
361LSB-30 361LXB-30	3000	3.5
361LSB-50 361LXB-50	5000	1.7
361LSC-65	6500	3.4
361LSC-99	10000	2.0

Performance Metrics

item			Index values
Base error %			+ 2.5
Return difference %			2.0
Dead zone %			3.0
Always off-point Off %	Cable On	Starting point	+ 2.5
		End	+ 2.5
	Power off	Starting point	+ 2.5
		End	+ 2.5
Deviation of rated stroke %			+ 2.5
Leakage allowed 1/h			10X valve rated capacity

Allowable differential pressure

Nominal pass mm	G3/4"						20				25	32	40	50	65	80	100	125	150	200
Valve seat diameter mm	3	4	5	6	7	8	10	12	15	20	26	32	40	50	65	80	100	125	150	200
Allow differential pressure Mpa	6.4								4.3	2.2	3.7	2.2	2.1	1.42	1.4	0.91	0.55	0.47	0.33	0.17

Overall dimensions

ZDLP electric normal, medium temperature single-seat valve dimensions table mm

Nominal diameter	L			H1	H		D	Weight KG
	PN MPa				H			PN1.6 (Mpa)	PN4.0 6.4 (Mpa)
	1.6	4.0	6.4		Room temperature type	Medium temperature type		PN1.6 (Mpa)	Room temperature	lower-middle
G3/4"	-	75	75	30	497	534	225	-	12	14
20	-	180	190	50	637	747		-	25	28
25	185	190	200	115	671	813		24	28	31
32	200	210	210	120	682	833		26	29	32
40	220	230	235	130	739	890	225	36	45	49
50	250	255	265	145	769	920		39	49	53
65	275	285	295	180	971	1134		57	76	84
80	300	310	320	195	991	1154		72	95	105
100	350	355	370	200	1000	1163	310	85	109	120
125	410	425	440	245	1287	1499		150	175	190
150	450	460	475	255	1307	1519		187	231	251
200	550	560	570	295	1382	1594		242	365	395

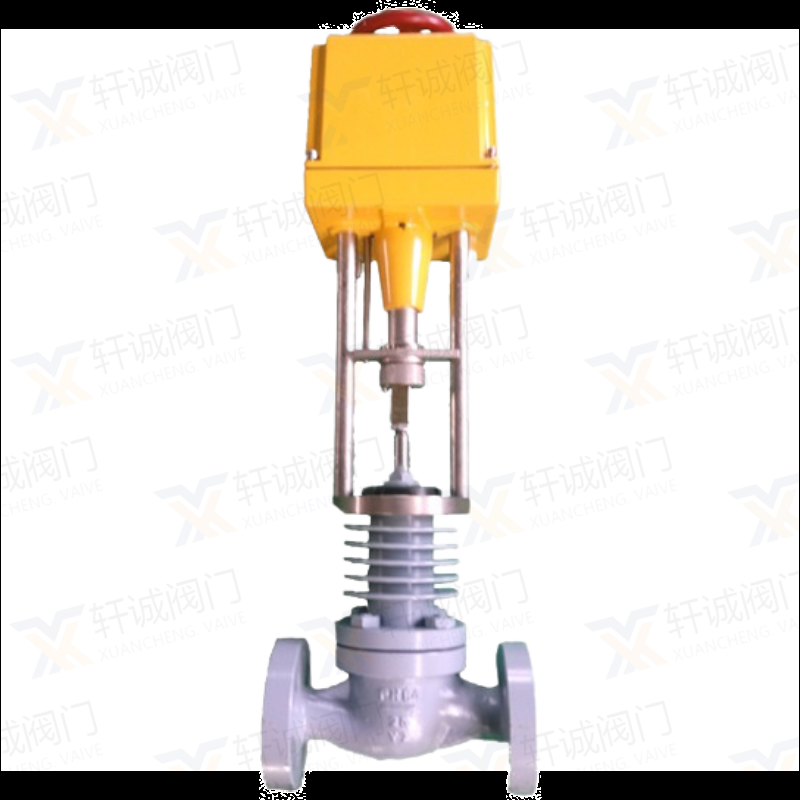

ZDLP electric low-temperature single-seat valve dimensions table mm

Nominal diameter	D	Dn	H1	-100°C		-200°C		-250°C		Weight KG
				H2	H	H2	H	H2	H


G3/ 4''	225	135	30	500	1032	seven hundred	1232	900	1432	22
20		250 (275).	50		1054.5		1254.5		1454.5	36
25		270 (290).	97		1102		1302		1502	40
32		300 (310).	103		1114		1314		1514	43
40	255	310 (340).	117	600	1170	800	1370	1000	1570	61
50		340 (370).	132		1200		1400		1600	66
65		380 (410).	161		1443		1643		1843	98
80		410 (440).	171		1457		1657		1857	110
100		470 (500).	175		1460		1655		1855	140
125	310	550 (590).	230	seven hundred	1792	900	1992	1100	2192	225
150		600 (640).	240		1802		2002		2202	291
150		600 (640).	240		1802		2002		2202	461
200		720 (760).	275		1832		2032		2232	461
