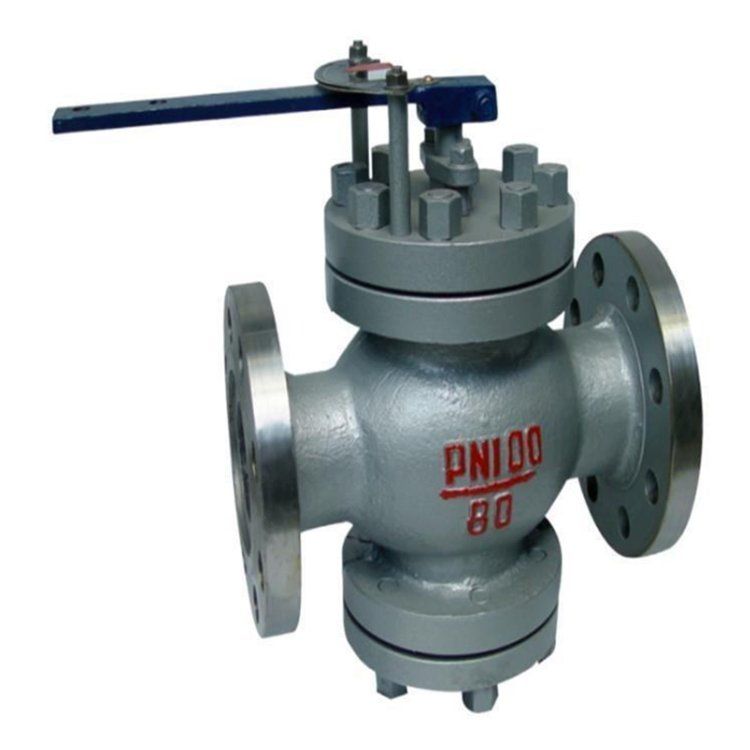

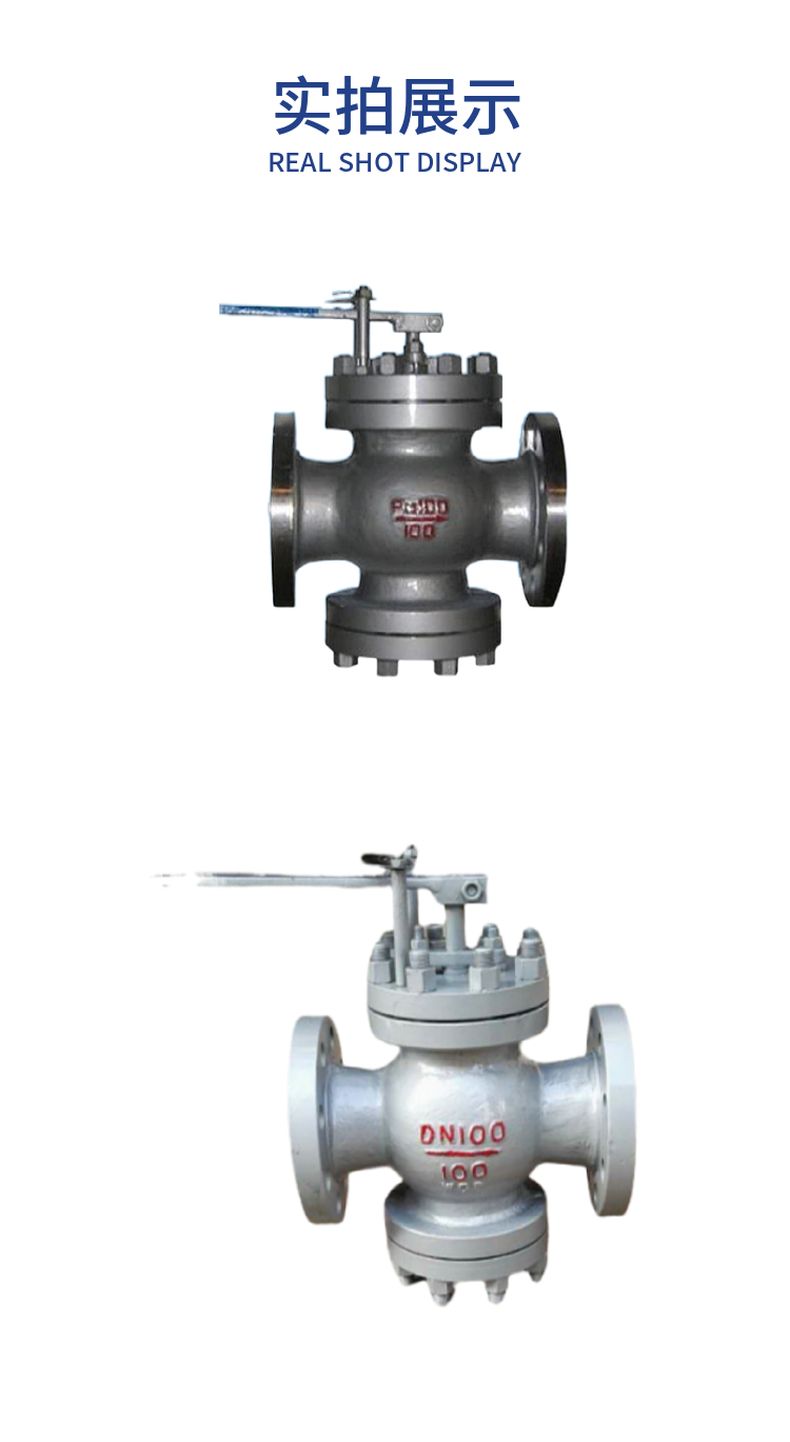

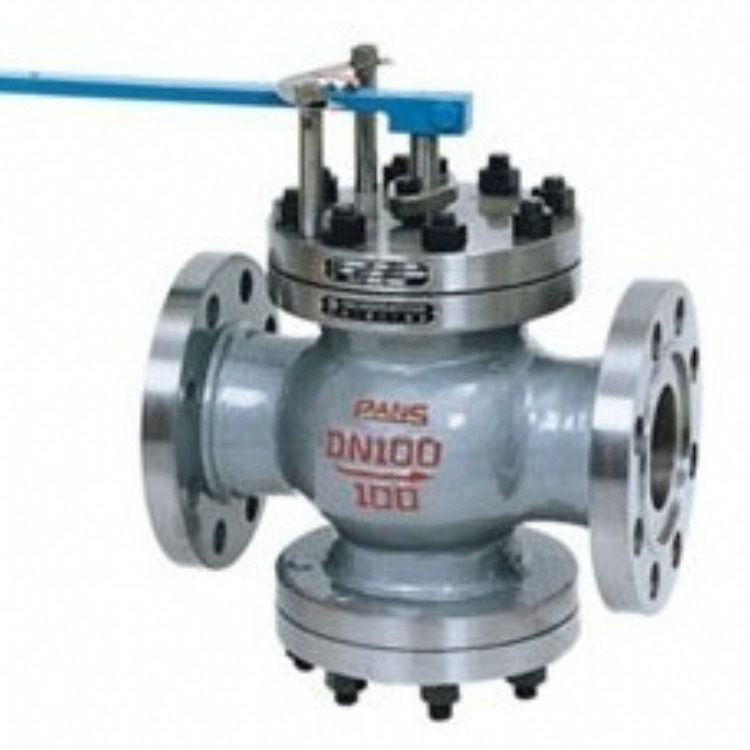

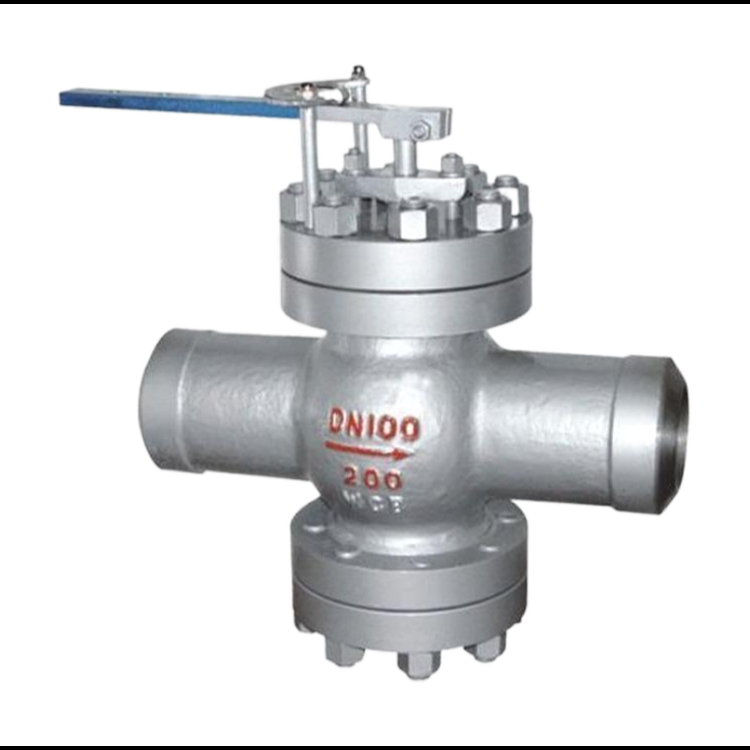

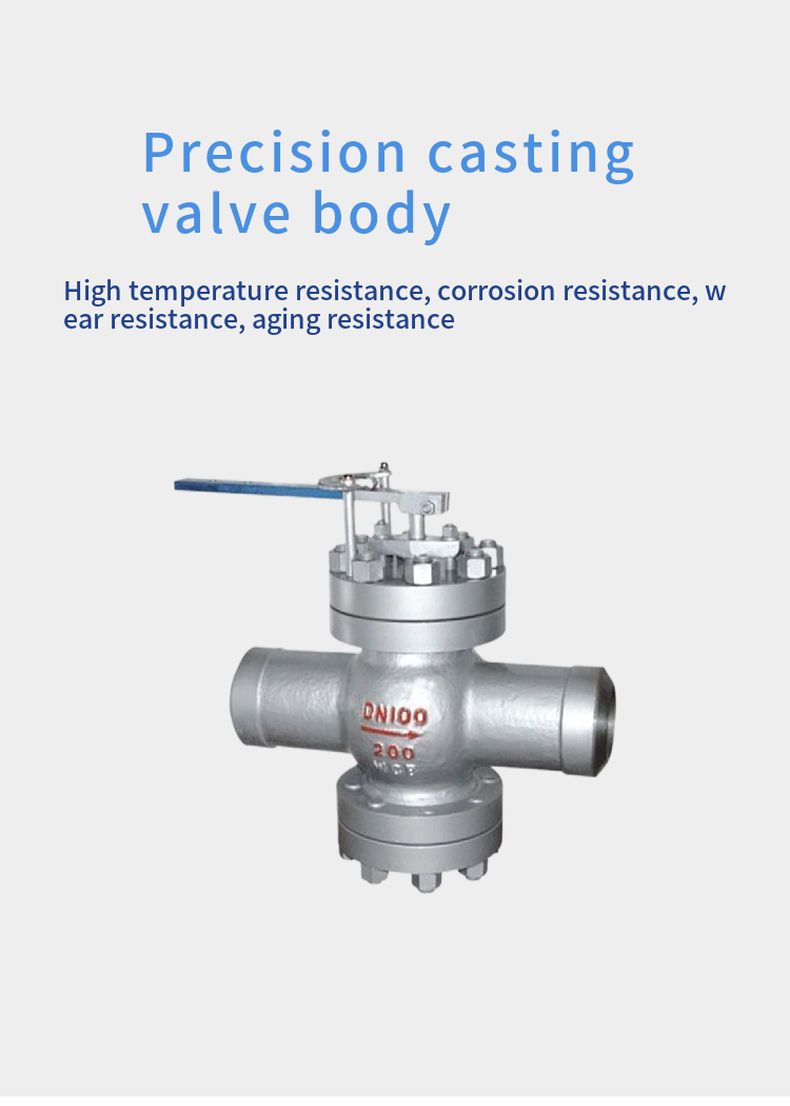

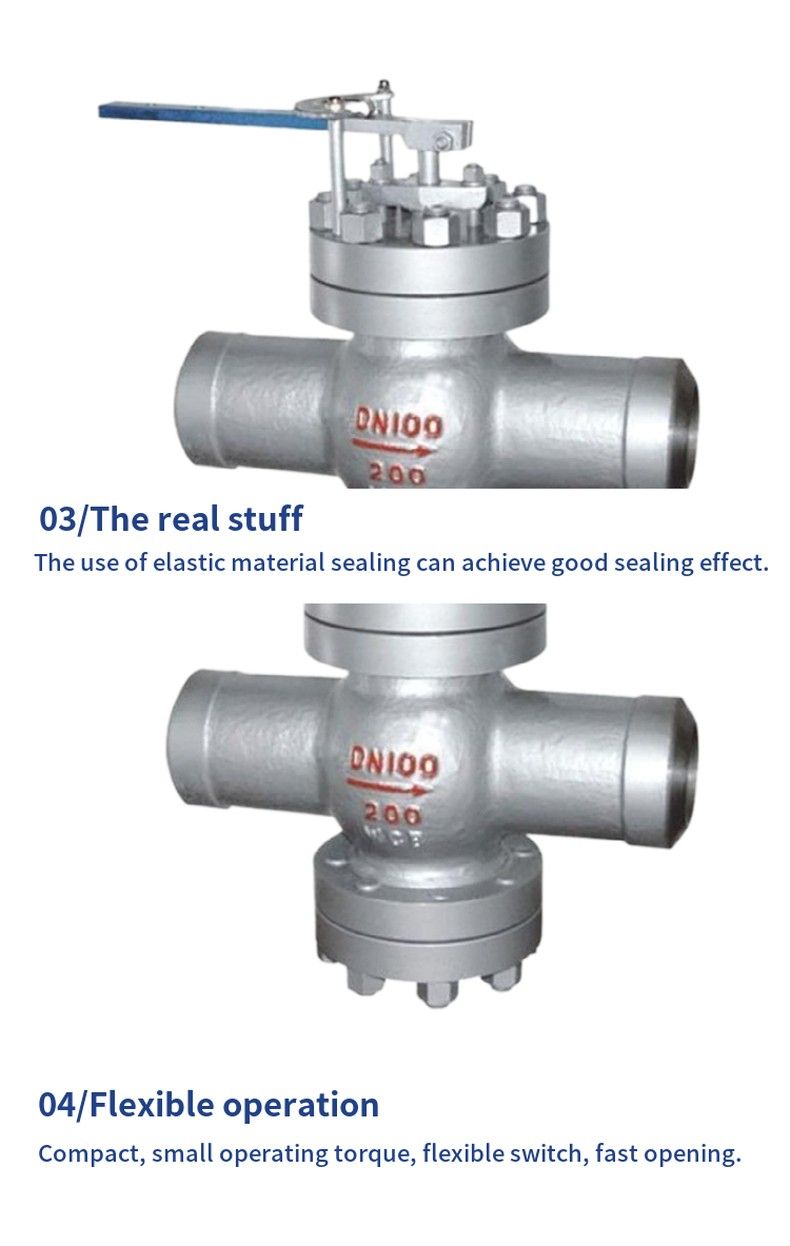

T40H water supply rotary control valve

T40H type water supply rotary control valve is mainly composed of valve body, seat, valve disc, valve stem, valve cover, indicator plate, etc. Its flow regulation is achieved by the relative rotation of the cylindrical disc and the valve seat to change the window area on the disc. It is suitable for medium and low pressure boiler feed water pipeline and high pressure heater drain pipe, and the applicable medium is water and steam ≤200ºC. It is by rotating the cylindrical valve disc to change the window area formed by it and the seat, so as to achieve the purpose of regulating the flow rate. The rotary opening and closing Angle of the water supply rotary regulating valve is 60°, which is indicated by the opening indicator plate above the regulating valve. Can be equipped with electric actuator, the implementation of remote automatic operation.
Two, T40H type water supply rotary control valve of the main parts material

Parts
Model number
Body
Valve seat
Flap
Drawbar
Stem
Fasteners
Stuffing
T40H-40
High quality carbon steel
Chrome stainless steel
Chrome stainless steel
Chrome stainless steel
Chrome stainless steel
Quality steel
Flexible graphite
T40H-100
Three, T40H type water supply rotary control valve structure diagram and dimensions
T40H-40 type water supply rotary regulating valve main shape and structure size (mm)

DN
Maximum circulation area /cm2
D1
D2
D3
f1
Z x Φ d
50
1.89
230
245
160
125
100
88
20
4 x Φ 18
65
2.72
290
250
180
145
120
110
22
8 x Φ 18
80
6.4
310
255
195
160
135
121
24
8 x Φ 18
100
8.4
350
280
230
190
160
150
26
4.5
8 x Φ 23
T40H-100 type water supply rotary regulating valve main shape and structure size (mm)

DN
Maximum circulation area /cm2
D1
D2
D3
f1
Z x Φ d
50
1.27
300
250
195
145
115
88
28
4 x Φ 25
80
5.5
380
255
230
180
150
121
34
8 x Φ 25
100
15
400
288
265
210
175
150
38
4.5
8 x Φ 30
150
19
450
340
350
290
250
204
46
4.5
12 x Φ 34
200
55
710
455
430
360
315
260
54
4.5
12 x Φ 40
