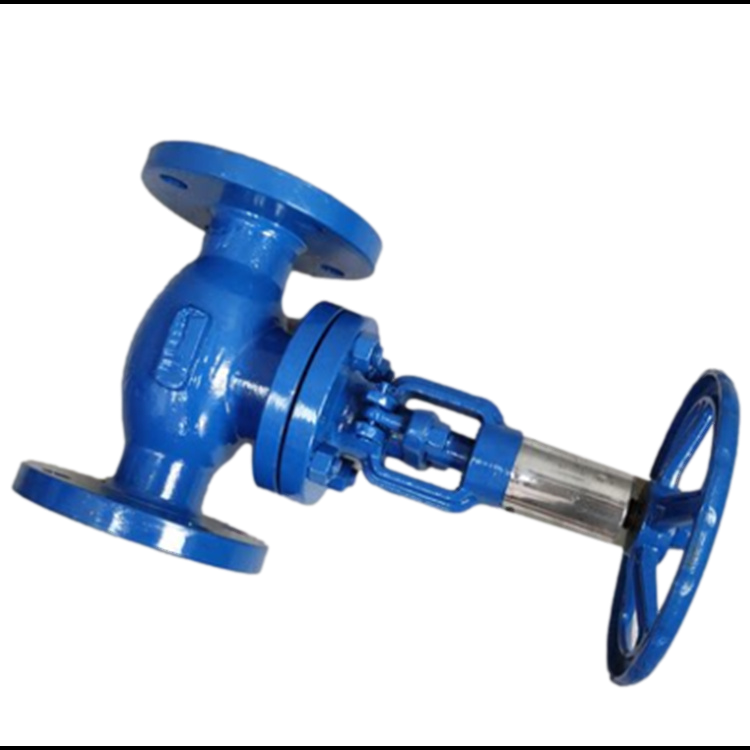

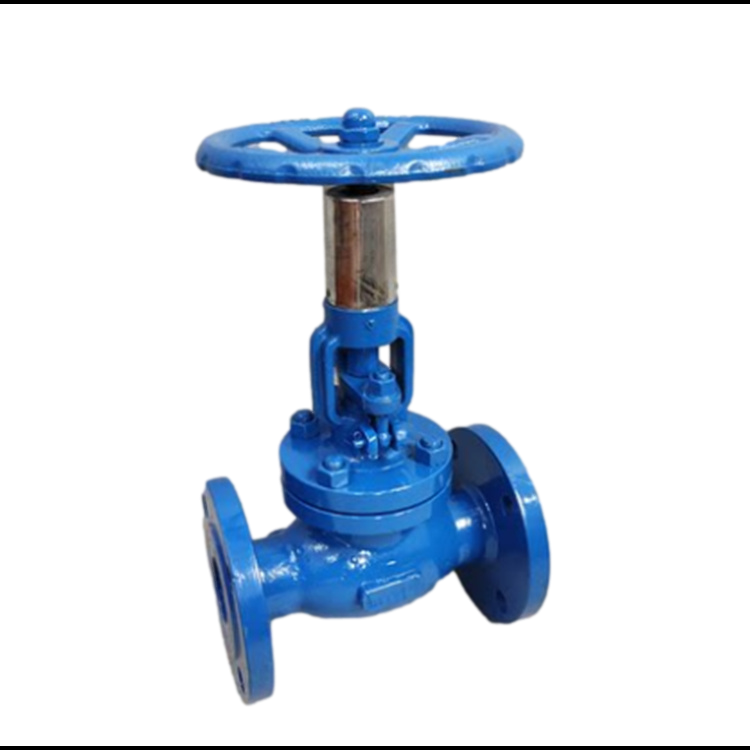

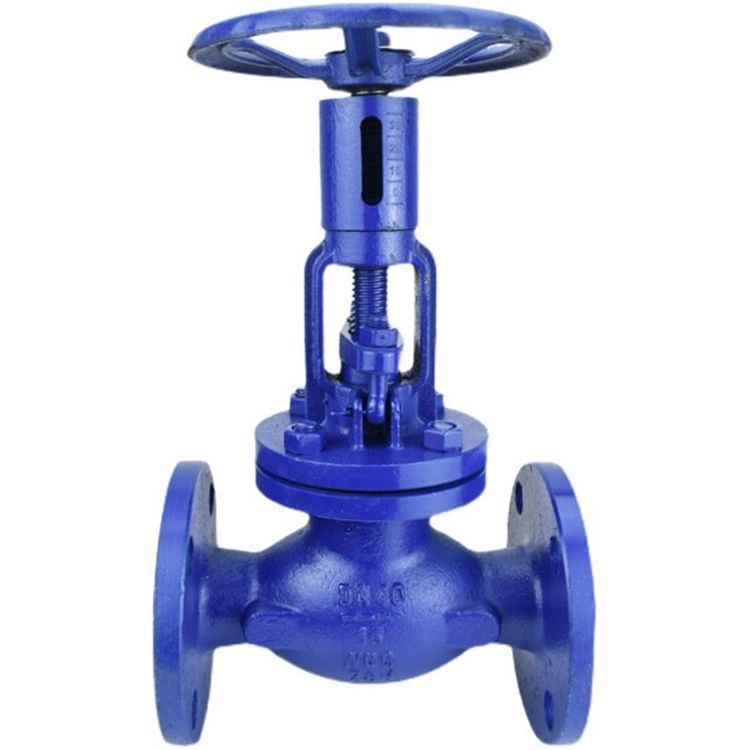

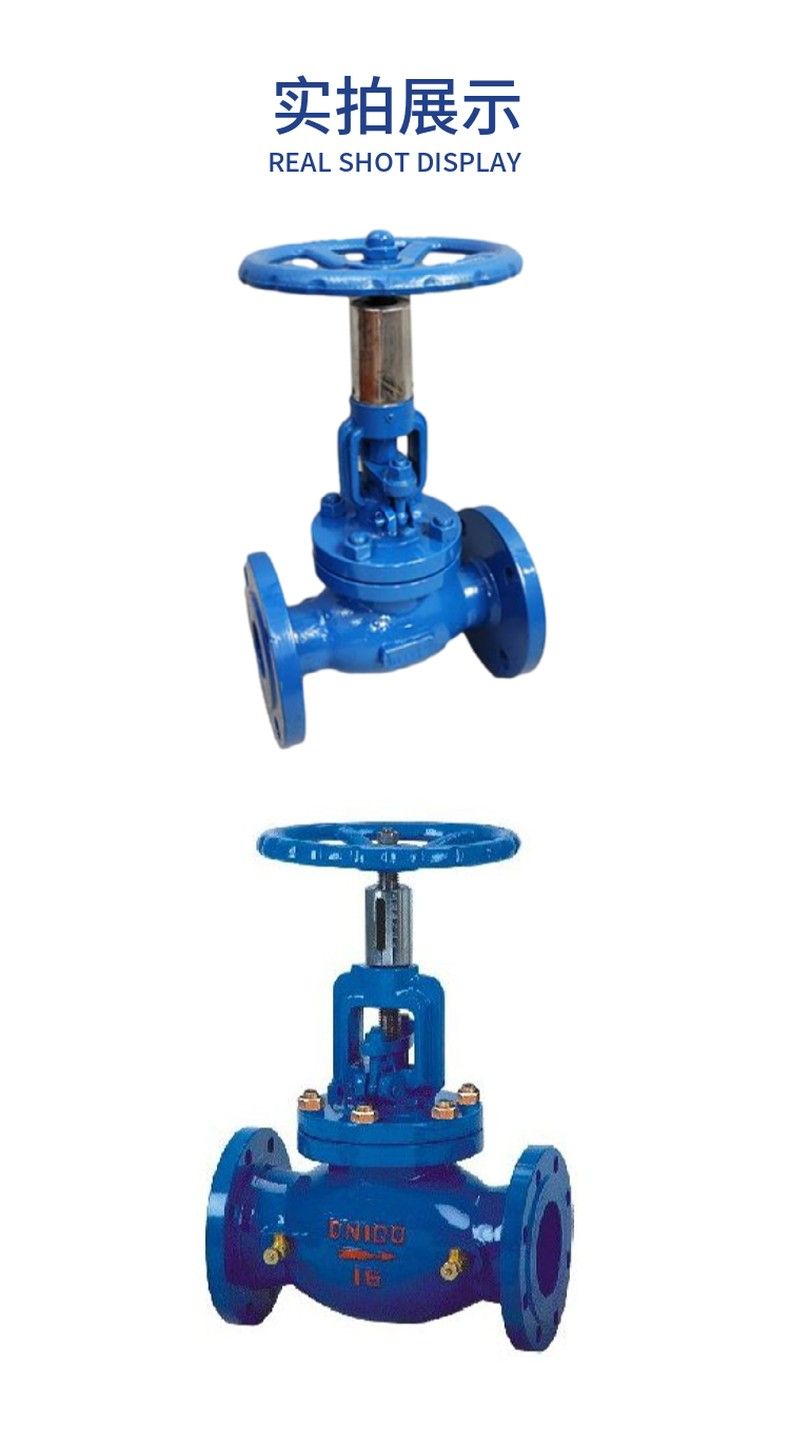

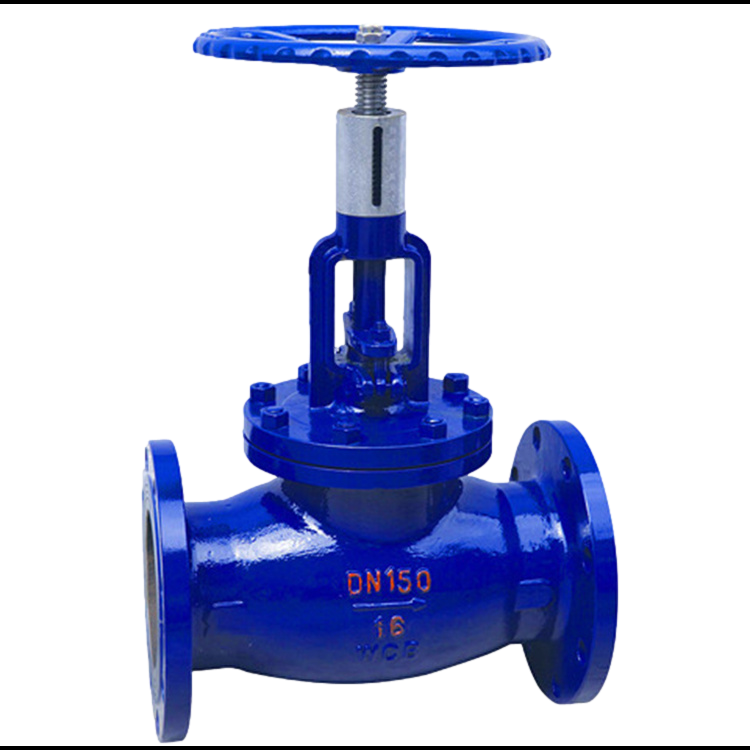

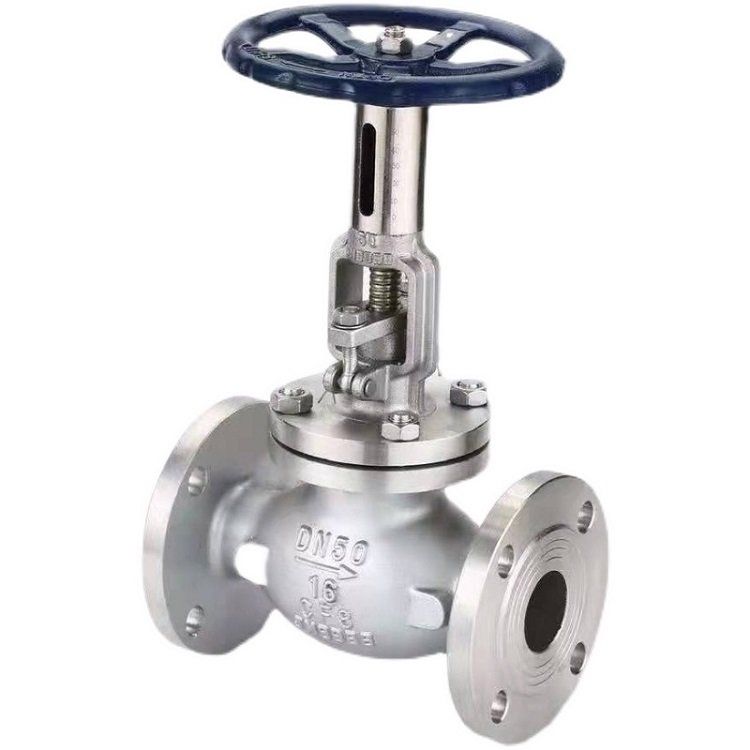

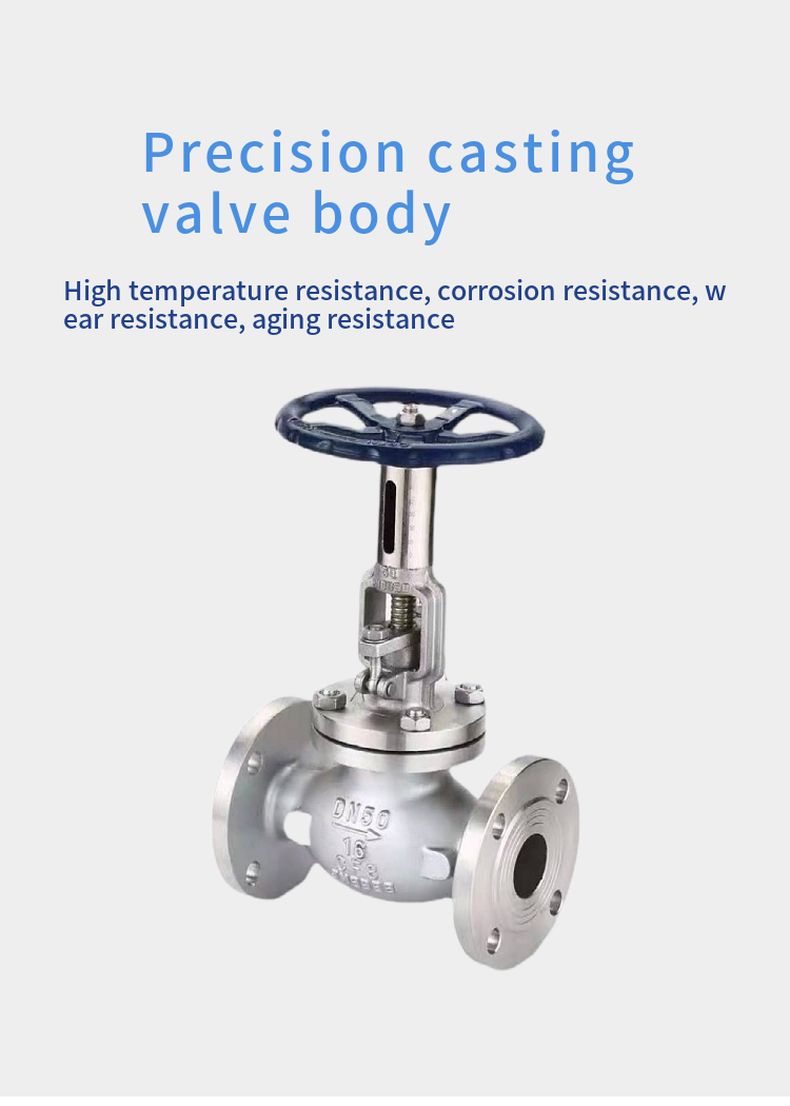

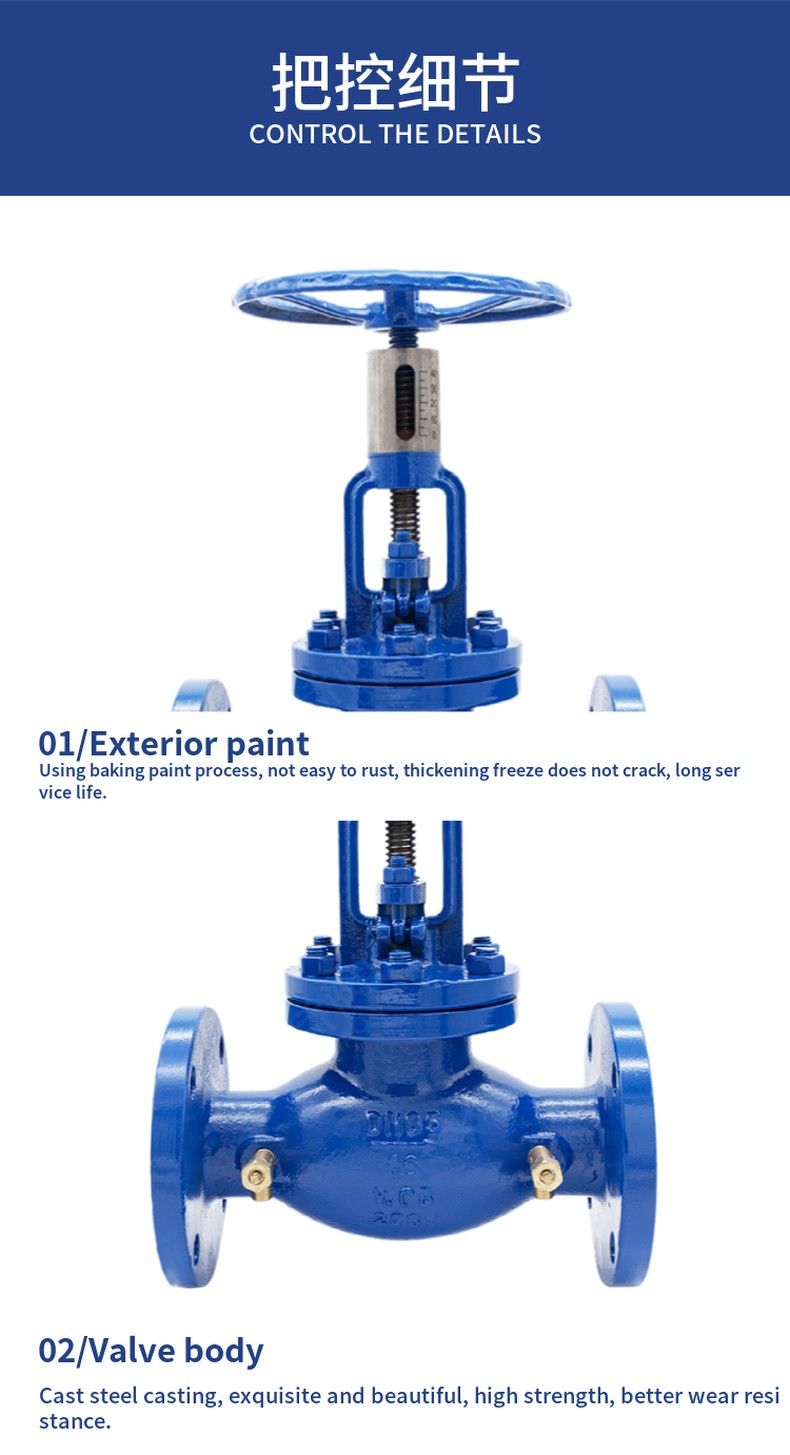

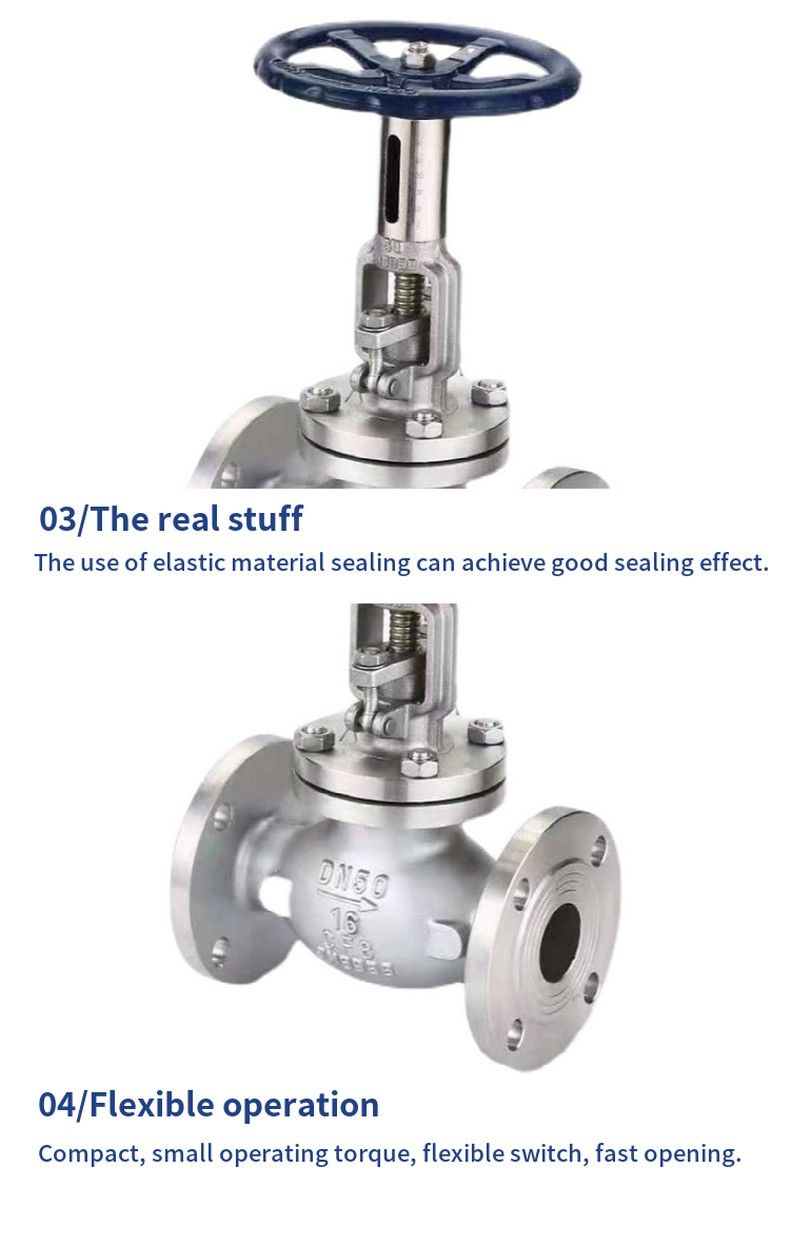

T40H manual control valve

Model: T40H [Structural features] : T40H manual regulating valve products turn the hand wheel clockwise to close the manual regulating valve, then the valve stem drives the valve disc down, until the two conical sealing surface contact to strictly close the pipeline. The manual regulating valve produced by our factory is suitable for energy saving products of sound bar central heating and district heating, which mainly regulates the flow rate.
[Product use] T40H manual control valve is suitable for nominal pressure ≤1.6MPa and ≤2.5MPa medium temperature 1~200ºC and ≤350ºC steam water pipe road as the use of regulating flow.
[Performance characteristics] : 1, improve heating conditions: all the use of manual control valve line and heat point, can be according to the design conditions for flow regulation, to achieve good temperature conditions, this control valve than gate valve, globe valve adjustment performance is good, it has an approximate linear adjustment performance, therefore, the heating building uneven cold and heat phenomenon has been effectively improved. 2, energy saving: heat pipe network due to the imbalance of temperature pressure, resulting in some branch flow is too large, so that some building temperature is too high, the user has to open the window, a lot of heat energy wasted, due to the installation of the manual control valve, to overcome the temperature pressure imbalance, avoid opening the window, to achieve the purpose of saving energy. 3, improve the hydraulic condition of the pipe network: the manual control valve can be controlled according to the rated flow rate, reduce the flow of the pipe network excess operation, and improve the deterioration of the original water condition to a certain extent.
Outline size (flange connection size according to GB4216) :
