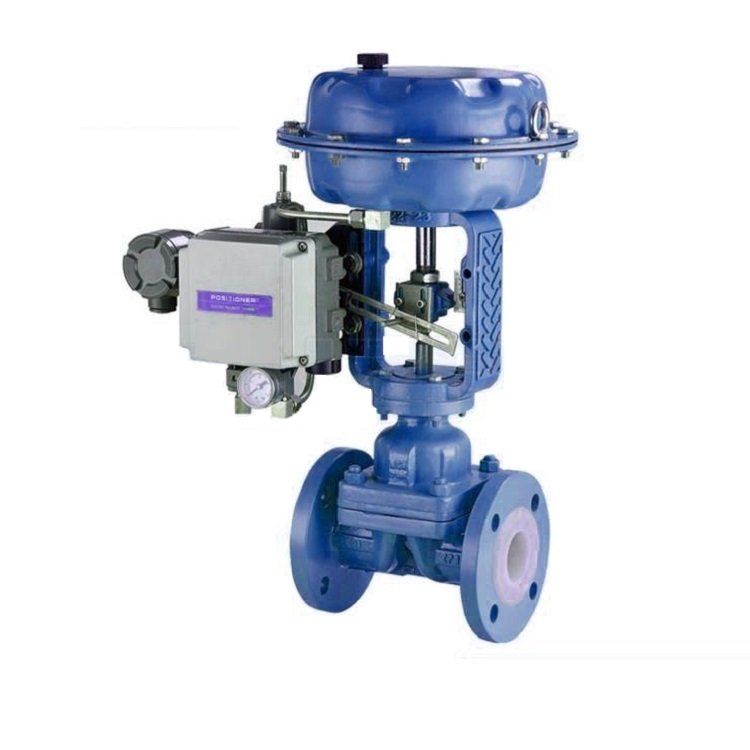

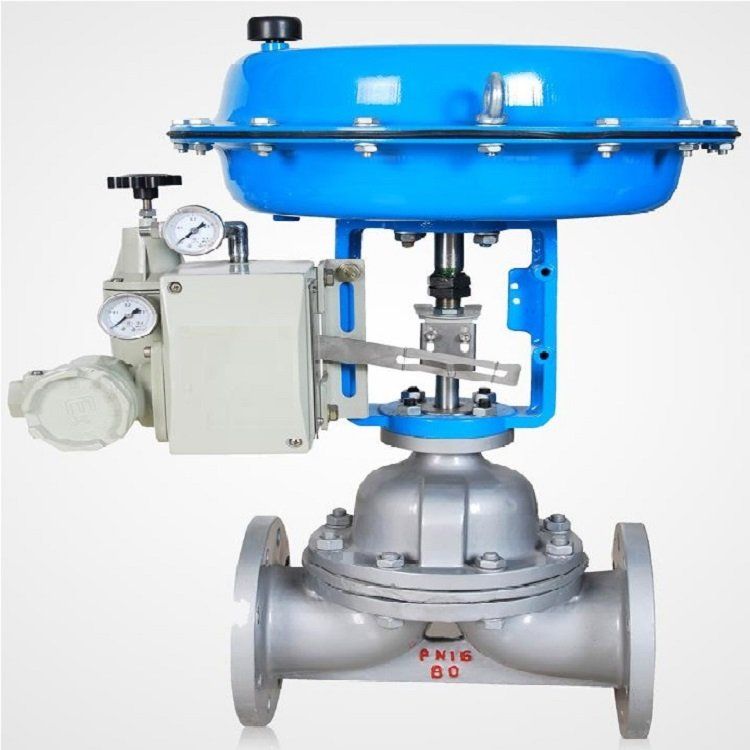

ZXT type adopts multi-spring actuator, height and weight can be reduced by 30%. The inner surface of the valve body is coated with a variety of materials to avoid direct contact with the medium and withstand the corrosion of the strong valve corrosive medium. When the valve is closed, the amount of internal and external leakage is zero, especially suitable for highly toxic media or not allowed to pollute the medium of the valve joint. The flow path is simple, the resistance is small, and the rated flow coefficient is larger than that of the same caliber single seat and sleeve regulating valve.
Main parts material: valve body: HT200, ZG230~450 or the above material lining diaphragm: butadiene rubber, natural rubber, PTFE corrugated film: nitrile rubber clip reinforced polyester fabric spring: 60S12Mn body lining material and application range Valve body lining temperature (ºC) applicable media
| Valve body lining | Service temperature (C) | Applicable medium |
| Unlined | -10 ~ +175 | Suitable for non-corrosive media |
| Soft rubber | -10 ~ +85 | Has good wear resistance, suitable for cement, clay, coal dust, dry fertilizer and so on |
| Ebonite | -10 ~ +85 | Suitable for non-mechanical, salt, hydrochloric acid, gold-plated solution, soft water, chloride, chlorine, etc |
| Neoprene adhesive | -10 ~ +105 | Animal oil, vegetable oil and lubricant corrosive mud |
| Butyl gum | -10 ~ +120 | Good corrosion resistance and wear resistance, best corrosion resistance to most inorganic acids and acid mortar |
| Enamel | -10 ~ +175 | Suitable for warm inorganic acids, oxidizing acids, halogens, alcohols, esters and other compounds |
| Fluorine 46 | -10 ~ +190 | Suitable for strong corrosive media such as sulfuric acid, hydrochloric acid and sodium hydroxide |
| Diaphragm material | Temperature to use (C) | Applicable medium |
| Butyl gum (Grade B) | -40 ~ +100 | Inorganic acids such as: sulfuric acid, hydrofluoric - acid, phosphoric acid and other bases and salts |
| Natural glue (Grade Q) | -50 ~ +100 | Mainly used to purify water, inorganic salts and alene mineral acid medium |
| Polytetrafluoroethylene | -10 ~ +150 | Excellent chemical stability, resistance to strong acid, concentrated alkali, strong oxidant corrosion |
Flange standard: Cast iron flange according to GB4216-84
Cast steel flange according to GB9113-88
Type of sealing surface of flange: convex
Actuator gas signal connector: internal thread M16×1.5
Structure length: GB12221-89
Valve body flange end distance and flange standards can also be manufactured according to user specified standards such as ANSI, JIS, DIN and other standards
