Xuancheng valve produces oxygen filter

Our company mainly produces (Japanese standard Y filter) is also one of the domestic (oxygen filter) manufacturers. The company's business scope: valve, pipe fittings, fluid equipment production, processing, sales, pipeline accessories, building materials, hardware and electricity, automatic control equipment sales, engaged in the import and export of goods and technology business! Welcome new and old customers calls, letters, we will be happy to provide you with satisfactory service!

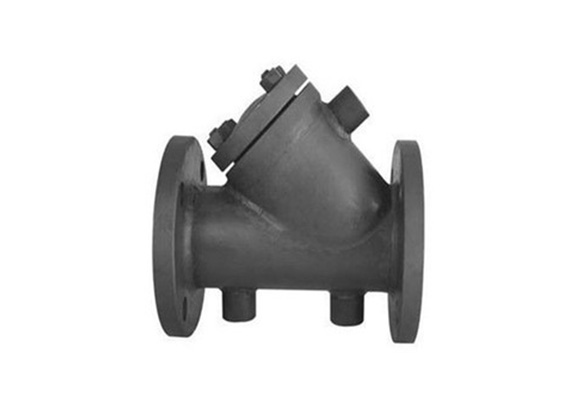

J-type filter product overview:

1 Gray cast iron or ductile iron valve body

2 Valve seat brass

3 Disc gray iron or ductile iron

4 Rocker gray cast iron or ductile iron

5 Pin shaft stainless steel or carbon steel galvanized

6 Valve cover gray cast iron or ductile iron

Filter is an indispensable device in the pipeline series of conveying media, usually installed at the inlet of pressure reducing valves, pressure relief valves, fixed level valves or other equipment to eliminate impurities in the media to protect the normal use of valves and equipment. The filter has the advantages of advanced structure, low resistance, convenient discharge and so on. Applicable media can be water, oil, gas. Filter can be made according to user requirements, its appearance is basically the same (Y type), the internal parts are all made of stainless steel, durable. When it is necessary to clean, as long as the detachable filter cartridge is removed, after removing the filtered impurities, it can be re-loaded, which is extremely convenient to use and maintain. The filter has small body size, fine filter eye, small resistance, high effect, convenient installation and maintenance, low cost, and short blowdown time, for the general small model, only 5-10 minutes. Generally, the water network is 18-30 mesh /cm2, the ventilation network is 40-100 mesh /cm2, and the oil network is 100-300 mesh /cm2.

Application specification

1. Structure length: JIS 10K

2, flange standard: JIS B2212

Working pressure 10K

Test pressure 21kg/cm2

Seal test 15.4kg/cm2

test

Classification specification

The filter is composed of a shell, a blowdown cover, a filter element, a filter screen, etc. The total mesh area is 3-4 times the cross-sectional area of the inlet pipe.

For pipeline removal of transport media: hot water, cold water, steam, compressed air, all kinds of mechanical impurities, especially before the boiler room circulating pump are required to install this product, in order to remove the mechanical impurities in the system, so that the equipment and pipes are free from blockage and wear, the pressure loss at the rated flow rate is 0.05-0.1 meters of water column.

For all kinds of steam equipment, such as: steam meters, traps, compressed air and all kinds of steam equipment need to be installed before. The pressure loss at the rated flow rate is 0.05-0.2 m water column.

The main product of the oil filter has a variety of filter density. For example, 64 holes, 200 holes, 300 holes /Cm2. Used for all kinds of pipeline equipment. For example, the oil pump and oil boiler need to be installed before, and the pressure loss is 0.05-0.1 meters of water column at the rated flow rate.
