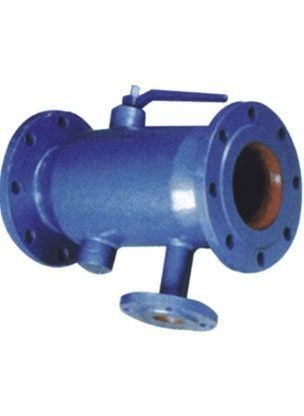

ZPG-I automatic blowdown filter

ZPG-I automatic blowdown filter introduction

ZPG-I automatic blowdown filter has the advantages of small volume, large filter area, convenient operation and management. It can clean up the impurities in the medium, and can be used for the pretreatment of raw water in drinking water plants, the treatment of industrial water, the pretreatment and treatment of domestic water and the recovery of useful substances in industrial wastewater. Automatic sewage filter is composed of shell, stainless steel filter cylinder, impurity collection section, electric impurity discharge outlet, electric water flow steering butterfly valve, testing mechanism, actuator and control box. According to the installation type and the direction of water flow is divided into straight through type (ZPG-I) and Angle through type (ZPG-L) two.

ZPG-I automatic sewage filter working principle:

In normal operation, the diversion plate is open, and the water enters by the entrance and filters out the particles and impurities through the filter screen. In the filtration process, the filter gradually accumulates the impurities in the water, forming a filter impurity layer, because the impurity layer is accumulated in the inside of the filter screen, so a pressure difference is formed on both sides of the filter screen. When the pressure difference of the filter reaches a preset value, the cleaning process will begin, and the water supply will not stop. When cleaning, first close the middle of the reverse flow control plate, and then open the sewage valve to start the sewage, when the sewage outlet is cleared, close the sewage valve and open the diversion control plate to complete the sewage. The ZPG-L type should be installed on the right Angle bend, and the ZPG-I type should be installed on the horizontal or vertical pipe. When the straight-through vertical installation, the direction of water flow should be top-down, and the installation should pay attention to the direction of the arrow on the shell must be the same as the direction of water flow. In normal operation, the butterfly valve is in the open state, when it is necessary to blow down, close the butterfly valve, open the blowdown valve until the discharge water becomes clear, open the butterfly valve, that is, to complete the blowdown process.

ZPG-I automatic discharge filter technical features:

1. Filtration, stable effluent water quality.
2, through its own retrieval and strain function, to achieve automatic backwashing, can deal with unstable water quality fluctuations, without manual intervention.
3, the control system, operation, has the double setting function of pressure difference and time, can adjust the backwashing pressure difference or time setting value according to different water sources and filtration.
4, cleaning, the filter can be restored to the initial state, so it can be used for a long time.
5, backwash at the same time without interrupting normal water production, continuous operation.
6, backwashing duration is short, save water, save electricity, save energy.
7, compact and reasonable structure design, small footprint, easy to install and move.
8, less equipment wearing parts, no consumables, operation and maintenance, simple operation and management.
9, wide application, can be applied to different raw water quality and water requirements.

ZPG-I automatic sewage filter application field:

1, domestic water, process water filtration.
2, softening and other pretreatment.
3, seawater purification, industrial seawater and freshwater aquaculture water filtration.
4, oil field reinjection water filtration.
5, cooling water filtration.
6, water reuse, wastewater treatment and filtration.
7, steel, petroleum, chemical, paper, automobile, food, metallurgy and other industries water filtration.
8, groundwater, surface water turbidity purification.
9, air conditioning, boiler backwater filtration.
10, the water quality requirements of the equipment feed water filtration.
11, swimming pool, landscape water purification.
12, municipal, green spraying, watering, sprinkler irrigation, drip irrigation filter.

ZPG-I automatic sewage filter selection table:
