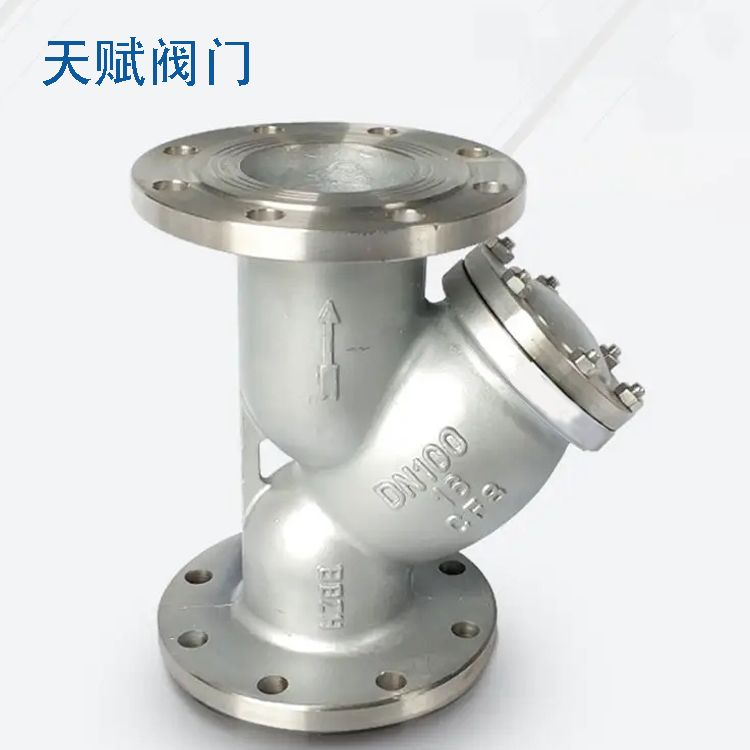

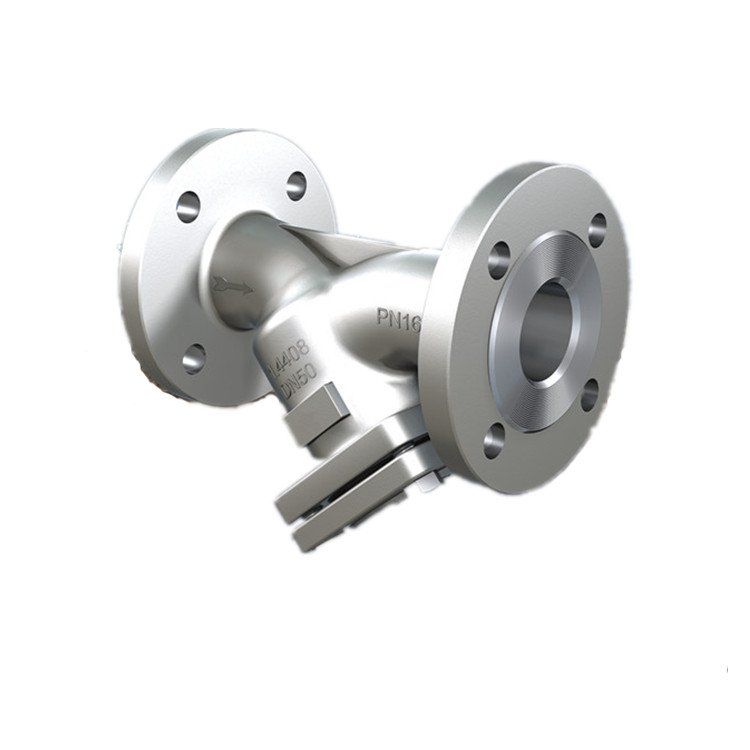

YGY-40T special Y-type oxygen filter

First, [Oxygen Y filter] product overview
Oxygen Y-type filter is suitable for filtering solid impurities in the gas to purify the medium, protect pipeline valves, equipment, etc. Oxygen Y type filter is designed for oxygen pipe network design of a special filter, in the manufacturing process by special process treatment, the filter adopts stainless steel double mesh structure, durable, with structure, flow resistance is small, easy to discharge and other characteristics, widely used in the industrial production department of oxygen filtration, also suitable for nitrogen, air, argon, etc. It can also be used for the filtration of solid impurities in liquid.
Two, [Oxygen Y filter] installation and maintenance
1, the oxygen Y-type filter is generally installed horizontally, the import and export direction and the arrow direction on the valve body should be maintained *, and the pipeline should be cleaned before installation.
2, oxygen Y-type filter work for a period of time, the filter element precipitates a certain amount of impurities, then the pressure drop increases, the flow rate will decrease, need to remove impurities in the filter core in time.

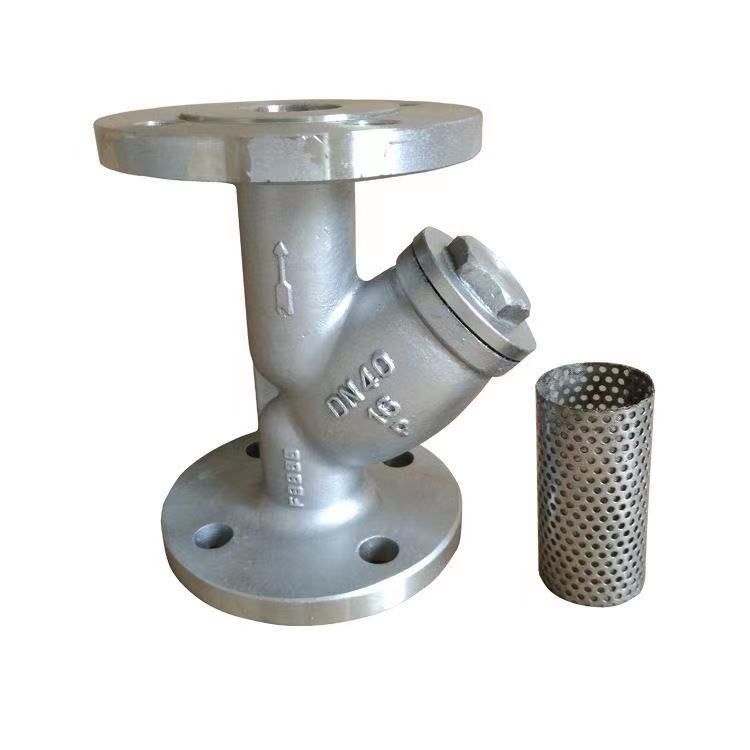

3. When cleaning impurities, pay special attention to the stainless steel wire mesh on the filter core can not be deformed or damaged, otherwise, the filter installed again, the purity of the filtered medium can not meet the design requirements, and the compressor, pump, instrument and other equipment will be destroyed.
4. If the stainless steel wire mesh is found deformed or damaged, it needs to be replaced immediately.
Three, [oxygen Y filter] technical parameters

Four, [oxygen Y filter] parts material

Five, [Oxygen Y filter] specifications and dimensions
