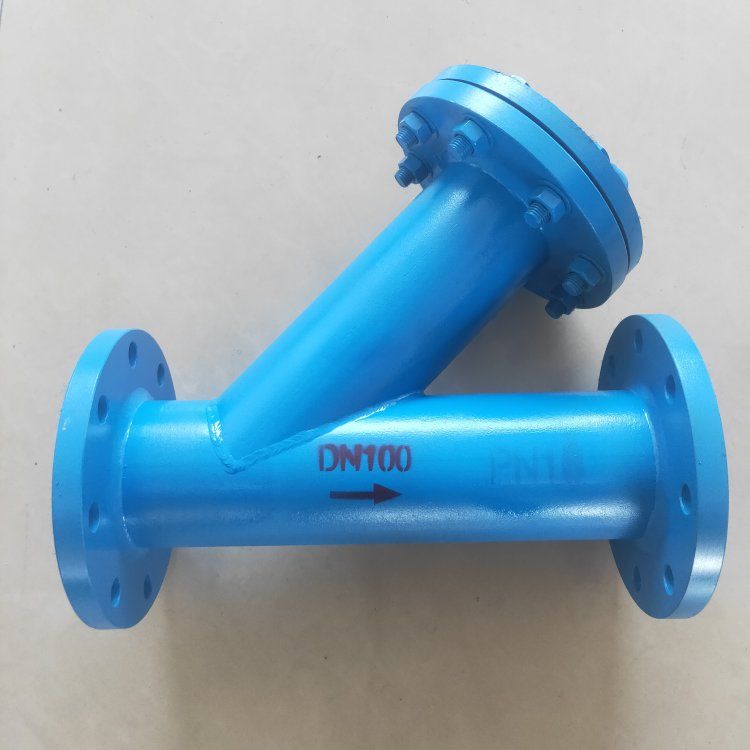

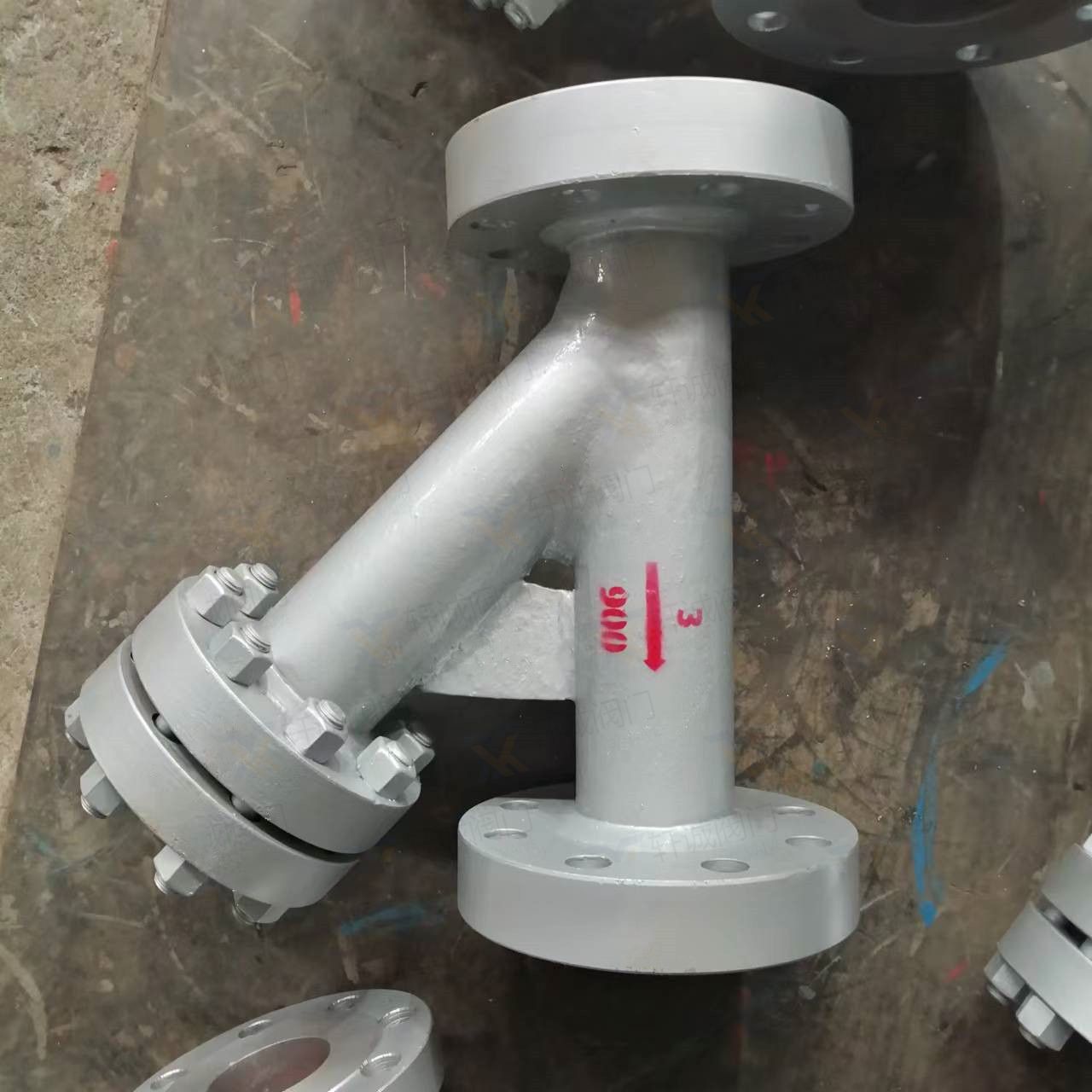

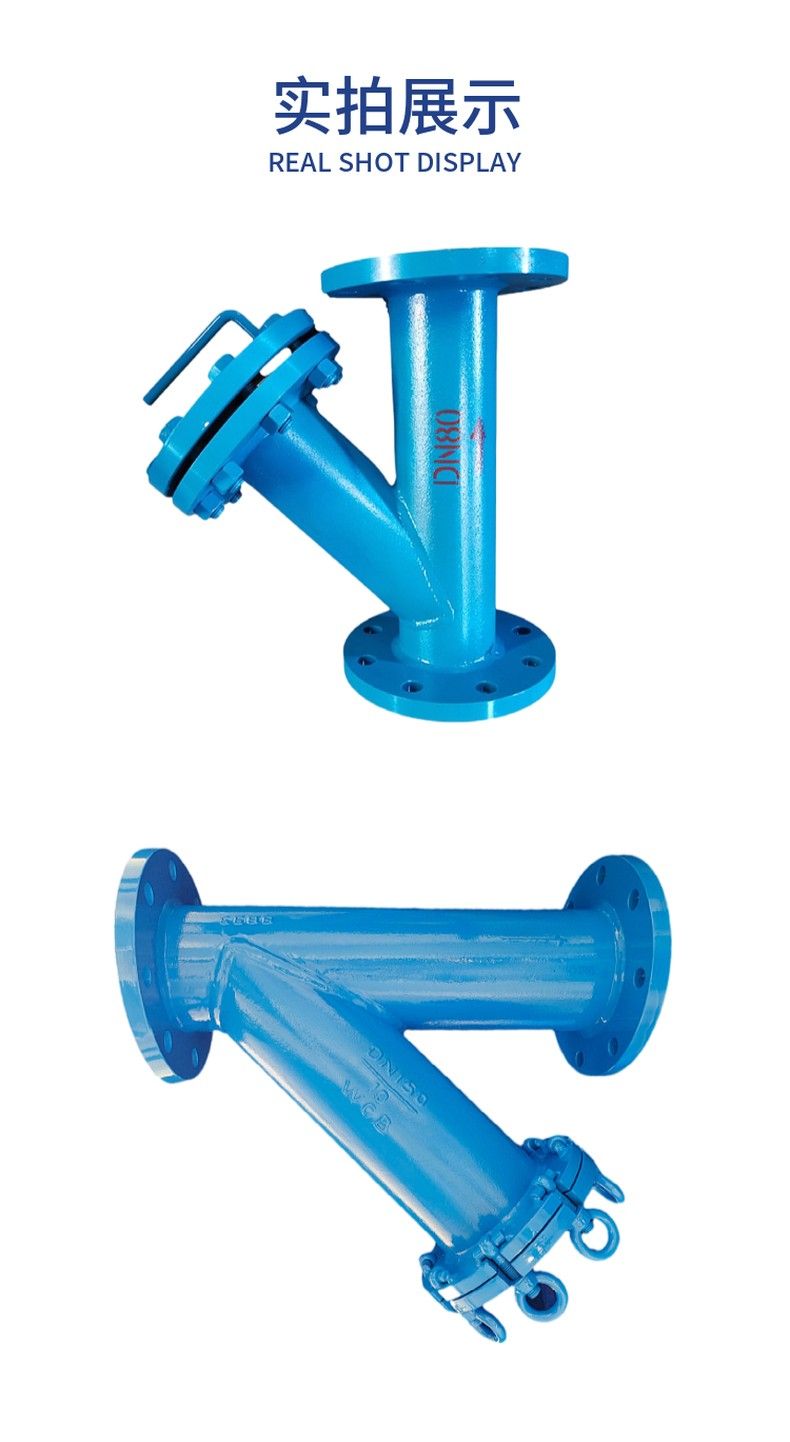

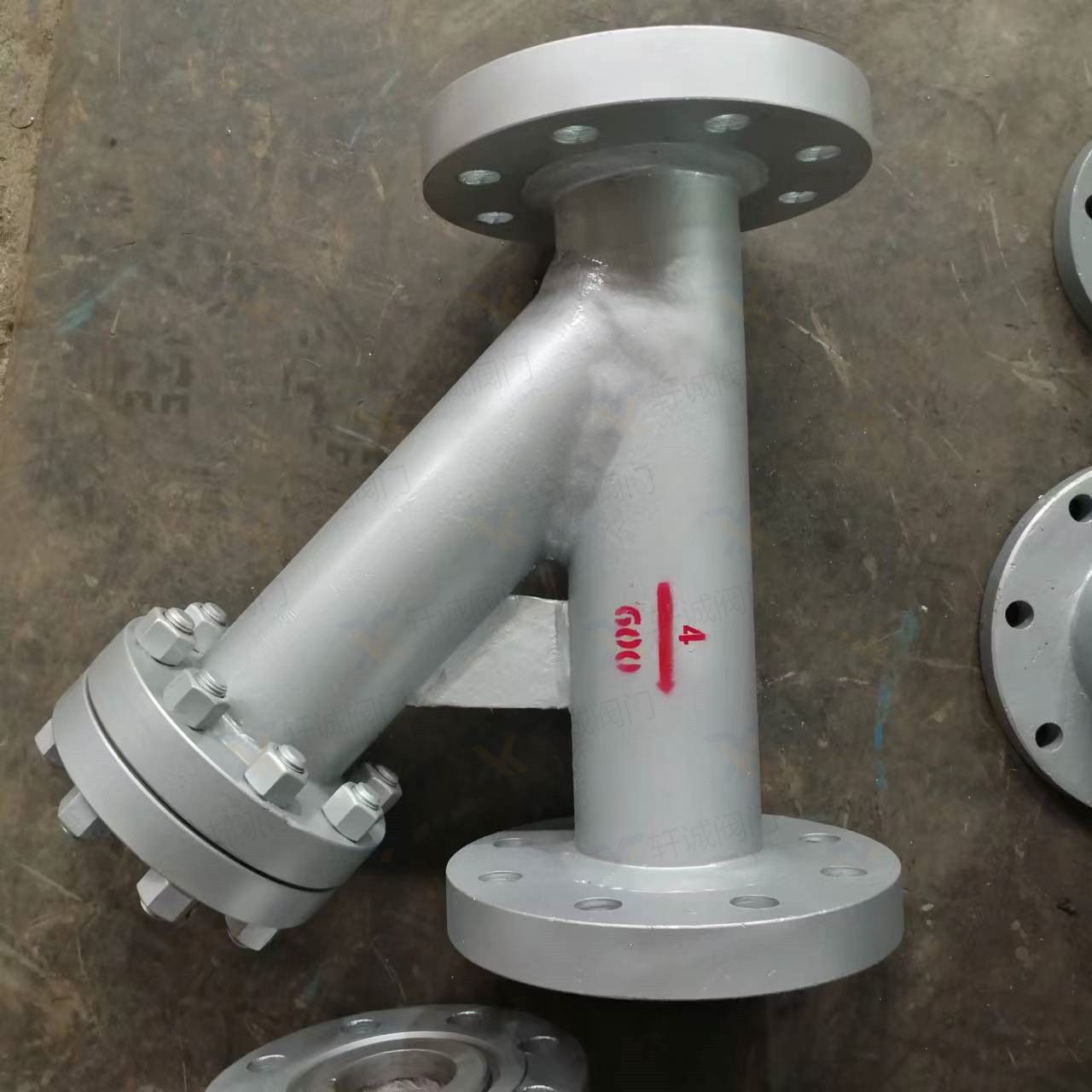

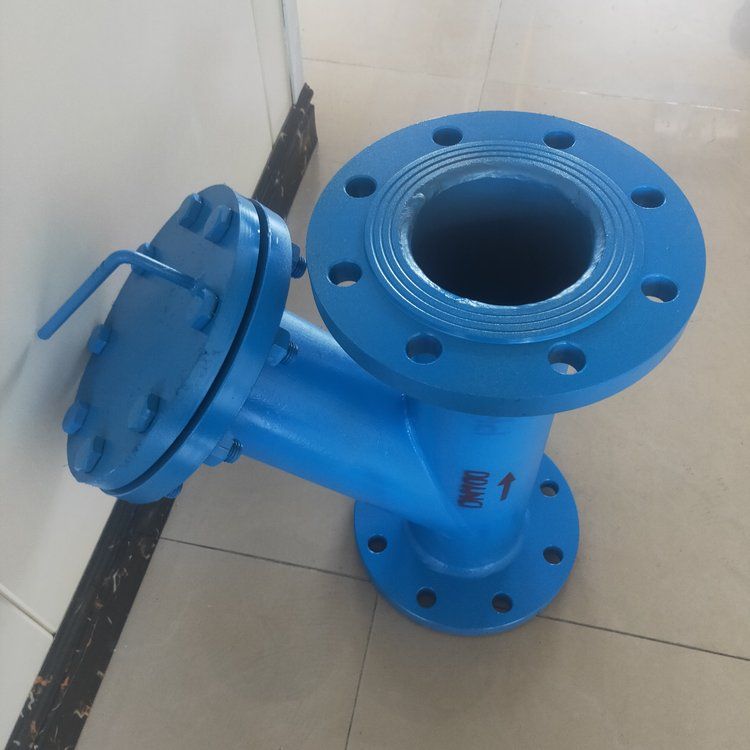

Welded Y filter

The main material of welded Y-type filter is welded by coiled pipe or seamless pipe, the caliber is DN150-DN1200, Y-type filter is a crude pipeline filter, can be used for liquid, gas or other media large particulate matter filter, installed on the official road can go out of the fluid in the larger solid matter, So that machinery and equipment (including compressors, pumps, etc.), instruments can work and operate normally, to stabilize the process and ensure the role of safe production. When the fluid is placed into the filter cartridge with a certain specification filter screen, the impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it is necessary to clean, as long as the detachable filter cartridge is removed and re-loaded after processing, therefore, the use and maintenance are extremely convenient.
Way to use
For liquid, gas or other media large particulate filter

Scope of application

This type Y filter is suitable for chemical, petrochemical production of weak corrosive materials, such as: water, ammonia, oil and so on. Corrosive materials in chemical production, such as caustic soda, concentrated sulfuric acid, carbonic acid, acetic acid, acid and so on. Cryogenic materials in refrigeration, such as liquid methane, concentrated ammonia, liquid oxygen and various refrigerants. Materials with hygienic requirements in light industrial food and pharmaceutical production, such as: beer, beverages, dairy products, grain pulp, medical drugs, etc. When the Y-type filter needs to be cleaned, as long as the detachable filter cartridge is removed and re-loaded after processing, therefore, the use and maintenance are extremely convenient.

Technical parameters

Product name: Y type filter Product model: GL41H
Nominal pressure: 1.0-2.5Mpa
Nominal diameter: DN150-DN1200
Applicable medium: clean water
Use temperature: 0-80 degrees
Flange standard: GB/T17241.6GB/9113
Test standard: GB/T13927 AP1598

Installation and Maintenance

1. When cleaning impurities, pay special attention to the stainless steel wire mesh on the filter element can not be deformed or damaged, otherwise, the filter installed again, the purity of the filtered medium can not meet the design requirements, and the compressor, pump, instrument and other equipment will be destroyed. If it is found that the stainless steel wire is deformed or damaged, it needs to be replaced immediately.
2, Y type filter work for a period of time, Y type filter element precipitated a certain amount of impurities, then the pressure will increase, the flow rate will decrease, need to remove impurities in the filter core in time. [1]
3, Y-type filter can be installed horizontally, can also be installed vertically, the import and export direction and the direction of the arrow on the valve body should be consistent. Y type filter product overview: The Y type filter produced by our company belongs to the pipeline filter, which can be used for liquid, gas or other medium large particulate matter filter, Y type filter installed on the official road can go out of the fluid in the larger solid matter, so that the machine equipment (including compressors, pumps, etc.), instruments can work and operate normally, to stabilize the process and ensure the role of safe production. When Y type filter fluid is placed into a certain specification filter cartridge, the impurities are blocked, and the clean Y type filter filtrate is discharged from the filter outlet, when it needs to be cleaned, as long as the detachable filter cartridge is taken out and re-loaded after processing, therefore, the use and maintenance of Y type filter is extremely convenient.

Work flow

GL41HY filter is a small device to remove a small amount of solid particles in the liquid, which can protect the normal work of the equipment, when the fluid enters the filter cartridge with a certain specification filter screen, the impurities are blocked, and the clean filtrate is discharged by the filter outlet, when it needs to be cleaned, as long as the removable filter cartridge is removed and re-loaded after treatment, so, It is very convenient to use and maintain. Y-type filter, also known as the defiler, filter valve, is an indispensable device in the pipeline system of the conveying medium, its role is to filter the mechanical impurities in the medium, which can filter the rust, sand, a small amount of solid particles in the liquid in the sewage to protect the fittings on the equipment pipeline from wear and blockage, and can protect the normal work of the equipment. When the fluid enters the filter cartridge with a certain specification filter screen, the impurities are blocked, and the clean filtrate is discharged by the filter outlet, when it needs to be cleaned, as long as the detachable filter cartridge is taken out and re-loaded after treatment, therefore, the use and maintenance is very convenient.
