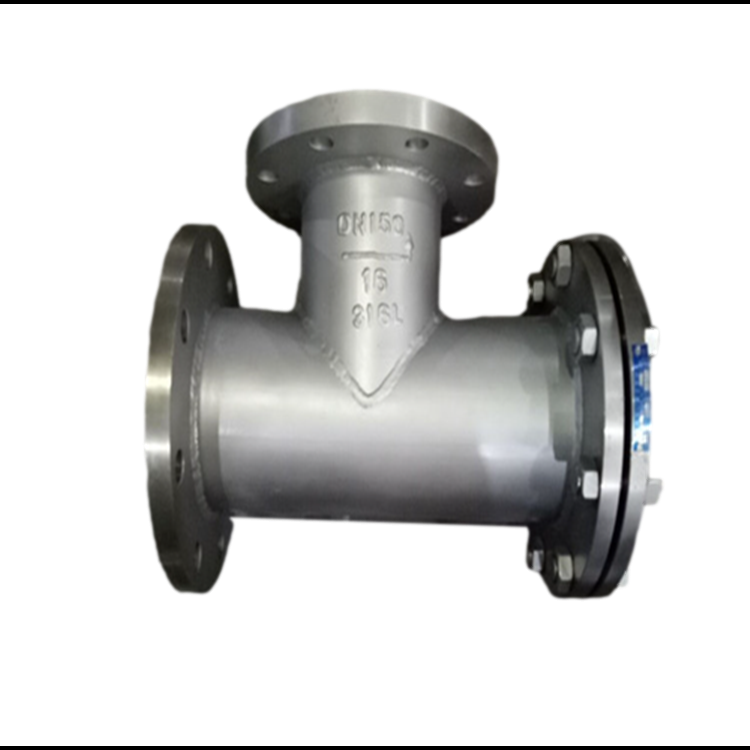

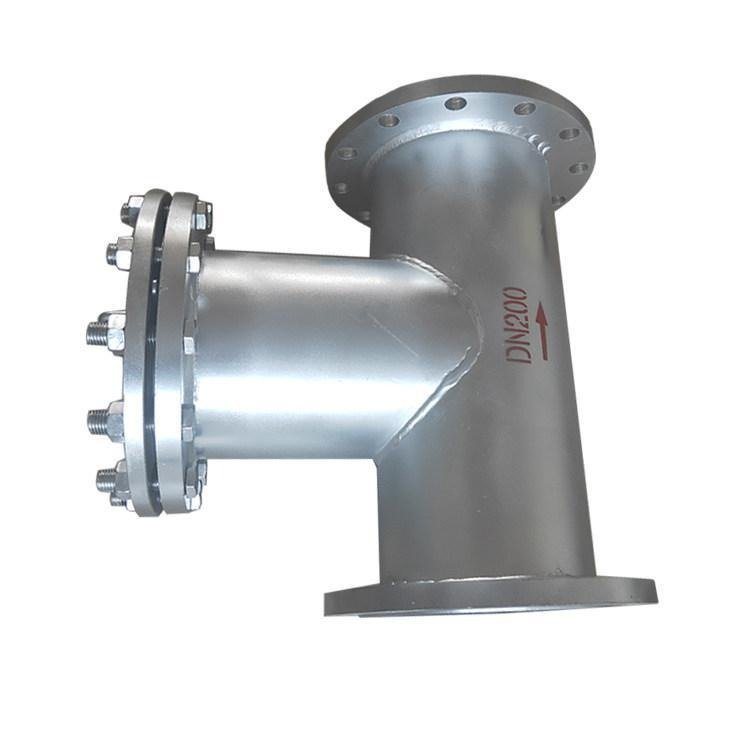

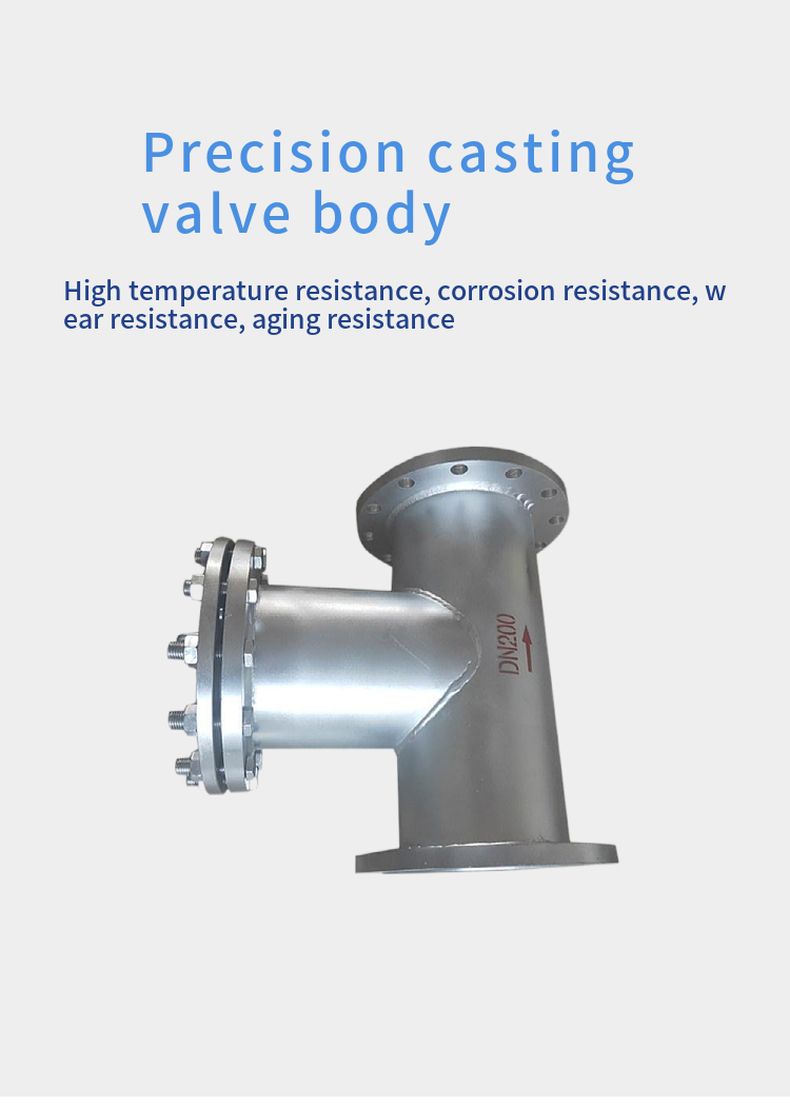

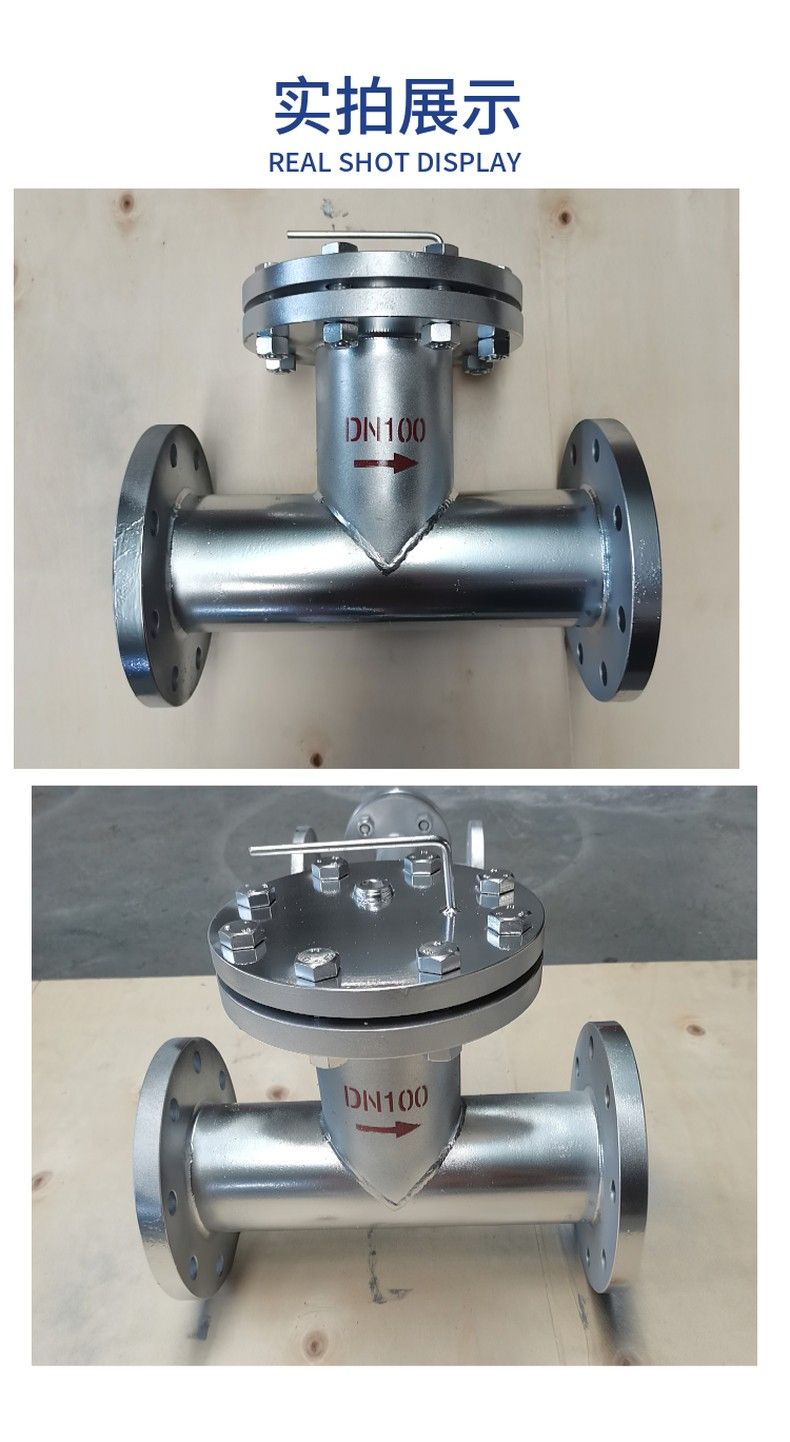

T-type stainless steel oxygen filter

Shell :304 stainless steel, polished inside and outside the cylinder.
Caliber :1/2~2"
Flow rate :2~15m3/min
Design pressure 1.6Mpa.
Filter element: The United States strong hydrophobic and oleophobic fiber filter material, while using good permeability and high strength skeleton, reduce the resistance caused by filtration.
Optional configuration: automatic drainer.
Applicable gas: compressed air, vacuum, nitrogen, carbon dioxide, oxygen, hydrogen, natural gas, etc
Application: food, beverage, beer, biochemistry, medicine, electronics and other industries

Filter grade:
Grade F: gas-water separator;
Class C: oil-water separator,3μ;
Class T: oil removal filter,1μ;
Grade A: micro-oil filter, 0.01μ;
Grade H: adsorption filter,0.01μ;

T series stainless steel gas microfilters. T series stainless steel gas microfilters
T Series Stainless Steel Gas Microfilters Specification sheet

Flow unit :m3/min. The selection of vacuum filter is based on the diameter of pipe.
* Represents filtration grade :F grade: gas-water separator; Class C oil-water separator,3μ; T-class oil removal filter,1μ;
Class A micro-oil filter, 0.01μ; Grade H adsorption filter,0.01 μ.

Different pressure, filter processing volume will be different, please refer to the following table:
