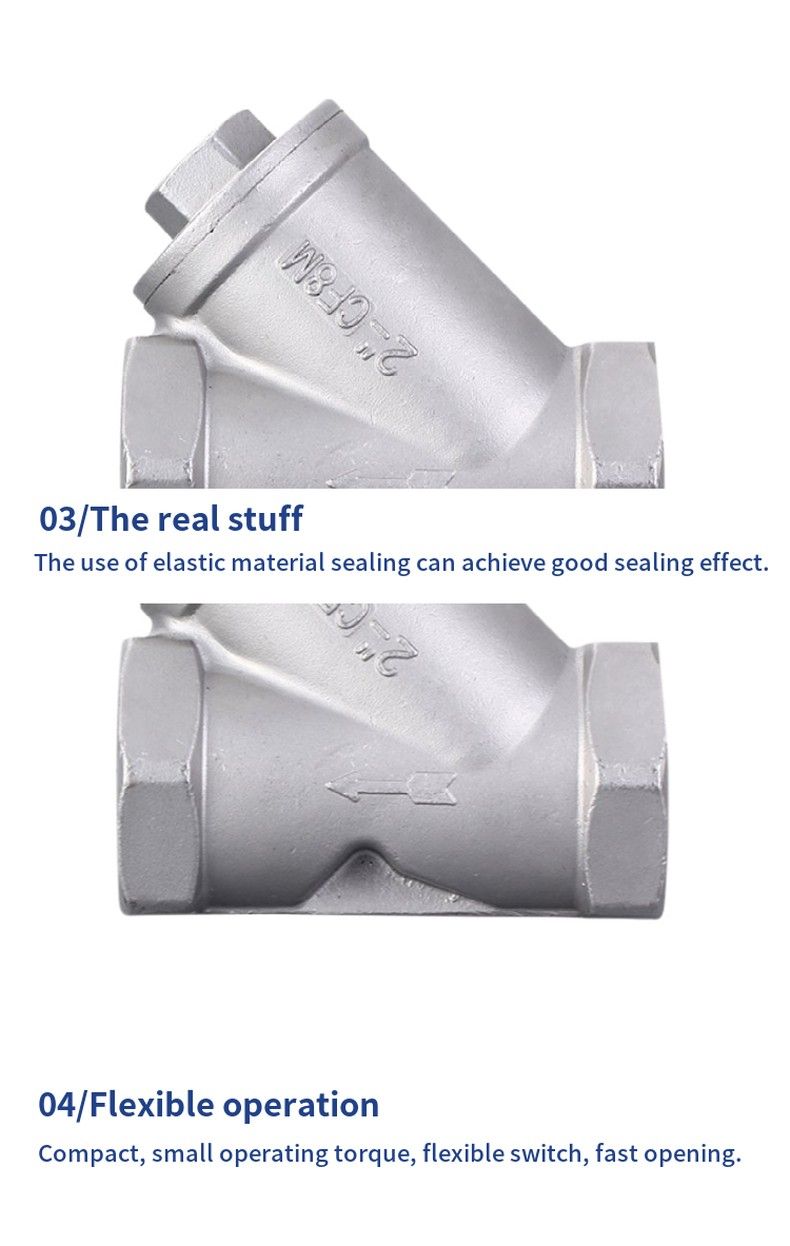

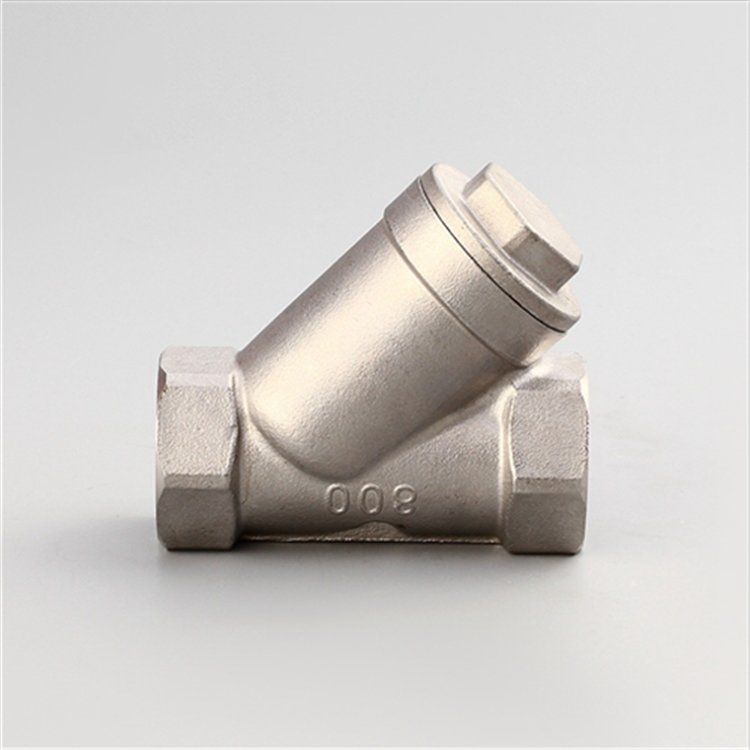

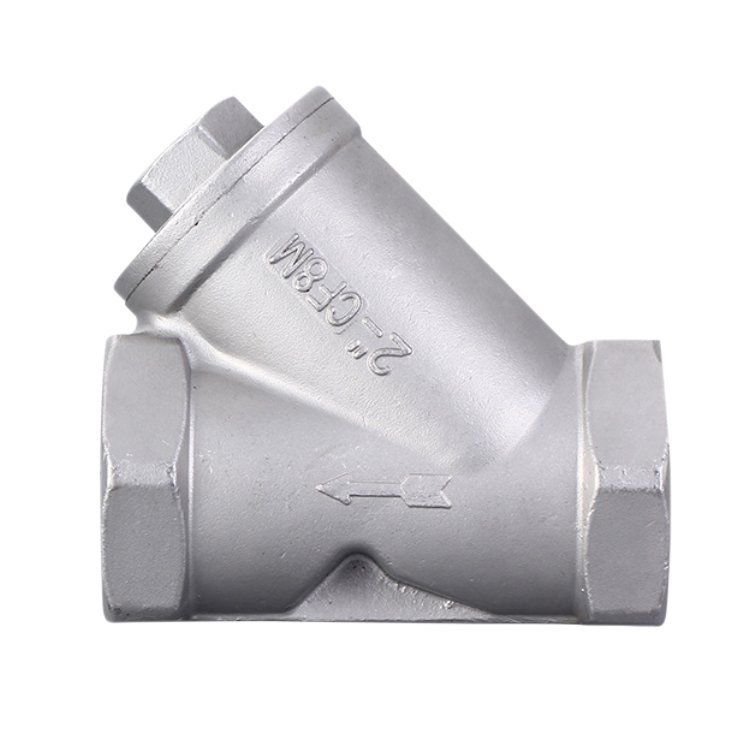

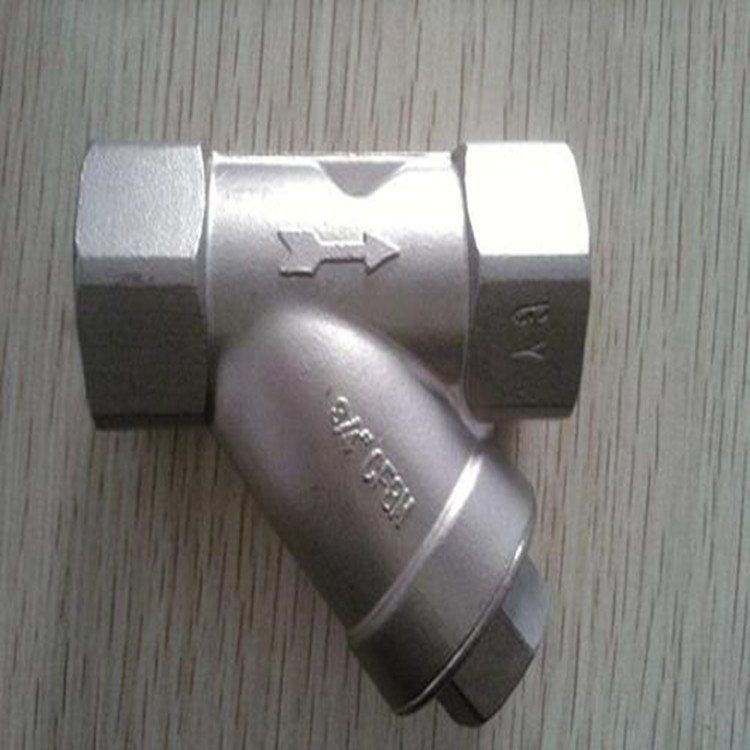

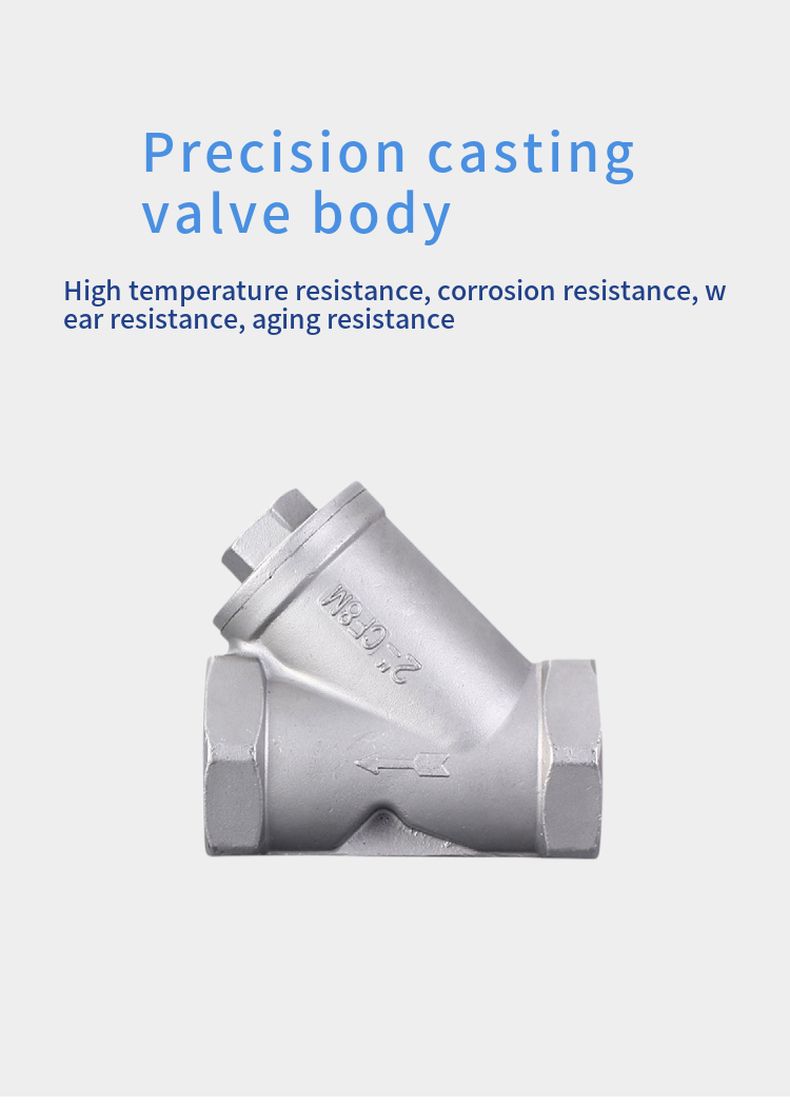

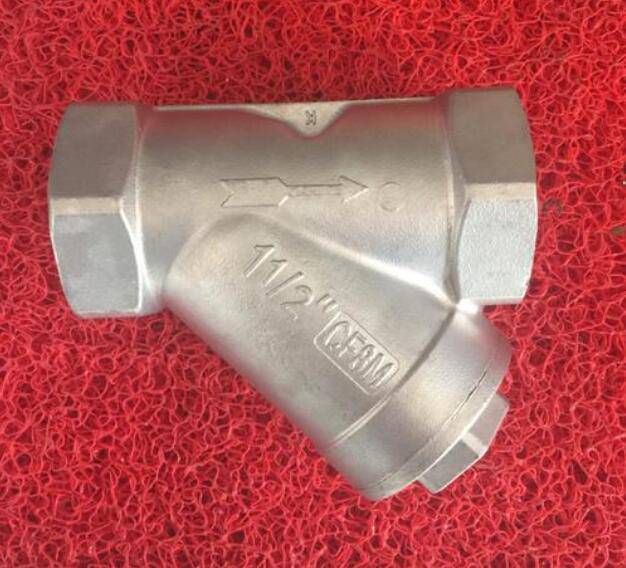

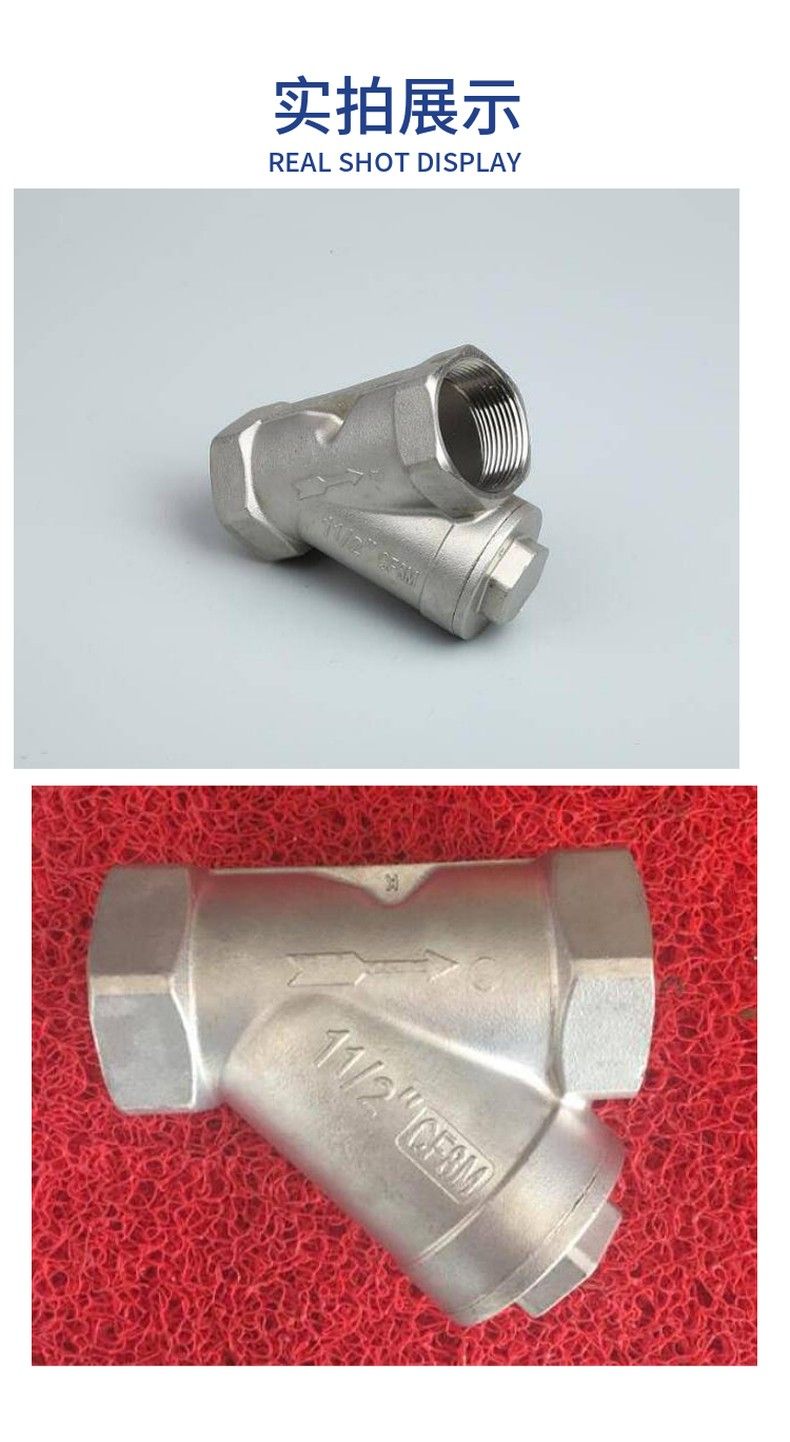

Stainless steel Y-type filter with internal thread

· Stainless steel internal thread Y type filter overview
Stainless steel internal thread Y type filter is mainly used for switching, cutting off or connecting the medium in the pipeline, can also be used for fluid regulation and control. It is suitable for water, solvent, acid, natural gas, oxygen, hydrogen peroxide, methane and ethylene. At present, it has been applied in chemical, petrochemical, petroleum, paper making, mining, electric power, liquefied gas, food, water supply and drainage, municipal, mechanical equipment supporting, electronic industry, urban construction and other fields.
· stainless steel internal thread Y-type filter installation instructions
(1) Remove the protective cover on both sides of the flange end, and rinse the valve with the valve fully open.
(2) Before installation, the whole machine should be tested according to the specified signal (electric or pneumatic) (to prevent vibration from affecting the performance due to transportation), and it can be installed on the line after passing the test (wiring according to the electric actuator circuit diagram).
(3) Before preparing to connect with the pipeline, it is necessary to flush and remove the remaining impurities in the clean pipeline (these substances may damage the valve seat and ball).
(4) During installation, please do not use the actuator part of the valve as the lifting point to avoid damage to the actuator and accessories.
(5) This type of valve should be installed in the horizontal direction or vertical direction of the pipeline.
(6) The pipeline near the installation point should not be low or bear the phenomenon of external force, and the pipeline bracket or support can be used to eliminate the deviation of the pipeline.
(7) After connecting with the pipeline, please use the specified torque to cross-lock the flange connection bolt.
· stainless steel internal thread Y type filter related links
Manufacturing standards: American standard API, ANSI, British standard BS, German standard DIN, Japan JIS, JPI, China GB and so on. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc. Working pressure 1.0Mpa-50.0Mpa. Working temperature: Low temperature :-40 ° C, -80 ° C, -120 ° C, -196 ° C, conventional :80 ° C,120 ° C,180 ° C, high temperature: 200 ° C, 350 ° C, 425 ° C, 550 ° C, 650 ° C Connection method: internal thread, external thread, clamp type, flange, welding, butt welding, socket welding, sleeve, clamp. Driving mode: manual, turbine, pneumatic, electric.
