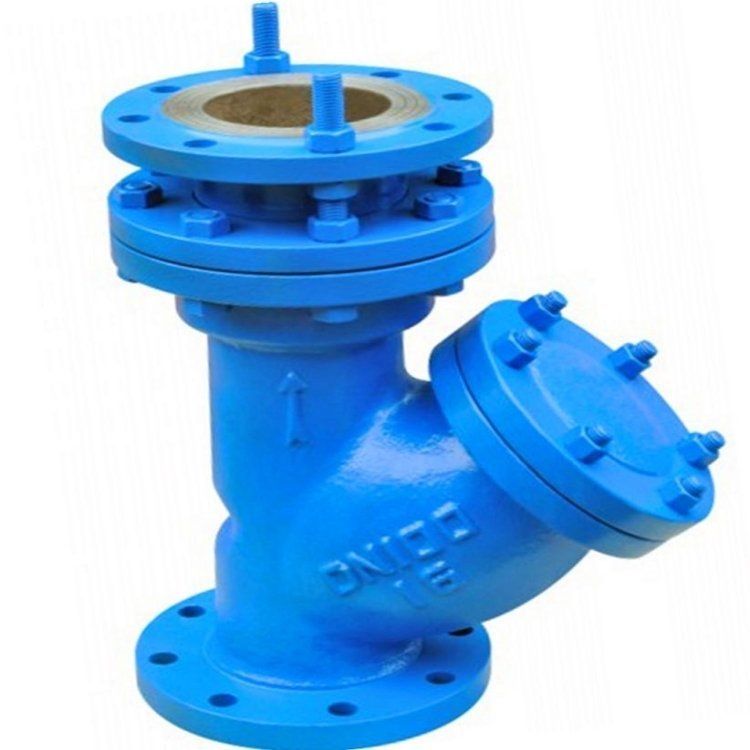

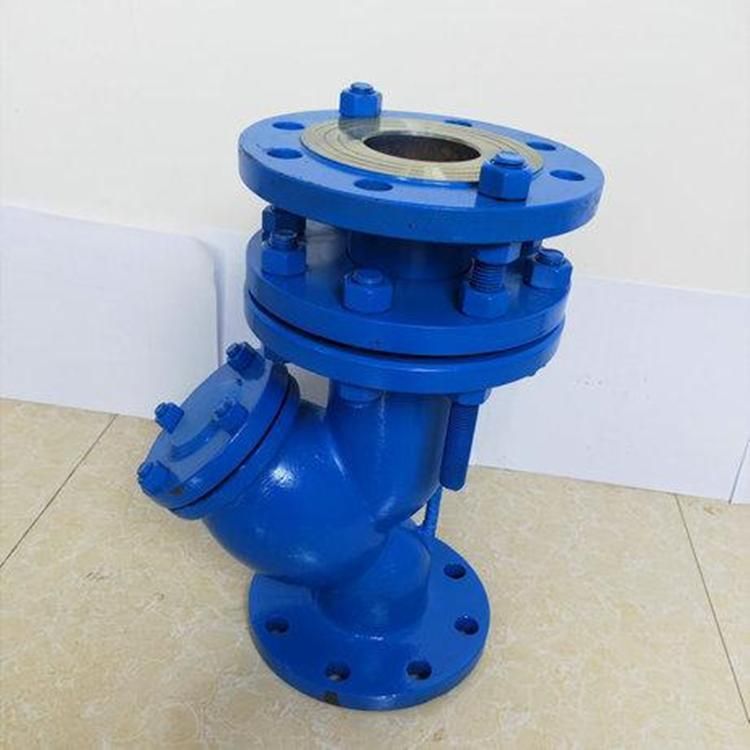

SJSY pull rod telescopic filter

Overview of drawbar telescopic filters

SLSY filter is used for water, oil, gas pipelines and various equipment on an indispensable device, it is mainly to remove the medium in the pipe, to protect the pressure reducing valve, pressure relief valve, fixed level valve and water pump and other equipment, in order to achieve normal operation. Please install at the entrance, the general water filter screen uses 10 ~ 30 mesh /cm2, the air filter screen uses 40 ~ 100 mesh /cm2, the oil filter screen uses 60 ~ 200 mesh /cm2.

Pull rod telescopic filter working principle:

The telescopic filter is installed in the front end of the matching valves in the water inlet pipe, when the medium in the pipeline first enters the filter, the medium enters the connected valve through the filter screen, and the impurities are left in the filter bucket, so that all kinds of valves will not fail due to mechanical debris stuck into the seal ring.

Pull rod telescopic filter parts material:

Tie rod telescopic filter connection size:
