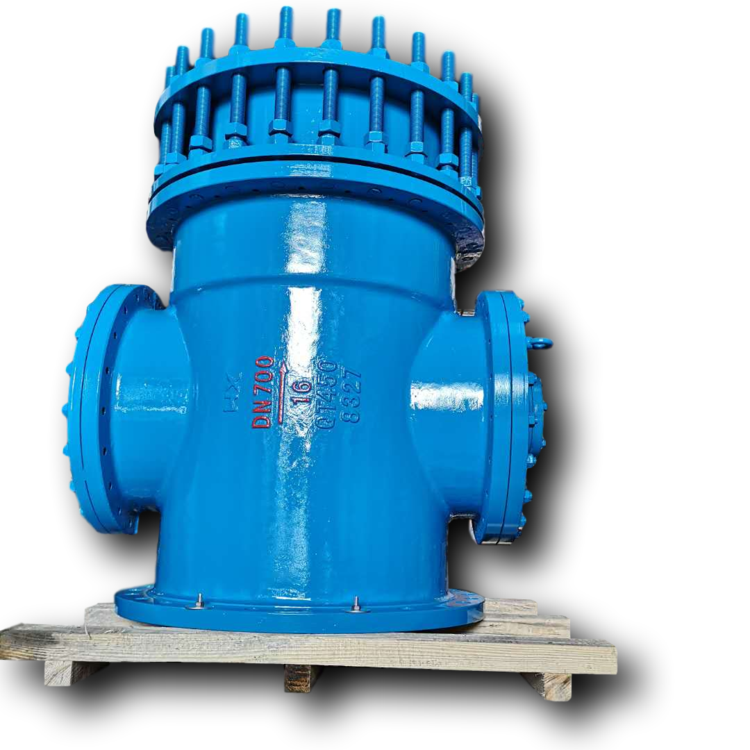

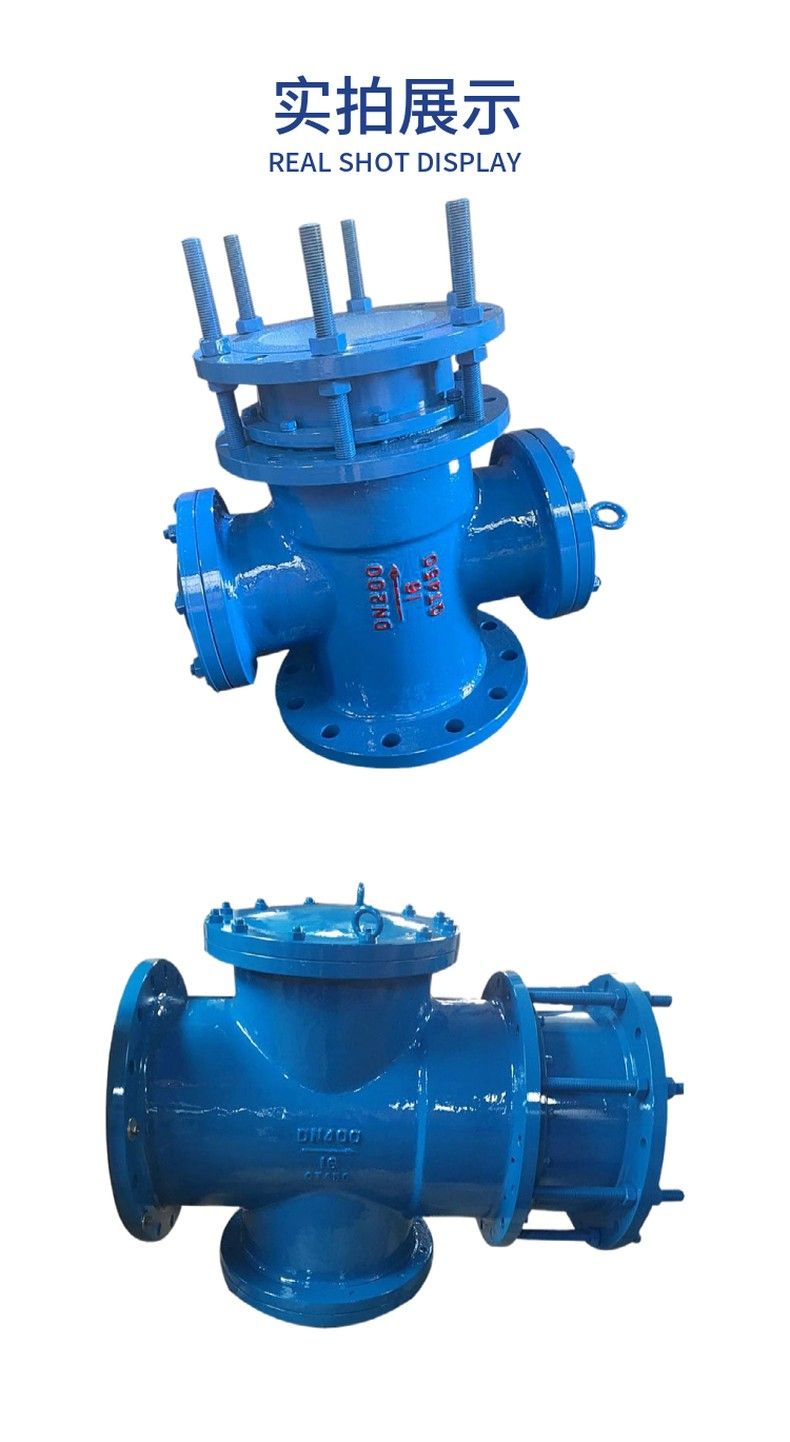

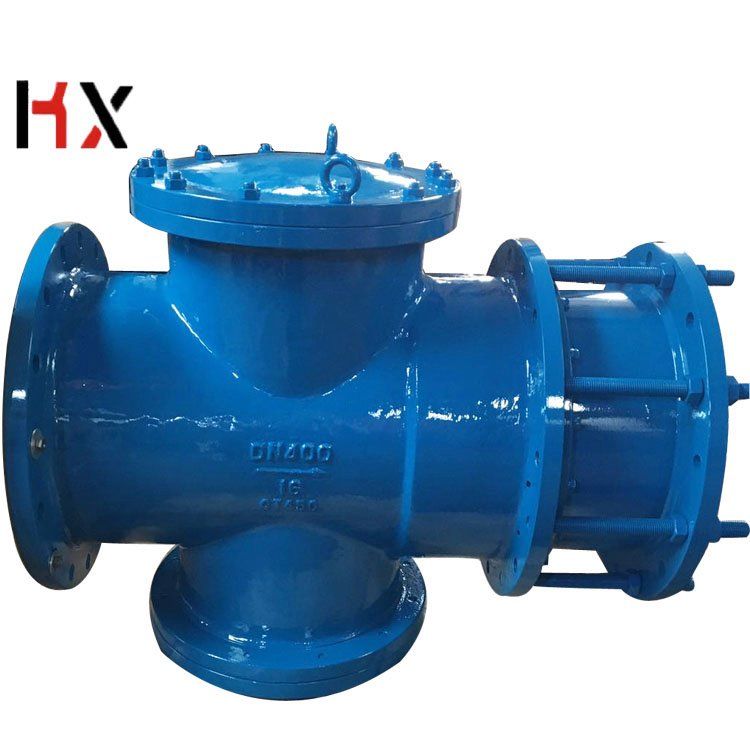

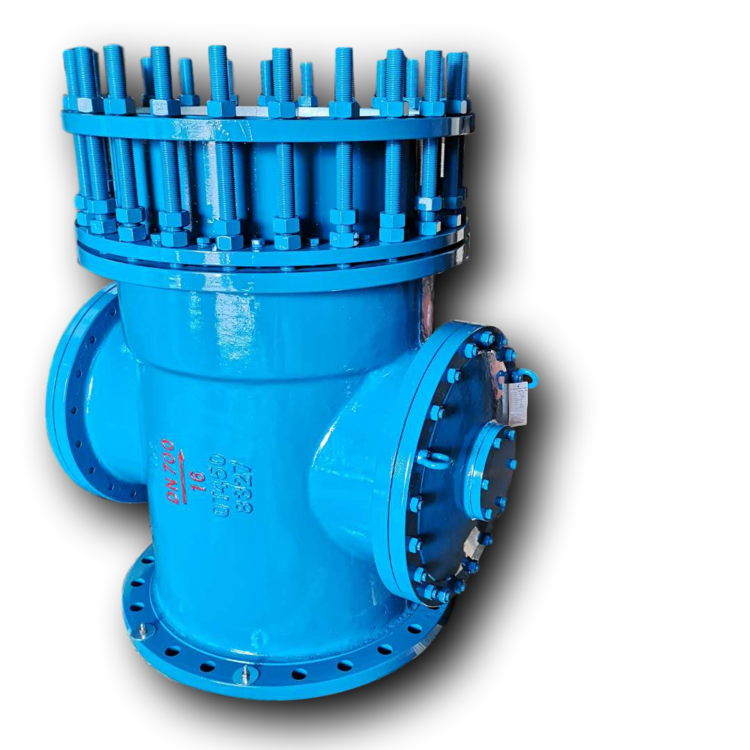

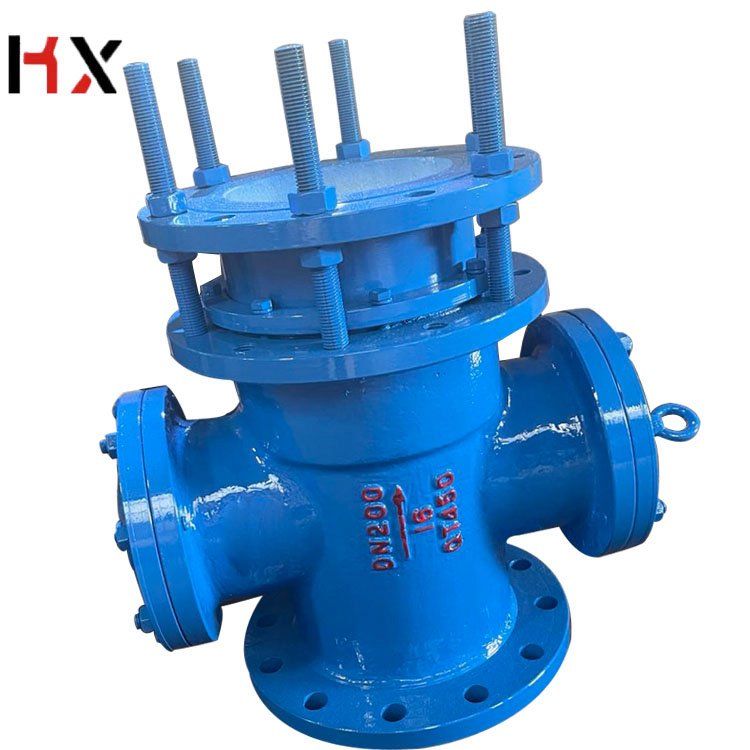

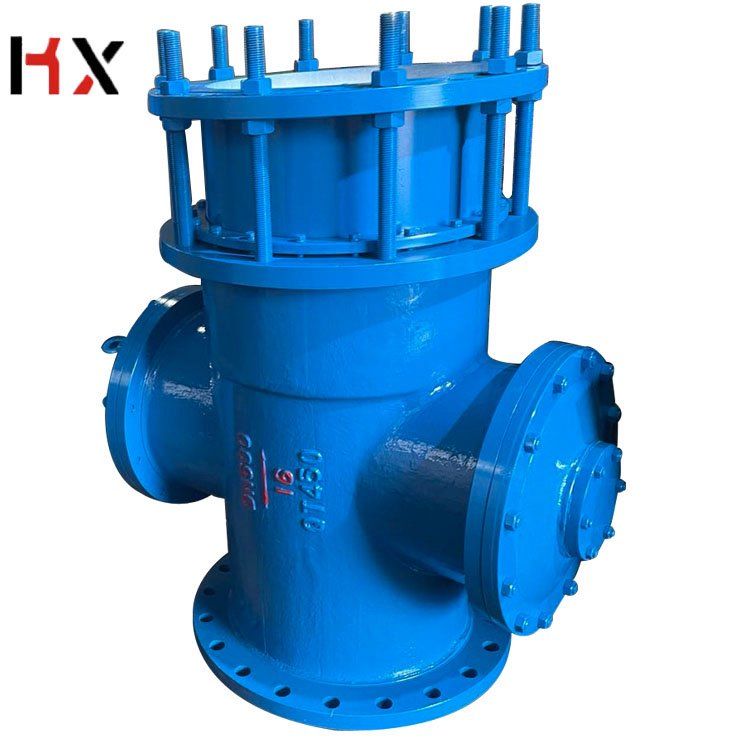

LT Cross tie rod telescopic filter

Rod type telescopic filter is a new design, the Y type filter and telescopic joint combination, simple structure, easy to use, to solve a variety of different standard products flange length caused by different fixed pipe installation inconvenience defects, rod telescopic filter is mainly used in high-rise construction, multi-storey buildings or factories in the water supply and drainage piping. Usually installed in the pressure reducing valve, pressure relief valve, fixed water level valve or other main equipment inlet end, after the installation of the rod telescopic filter is easy to cut the pipeline debris or installation and disassembly to ensure the normal use of valves or equipment, medium temperature: 0~80ºC.

Standard

(Flange size PN1.0MPa according to GB4216.4-14 standard, PN1.6MPa according to GB4216.5-84 standard)

Working principle

When the fluid enters the filter cartridge with a certain specification filter screen, the impurities are blocked, and the clean filtrate is discharged by the filter outlet, when it needs to be cleaned, as long as the detachable filter cartridge is taken out and re-loaded after processing, therefore, the use and maintenance are extremely convenient.

Product Features

1) Easy to discharge and strong anti-pollution ability, in addition, compact mechanism, small size, light weight is also its advantage;
2) The material of the filter screen is usually made of stainless steel, which has strong corrosion resistance, so the service life is longer;
3) The density of the filter is generally 10-120 mesh, usually filtered media including water, steam, oil or customized according to customer needs;
4) Its telescopic characteristics: the general stretchable length is 100mm, which not only provides the range of filtration, but also improves the efficiency of the work.
