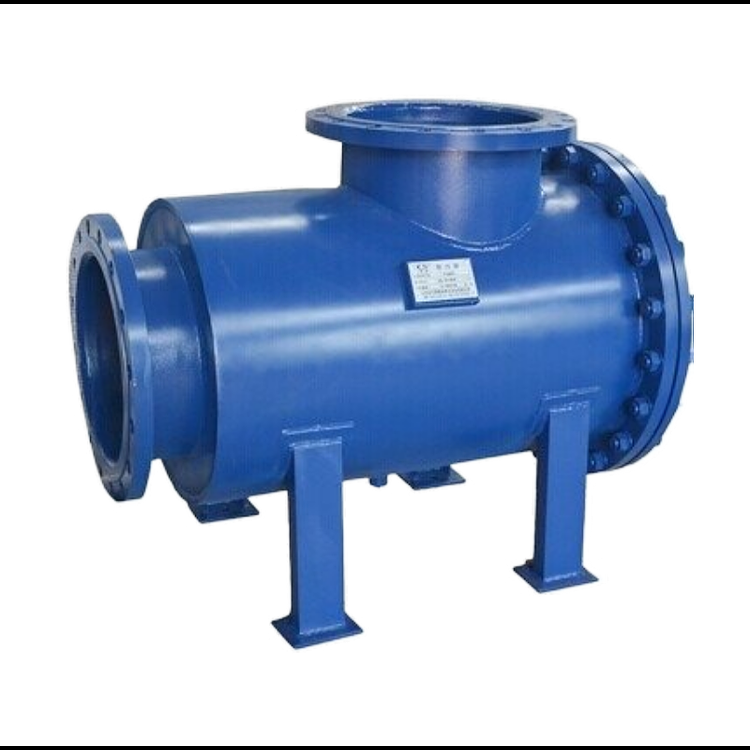

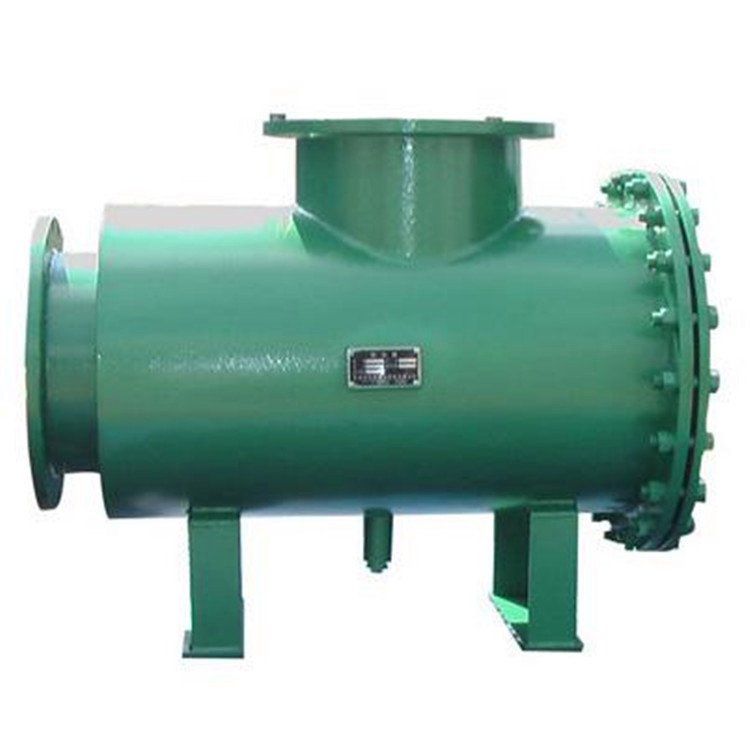

Horizontal cleaner

Product description:
1. Functional use
Second, equipment structure and working principle

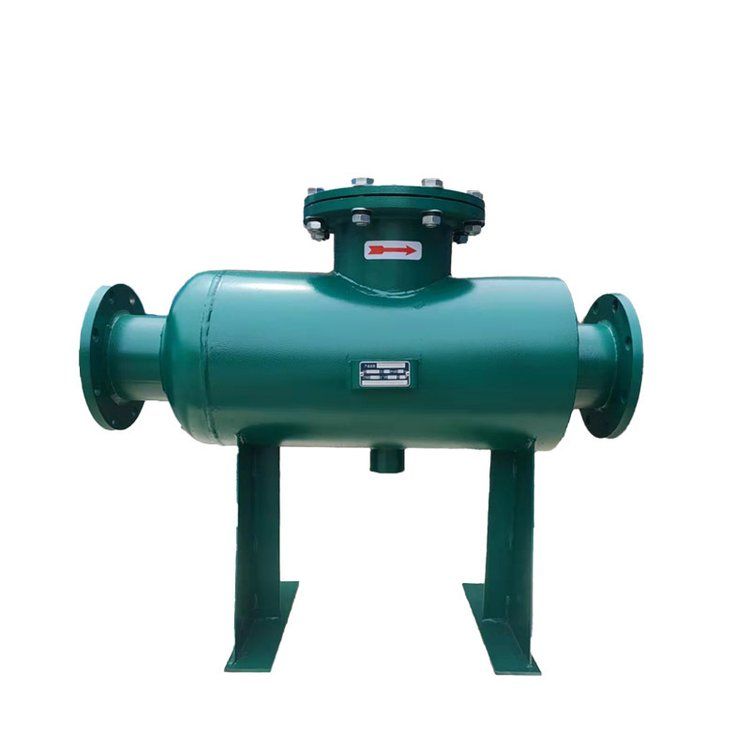

The structure of the decontamination device is divided into three forms according to the national standard drawing R406: horizontal through decontamination device, horizontal Angle through decontamination device and vertical through decontamination device. The feature of the decontamination device is that the filter screen is improved from the galvanized wire mesh specified in the original standard drawing to the special stainless steel filter screen. In the decontaminator, the water flow enters the cylinder by the water inlet, and the water flow filtered by the filter net flows out by the water outlet. The dirt settles at the bottom of the decontaminator and is discharged by the sewage discharge.
Third, installation and use
The decontaminator should generally be set in front of the pressure regulator at the entrance of the heating system or in front of the entrance of each equipment. The straight-through decontamination device is installed on the horizontal pipe, and the angular decontamination device can be installed on the pipe with a right Angle turn. The direction of the arrow on the shell must be consistent with the direction of the water flow. Regular discharge should be carried out during operation.
Fourth, equipment characteristics
1, the filter can work normally under the full flow, continuous water, not only maintain a high flow rate, but also have a low pressure drop, to avoid the surface stain caused by low flow rate;
2, directly installed on the pipe network system, does not need any support structure, saving space;
3, easy installation, only need to connect to the pipeline of the system to be processed;
4, do not need to install by-pass pipeline, disassemble sewage;
5, cleaning does not affect the normal filtration.
Performance parameters:
Caliber: DN50----1000
Design pressure: 1.6Mpa
Design temperature: 200ºC
Filter aperture: diameter 1-10
Flange standard: JB/T81-94
