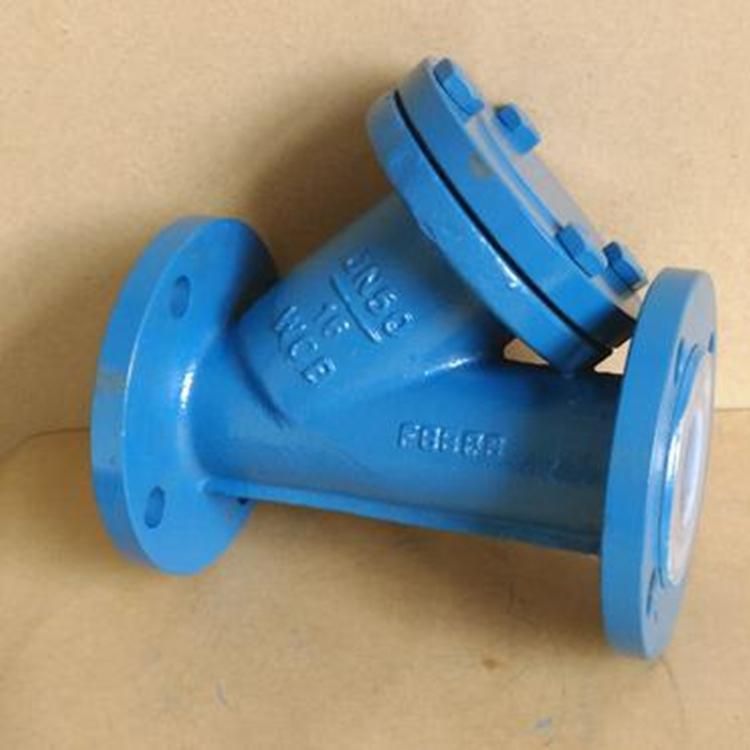

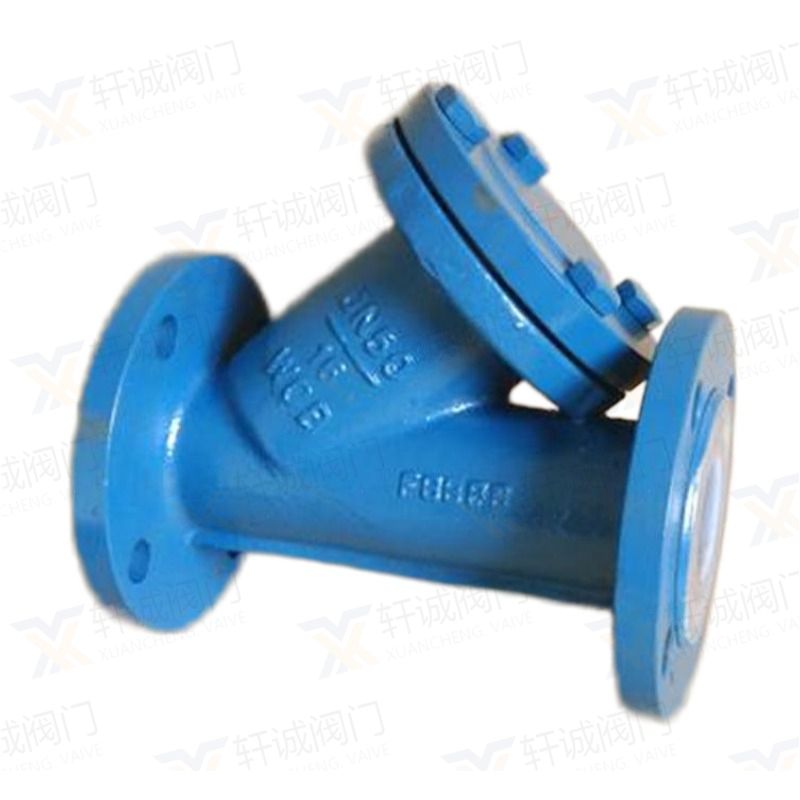

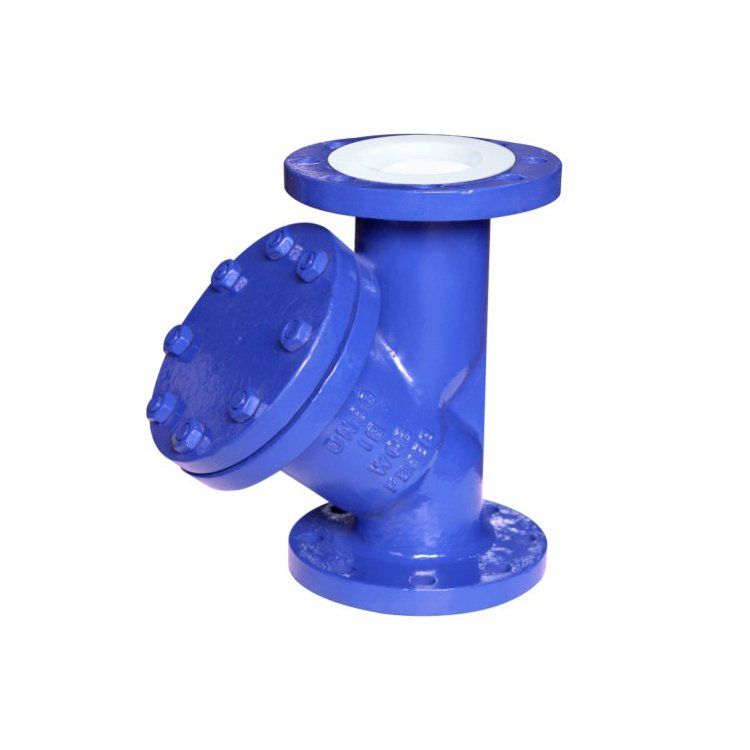

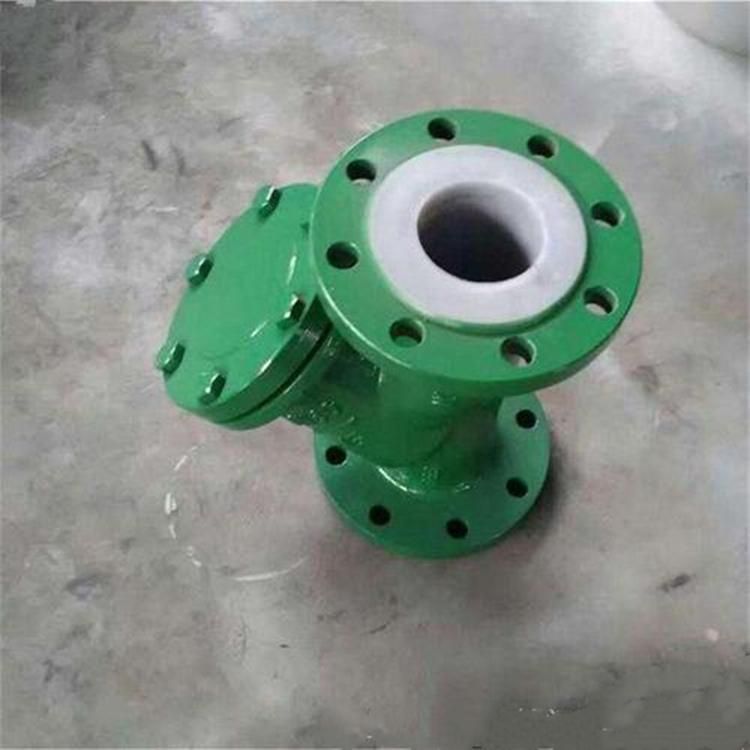

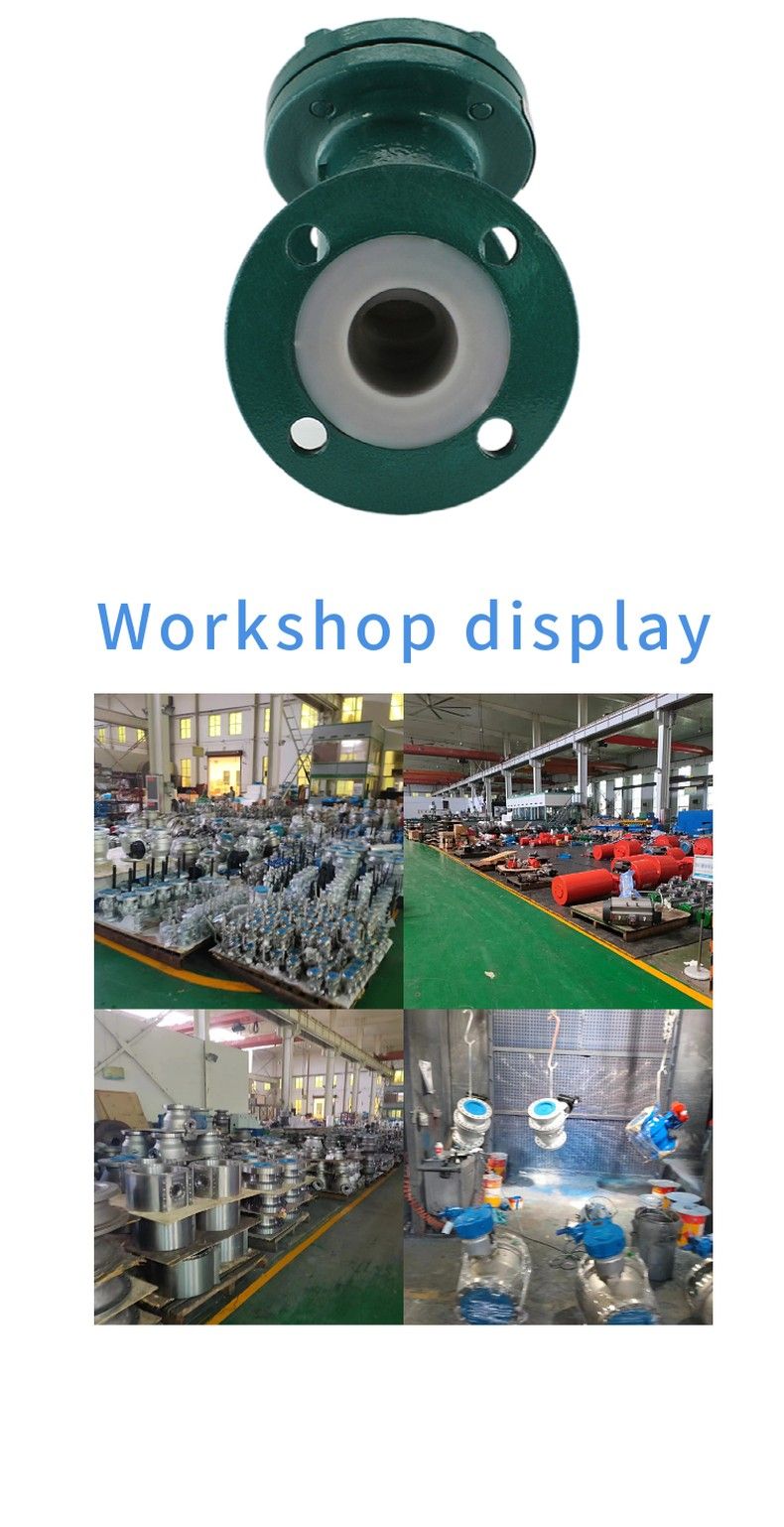

GL41F46 Lined with fluorine Y filter

First, GL41F46 fluorine-lined filter overview:

Y-type fluorine-lined filter is used to remove impurities in corrosive media and protect the normal use of pumps, valves and other equipment. Generally, the water network is 20-60 mesh /cm2, the ventilation network is 40-100 mesh /cm2, and the oil network is 100-480 mesh /cm2. Can be configured according to the medium. Because the inner wall of the filter and the filter screen are made of tetrafluoroethylene with strong corrosion resistance, the product is widely used in various corrosive pipelines.

Second, GL41F46 type fluorine-lined filter flange size:

Flange size PN1.0MPa according to GB9115.8-88 standard.
Flange size PN1.6MPa according to GB9113.3-88 standard
flange size PN2.5MPa according to GB9113.4-88 standard
three, GL41F46 type fluorine-lined filter model specifications
Nominal pressure: 1.0 ~ 2.5MPa
Nominal diameter: 20 ~ 450mm.

Three, GL41F46 type lined fluorine filter main zero material table:

Four, GL41F46 type lined fluorine filter main connection size and weight
