Free manual wash filter

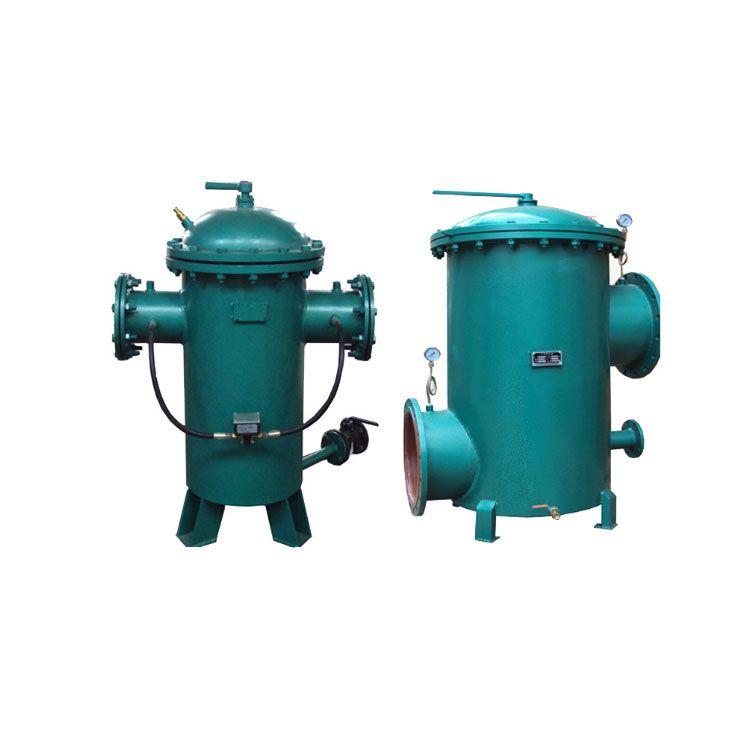

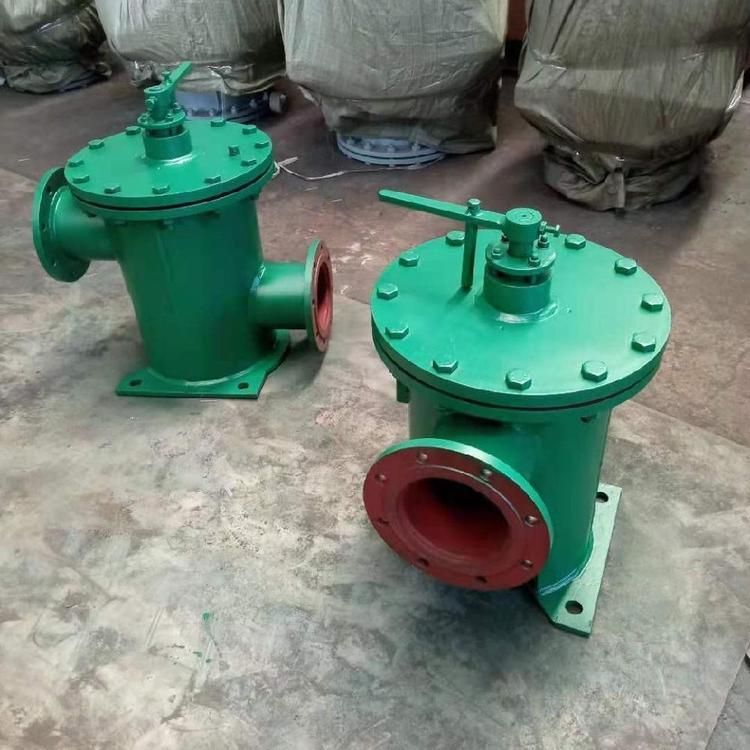

The internal structure of SYL, STL and SZL is basically the same as ZZL (single cylinder) filter, but it is manually operated to clean the filter that is running, and it is very convenient to clean, without removing any part of the Y or T filter, as long as the drain valve is opened, and the handle on the filter is rotated 3-4 turns at the same time. After cleaning, immediately close the blowdown valve, then you can observe the difference in pressure of the two pressure gauges on the filter body before and after cleaning.
Only need
Filtration takes only a few minutes
Hold
Keep working continuously
The amount of water consumed
Only 1-2% of the average flow of the main pipeline
It can be seen that the filter can be manually cleaned and filtered in just a few minutes, and can maintain continuous work without stopping. The amount of water consumed by SYL and STL cleaning at one time only accounts for 1-2% of the average flow of the main pipe.
Accuracy conversion

Product Overview

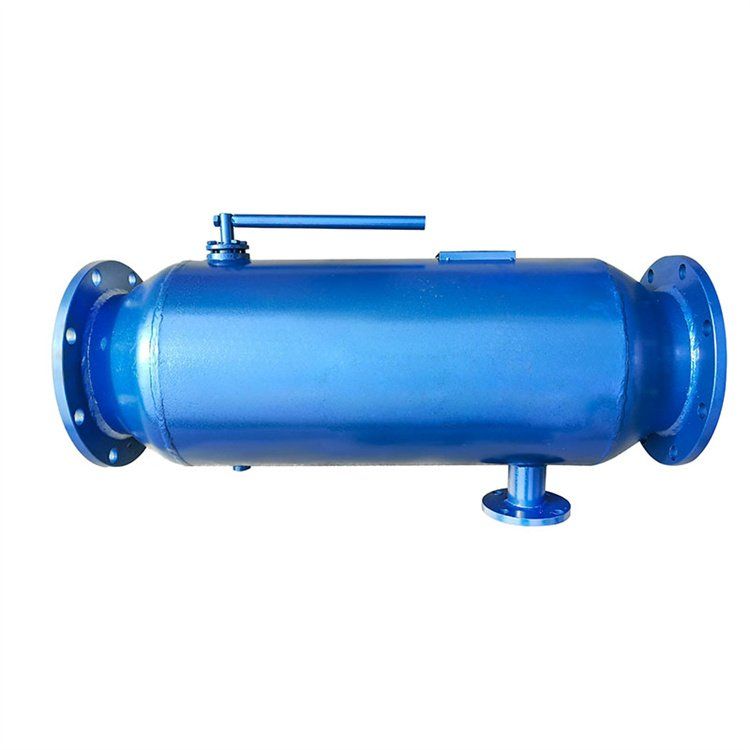

Manual recoil filter (DN50, all stainless steel)
Product features
recoil sewage filter is suitable for all kinds of water supply systems, process water systems and industrial cooling water systems, especially the 24-hour continuous operation of the non-stop system, can filter out all kinds of mechanical impurities in the water, to ensure the safe and reliable operation of system equipment.
Main features
1. High filtration accuracy: wide range of filtration accuracy,d=0.5 ~ 1.2mm;
2. Large filter water: the filter pressure loss is small, the treatment water is large, up to 7000m3/h;
3. Long service life: composed of stainless steel wedge-shaped filter screen and high-quality carbon steel cylinder;
4. Low comprehensive cost: no need to disassemble and replace the filter, the service life of up to 20 years;
5. Simple operation and high efficiency: no need to connect bypass, no need to remove the machine cleaning, good filter recoil effect.
