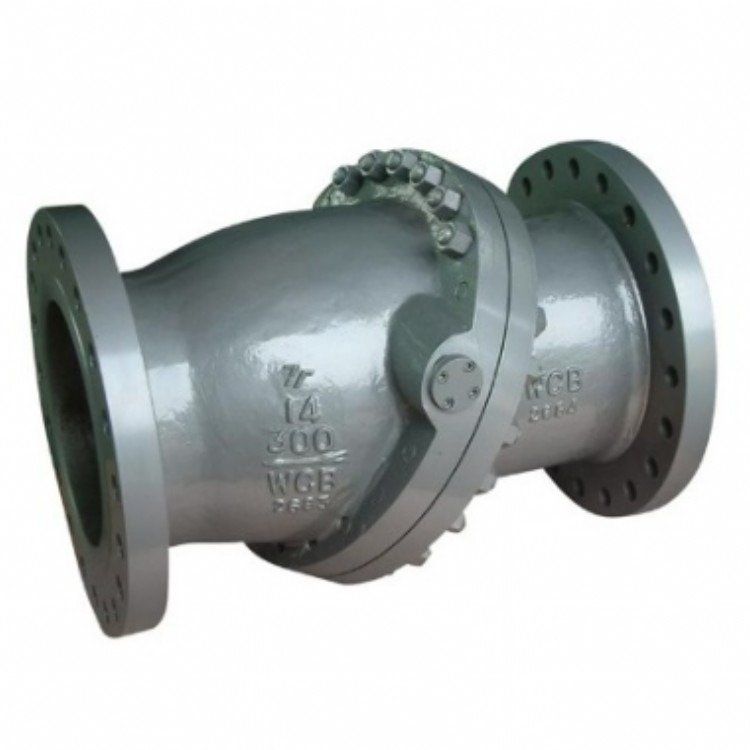

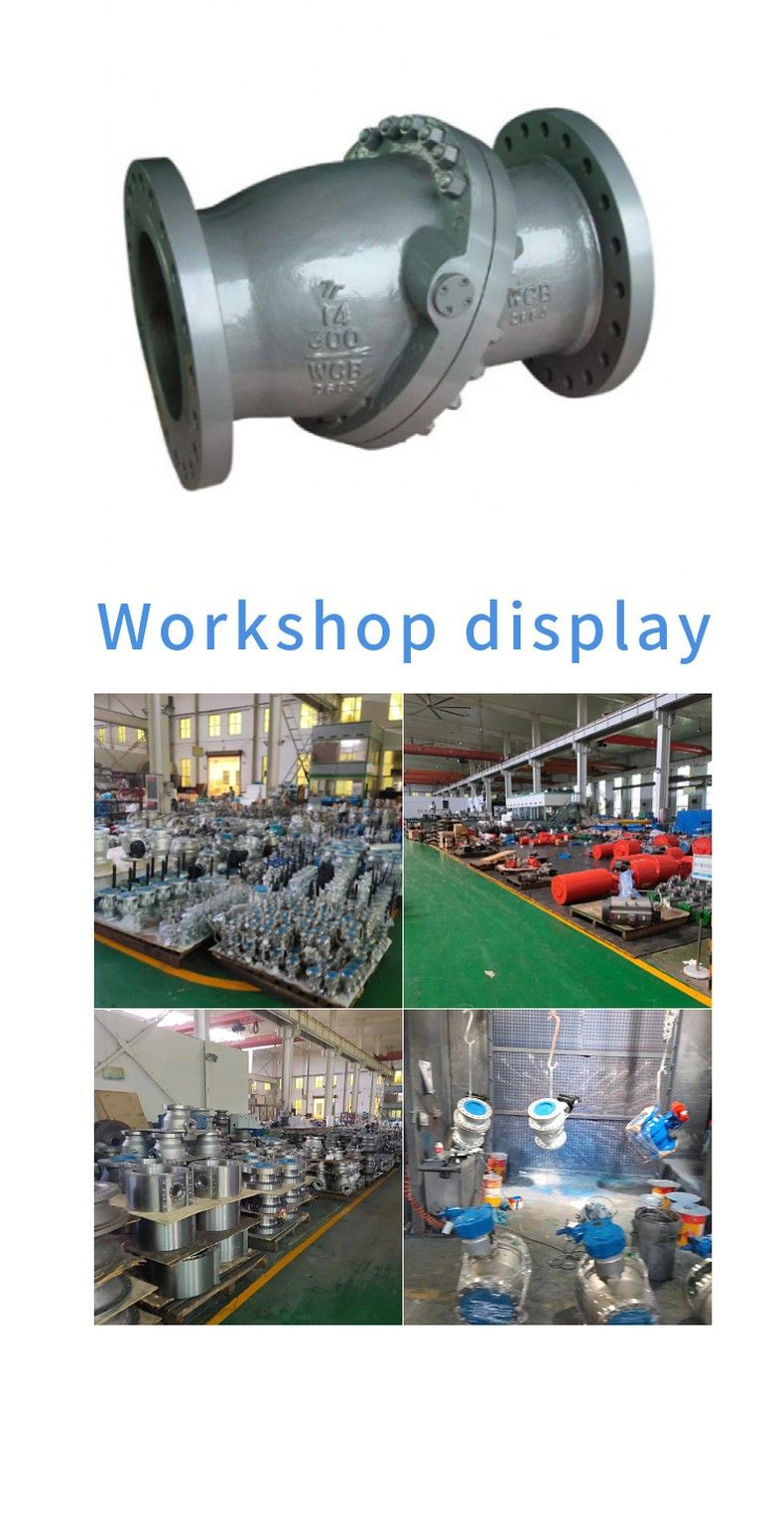

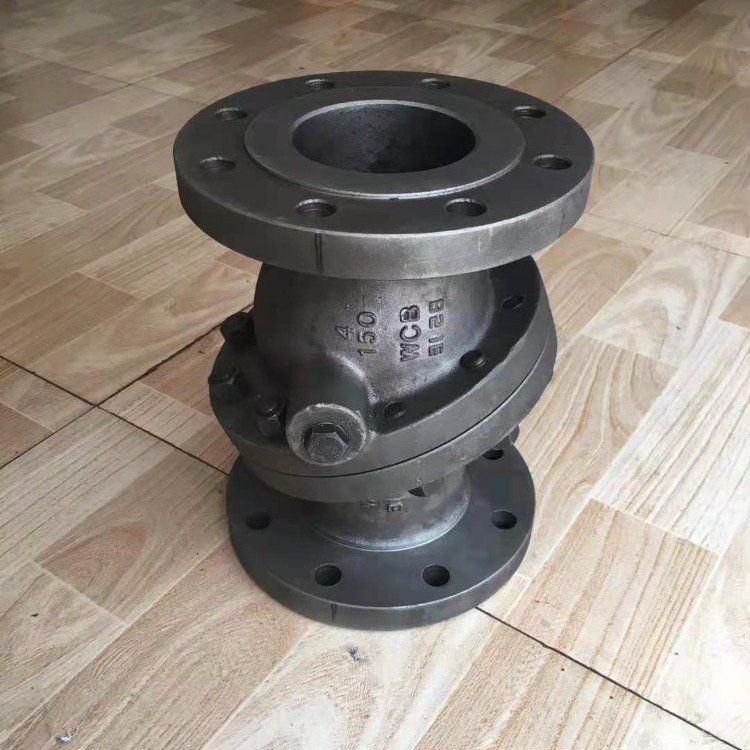

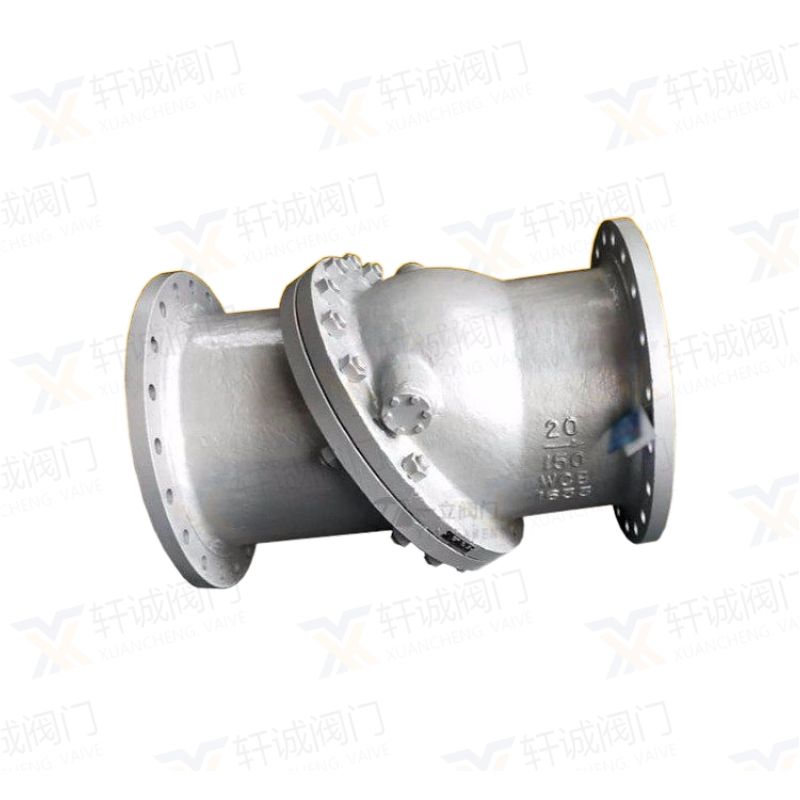

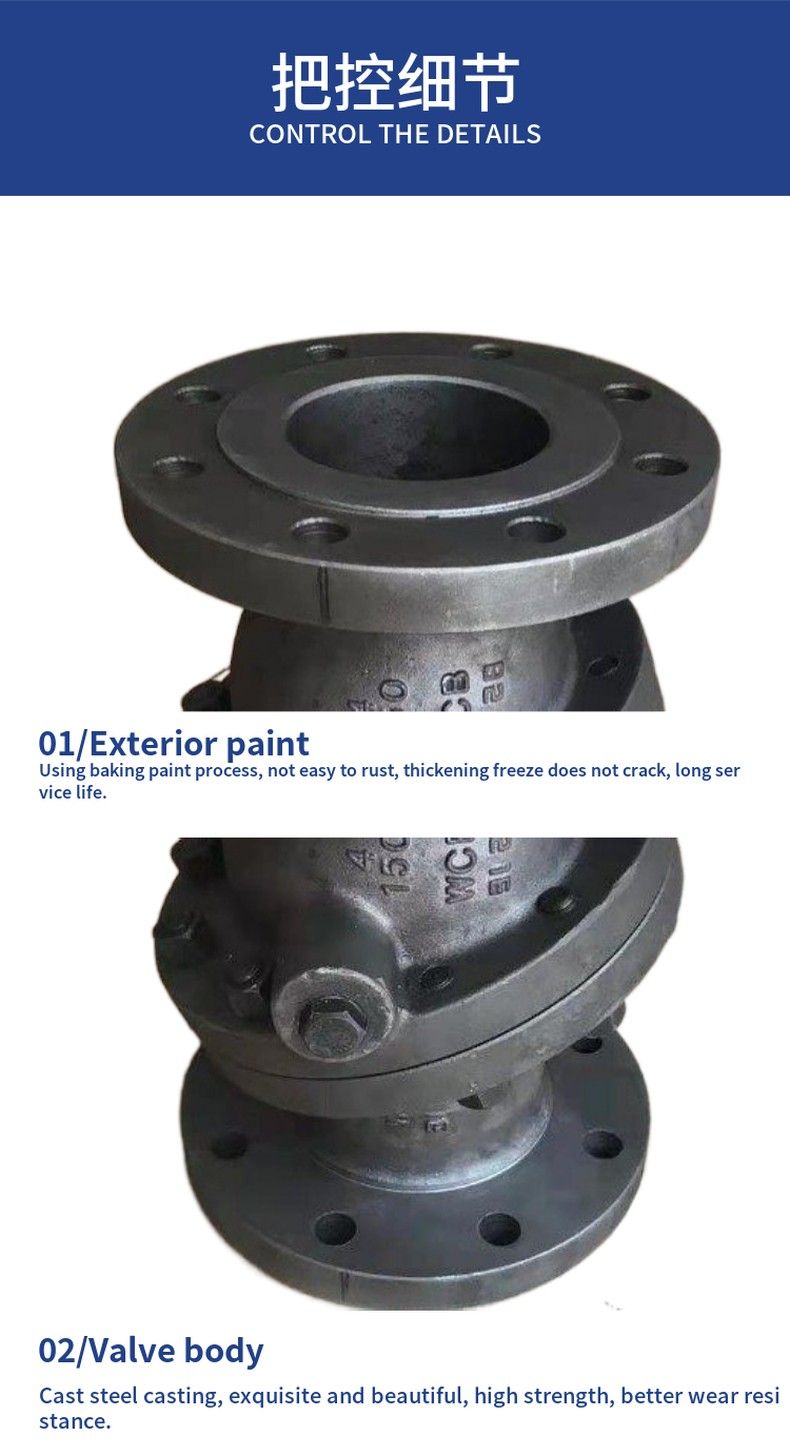

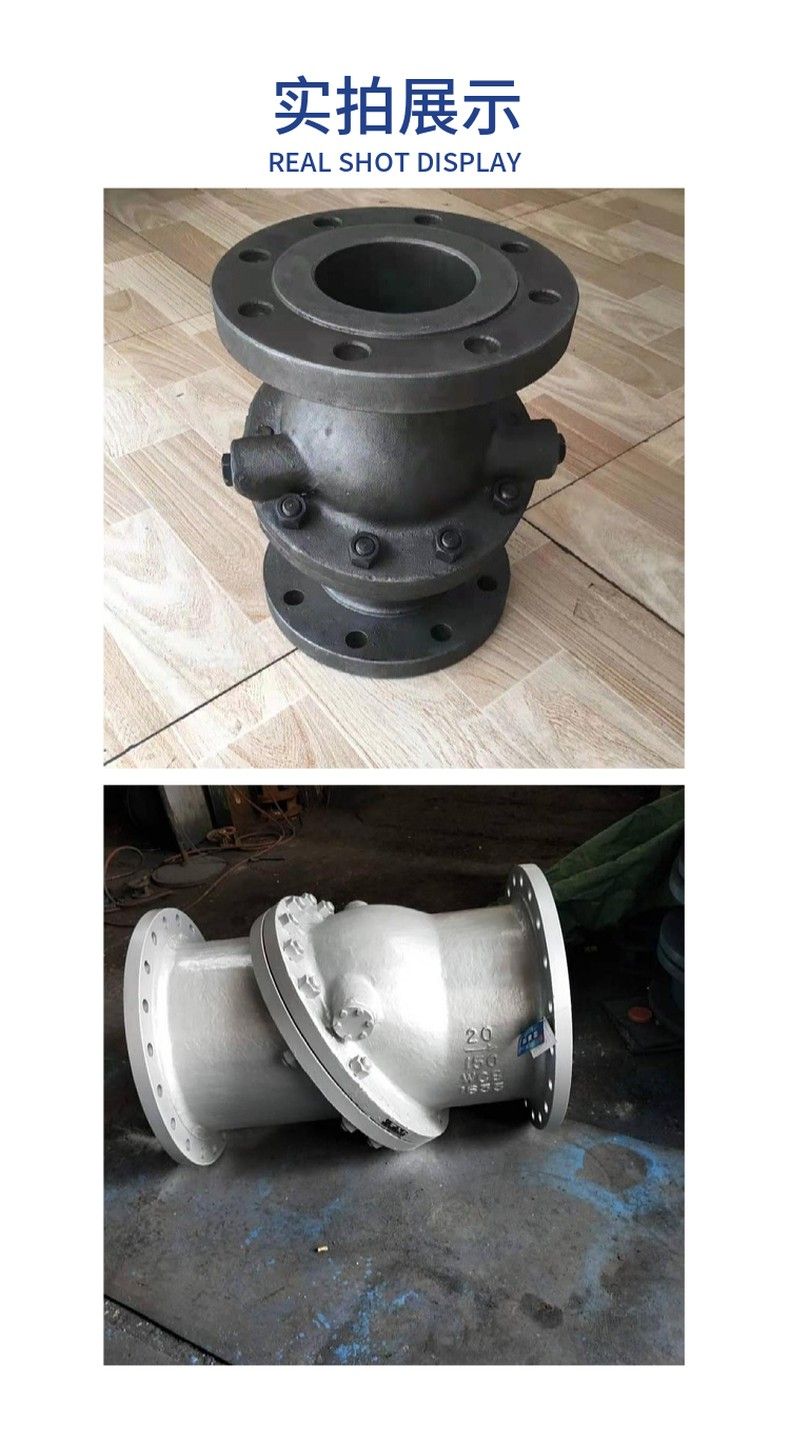

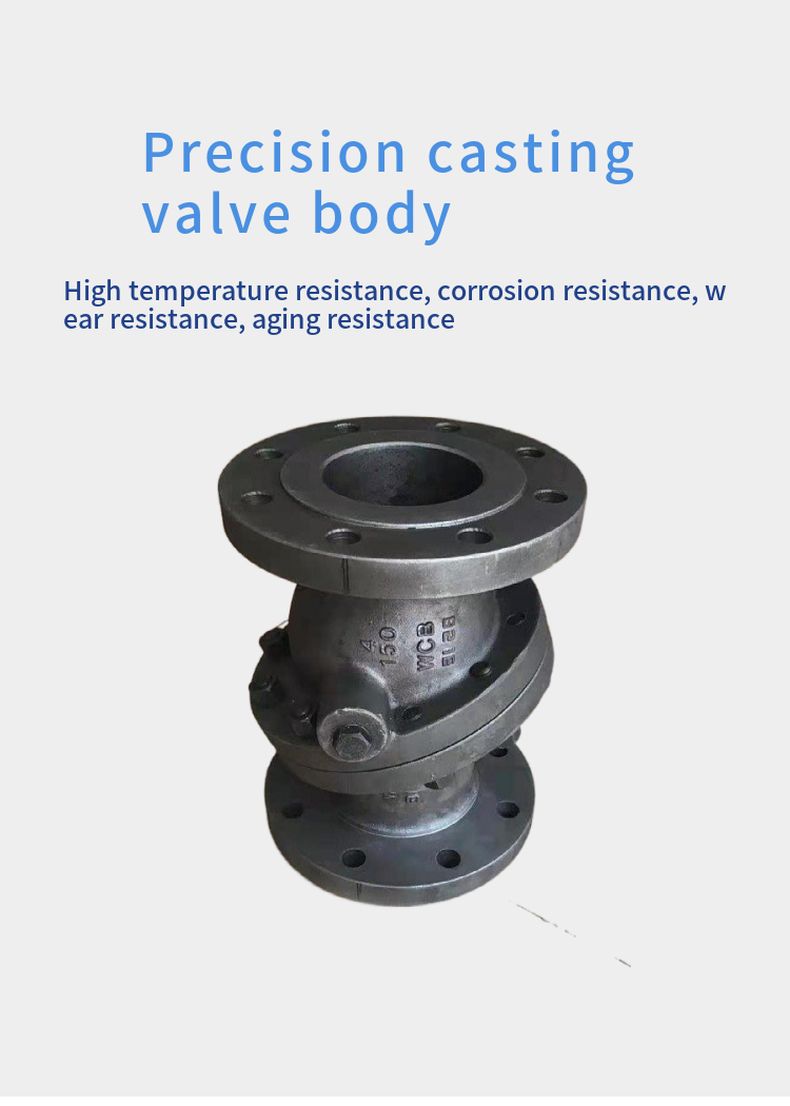

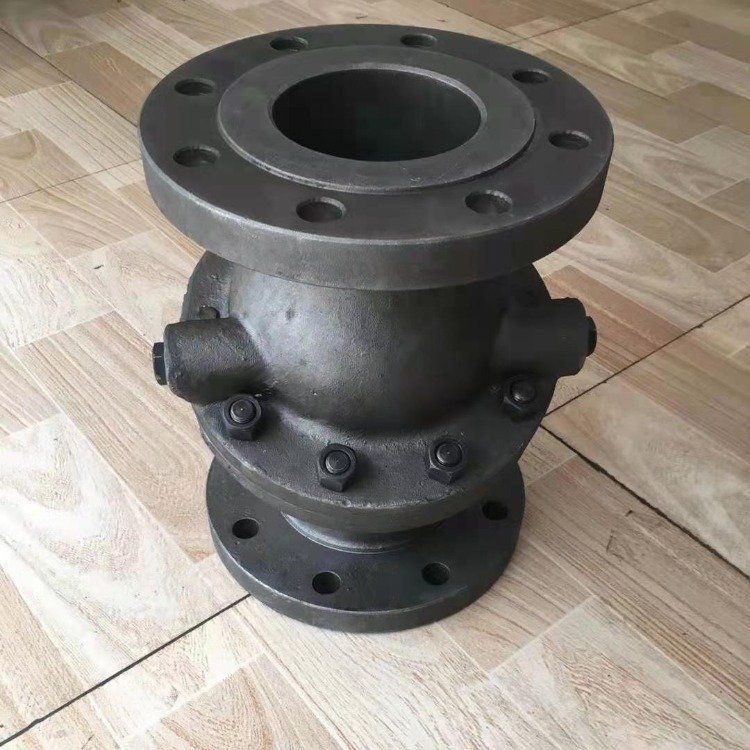

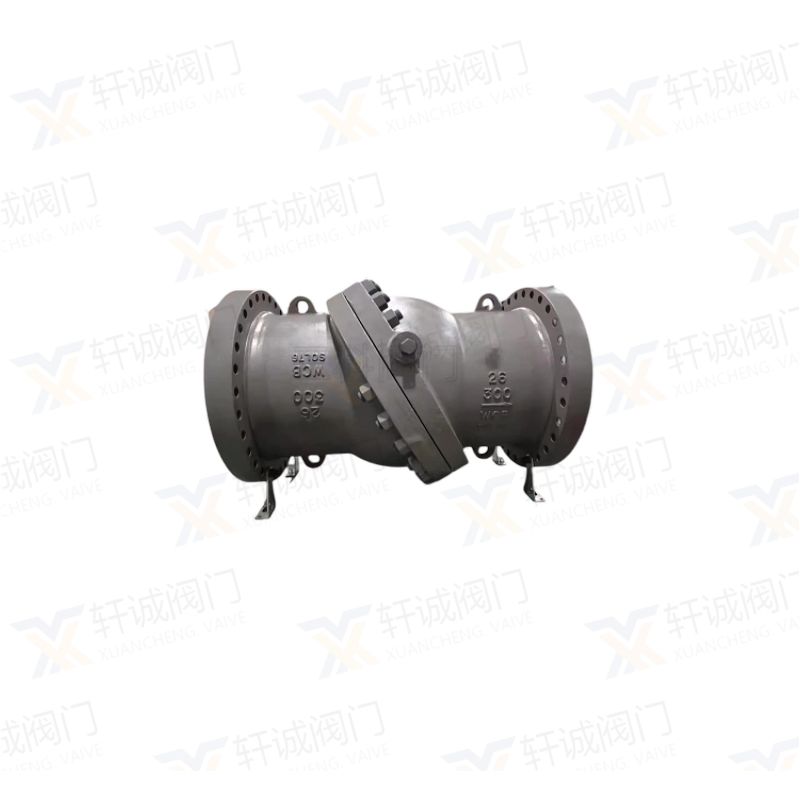

PXH44H swash plate check valve

Design specification

Flange size according to: ASME B16.5 GB HG SH
Pressure rating: Class 150, 300, 600 PN 2.0, 5.0, 10.0 MPa

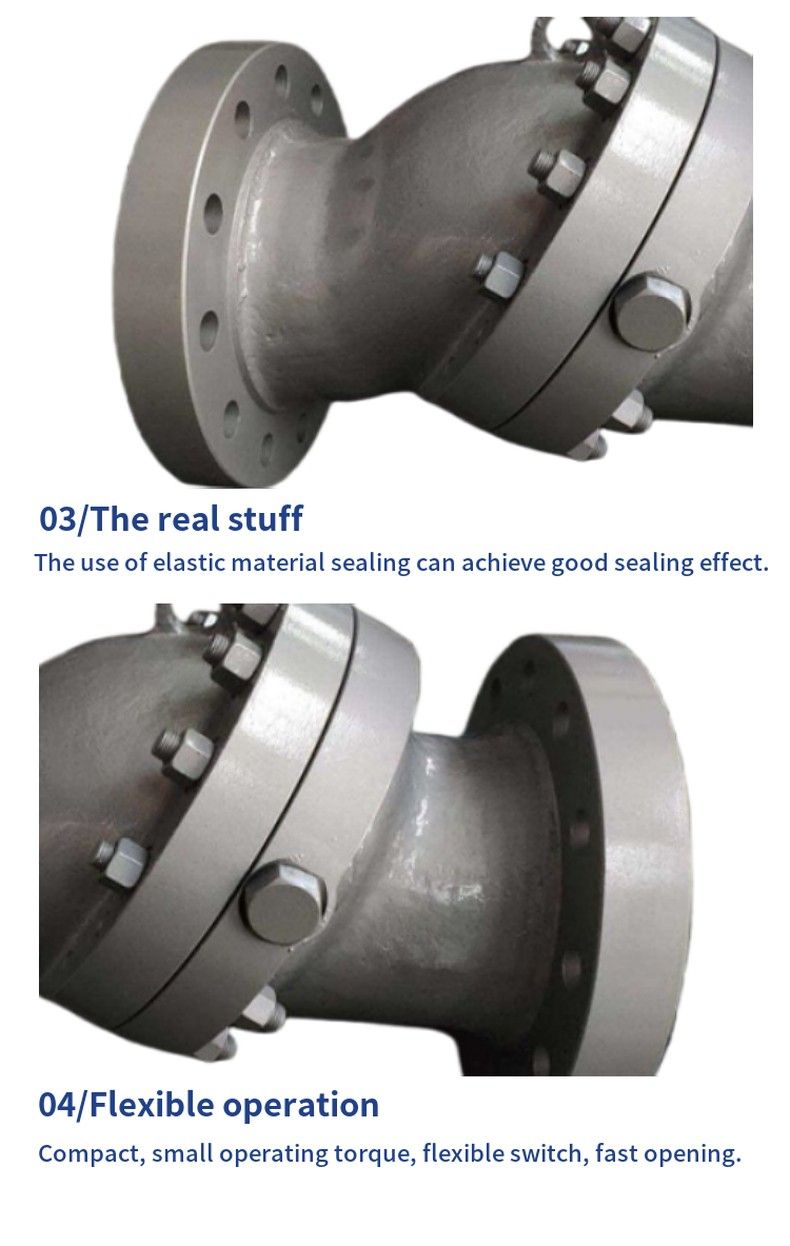

Structural features

Double eccentric valve disc, when closed, the valve seat and the sealing surface gradually contact, to achieve no impact, no noise work.
The micro-elastic metal seat has good sealing performance.
Butterfly valve disc design, quick switching, sensitive, long service life.
Swash plate structure streamlines the fluid channel, small flow resistance, energy saving effect.

Parts Materials

Code	Valve body	Flap	Seal seat
P	CF8	CF8+STL	0Cr19Ni9	PTFE
R	CF8M	CF8M+STL	0Cr17Ni12Mo2
K	CF3	CF3+STL	00Cr19Ni11
J	CF3M	CF3M+STL	00Cr17Ni14Mo2
E	CN7M	CN7M+STL	Alloy # 20
C	WCB	WCB+13Cr	0Cr19Ni9
D	LCB	CF8+STL	0Cr19Ni9

Performance Characteristics

Performance	Swing check valve	Swash plate non-impact check valve
Closing force	big	Small (is about 1/5 ~ 1/8 of the former)
Impact Force	big	There is no
Tightness	Press API 598 to allow leaks	Zero leaks can be achieved
Flow Resistance	Large (flow resistance coefficient ξ=1.3 ~ 2.5)	Small (rheostatic coefficient ξ=0.18 ~ 0.6)
Flow capacity	Small (flow coefficient Cv=76)	Large (flow coefficient Cv=154 ~ 333)
Weight	Larger	Smaller (is about 80% of the former)

Main size

Valves Diameter	NPS	2	2?	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32
Valves Diameter	DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	seven hundred	750	800
L		203	216	241	292	356	495	622	698	787	864	978	978	1295	1295	1143	1143	1194
D		160	182	196	230	300	390	432	510	540	635	seven hundred	770	900	930	991	1020	1150
W		178	198	224	252	326	426	456	530	576	670	740	818	948	988	1050	1090	1240
Weight (kg)		11	16	22	34	62	112	169	238	337	420	550	685	910	1055	1260	1540	1860

Class 300 Main sizes:

valve Diameter	NPS	2	2?	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32
valve Diameter	DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	seven hundred	750	800
L		267	292	318	356	444	533	622	711	838	864	978	1016	1346	1346	1295	1372	1448
D		170	196	214	245	320	400	460	540	580	660	725	800	940	970	1040	1080	1210
W		198	220	232	268	360	426	457	572	620	690	760	848	988	1018	1250	1280	1350
Weight (kg)		17	22	32	97	110	162	228	380	443	530	780	980	1320	1364	1762	2050	2870

Class 600 Main sizes:

Valves diameter	NPS	2	2	3	4	6	8	10	12	14	16	18	20	24
Valves diameter	DN	50	65	80	100	150	200	250	300	350	400	450	500	600
L		292	330	356	432	559	660	787	838	889	991	1092	1194	1397
D		185	196	210	270	340	440	520	570	610	690	755	850	990
W		212	225	240	298	405	460	492	602	650	710	780	902	1040
Weight (kg)		27	44	47	115	190	320	430	586	750	1015	1480	2050	2550
