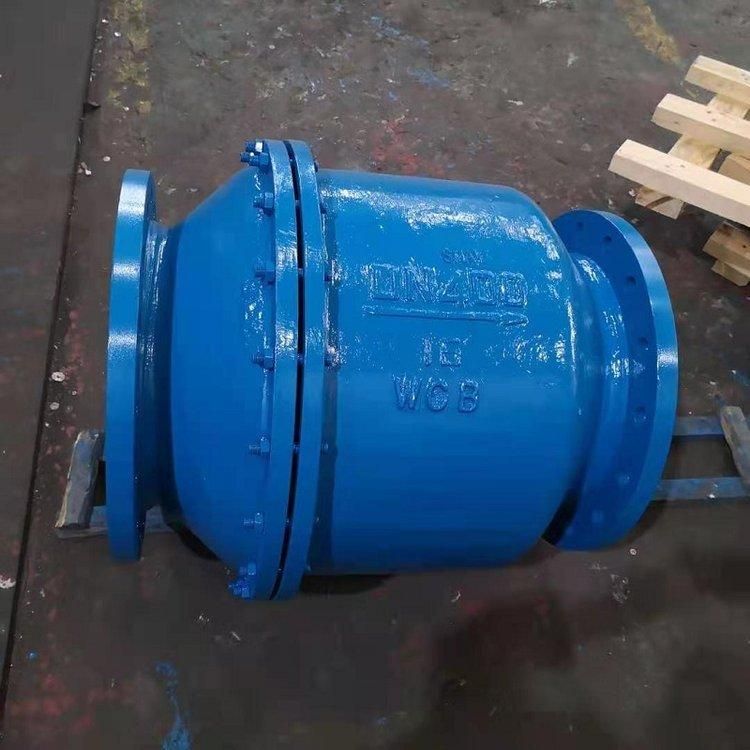

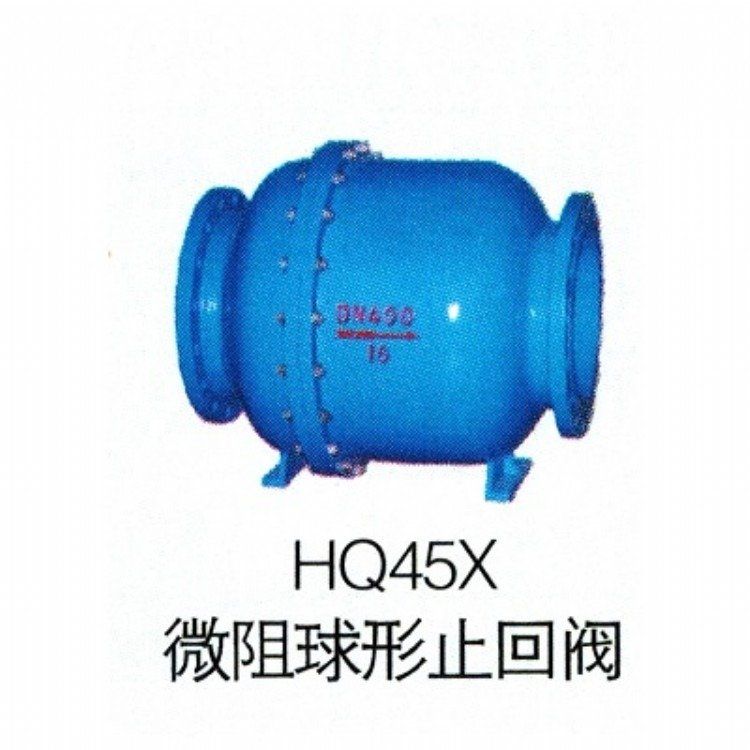

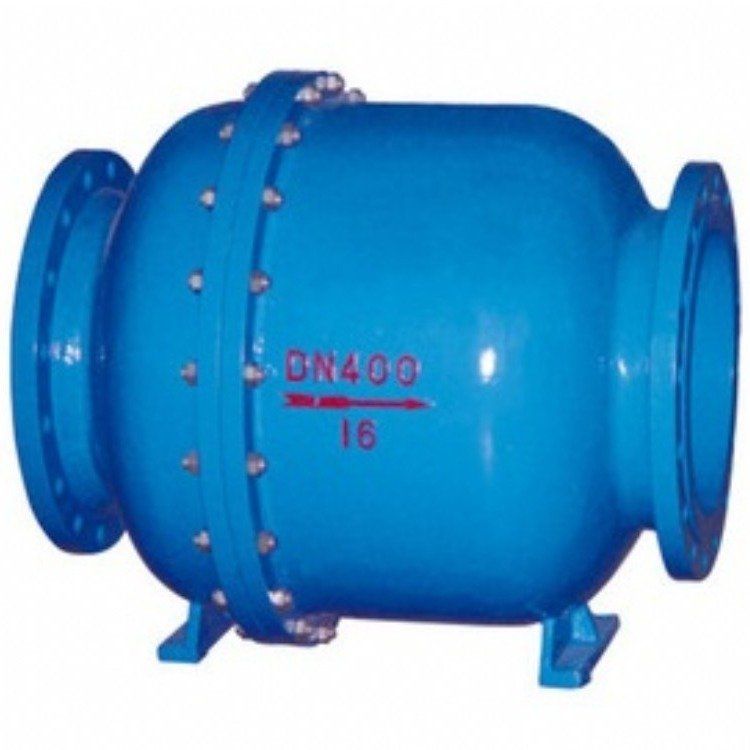

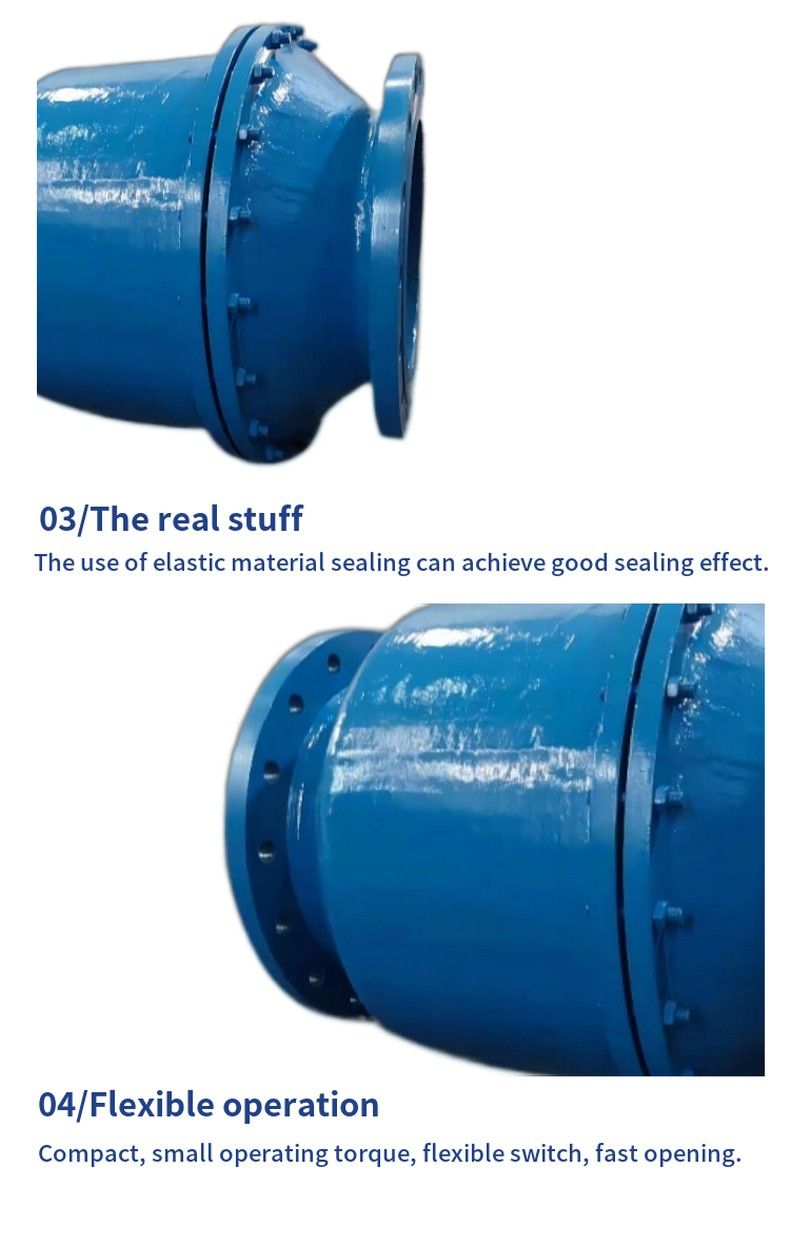

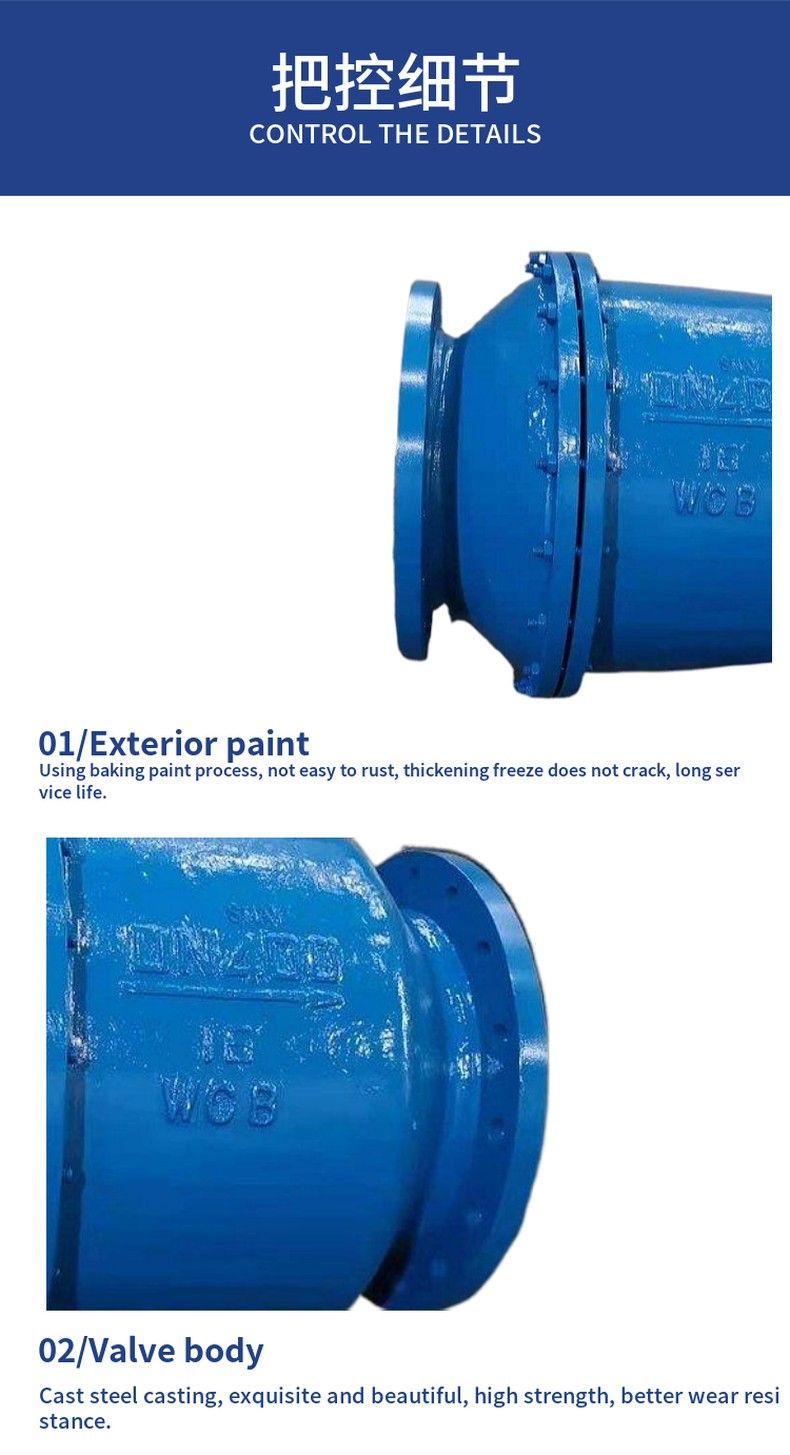

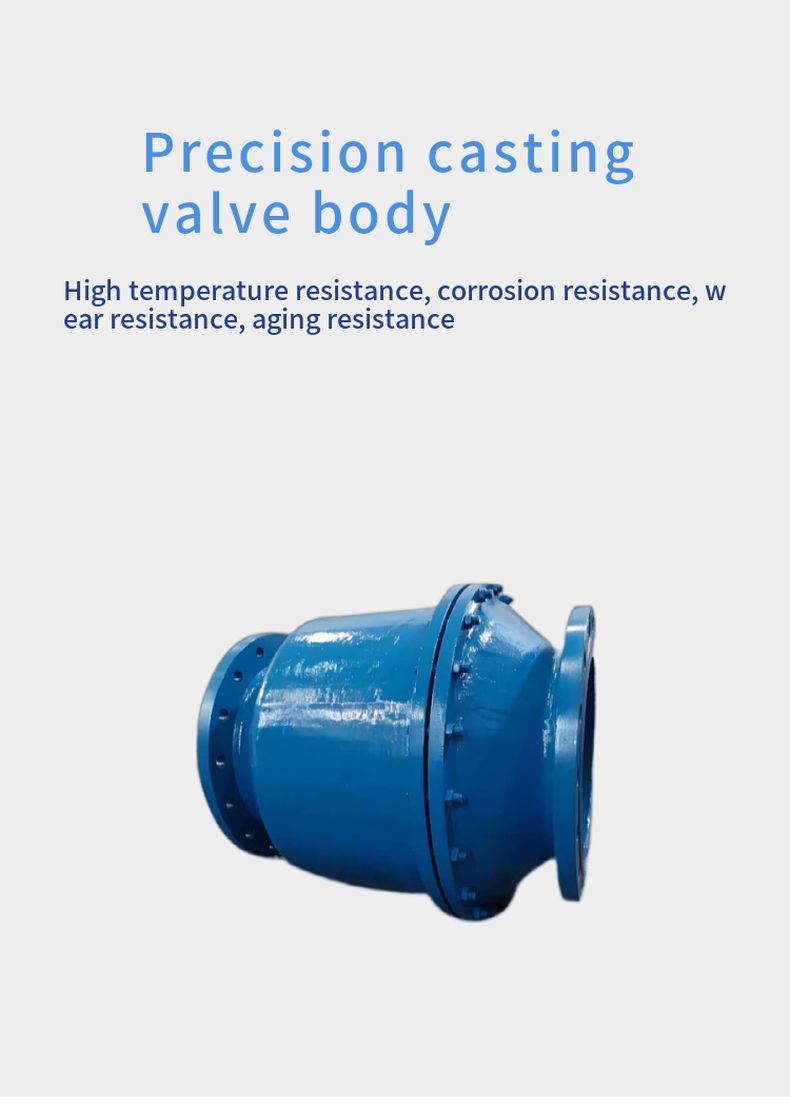

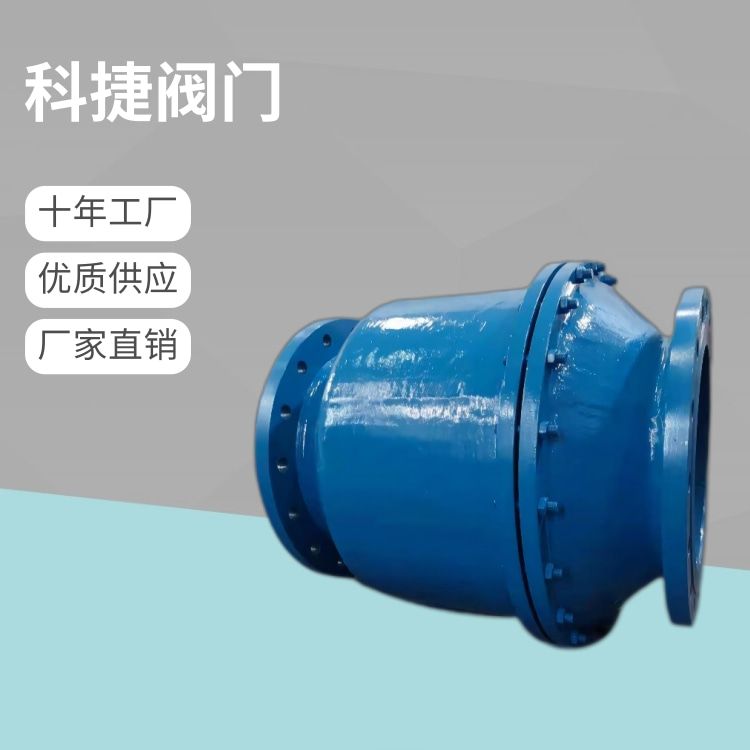

HQ45X multi-ball check valve

First, product introduction
Micro resistance spherical check valve, using rubber covered ball as the valve disc, under the action of the medium, can be rolled on the slide in the valve replacement, so as to open or close the valve. The flow resistance loss is small, the sealing performance is good, the sound is muffled and the water shock wave can be reduced. Horizontal or vertical installation can be. Can be used for cold water, hot water, industrial and domestic sewage pipe network pump outlet, to prevent the backflow of the medium.


Second, the working principle
The disc of the ball check valve is a sphere covered with rubber or engineering plastic, so its sealing is reliable. Ball type check valve nominal diameter size, there are single ball and multi-ball points, the sealing principle is: when the pump, the medium forward flow of the medium pressure to promote the ball movement, along the guide column to leave the seat sealing surface, the check valve will open, the medium through, when the pump is stopped, the medium reverse flow pressure to push the ball along the guide column to roll to the seat sealing surface, close the check valve, By the pressure of the working medium, the ball valve disc and the seat sealing surface produce a certain specific pressure of sealing, to ensure the sealing of the check valve, to prevent the purpose of the medium counterflow.
Applicable temperature 80 (ºC) Pressure range 1.0 (Mpa)
Applicable medium water and weakly corrosive fluid nominal diameter 50-1000 (mm)
Structural form swing type main material cast steel
connection form Flange product alias HQ45X type micro resistance spherical check valve
Applicable scope used in national defense, scientific research, aerospace, electronics, machinery, metallurgy, petroleum, Chemical Industry, Energy, environmental protection, biomedicine, refrigeration, food and other fields of product model HQ45X
type HQ45X type micro resistance spherical check valve brand Minke

HQ45X type micro resistance spherical check valve Overview :
HQ45X type micro resistance spherical check valve, using rubber covered ball as the valve disc, under the action of the medium, it can roll on the slide in the valve replacement, so as to Open or close the valve. Flow resistance loss is small, sealing performance is good, muffled close, can reduce water shock wave. Horizontal or vertical installation can be. Can be used for cold water, hot water, industrial and domestic sewage pipe network pump outlet, to prevent the backflow of the medium.

HQ45X type micro-resistance spherical check valve main technical parameters
Pressure: 1.0 ~ 1.6MPa
nominal passage: 50 ~ 1000mm
Applicable medium: water and weakly corrosive fluid
Applicable temperature: 0 ~ 80ºC
Flange standard: GB/T17241.6GB/T9113
Test standard :GB/T13927AP1598
HQ45X
type micro resistance spherical check valve Main components materials:

Part name Valve body valve disc seat spring
material Cast iron, ductile iron, cast steel cast copper, stainless steel copper, stainless steel stainless steel
