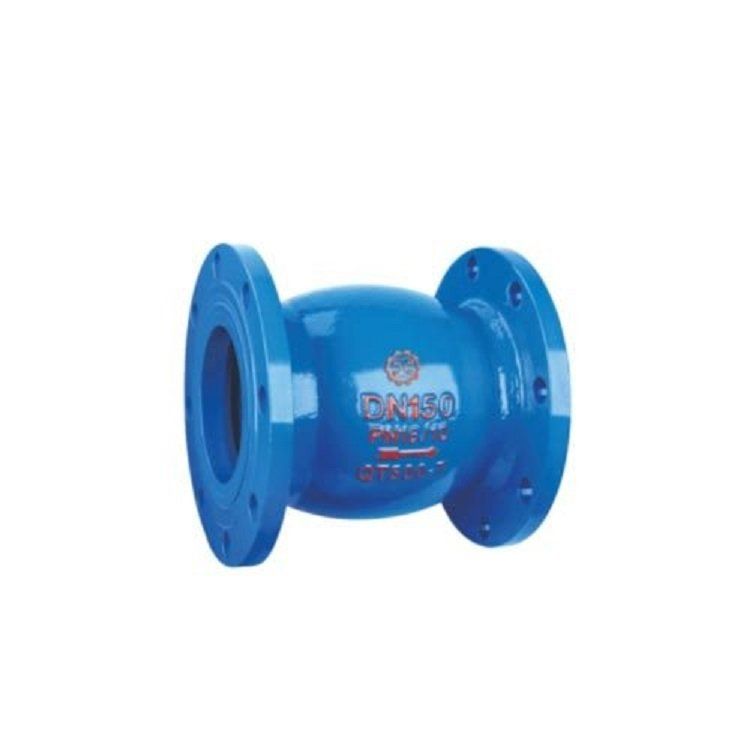

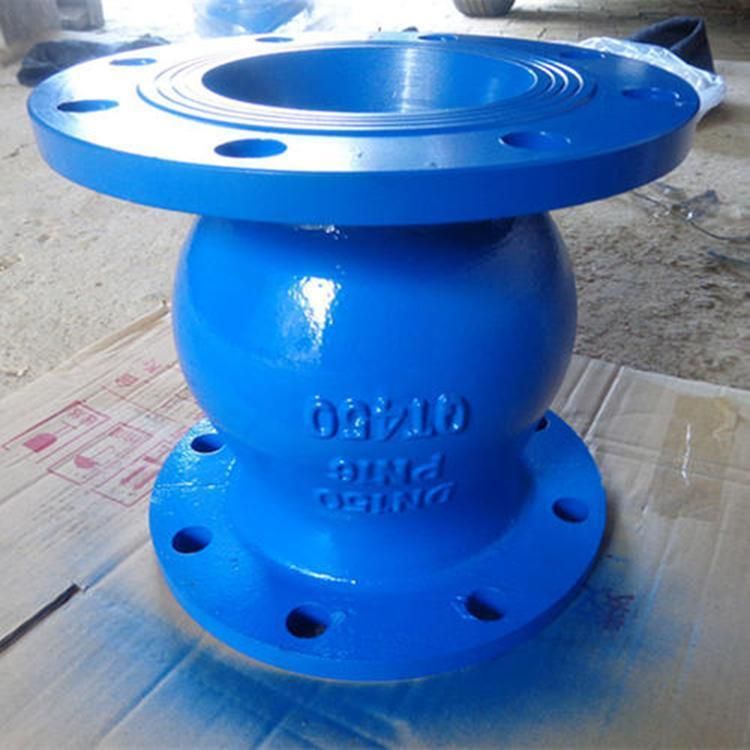

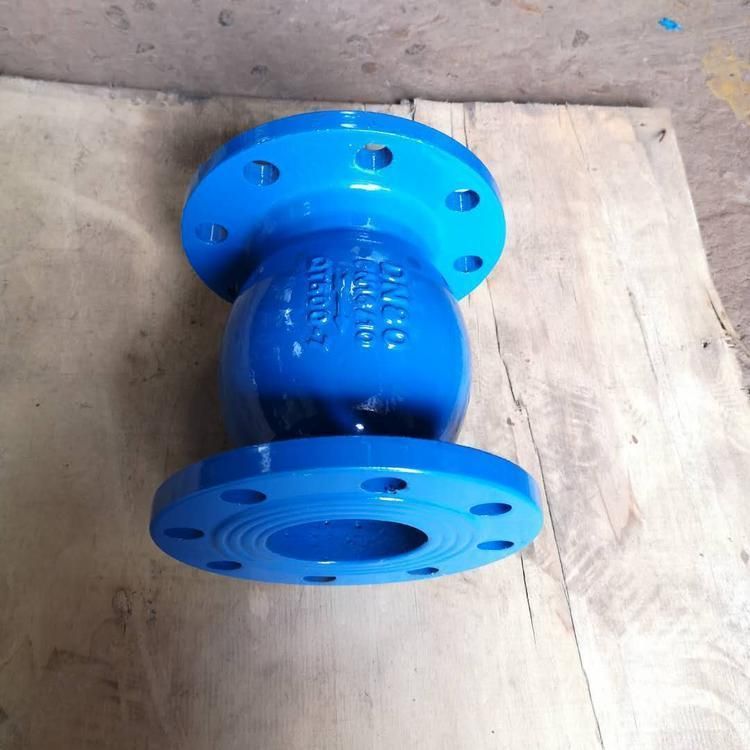

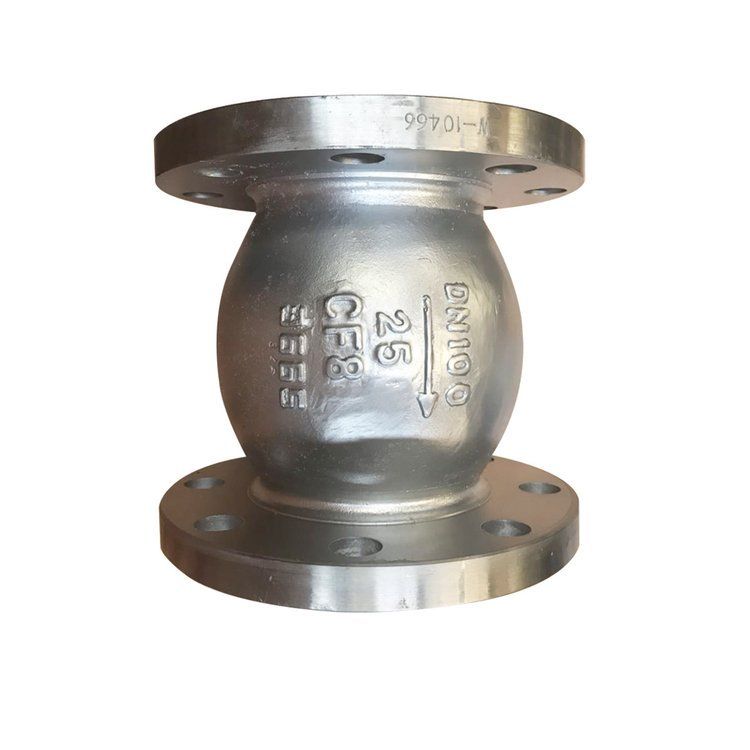

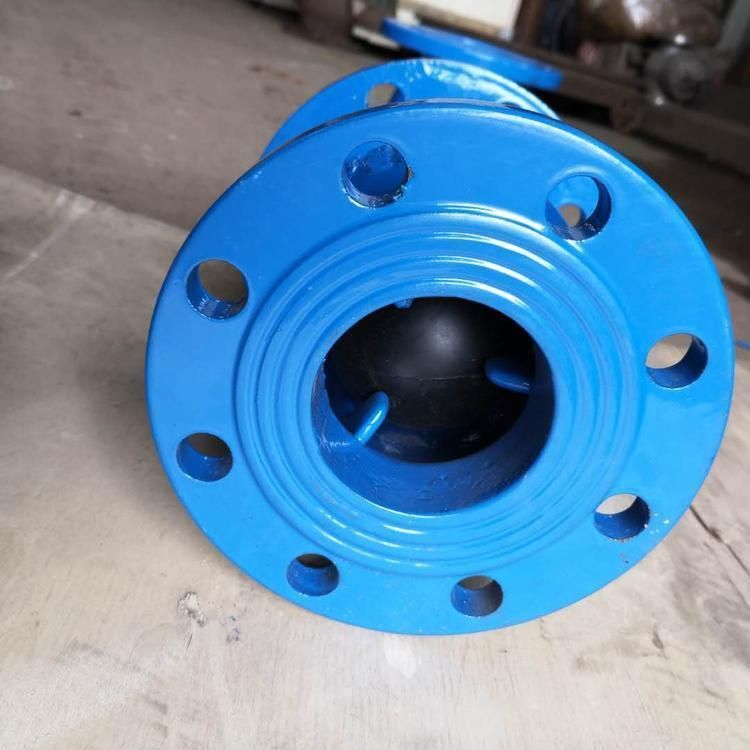

HQ44X single ball check valve

The spherical check valve uses the rubber ball as the valve disc, under the action of the medium, it can be moved up and down on the integral slide in the valve body, so as to open or close the valve, good sealing performance, silent closure, no water hammer. The valve body adopts the whole water flow channel, the flow is large, the resistance is small, the head loss is 50% less than the swing type. Horizontal or vertical installation can be used in cold water, hot water, industrial and domestic sewage pipe network, more suitable for diving sewage pump, medium temperature is 0-80ºC medium temperature is 0-80ºC Minke ball check valve is divided into HQ44X micro resistance ball check valve, HQ45X ball check valve.
Ball type check valve main component parameters



Ball type check valve connection size
