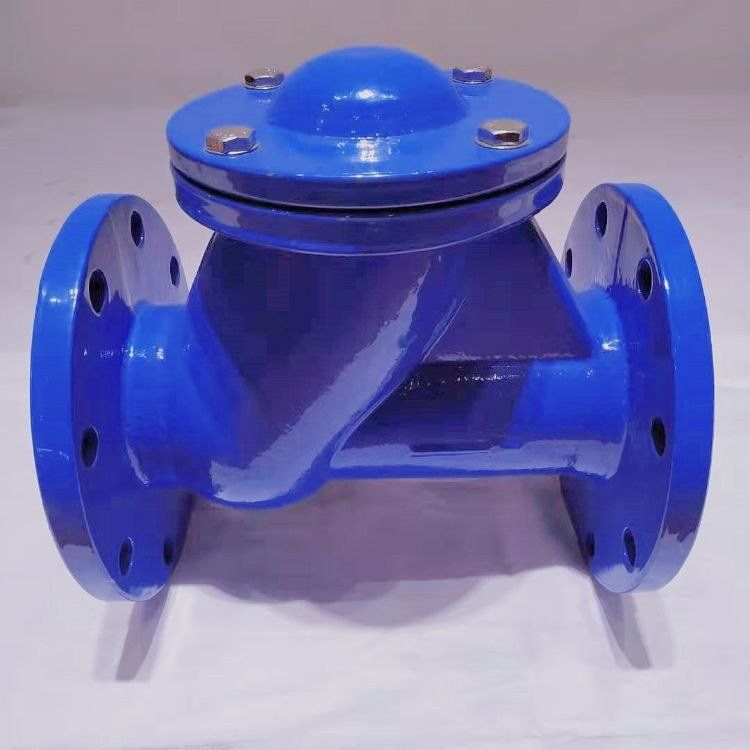

HQ41X micro-resistance, non-wear spherical check valve

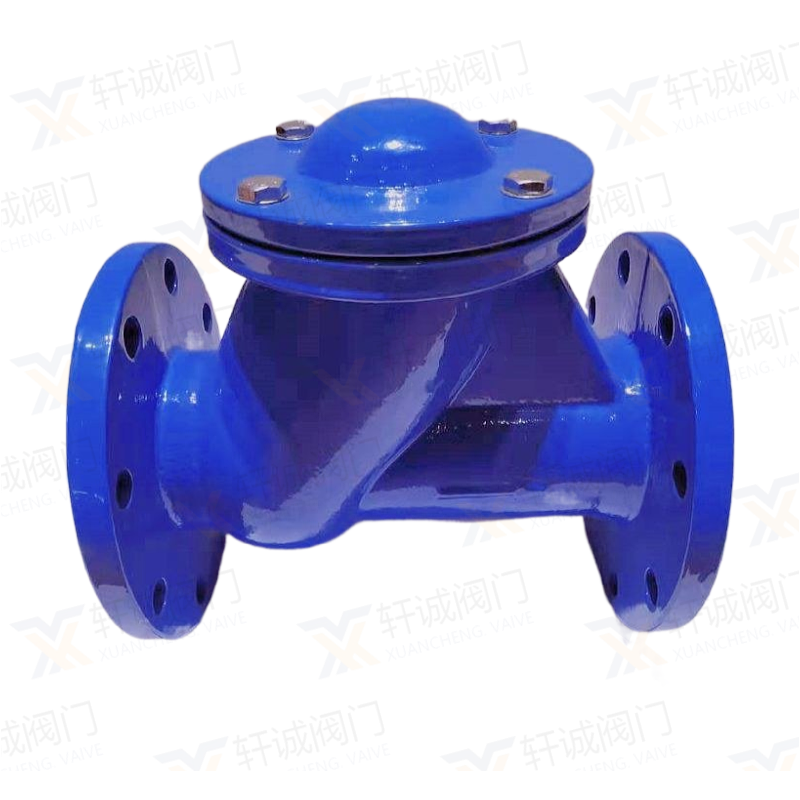

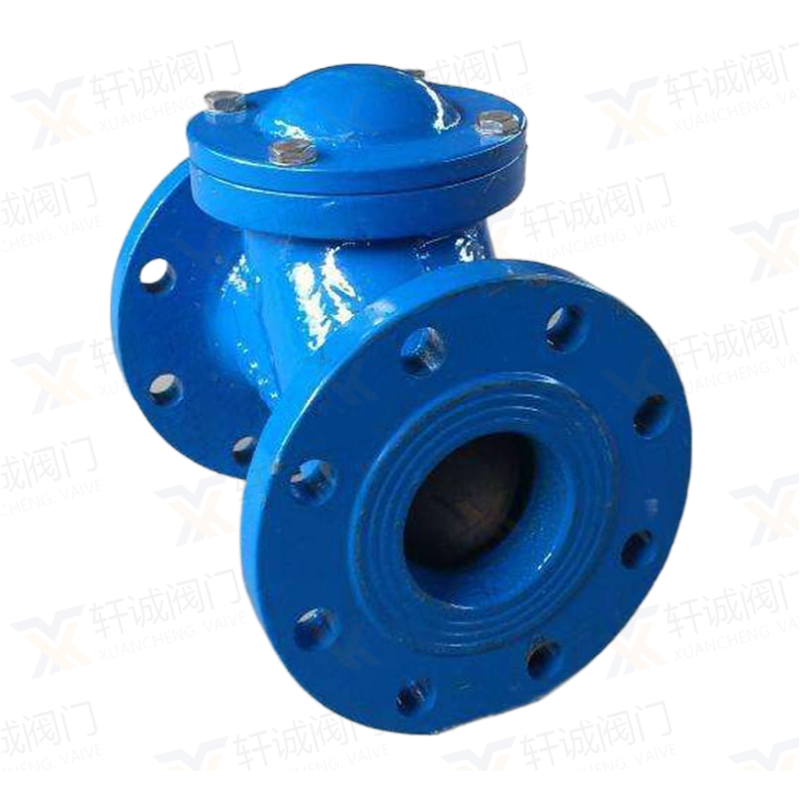

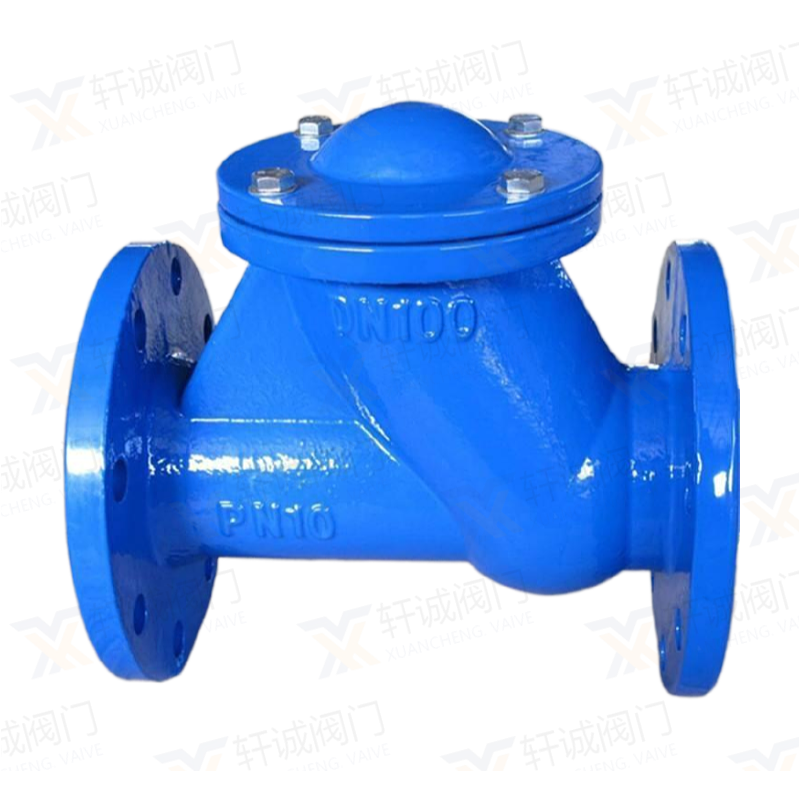

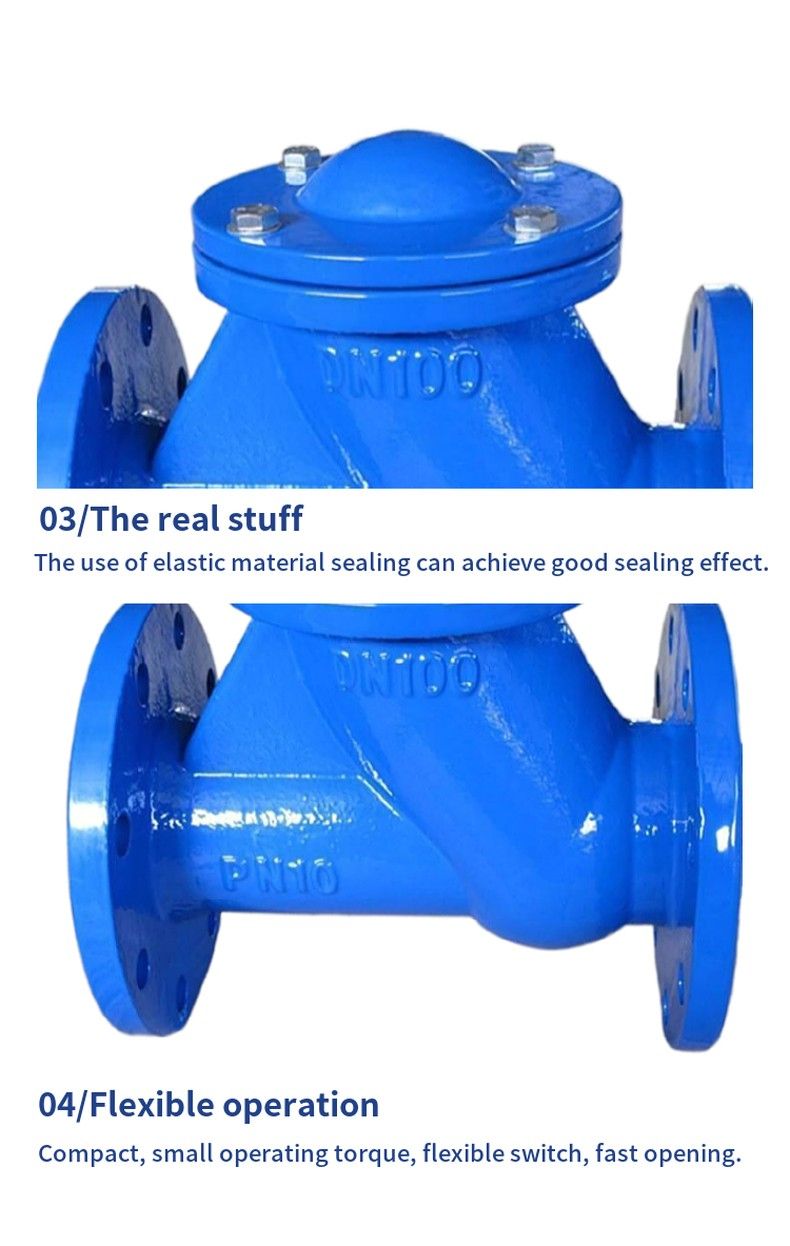

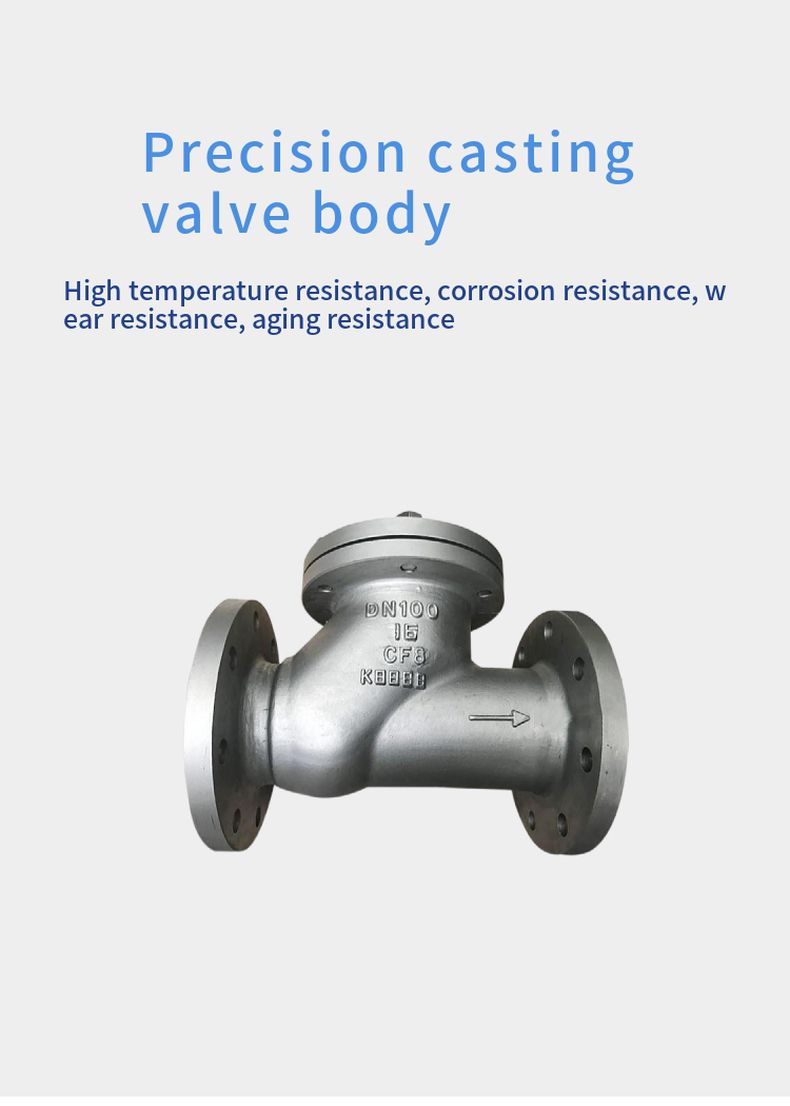

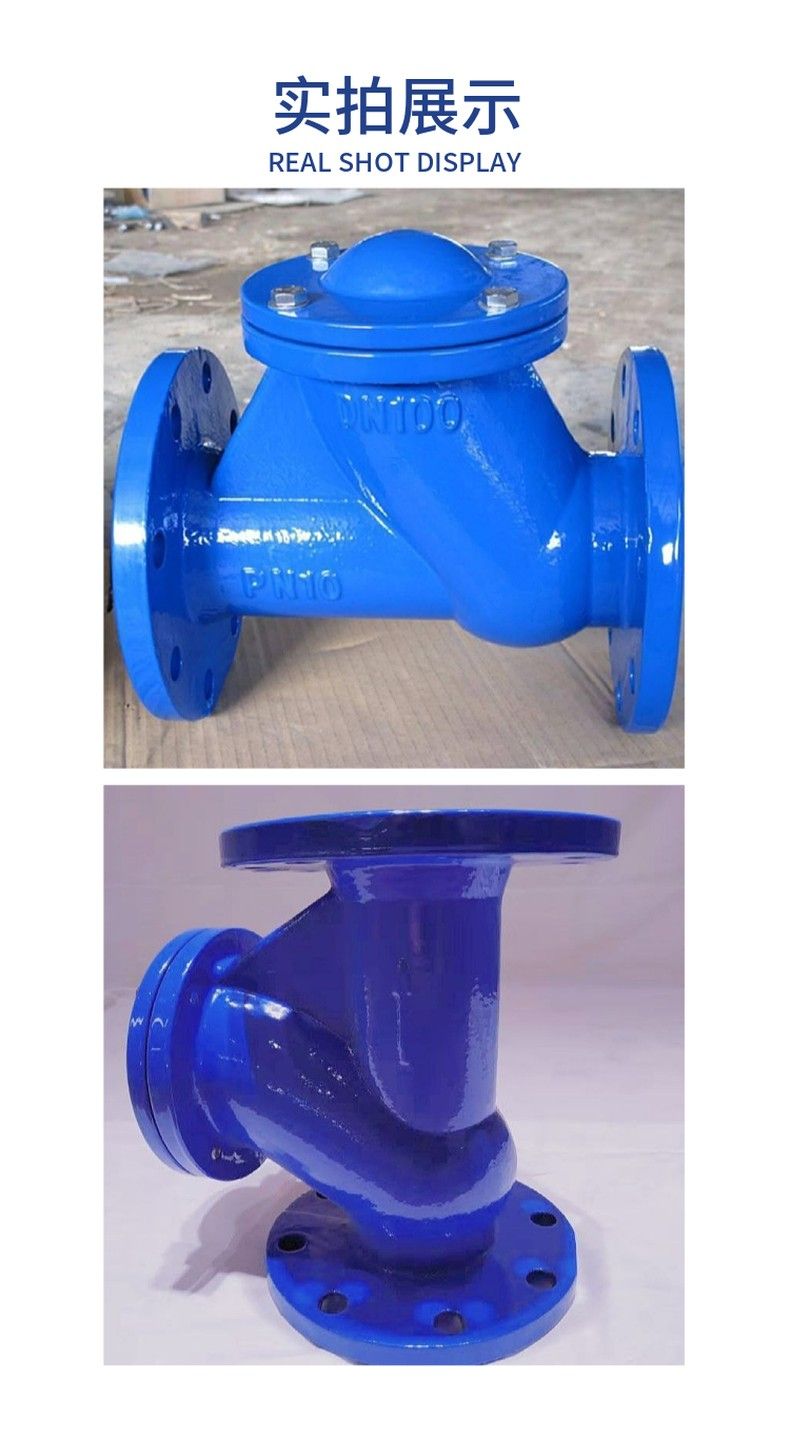

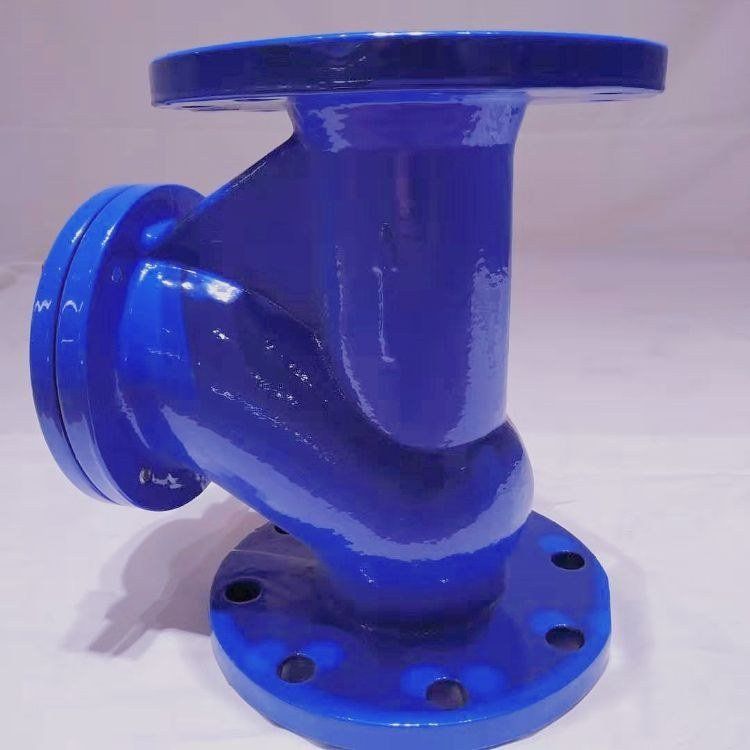

HQ41X Spherical check valve Overview

The spherical check valve uses the rubber coated rolling ball as the valve disc. Under the action of the medium, it can be rolled up and down on the integral slide in the valve body to open or close the valve. Silent closure, no water hammer, good sealing performance. The valve body adopts the whole water flow channel, the flow is large, the resistance is small, the water head loss is 50% less than the swing type. Horizontal or vertical installation can be used in cold water, hot water, industrial and domestic water pipe network system, more suitable for the use of submersible drainage pump, the medium temperature is 0 ~ 80ºC.

Spherical check valve model: HQ41X	Nominal diameter of spherical check valve: 50MM-300MM	Pressure of spherical check valve: 1.6MPA-2.5MPA
Spherical check valve connection: flange connection	Spherical check valve form: automatic	Spherical check valve main function: prevent media backflow
Spherical check valve use medium: water system	Ball check valve material: cast iron steel	Spherical check valve standard: mechanical standard or custom non-standard

HQ41X spherical check valve main technical parameters

Model number	Nominal pressure (MPa)	Test pressure PS(MPa)		Operating temperature (° C)
		shell	Seal
HQ41X-10/16	1.0	1.5	1.1	80 or less
	1.6	2.4	1.76

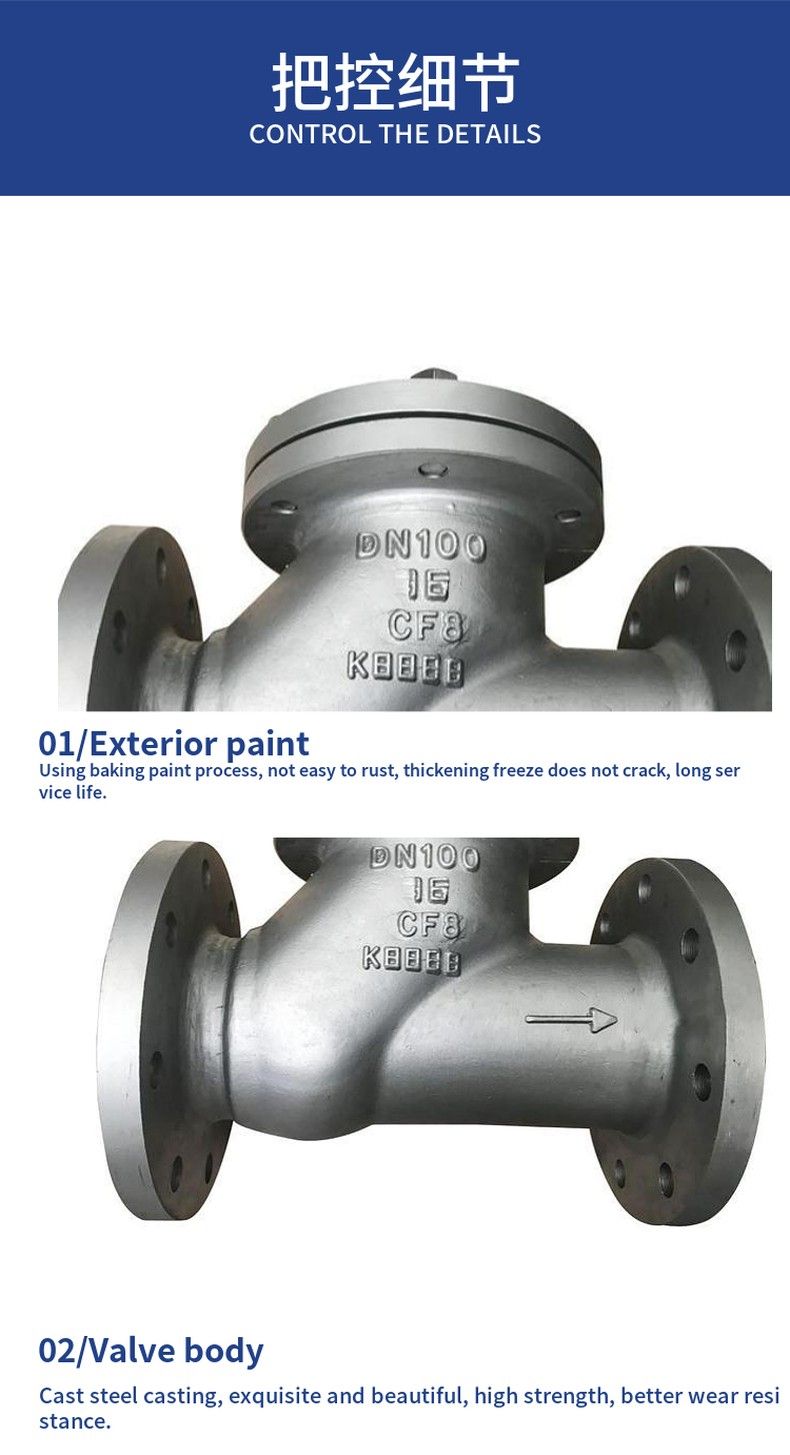

HQ41X spherical check valve main parts

Zero parts name	Material
Body, bonnet	Ductile iron, cast steel
Ball holder, baffle plate	Ductile iron, cast steel
Ball bodies	Carbon steel wrapped in rubber

HQ41X spherical check valve main dimensions

Nominal diameter	50	65	80	100	125	150	200	250	300	350
L(mm)	216	241	293	305	381	403	495	622	698	787
H(mm)	185	210	245	280	335	400	495	600	715	800
Connection size	PN1.0MPa press GB4216.4-84; PN1.6 according to GB4216.5-84 standard
