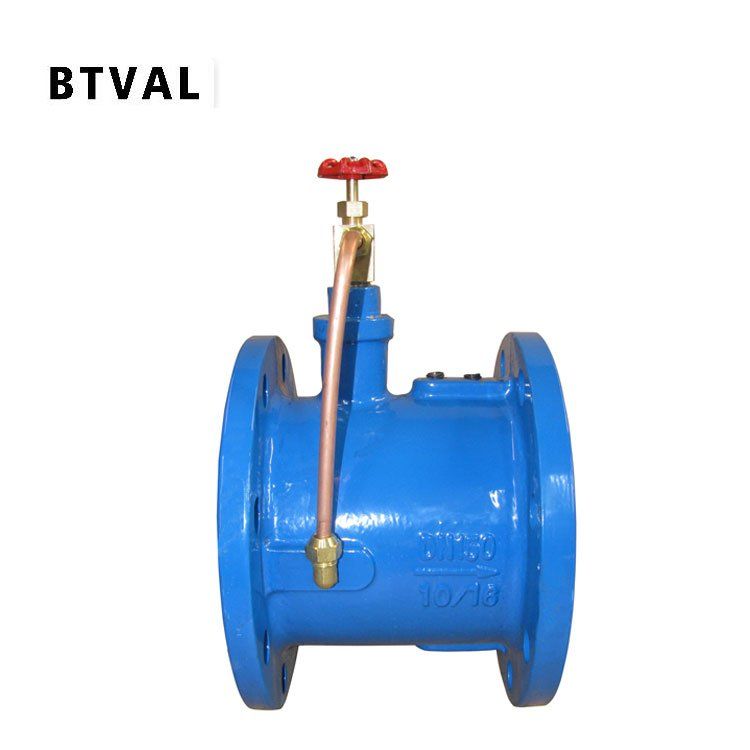

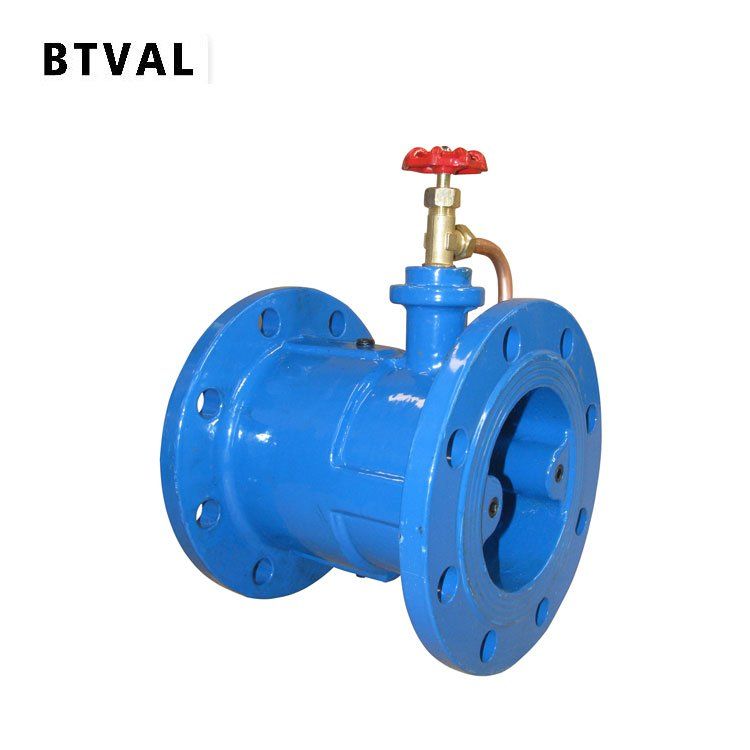

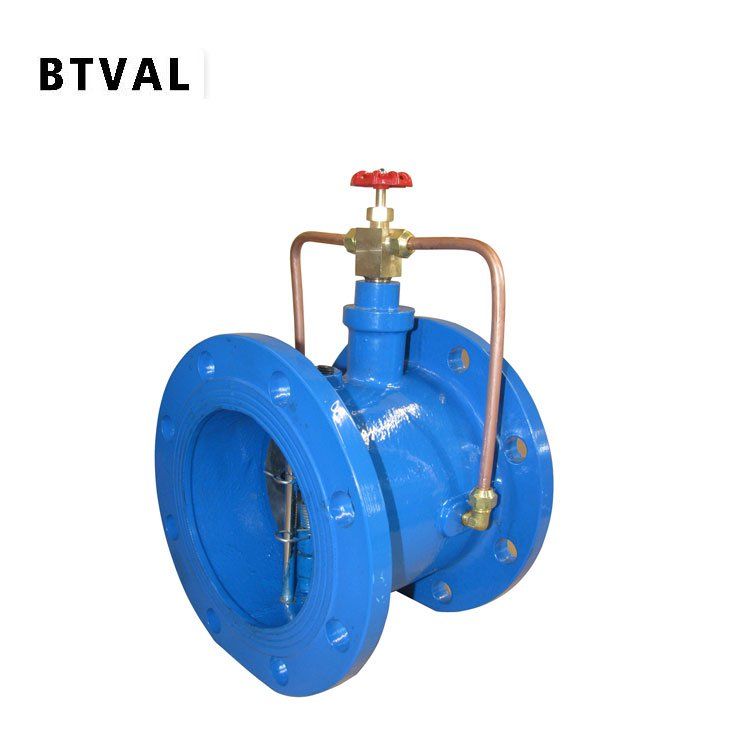

HH48X butterfly check valve

H48X slow closing butterfly check valve,HH48X slow closing butterfly check valve

Mainly used for water purification, source water, sewage, sea water and other media supply, drainage pipe, installed in the pump outlet, to cut off the backflow of the medium to eliminate atomic energy bad water hammer, protect and channel, the safe operation of the pump.

The details of

Brand		Variety	Micro retarded closing check valve
Product Model	HH48X	Scope of application	1.0-2.5
Product alias	Micro retarded closing check valve	Connection form	Flange
Body material	Cast iron	Structural form	Butterfly
Nominal diameter	50-1000 (mm)	Applicable media	water
Pressure range	1.0-2.5 (Mpa)	Applicable temperature	0-80 (C)
Material	Cast iron	Form	Butterfly Valve
Pressure environment	Room temperature	Standard	National standard
Type	Straight-through type	Shape	Medium size
Flow direction	One way	Drive mode	Hydraulic control
Parts and accessories	Accessories	Operating temperature	Room temperature

HH48X micro slow closure butterfly check valve Overview:
mainly used for water, source water, sewage, sea water and other media supply, drainage pipe, installed in the pump outlet, to cut off the backflow of the medium to eliminate atomic energy bad water hammer, protect and channel, the safe operation of the pump.
Its main features:
1, small size, light weight, the length of the structure is only about one-third of the swing check valve.
2, the slow closing system has good performance, not affected by the medium quality of the pipeline, the valve disc is closed quickly and then closed slowly, which can prevent the breaking water hammer.

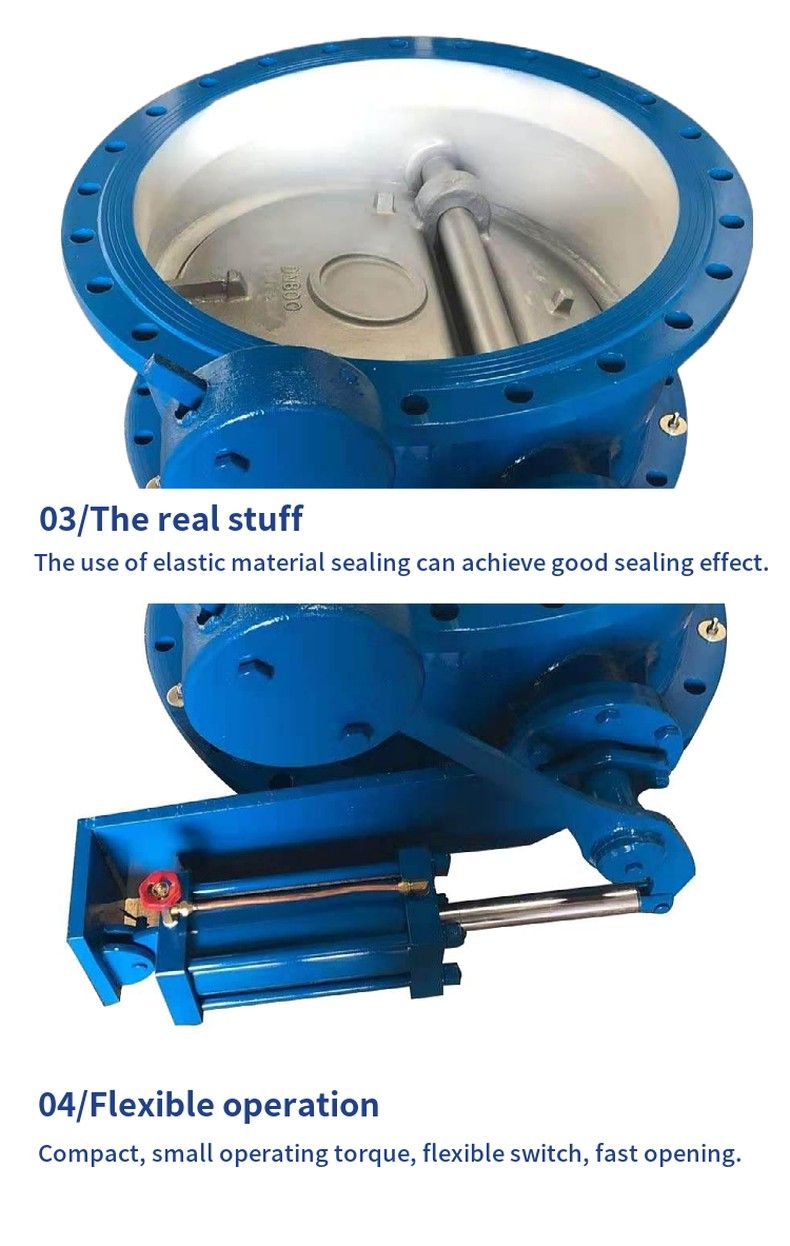

3, rubber soft seal, good sealing performance, wear resistance, long service life.
4, rubber buffer, stable opening and closing, no vibration, no noise.
5, than the old check valve flow resistance is small, has obvious energy-saving effect.

HH48X micro retarding closed butterfly check valve performance specification:

Model numberRHH49X-10RHH49X-16Nominal pressurePN1.0 MPaPN1.6 MPaNominal diameterDN150 to 800mmDN150 to 800mmSeal test pressure1.1 MPa1.76 MPaShell test pressure1.5 MPa2.4 MPaMaterials for main partsValve bodyGray or nodular cast ironGray or ductile cast ironFlapAluminum bronzeAluminum bronzeValve stemStainless steelStainless steelSpringStainless steelStainless steelSealing cover of valve seatRubberRubber

HH48X Micro Retarded closed butterfly check valve Main dimensions:

Nominal diameter DNDimensions mmmminDD1D2HH1LZ - ф dBolt15062802402102281722108 - ф 238-M2020083352952652702102308 - ф 238-M202501039035032030524025012 - ф 2312-M203001244040036836726427012 - ф 2312-M203501450046042842229429016 - ф 2316-M204001656551548246232431016 - ф 2316-M224501861556553249735133020 - ф 2520-M225002067062058553237935020 - ф 2520-M226002478072568560743439020 - ф 3020-M27seven hundred2889584080070249143024 - ф 3024-M2780032101095090579254947024 - ф 3424-M30
