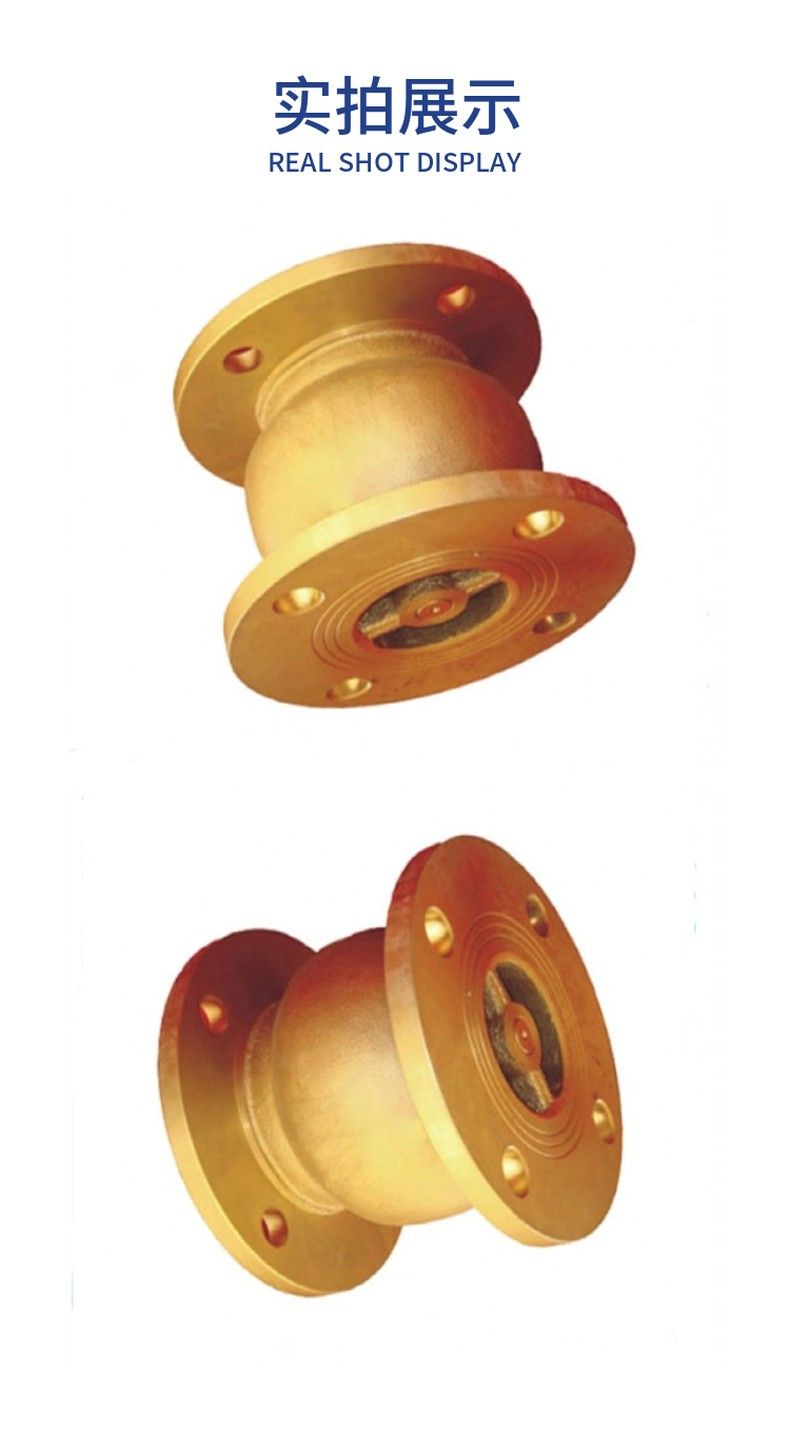

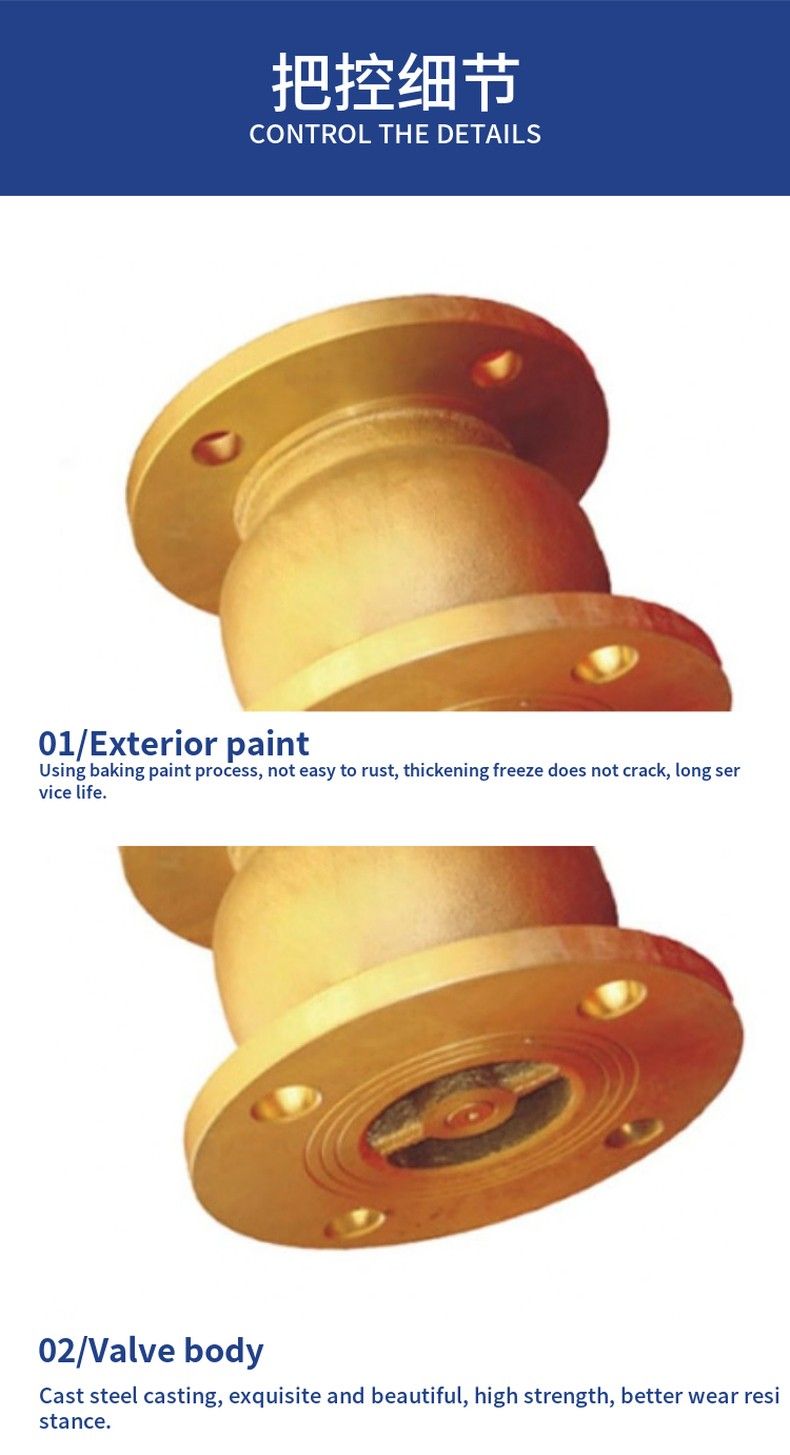

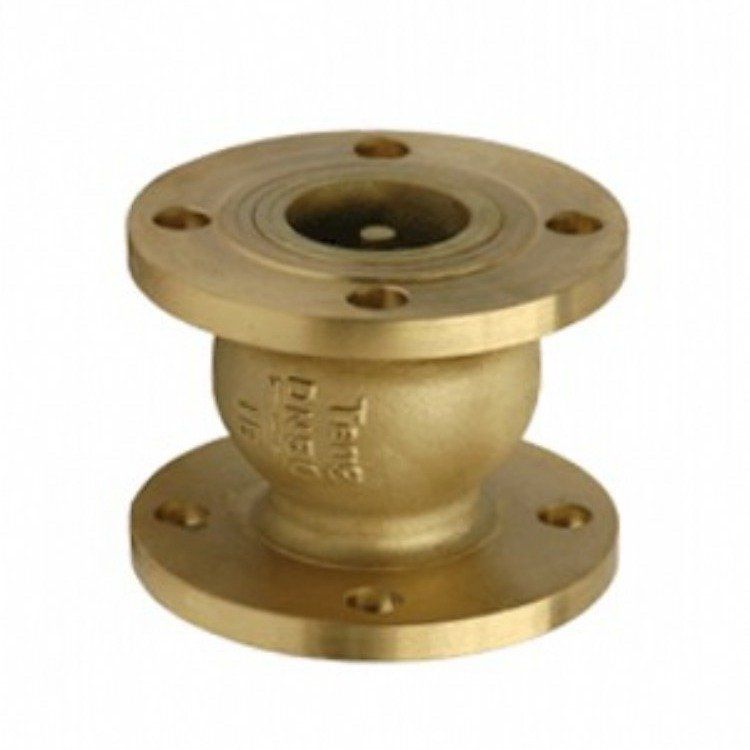

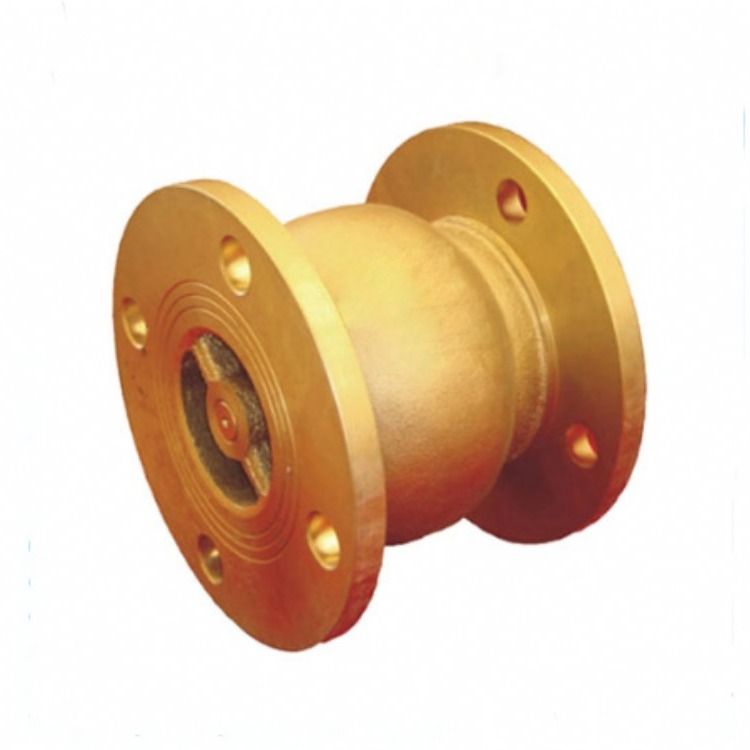

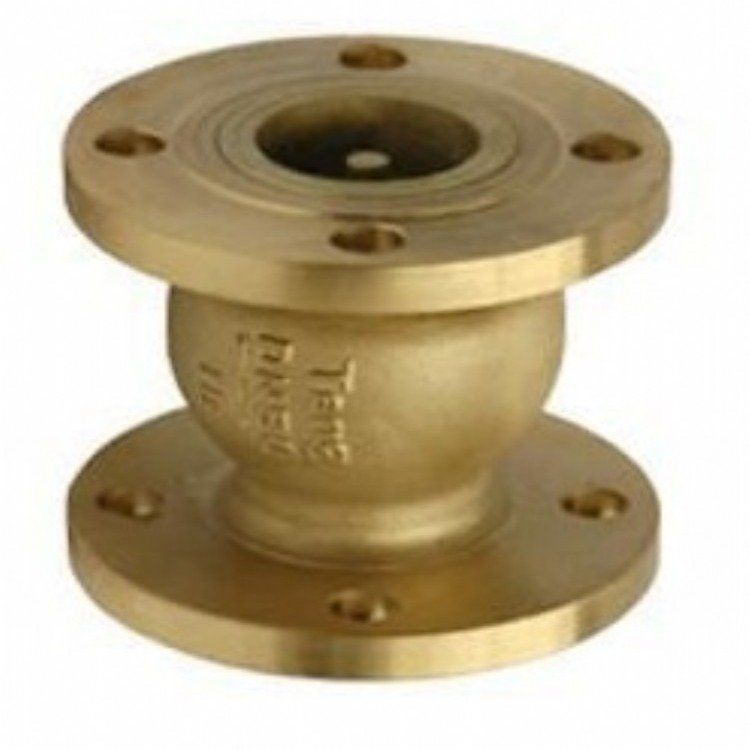

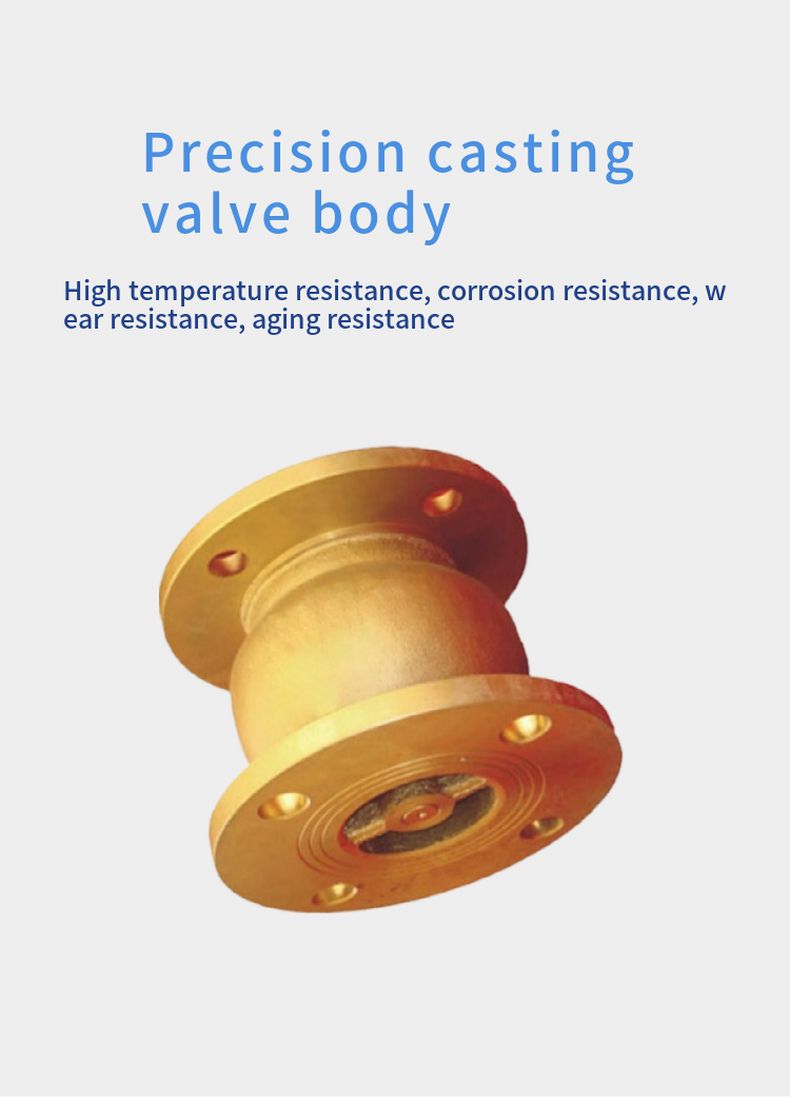

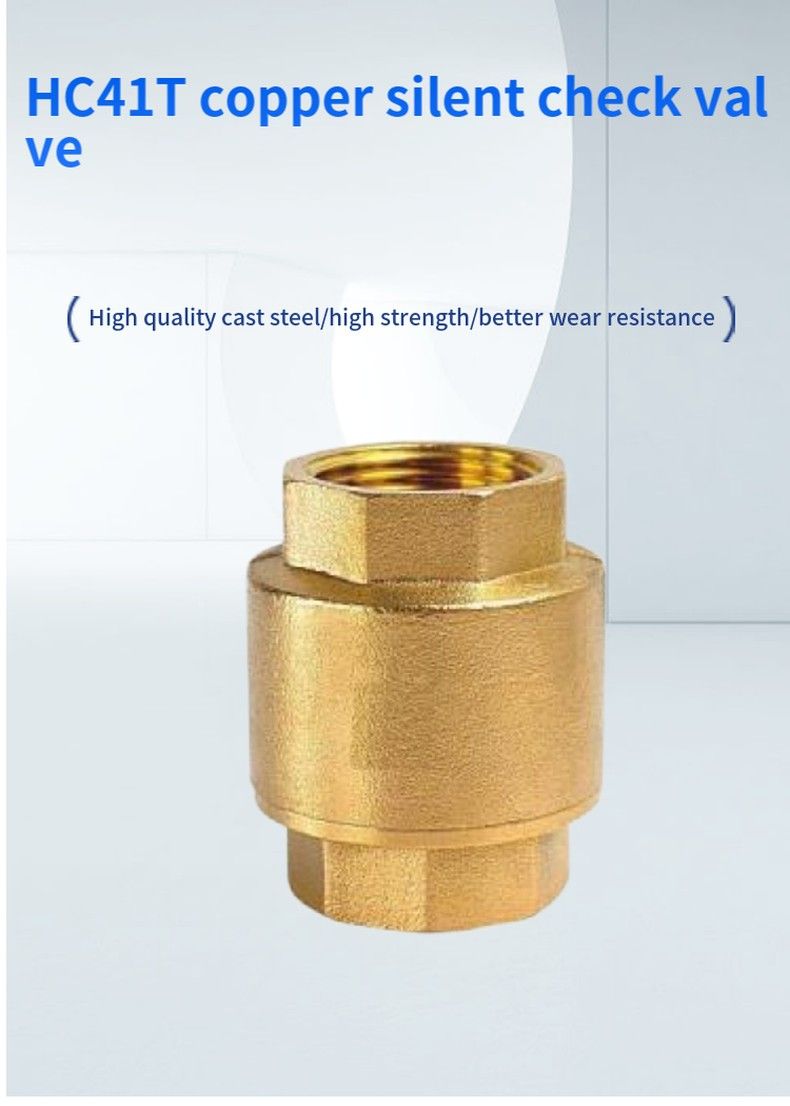

HC41T copper silent check valve

Detailed introduction of HC41T silencing check valve (copper)

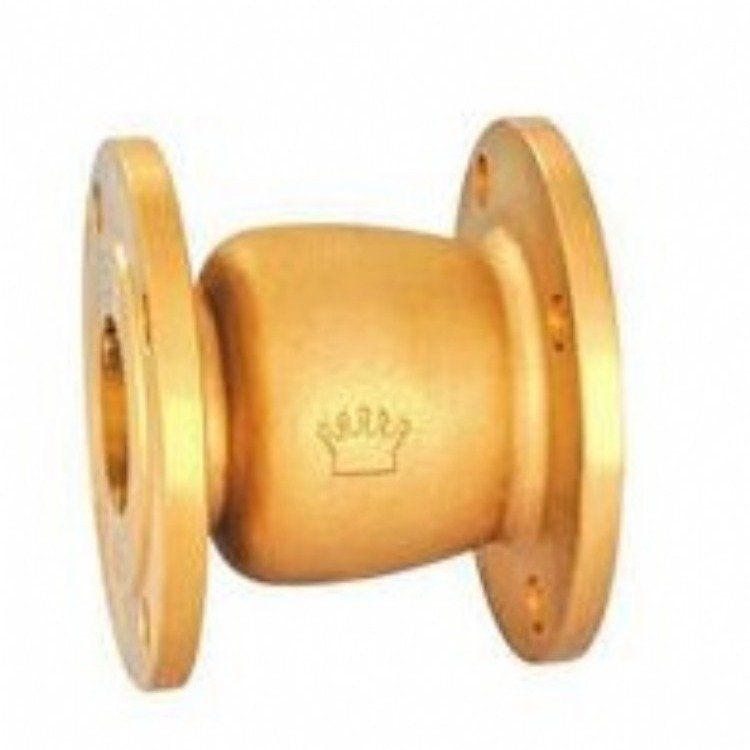

HC41T Silence Check valve (Copper) Overview:
The HC41T silencing check valve (copper) produced by our factory is suitable for supply and drainage pipes. The valve disc is gui
ded by the center shaft at both ends of the import and export, and can be opened and closed flexibly. The valve disc is loaded by spring, and its quick closing can effectively reduce the pressure of the water hammer, with good sealing performance and no noise. It has the advantages of small volume, light weight, small fluid resistance, fatigue resistance and long service life.
HC41T silence check valve (copper) main technical parameters:

Model nominal pressure
PNMPa Test pressure PSMPa operating temperature
ºC Suitable medium
Housing seal
H41X1.01.51.1 ≤80 clean water
1.6 2.4 1.76
2.5 3.75 2.75

HC41T silenced check valve (copper) Main dimensions:
Model H41XH41H-PH41H-T
DNmm 40 50 65 80 100 125 150 200 250 300 350 400 450 500
L 112 120 130 150 165 190 210 255 310 362 380 450 545 580
