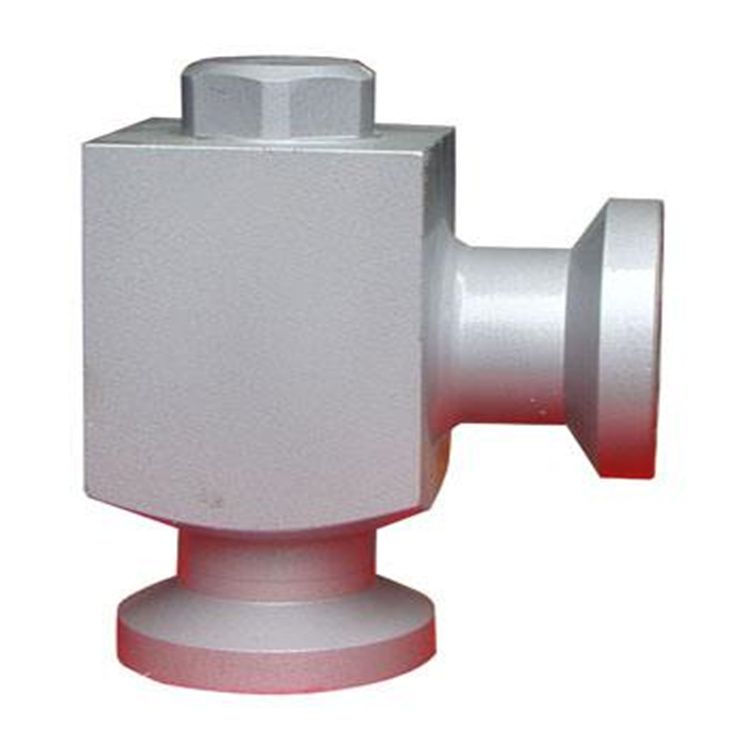

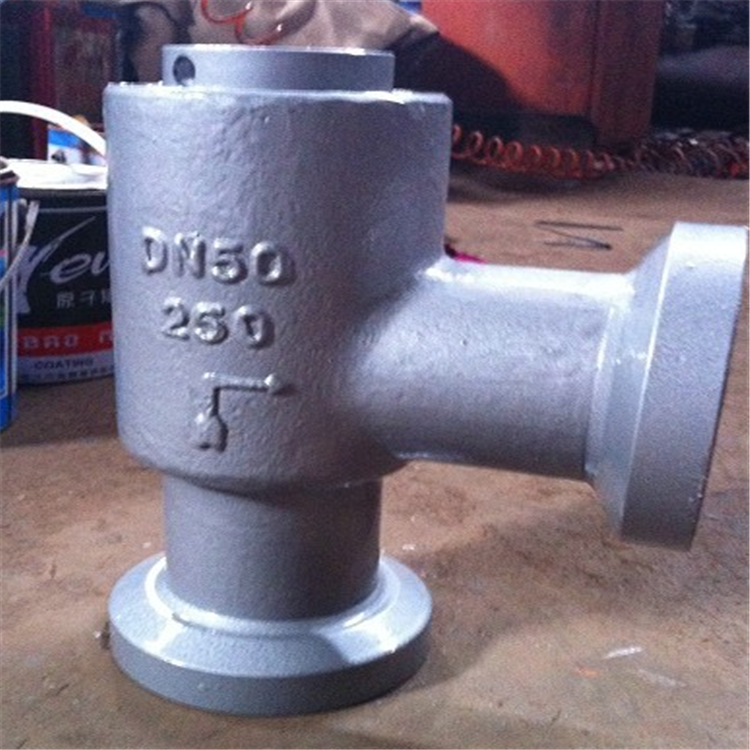

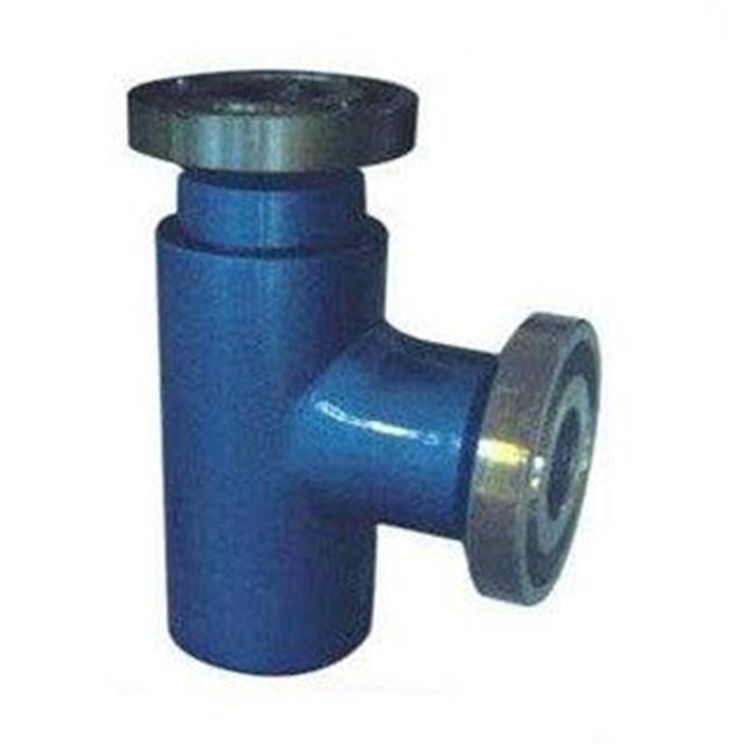

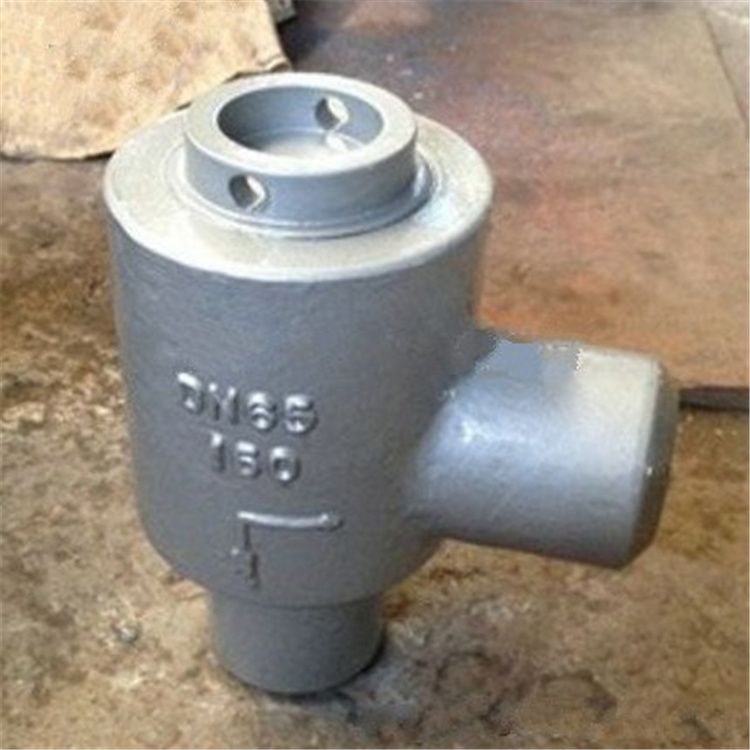

H83Y, H83H clamp Angle check valve
Product Overview:
H83H, H83Y clamp Angle check valve is made of stainless steel material of high hardness valve disc, with higher hardness of stainless steel valve seat, the use of surface contact seal, reliable sealing performance, durable, according to GB, ANSI, API, DIN, BS, JIS and other standards design and manufacture of all kinds of valves. This series of valves is suitable for the working pressure ≥45MPa, the working temperature ≤120ºC of water, oil, natural gas and other pipelines, used to control the media one-way opening and closing, to prevent the medium countercurrent.
Application scope of high pressure clamp Angle check valve:
High pressure clamp Angle check valve is suitable for nominal pressure PN1.6 ~ 42.0MPa, working temperature -29 ~ 550ºC of petroleum, chemical, thermal power station and other working conditions of the pipeline. The applicable medium is: water, oil, steam, etc.
High pressure clamp Angle check valve structure characteristics:
1, the selection of materials, in line with domestic and foreign standards, the overall quality of the material is high.
2. The sealing pair is advanced and reasonable. The sealing surface of the valve disc and seat is made of iron base alloy or Stellite cobalt-based cemented carbide surfacing surface. It has good wear resistance, high temperature resistance, corrosion resistance, abrasion resistance and long service life.
3, the product is designed and manufactured according to the national standard GB/T12235.
4, can use a variety of pipe flange standards and flange sealing type, to meet various engineering needs and user requirements.
5, the valve body material variety is complete, the gasket can be reasonably selected according to the actual working conditions or user requirements, and can be applied to a variety of pressure, temperature and media conditions.
Can be designed and manufactured according to user requirements of different structural forms and connection forms of check valves, for various equipment supporting the use.
High pressure clamp Angle check valve standard specification:
Design and manufacture GB/T12235 / Connecting end Dimensions Structure Length GB/T12221
Flange size JB/T79 / Inspection and Test JB/T9092
Material Carbon steel GB/T12229 / Stainless steel GB/T12230
Alloy steel Q/ZB66 / Standard GB/T12220 / Supply JB/T7928
Main shape and connection size:
