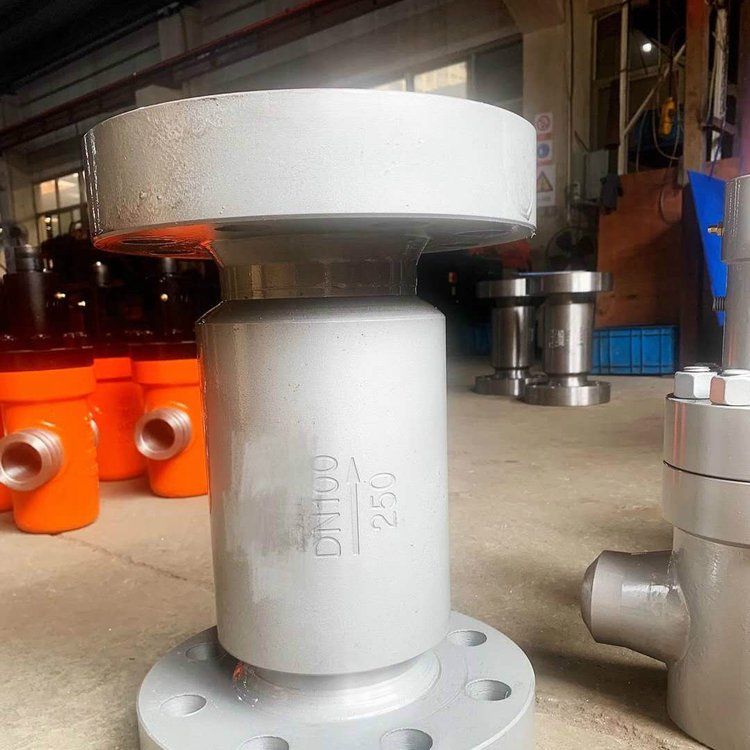

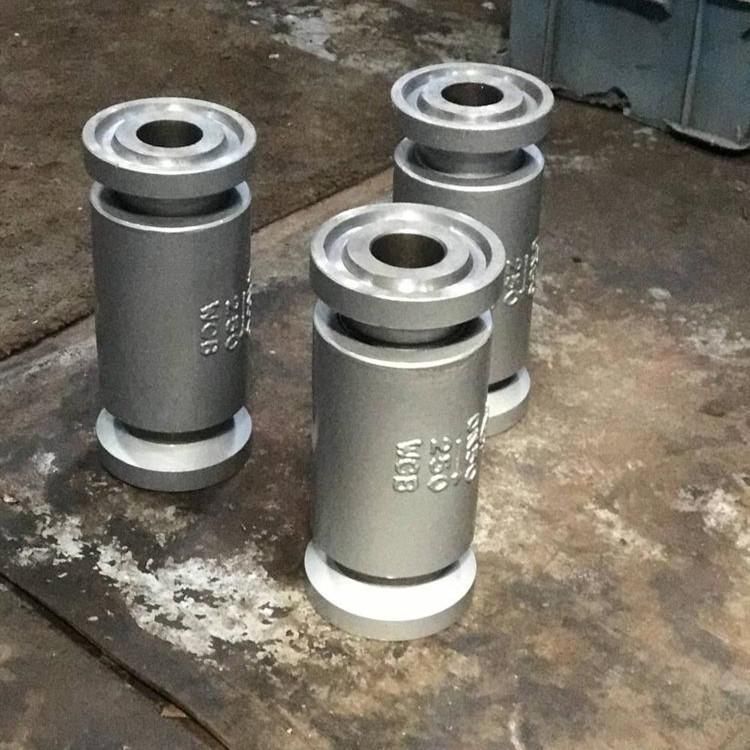

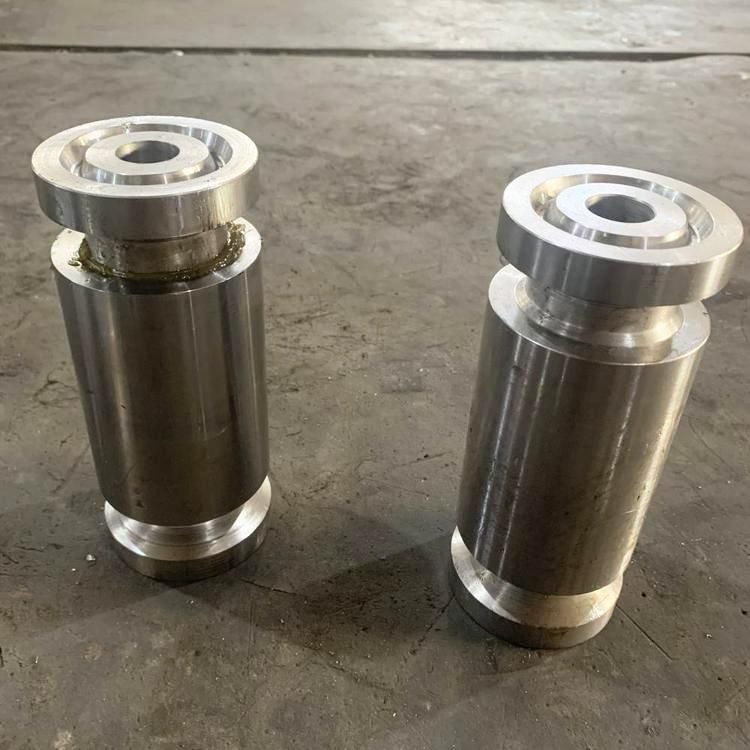

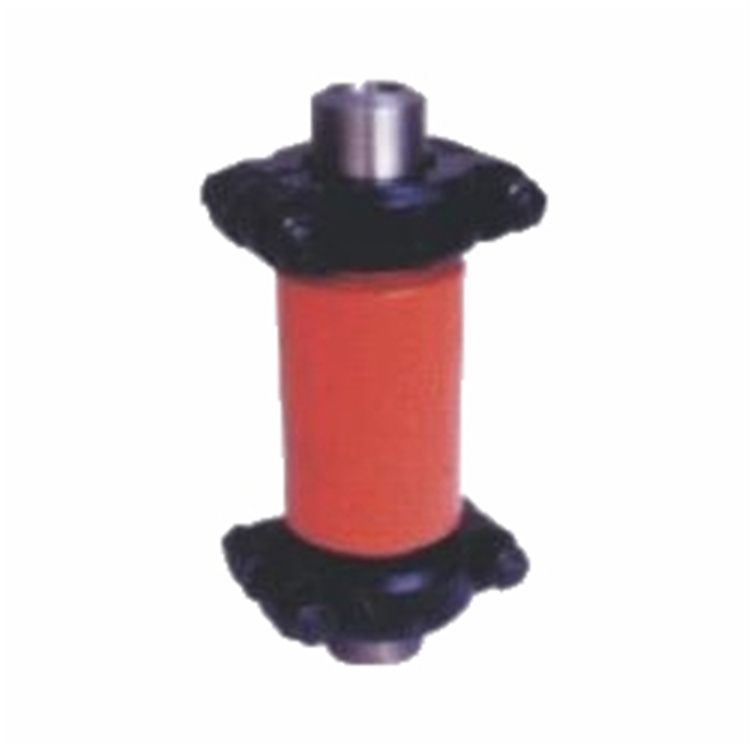

H82Y type clamp lift high pressure check valve

H82Y-160 high pressure clamp check valve is a new type of high pressure valve designed and produced according to API and CVA standards. It is suitable for the temperature is not higher than 120ºC, the working pressure is not greater than 40MPa water, oil and other pipelines, used to control the media one-way opening and closing, to prevent the medium countercurrent
HG81A high pressure check valve This series of valves is made of stainless steel material made of high hardness spherical valve core, with high hardness of stainless steel valve seat, using line contact seal, so the sealing performance is reliable and durable. The valve body and the main pressure parts have been checked by detailed strength, safe and reliable use.
This series of valves is normally in the closed state, due to the pressure of the medium at the inlet end of the pipeline, and overcome the spring resistance to make the valve open. When the inlet end medium pressure is lower than the outlet end, the spring will push the spool to the spool and make the valve close, prevent the medium counterflow, start and stop the effect.
H82Y-160 high pressure clamp check valve because of the spring support spool, so the vertical installation or horizontal installation can be used.

H82Y-160 high pressure clamp check valve is made of stainless steel material made of high hardness spherical spool, with high hardness stainless steel seat, using line contact seal, so the sealing performance is reliable and durable. The valve body and the main pressure parts have been checked by detailed strength, safe and reliable use.
This series of valves is normally in the closed state, due to the pressure of the medium at the inlet end of the pipeline, and overcome the spring resistance to make the valve open. When the inlet end medium pressure is lower than the outlet end, the spring will push the spool to the spool and make the valve close, prevent the medium counterflow, start and stop the effect.
H82Y-160 high pressure clamp check valve because of the spring support spool, so the vertical installation or horizontal installation can be used

Main external and connecting dimensions. Main external and connecting dimensions
