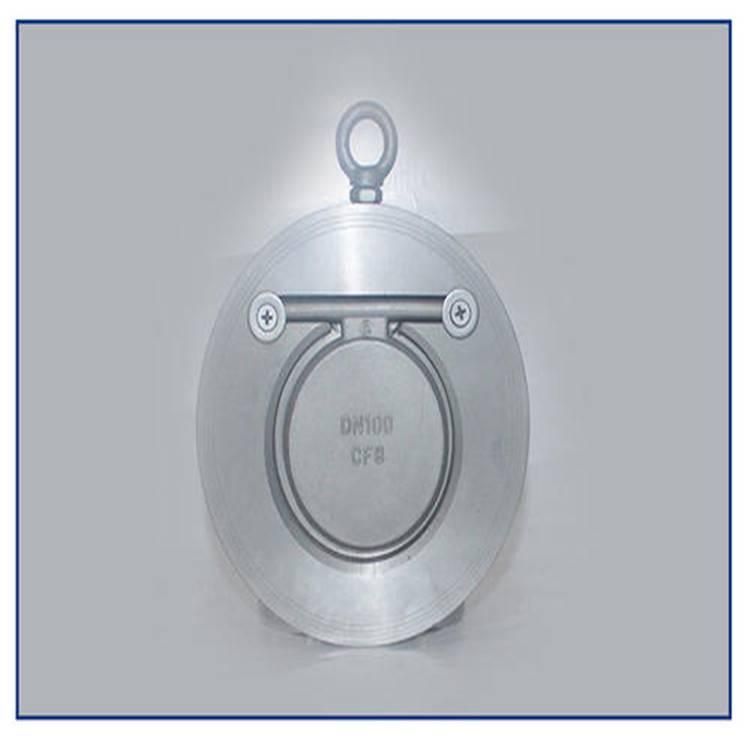

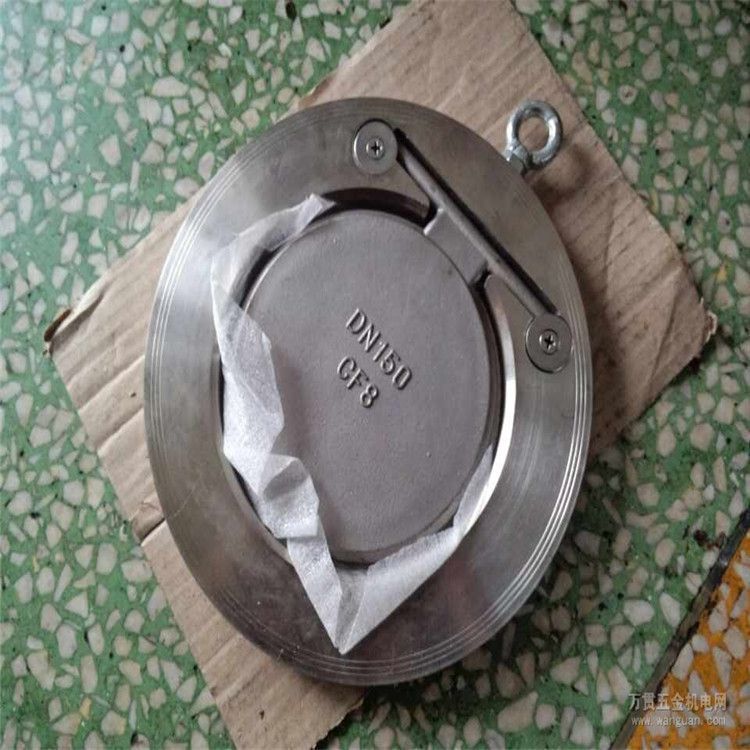

H74 thin-clamp check valve

Overview of pinch thin check valves:The clamping thin-type check valve has the advantages of simple structure, beautiful appearance, light weight and easy installation. Using short structure size and single disc design, compared with the traditional swing type check valve, this series of valves has no external leakage, can be installed at any position, good sealing performance, small linear vibration, small pressure drop and zero seat ring wear advantages. The wafer type check valve is mainly suitable for water supply system, petroleum, chemical industry, metallurgy and other industrial sectors where the installation space is limited. Product features of clamp thin check valve:1, the clamp thin check valve structure length is very short, small size, light weight, for the installation of the valve, handling, storage of the pipeline arrangement to bring great convenience, and can save a lot of materials, reduce the cost.
2, the clamping thin-type check valve is the overall structure, simple and compact, the impact of the valve is small when the valve is closed, the water hammer pressure is small, the valve life is long and the reliability is high.
3, the clamp thin check valve can be installed horizontally or vertically, light weight, no need to set a support for the valve.
4. The flow path of the clamp thin check valve is smooth, the fluid resistance is small, and the valve disc can be opened under a small pressure difference. Specifications for pinch thin check valves:

 For the clamp thin type check valve outline size table:
