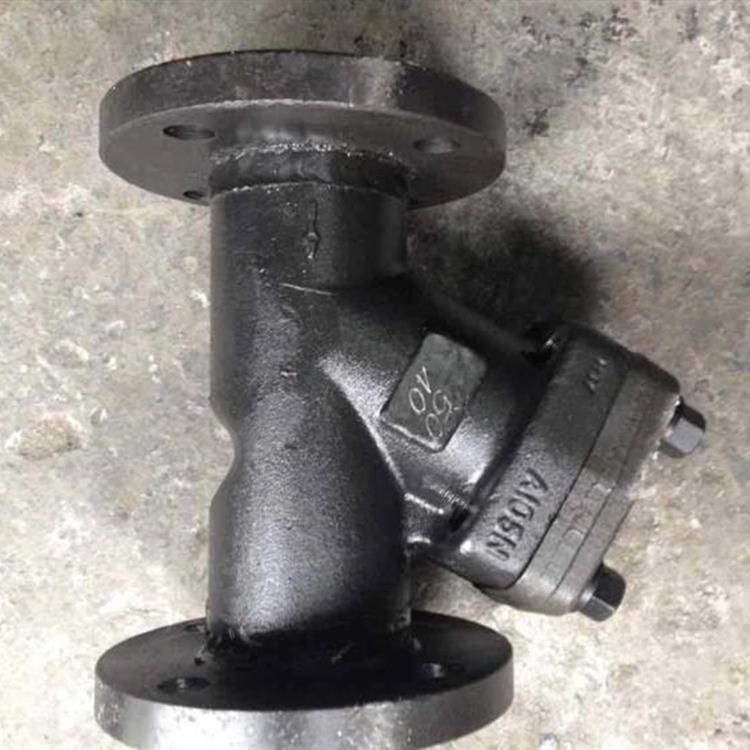

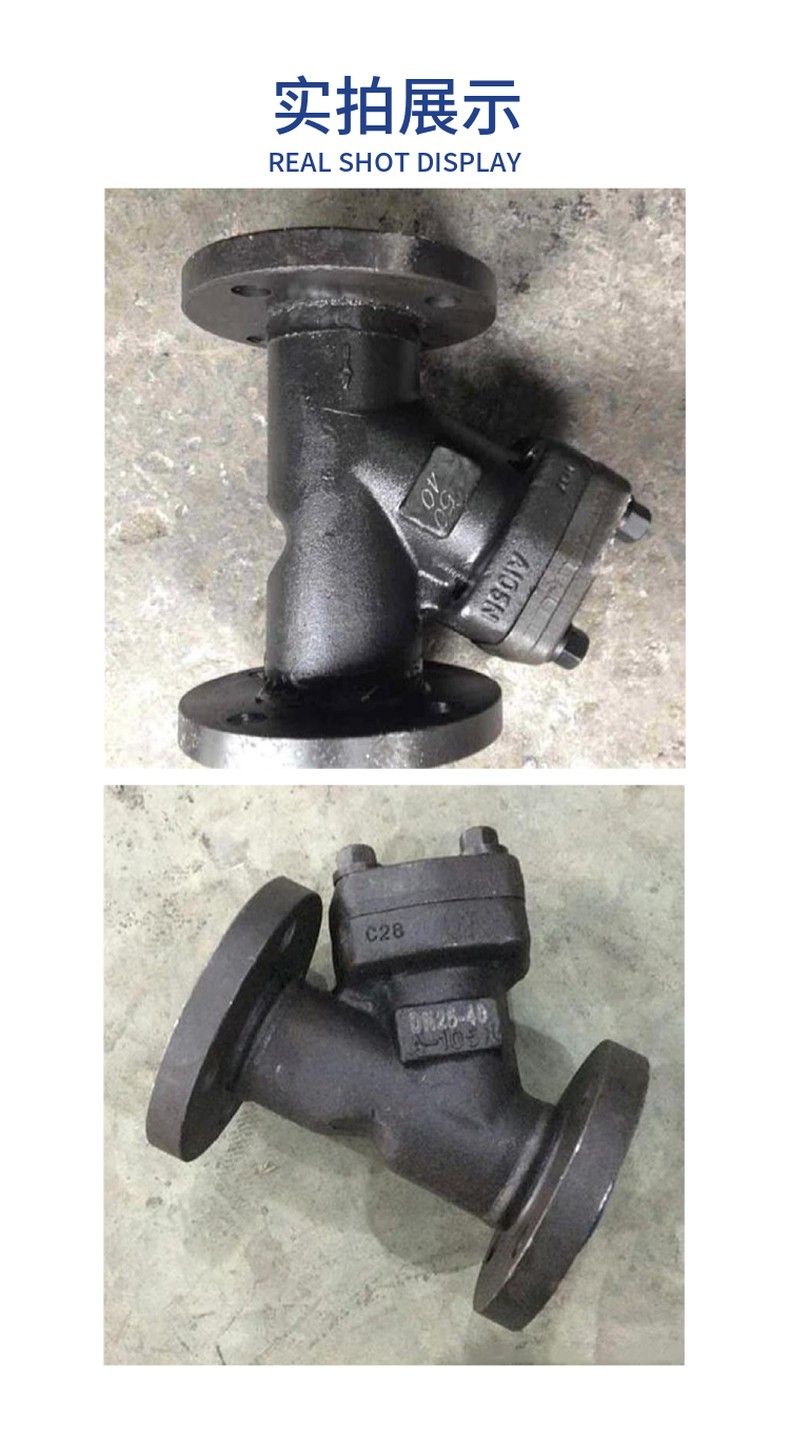

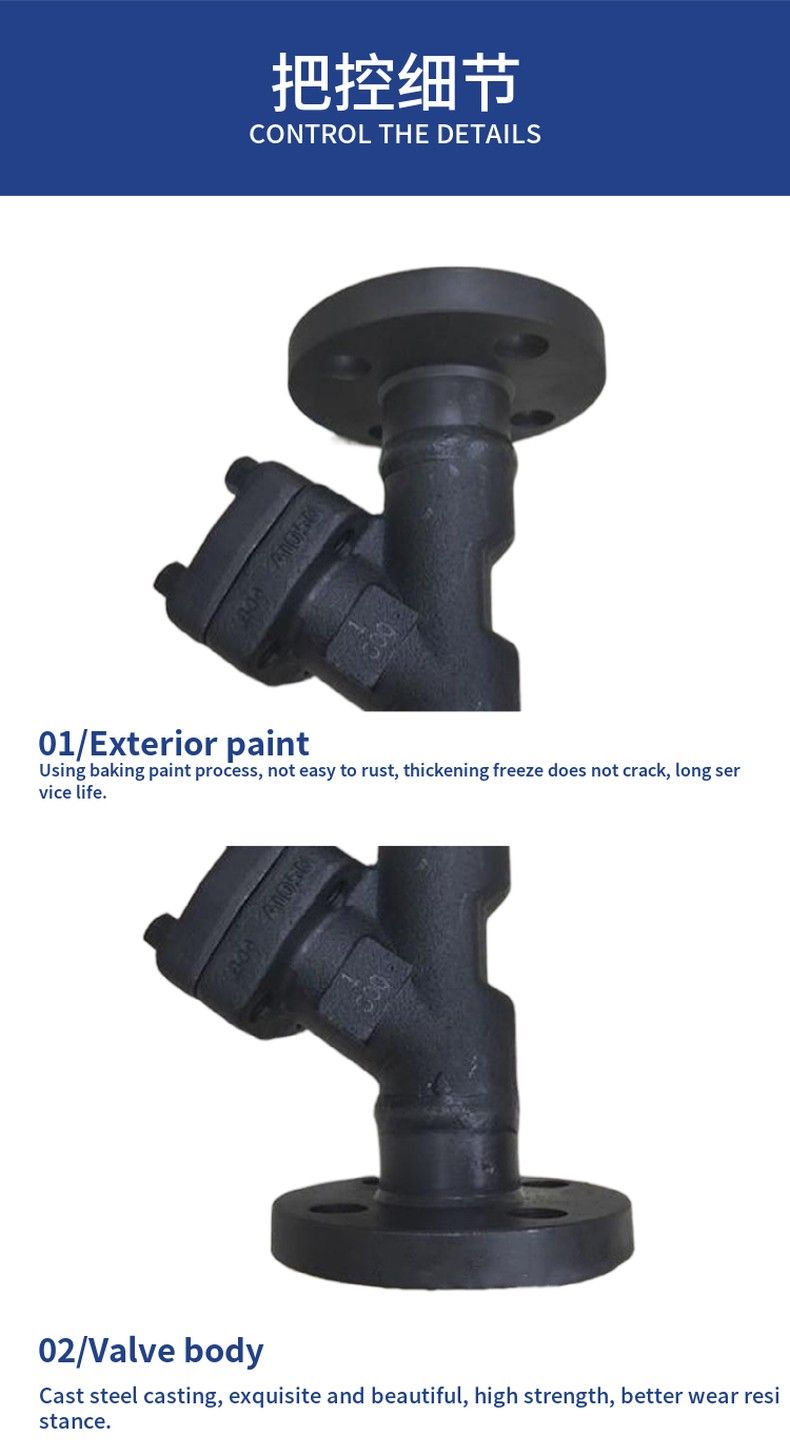

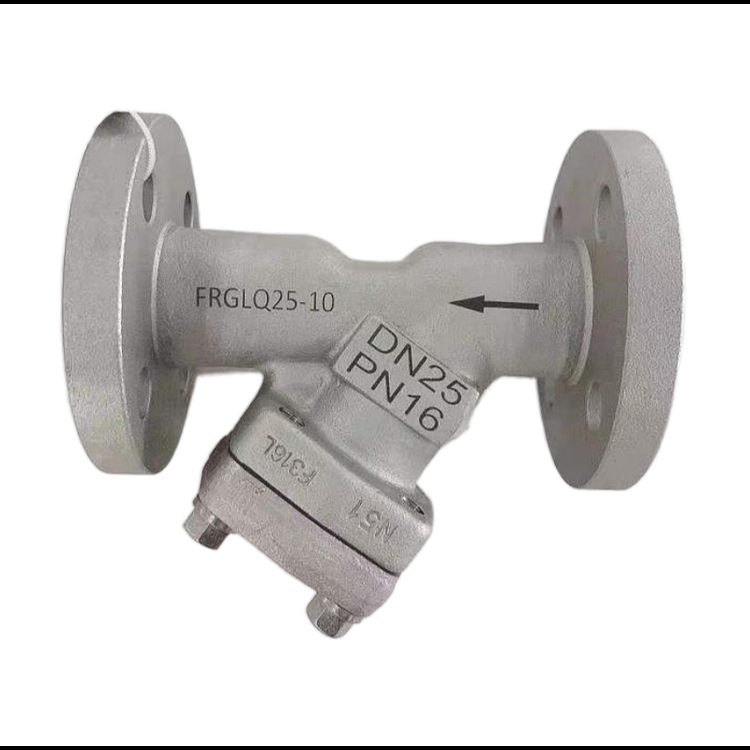

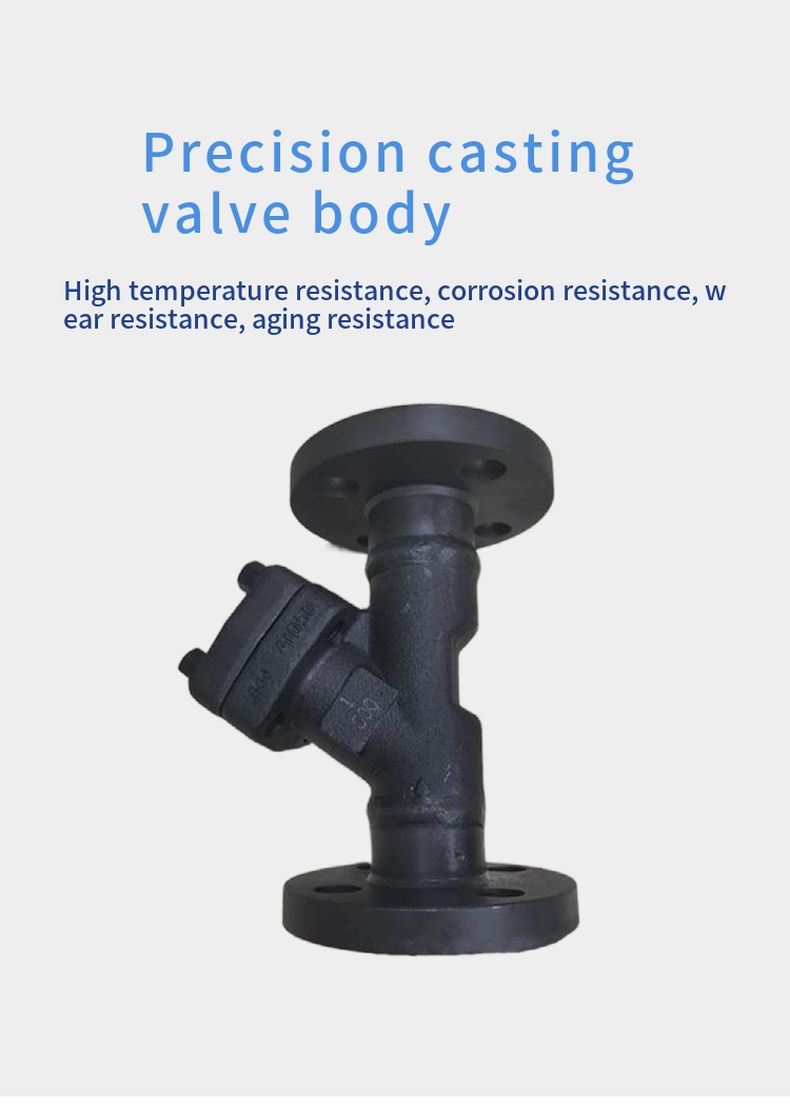

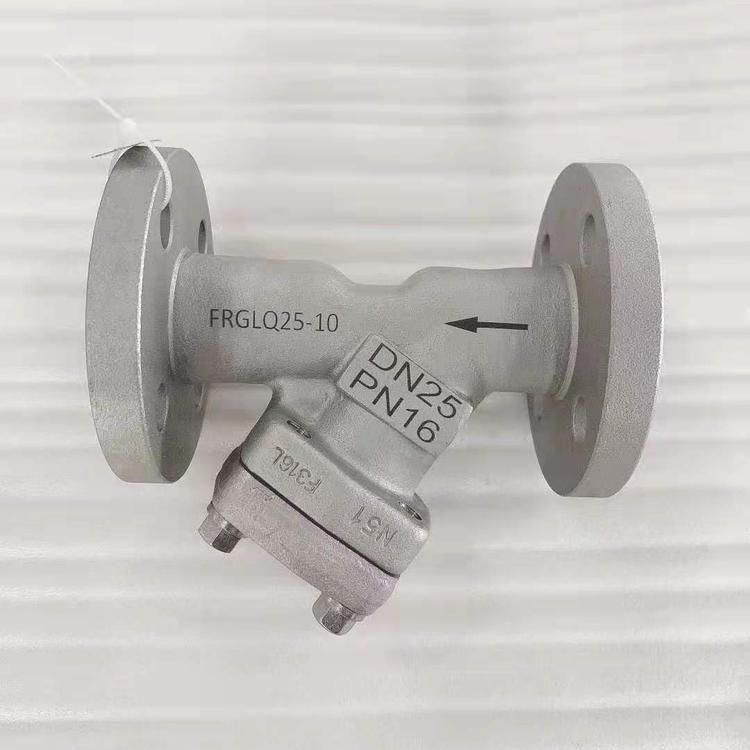

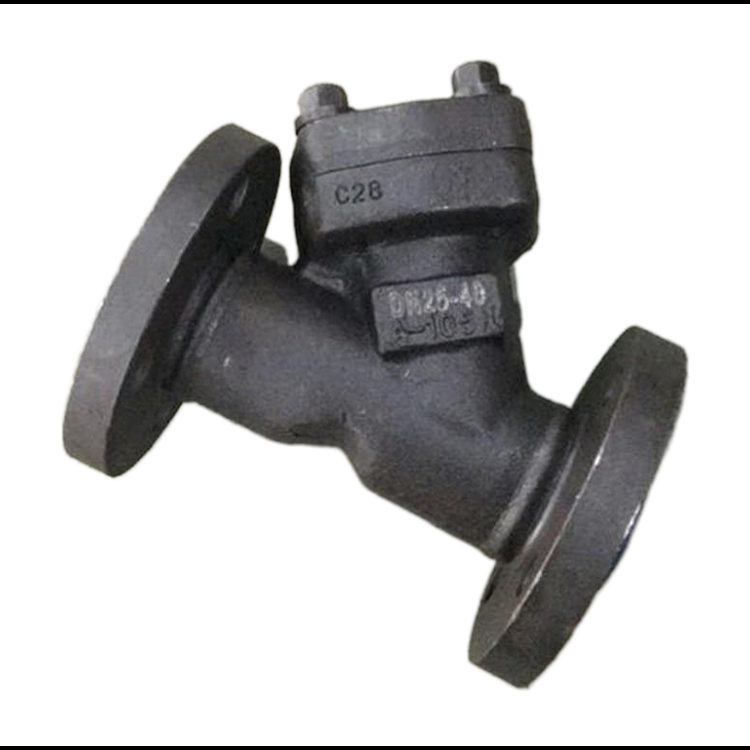

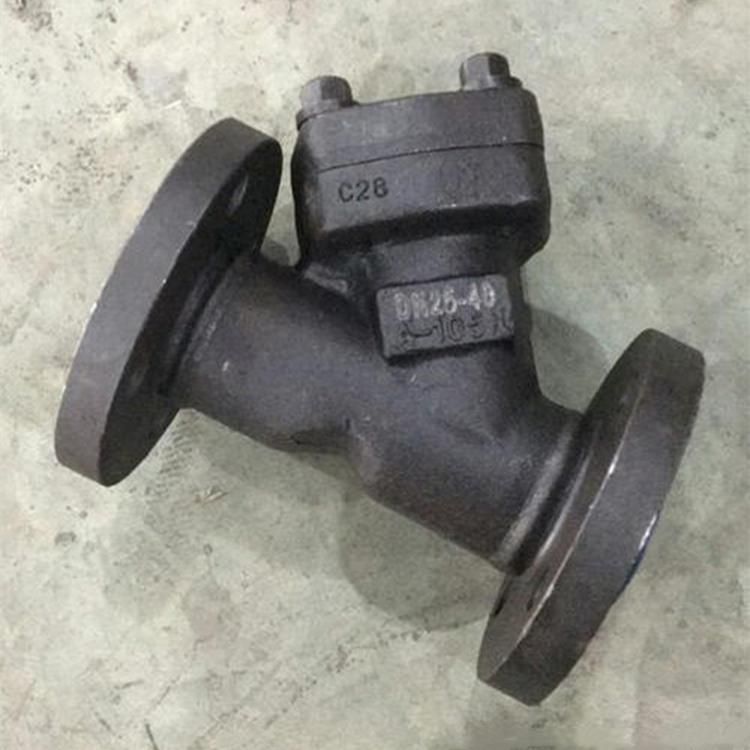

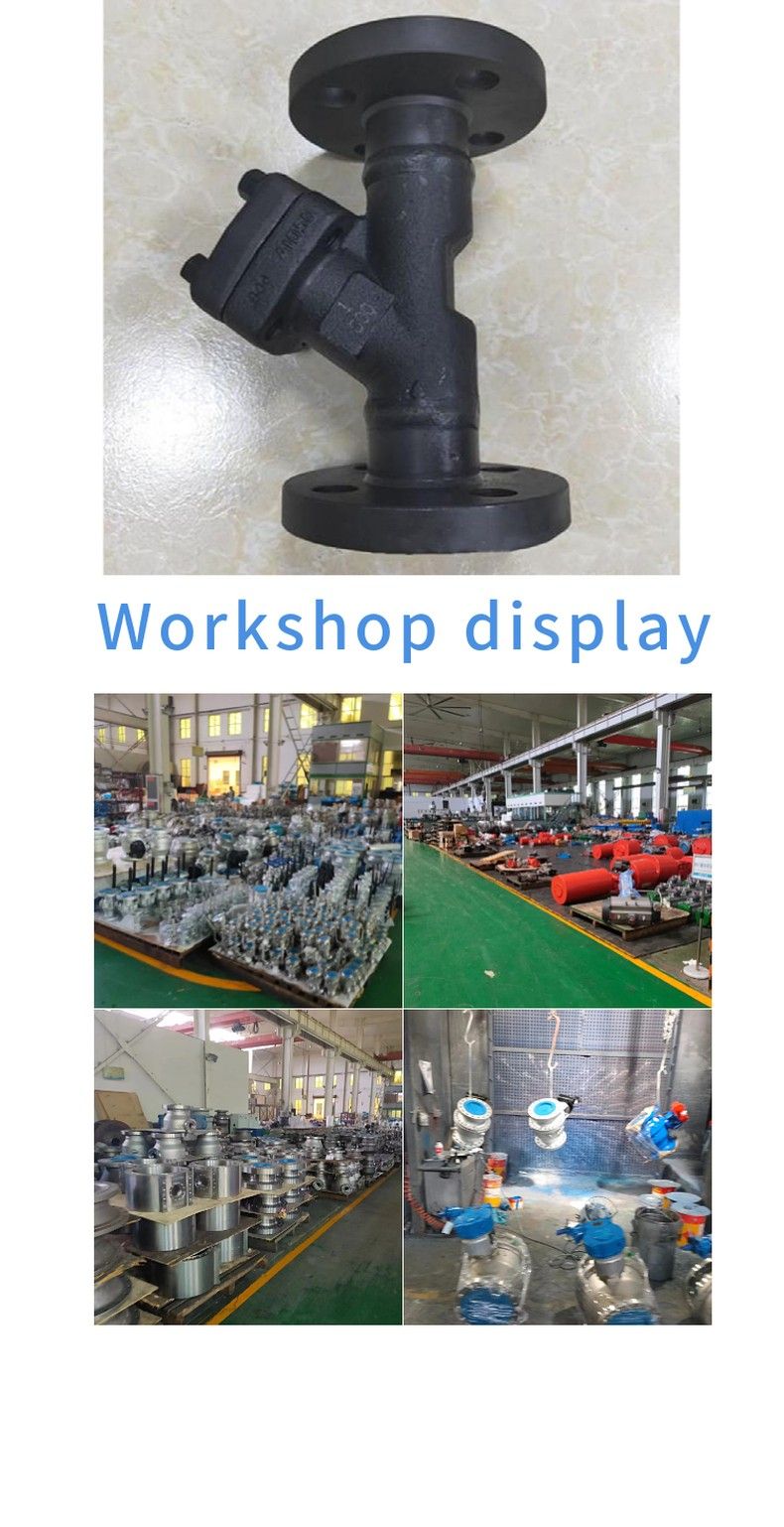

H45H-Y forged steel check valve

Share:

Y-type forged steel check valve product overview:
"Y" type forged steel valve has three kinds of valve cover design form: the first is bolt type valve cover, according to this design form of the valve, the valve body and the valve cover are connected with bolts and nuts, winding gasket (316 clamp flexible graphite manufacturing) seal. When customers have special requirements, metal ring can also be used to connect. The second design form is welded valve cover, sweep this design form of the valve, the valve body and the valve cover with thread connection, internal pressure self-sealing ring seal.
Can be designed into a "Y" type valve has a globe valve and a check valve
Y" type valve design structure and features:
 "Y" type stop valve and check valve valves comply with ANSI 16.34. Inspection and test according to API598, marking according to MSS-SP-25.

Use the following structure:
Full diameter and reduced diameter
lift and ball check valves
as required built-in spring
removable practice valve disc
custom pressure plate pressed sleeve type
integral upper seal seat
pole support type (OS&Y)
bolted connection, wound gasket sealed valve cover, Threaded connection, fully welded seal valve cover and threaded connection internal pressure self-tightening valve cover
socket end in line with ASMEB16.11
Threaded connection end (NPT) in line with ANSI/ASMEB1.20.1
 Valve disc can be converted into needle type, throttle type, ball type, check type

Y-type forged steel check valve related pressure:
 800LB
 900LB ~ 2500LB
 800LB

Y" type valve design structure and features:
 "Y" type stop valve and check valve valves comply with ANSI 16.34. Inspection and test according to API598, marking according to SS-SP-25.
 Using the following structure
 full diameter and reduced diameter
 lift and ball check valve
 as required built-in spring
 removable practice valve disc
 custom pressure plate pressed sleeve type
 integral upper seal seat
 pole bracket (OS&Y)
 bolt connection, wound gasket sealed valve cover, Threaded connection, fully welded seal valve cover and threaded connection internal pressure self-tightening valve cover
 socket end in line with ASMEB16.11
 Threaded connection end (NPT) in line with ANSI/ASMEB1.20.1
 Valve disc can be converted into needle type, throttle type, ball type, check type

Relevant pressure:
 800LB
 900LB ~ 2500LB
 800LB

Specification of Y forged steel check valve standard material

Serial numberPart nameCStoASTMAStoASTMSStoASTM
A105F22F304(L)F316(L)
1Valve bodyA105A182F22A182F304(L)A182F316(L)
2Valve flapA276420A276304A276 304(L)A276316(L)
3BonnetA105A182F22A182F304(L)A182F316(L)
4Name PlateSS
Applicable mediaWater, steam, oil, etcWater, steam, oil, etcNitric acid, acetic acid, etc
Applicable temperature-29 ºC ~ 425ºC-29 ºC ~ 550ºC-29 ºC ~ 200ºC

Note: Other materials required by customers can also be used. Sealing surface material matching customer specified interior code decision
CS= carbon steel; AS= alloy steel; SS= stainless steel;
Y-shaped forged steel check valve size (MM) and weight (KG)

NPSReduced sizing3/8"1/2"3/4"1"1 1/4"1 1/2"2"
Full diameter
3/8"1/2"3/4"1"1 1/4"1 1/2"2"
L9898110120140140170200
H (open)858595105114114132145
Weight3.13.03.76.58.58.010.912.5
